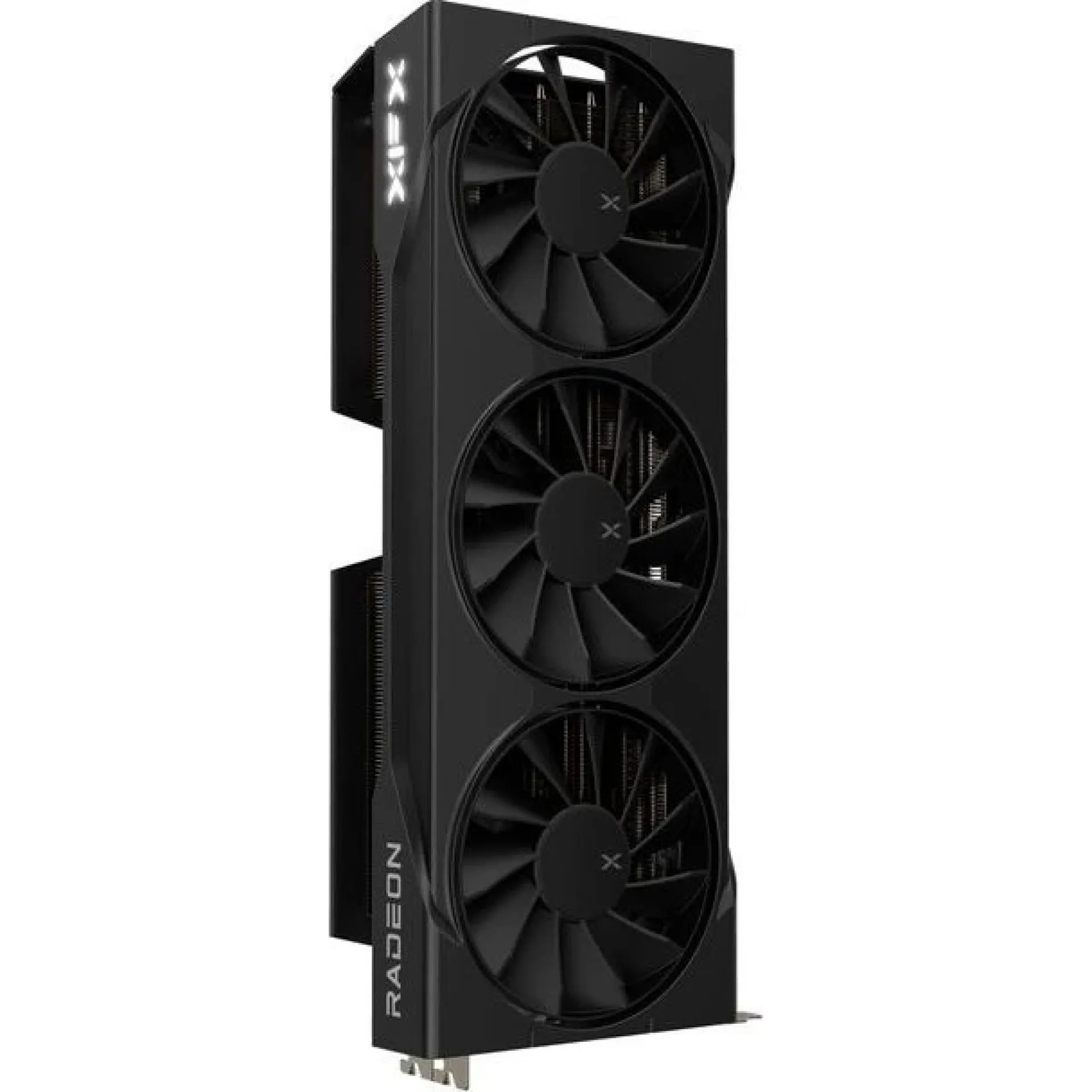

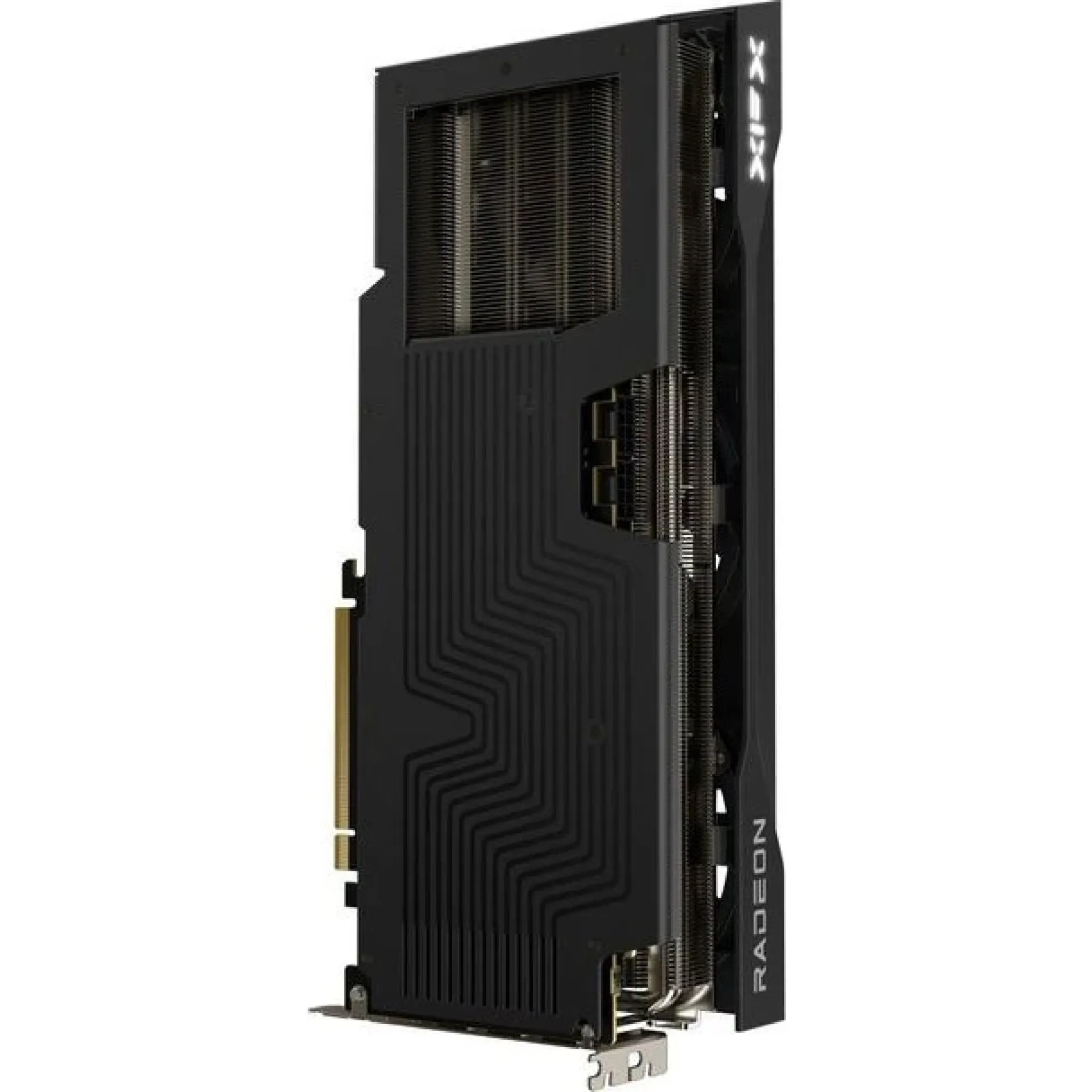

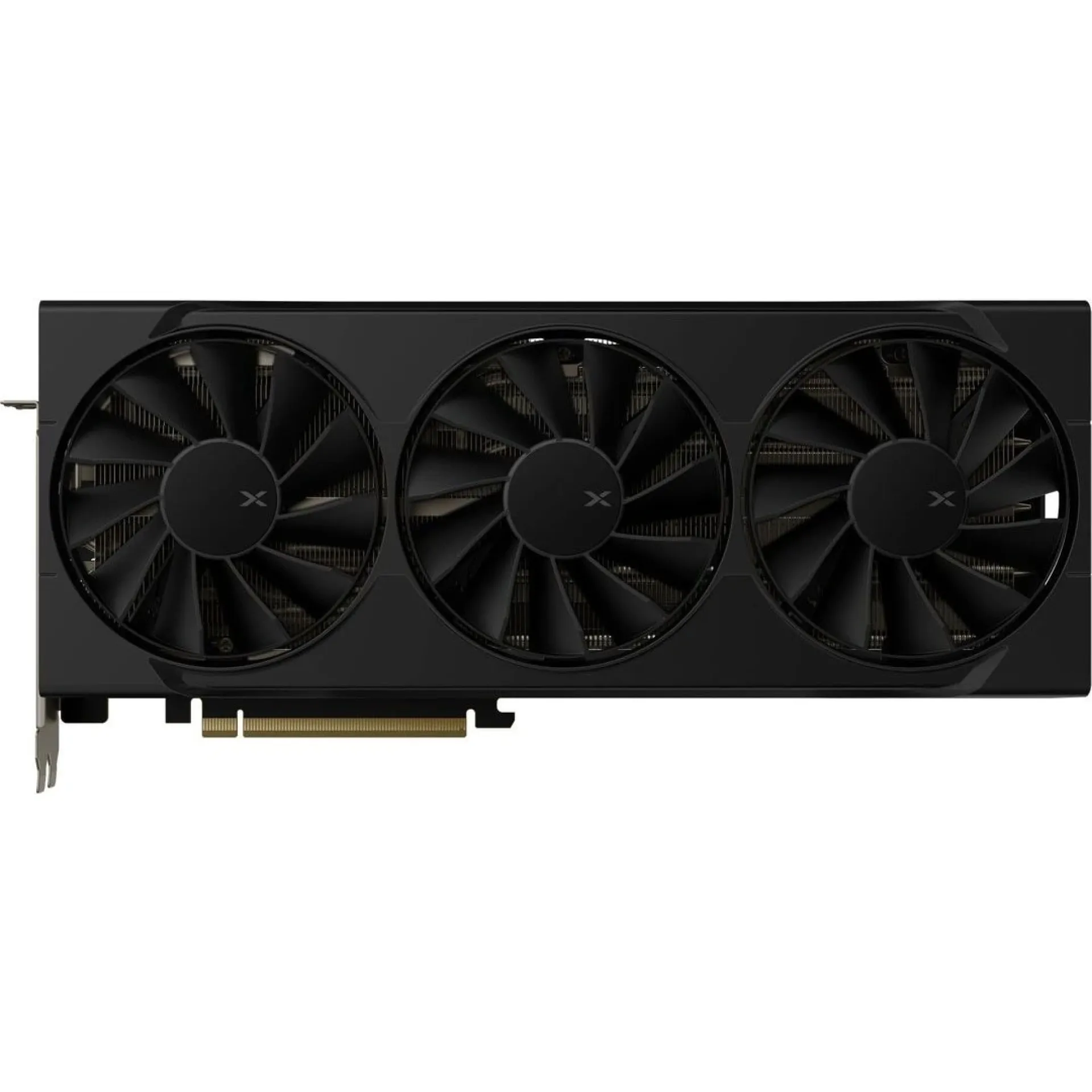

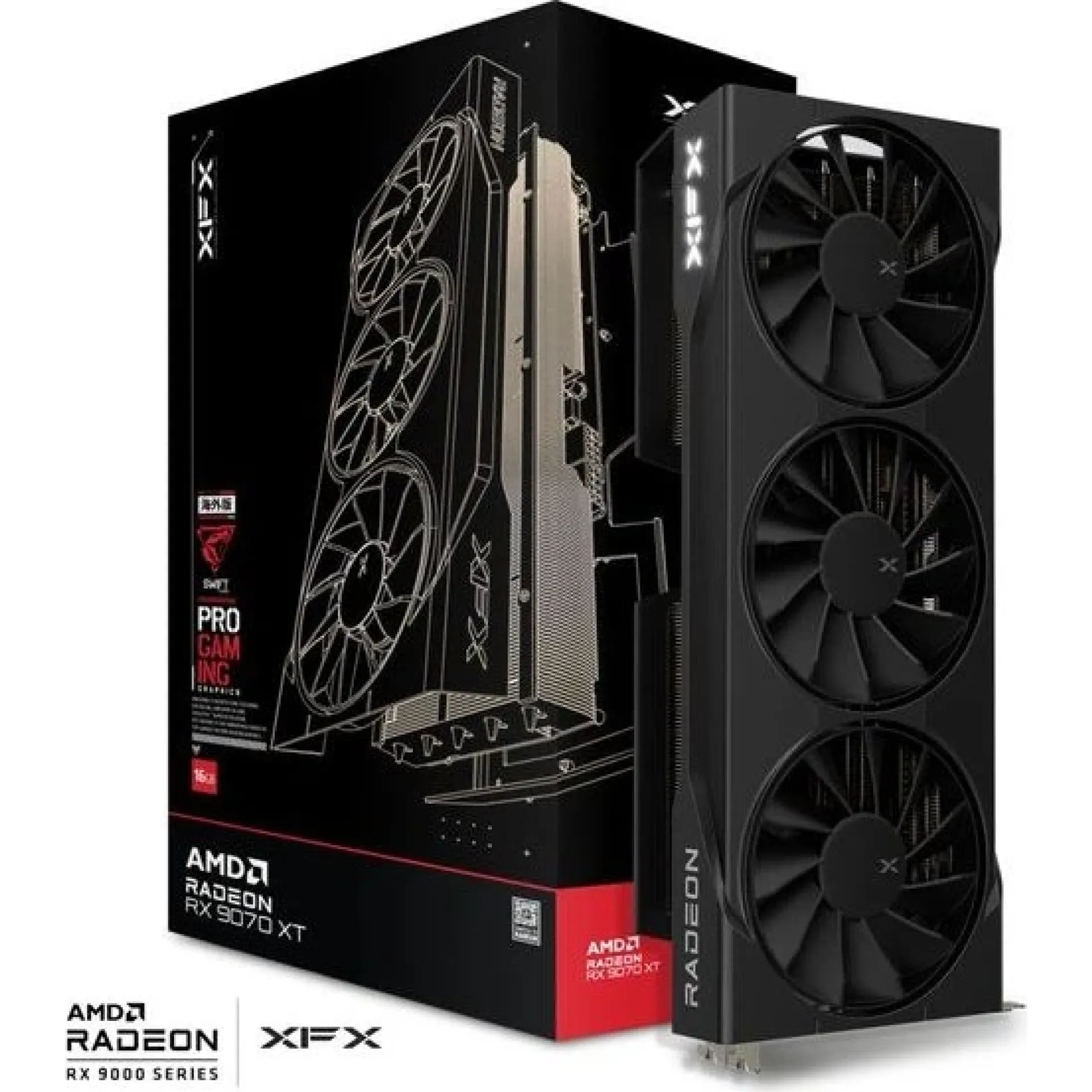

RX-97TSWF3B9 XFX AMD Radeon RX 9070 XT 16GB GDDR6 2970MHz 640GB/s GPU

High-Performance PCIe 5.0 GPU Accelerator for Workstation and Compute Density with the RX-97TSWF3B9

The RX-97TSWF3B9 is a full-height, full-length PCIe 5.0 x16 GPU accelerator engineered around AMD Radeon RX 9070 XT (RDNA4, 5nm) to deliver predictable graphics and FP32/FP16 throughput in enterprise workstations and edge compute nodes. With 16GB GDDR6 on a 256-bit interface and high sustained bandwidth, the RX-97TSWF3B9 supports memory-sensitive rendering, simulation viewports, and inference development workflows that benefit from fast frame-to-frame data reuse and low-latency asset streaming.

Architecturally, PCIe 5.0 enables higher host-to-device transfer headroom for large datasets, multi-application pipelines, and fast iteration cycles in DCC and CAD/CAE environments. The RX-97TSWF3B9 is optimized for expansion planning with a quad-slot 3.5-slot mechanical envelope, robust triple-fan axial cooling, and dual 8-pin auxiliary power delivery, aligning with chassis designs that prioritize airflow zoning and serviceable GPU bays. Display connectivity is designed for professional multi-display deployments via 3x DisplayPort 2.1a and 1x HDMI 2.1b, enabling up to 4 concurrent outputs for control rooms, design stations, and visualization walls.

Why Choose the RX-97TSWF3B9?

The RX-97TSWF3B9 delivers a balanced density-to-performance profile for teams that require RDNA4-class rasterization, ray tracing pipelines, and modern API coverage without compromising PCIe 5.0 platform scalability. The RX-97TSWF3B9 fits standardized workstation and GPU-enabled server builds where repeatable thermals, consistent boost behavior, and predictable deployment constraints reduce integration risk.

XFX designs for sustained operation with mechanically reinforced assemblies, controlled acoustics-to-thermal tuning, and component selection aligned to continuous enterprise usage. The platform focus is compatibility with current data centre and workstation standards, including DirectX 12 Ultimate, Vulkan 1.3, and HDCP 2.3.

Key Applications:

• CAD/CAE workstation acceleration
• DCC rendering and real-time viewport workflows
• Multi-display visualization and control rooms
• FP32/FP16 compute and inference development
• Ray tracing and real-time rendering pipelines

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment requirements for the RX-97TSWF3B9 and the option to extend the warranty up to 6 years to protect long-lived workstation and GPU node investments.
