RX-97SWFB3B9 XFX AMD Radeon RX 9070 16GB GDDR6 2700MHz 640GB/s GPU

High-Performance Full-Height Quad-Slot Discrete GPU for PCIe 5.0 Workstations with the RX-97SWFB3B9

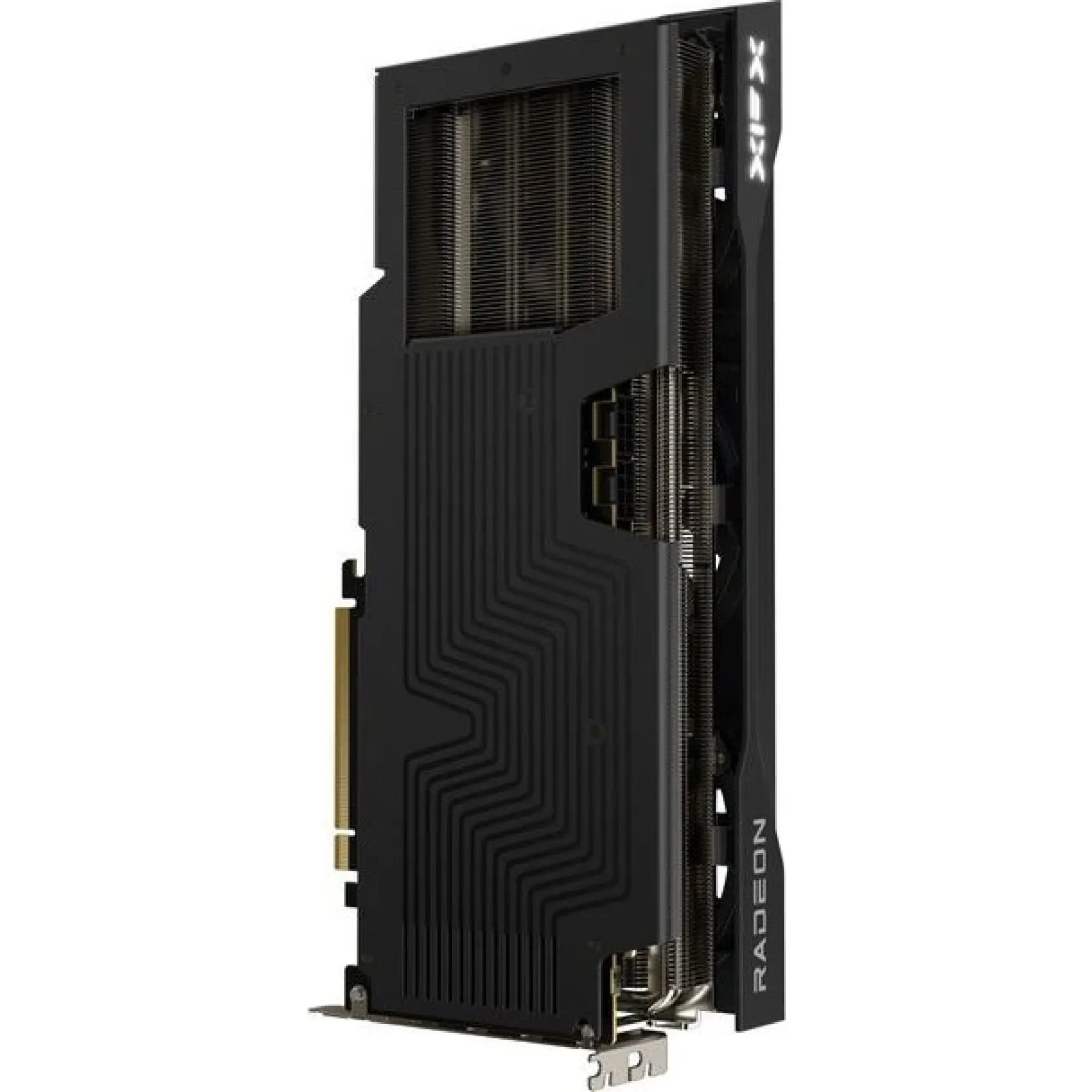

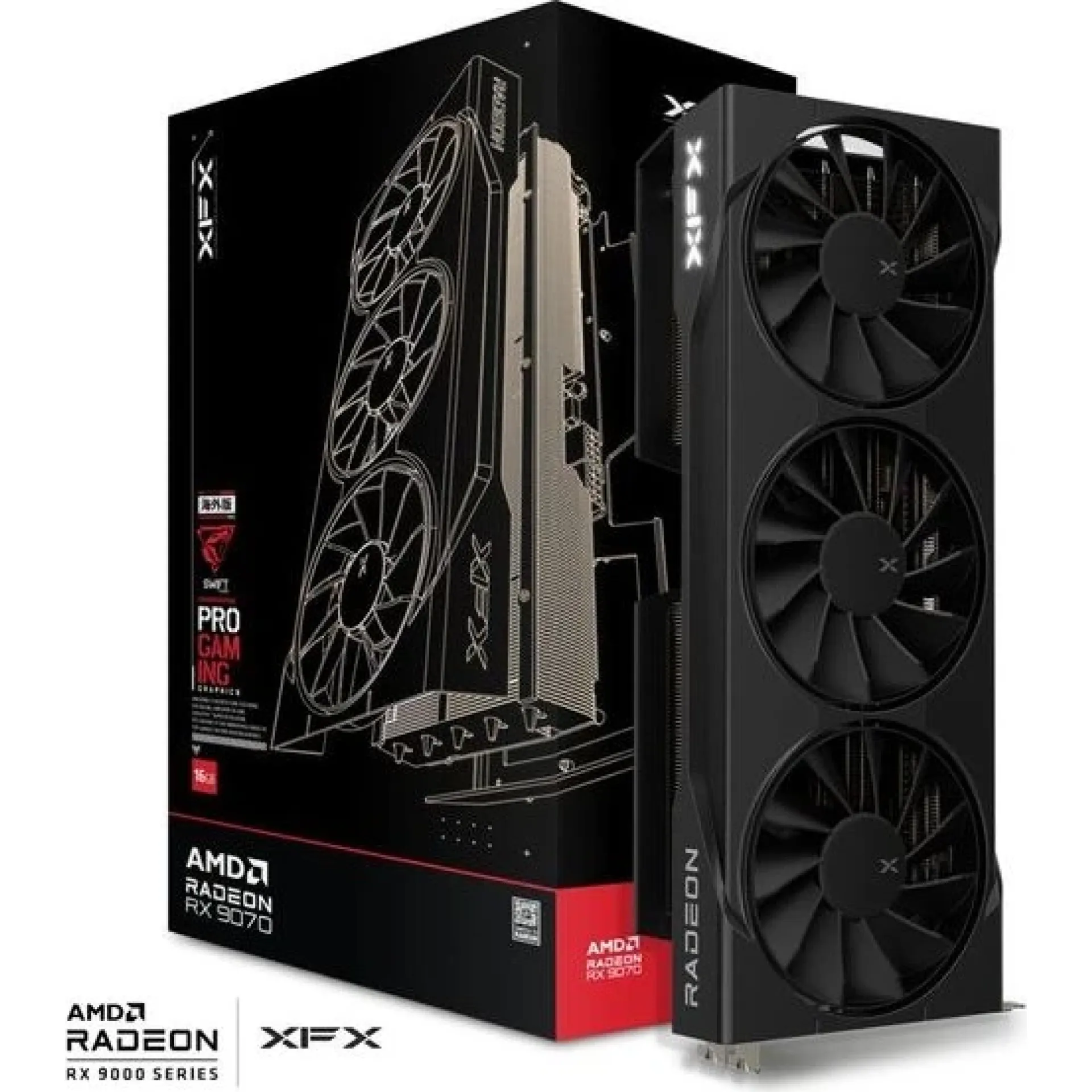

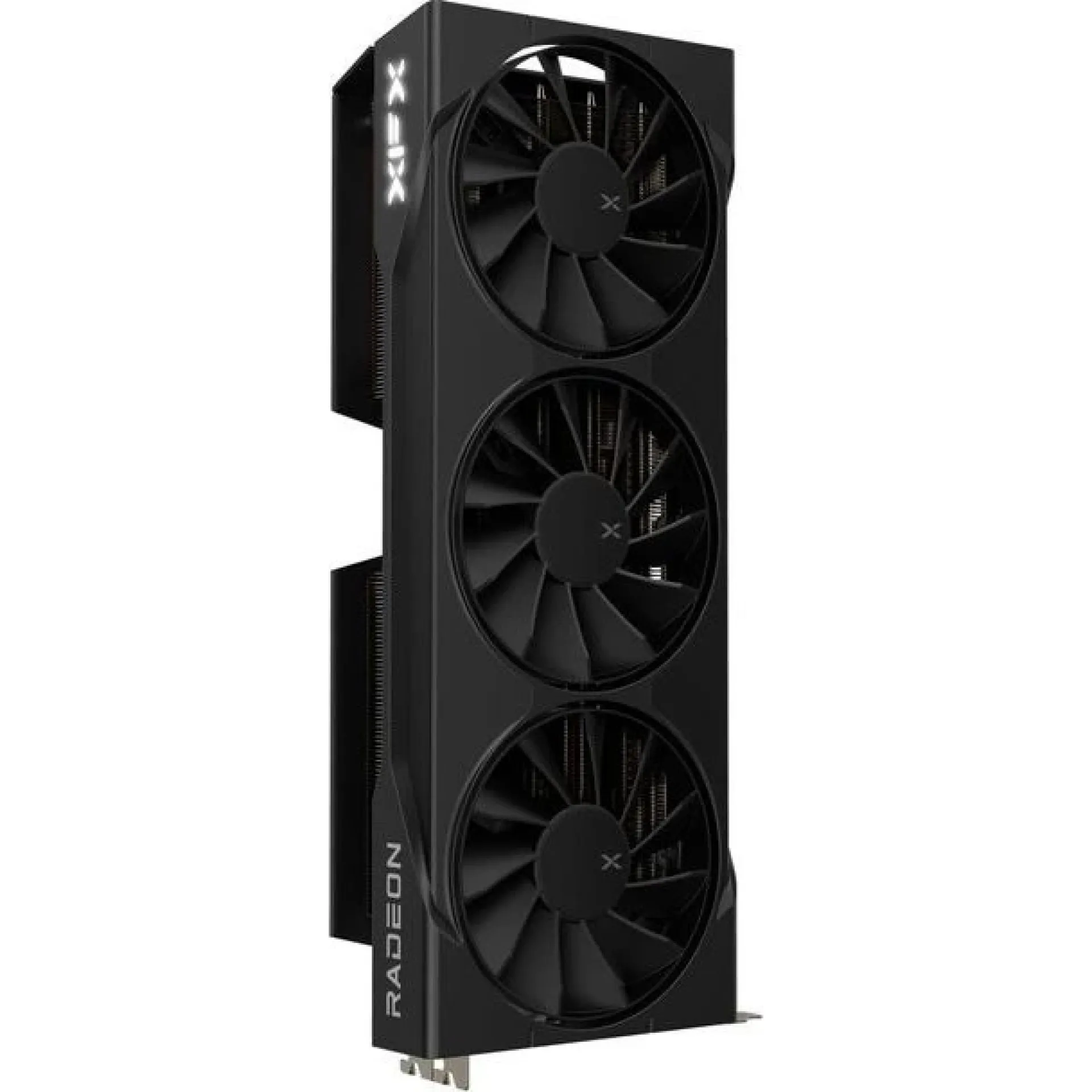

The RX-97SWFB3B9 is an XFX add-in graphics card based on AMD Radeon RX 9070 (RDNA4), engineered for enterprise workstations and GPU-enabled desktops that require predictable throughput, modern display connectivity, and a PCIe 5.0 x16 host interface. With 4096 stream processors on a 4nm process, the architecture targets high FP32/FP16 execution density for CAD visualization, media pipelines, and developer-oriented compute where the Radeon software stack is operationally acceptable.

Memory is provisioned as 16GB GDDR6 on a 256-bit bus, delivering 640GB/s bandwidth to sustain large working sets and high-resolution assets without frequent host transfers. The RX-97SWFB3B9 leverages PCIe 5.0 x16 for low-latency asset streaming and rapid dataset staging, while DirectX 12 Ultimate, Vulkan 1.3, and hardware ray tracing support modern rendering paths. For display infrastructure, three DisplayPort 2.1a plus one HDMI 2.1b enable up to 4 synchronized outputs for multi-panel engineering or control-room deployments.

Why Choose the RX-97SWFB3B9?

The RX-97SWFB3B9 offers a balanced density-to-performance profile for workstation racks and tower fleets, combining strong FP32/FP16 peak throughput with a practical 16GB memory footprint and PCIe 5.0 bandwidth headroom. Its full-height, quad-slot mechanical design and 220W TDP align with controlled airflow chassis planning, while triple-fan cooling and a backplate support sustained utilization in managed enterprise environments.

XFX focuses on robust board design and thermals to keep clocks stable under continuous loads, with RoHS compliance and integration-friendly characteristics that fit modern data centre standards for serviceability and platform consistency. The RX-97SWFB3B9 is suited to standardized workstation builds where predictable GPU behavior matters.

Key Applications:

• CAD and 3D visualization
• Multi-display engineering desktops
• GPU-accelerated rendering and encoding
• FP32/FP16 compute and development
• Real-time ray-traced workflows

At Happyware - Server Hardware you benefit from non-binding offers tailored to your workstation or rack deployment plan for the RX-97SWFB3B9, and can secure an extended warranty up to 6 years to protect long-lifecycle enterprise rollouts.
