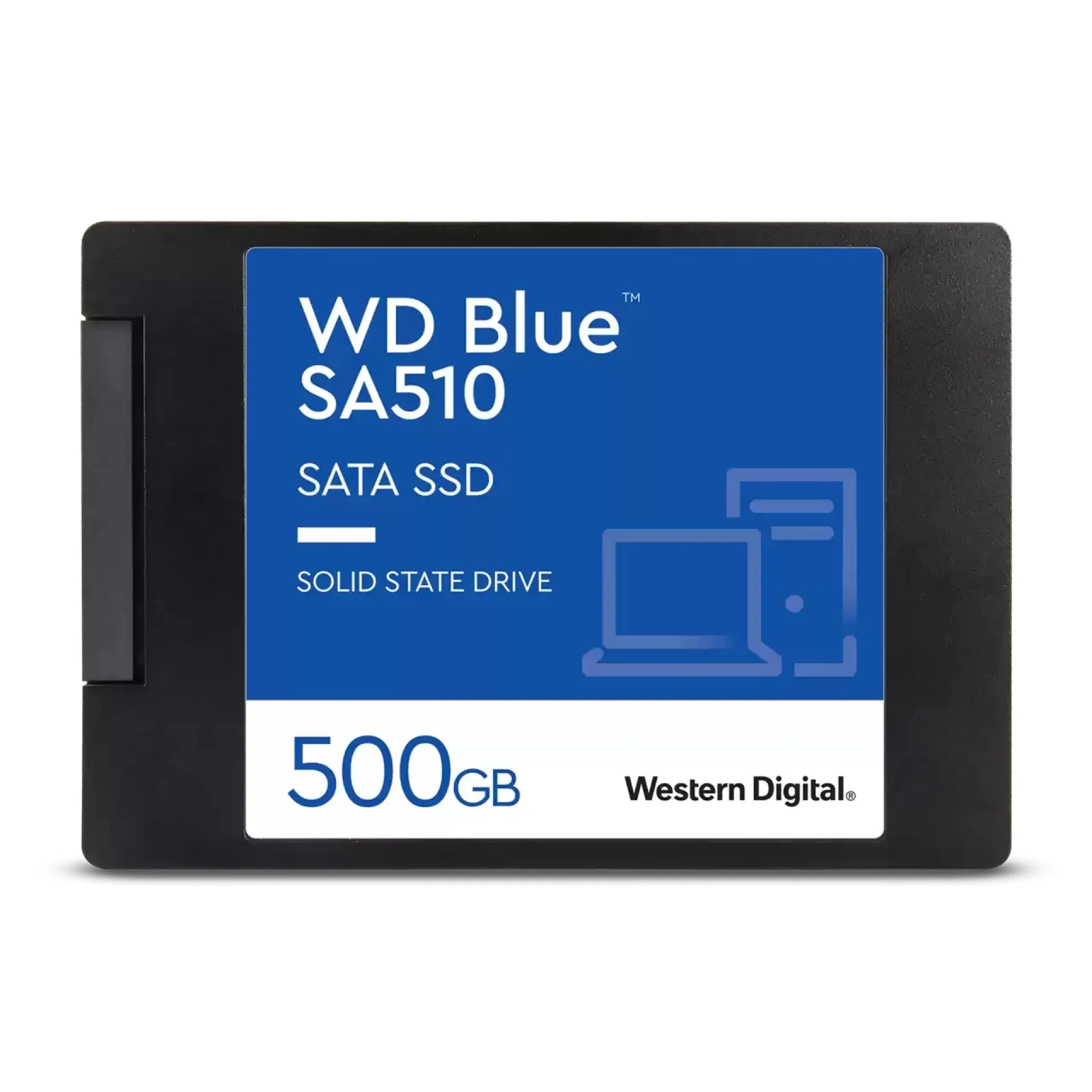

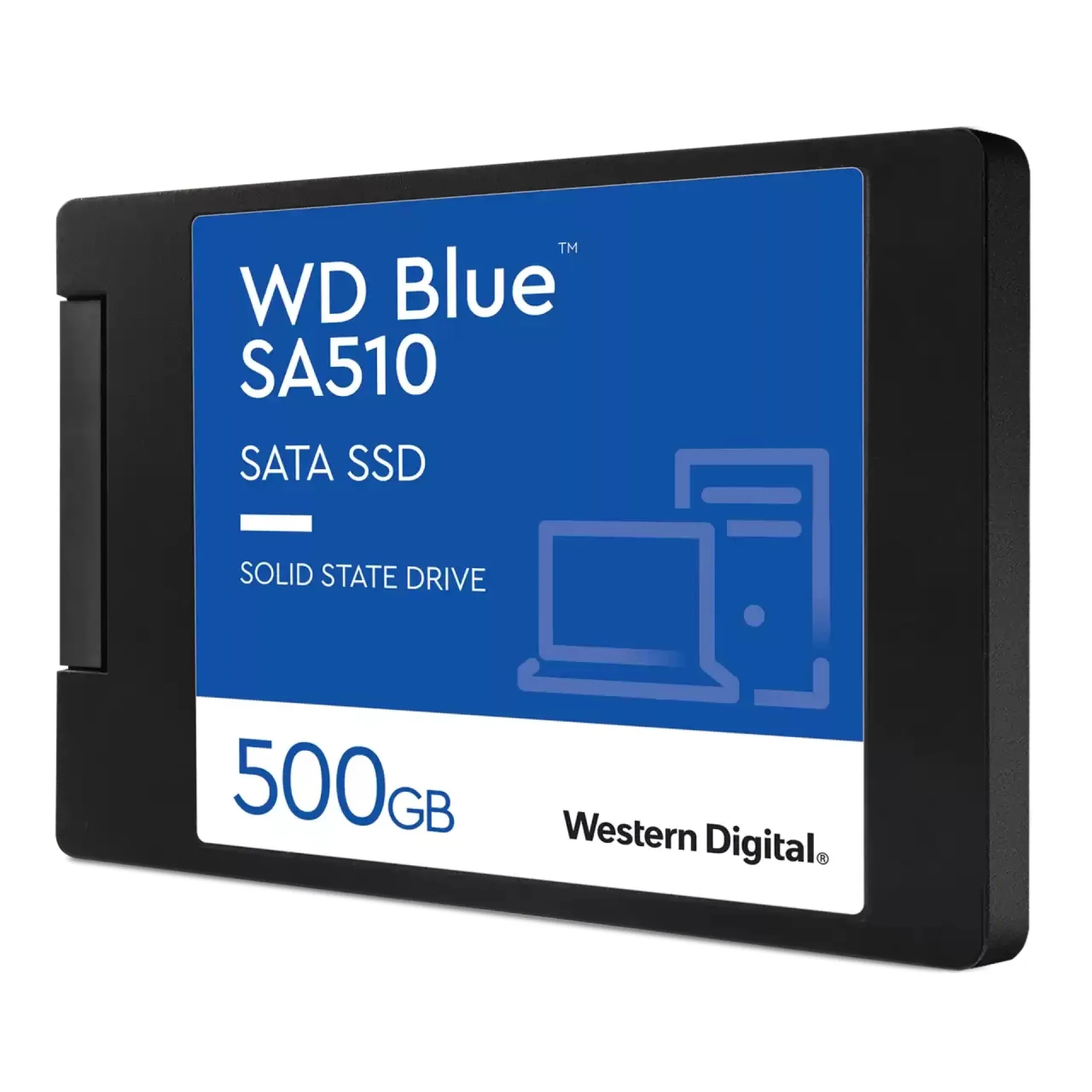

WDBB8H5000ANC-WRSN WD Blue SA510 500GB SATA 2.5" Server SSD

*Picture may not be exactly the same as the product

Product line:

WD Blue

See all HDDs / SSDs

See other WD products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH426117-771999

Manufacturer Number:

WDBB8H5000ANC-WRSN

Brand:

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

WDBB8H5000ANC-WRSN

Enterprise 2.5in SATA SSD for OS and application storage featuring 3D NAND TLC with the WDBB8H5000ANC-WRSN

The WDBB8H5000ANC-WRSN is a 500GB 2.5in internal SATA SSD engineered for predictable boot and application responsiveness in workstations, appliances, and general compute servers. By pairing a SATA 6Gb/s interface with 3D NAND TLC flash, the WDBB8H5000ANC-WRSN targets platforms where CPU and memory resources are already fixed and storage latency and queue handling drive the practical user experience.

Architecturally, the WDBB8H5000ANC-WRSN fits cleanly into legacy and mixed-generation fleets where PCIe/NVMe lanes are reserved for accelerators, high-speed networking, or dense PCIe expansion. Sequential throughput up to 560 MB/s read and 510 MB/s write, alongside random 4K performance up to 90K/82K IOPS, supports OS images, patching, and application launch patterns while keeping power and thermal profiles aligned with edge and embedded enclosures. Endurance is rated at 200 TBW (0.2 DWPD reference) and reliability at 2.25M hours MTBF for steady operational duty cycles.

Why Choose the WDBB8H5000ANC-WRSN?

The WDBB8H5000ANC-WRSN delivers a disciplined density-to-performance ratio for SATA-based bays, enabling consistent fleet builds where serviceability and broad compatibility matter more than peak NVMe bandwidth. It scales as a standardized boot or secondary tier across many nodes, reduces variability in provisioning, and supports enterprise maintenance windows with predictable write endurance.

WD designs the WD Blue SA510 family with a focus on controlled firmware behavior, qualification for common system architectures, and reliability metrics aligned to modern data centre operational practices. The result is a storage component that integrates smoothly into existing monitoring, imaging, and lifecycle management processes.

Key Applications:

Workstation OS and application drive
Server boot and secondary storage
Edge systems local storage
Appliance and embedded compute

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support deployment planning and order execution for WDBB8H5000ANC-WRSN rollouts, and you can extend the warranty up to 6 years to align storage coverage with your platform lifecycle.

Technical details of WDBB8H5000ANC-WRSN

Capacity:

500GB

Form Factor:

2.5"

Interface:

SATA

Speed Reading:

560MB/s

Speed Writing:

510MB/s

Total Bytes Written (TBW):

200TB

Drive Writes Per Day (DWPD):

0.2

Suitability:

Workstation

Encryption:

Mean Time Between Failures (MTBF):

2250000

Power Consumption Operation:

0.05W

Recording Process:

3D-NAND TLC

Height:

7mm

How long is the Warranty and how you can get technical support for WDBB8H5000ANC-WRSN

Warranty:	36 months (part)
RMA Url:	https://support-de.wd.com/app/rmastatus/
Description:	The item must be returned first for evaluation; if deemed defective, a replacement will be shipped. No guaranteed delivery times are offered
