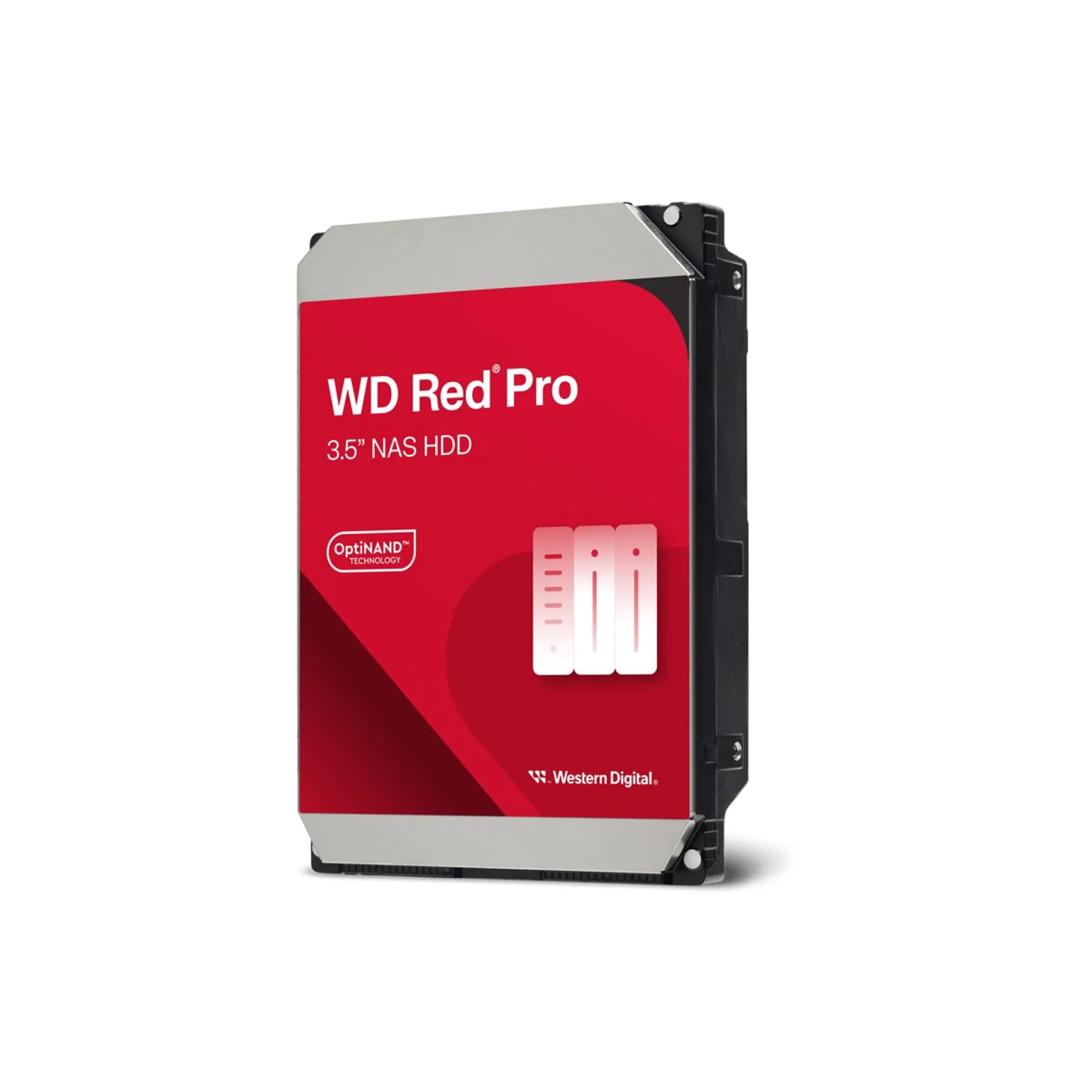

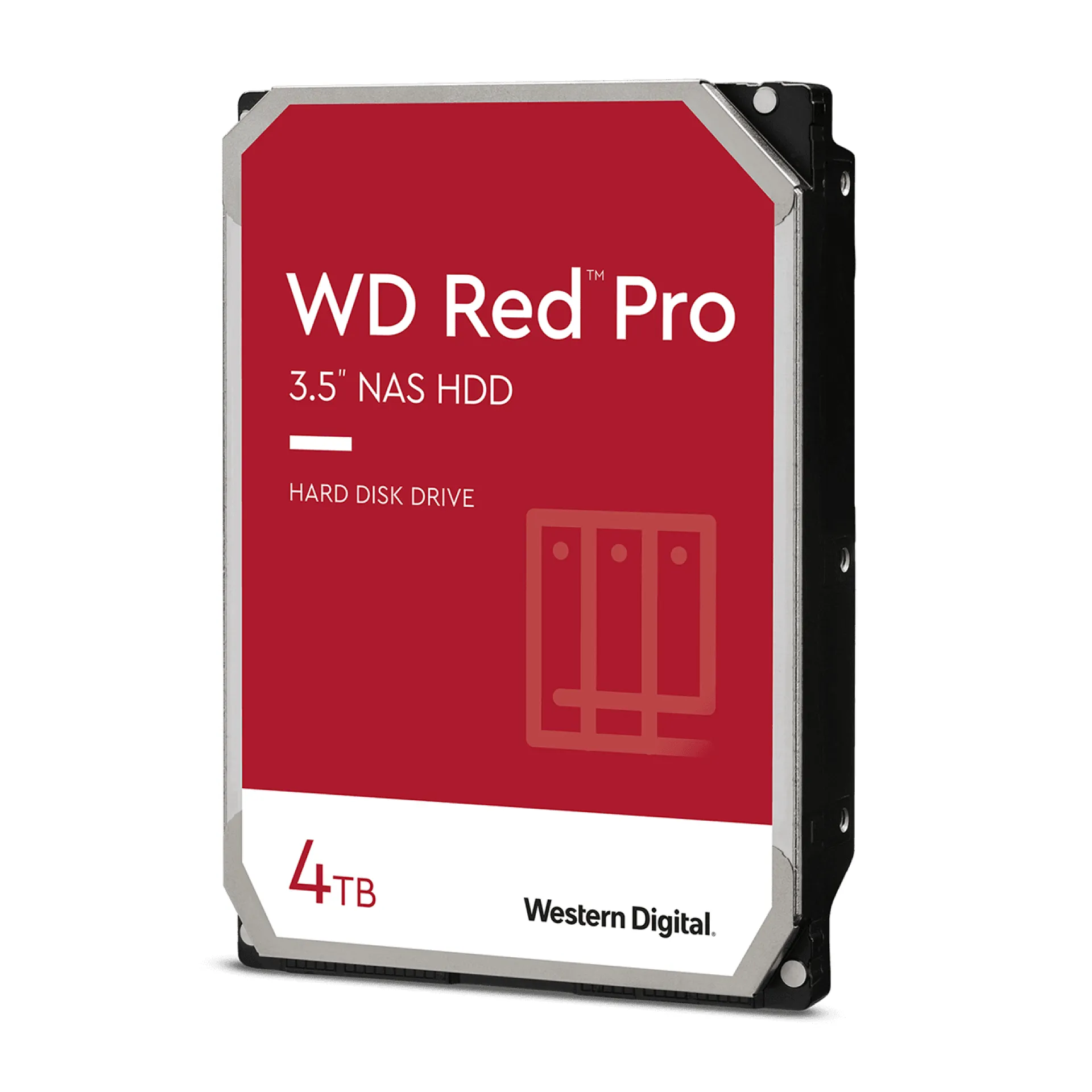

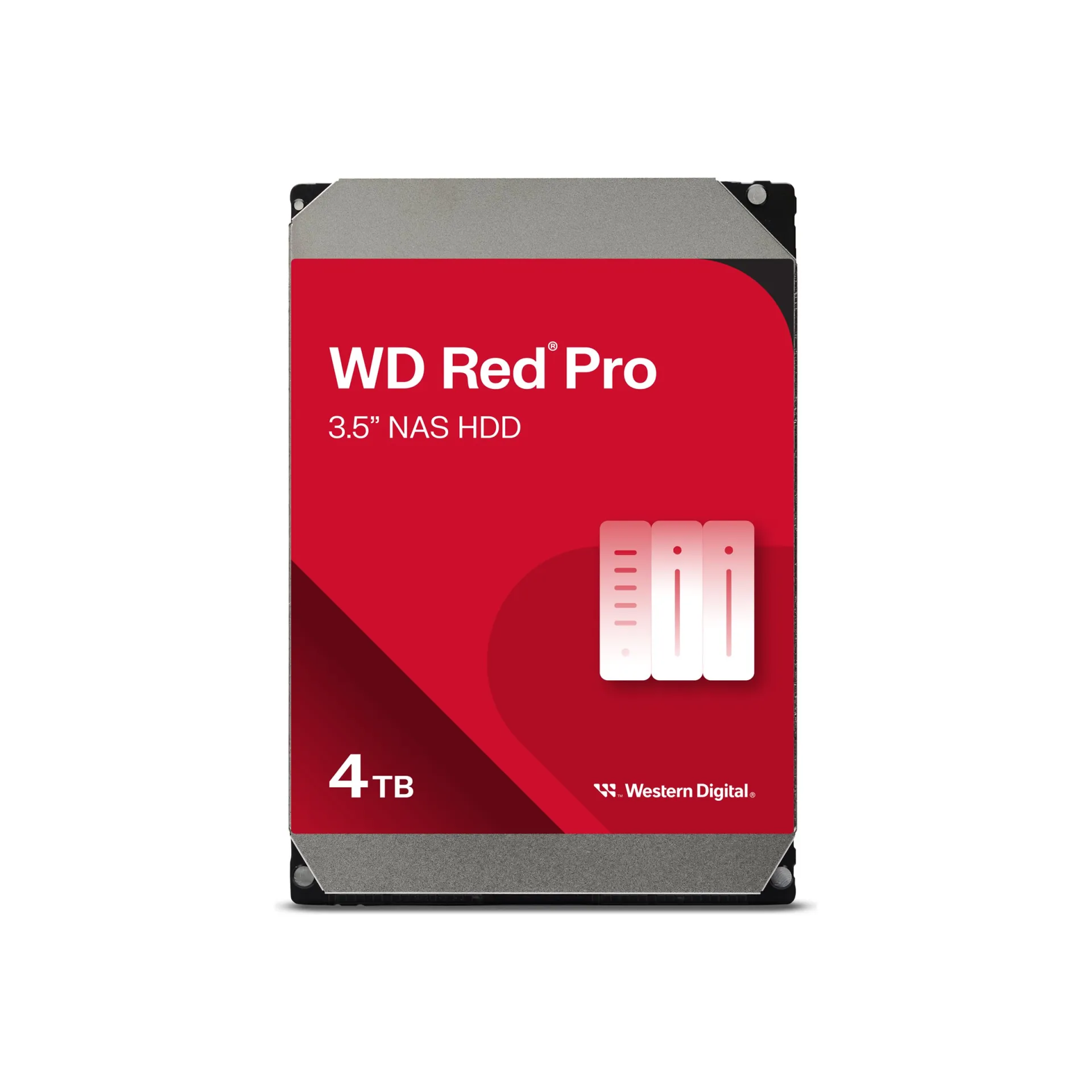

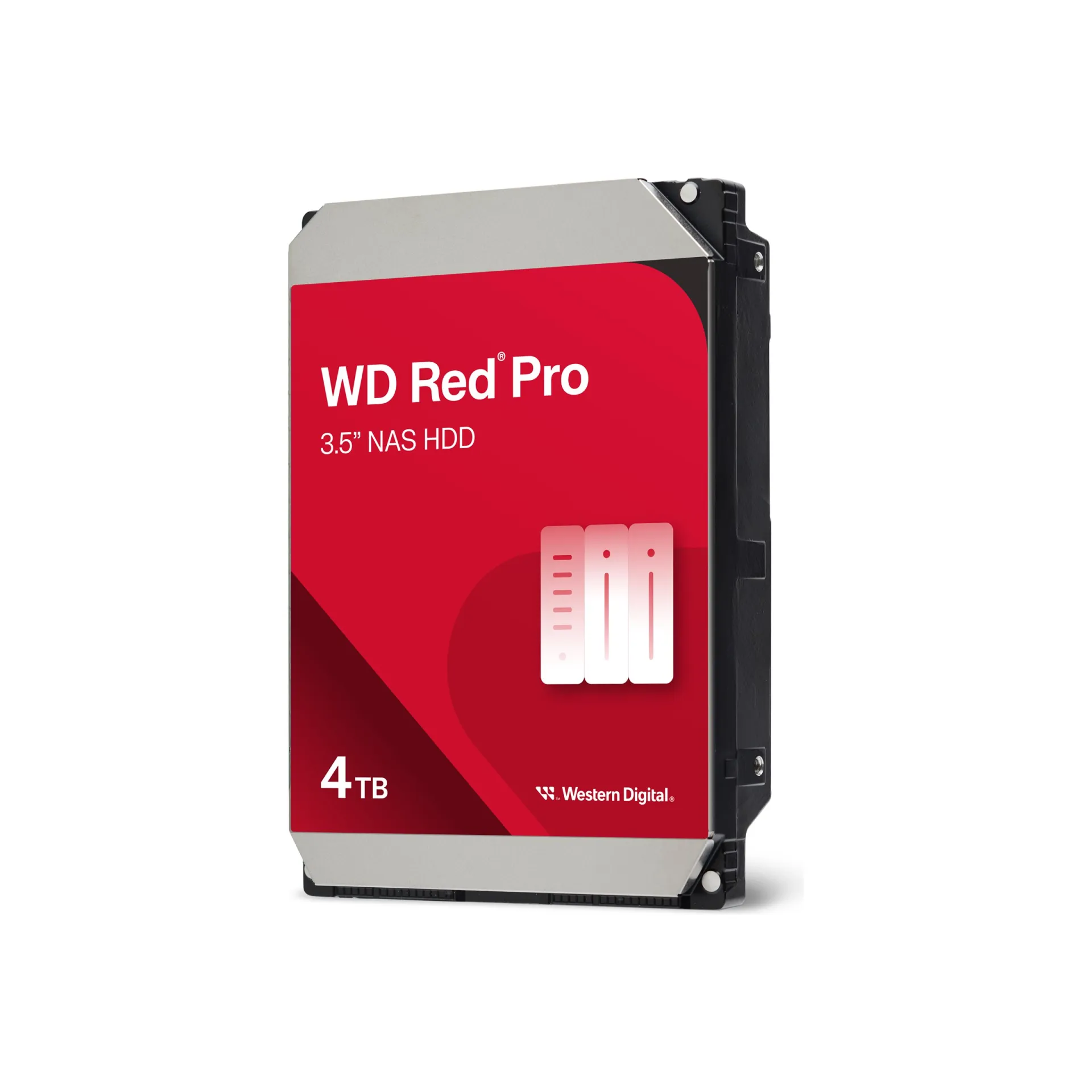

WD4005FFBX WD Red Pro 4TB SATA 256 MB 3.5" Server HDD

High-Performance 3.5" SATA NAS/Server HDD featuring CMR endurance with the WD4005FFBX

The WD4005FFBX is a 4TB 3.5" internal HDD engineered for always-on NAS and server storage tiers where predictable latency and RAID stability matter more than burst performance. Integrated via a standard SATA link into contemporary Intel Xeon or AMD EPYC platforms, the WD4005FFBX complements high-memory nodes by providing economical capacity for file services, backup landing zones, and edge retention without consuming PCIe lanes that are better reserved for NVMe and accelerator expansion.

Architecturally, the WD4005FFBX uses CMR recording to sustain consistent write behavior under multi-user workloads and during RAID rebuilds, while 512e formatting supports broad OS and controller compatibility in mixed fleets. A 256MB cache and 7200 RPM mechanics help maintain throughput for parallel streams, and enterprise-focused error recovery control aligns the drive’s response profile with common NAS/RAID controllers to reduce dropouts under correction events.

Why Choose the WD4005FFBX?

The WD4005FFBX targets SMB and branch deployments that need density-per-bay with controlled rebuild risk and 24x7 duty operation. By combining RAID-aware error handling, vibration management, and a 2.0M-hour MTBF profile, the WD4005FFBX scales cleanly from small NAS appliances to multi-bay arrays where consistent behavior across drives is critical for availability and predictable maintenance windows.

WD designs the WD Red Pro family around measurable reliability in constrained enclosures, emphasizing rotational vibration tolerance, balanced mechanics, and firmware tuned for NAS workloads. The WD4005FFBX reflects this approach with RV and multi-axis shock sensing plus 3D Active Balance Plus to support modern rack and edge chassis standards where vibration coupling can impact array performance.

Key Applications:

• SMB and branch NAS arrays
• RAID rebuild-sensitive storage pools
• Always-on file services
• Backup repositories
• Edge retention for surveillance and archive

At Happyware - Server Hardware you benefit from non-binding offers tailored to your storage design and rollout scope, and you can extend the warranty up to 6 years to align the WD4005FFBX deployment with enterprise refresh cycles and risk policies.
