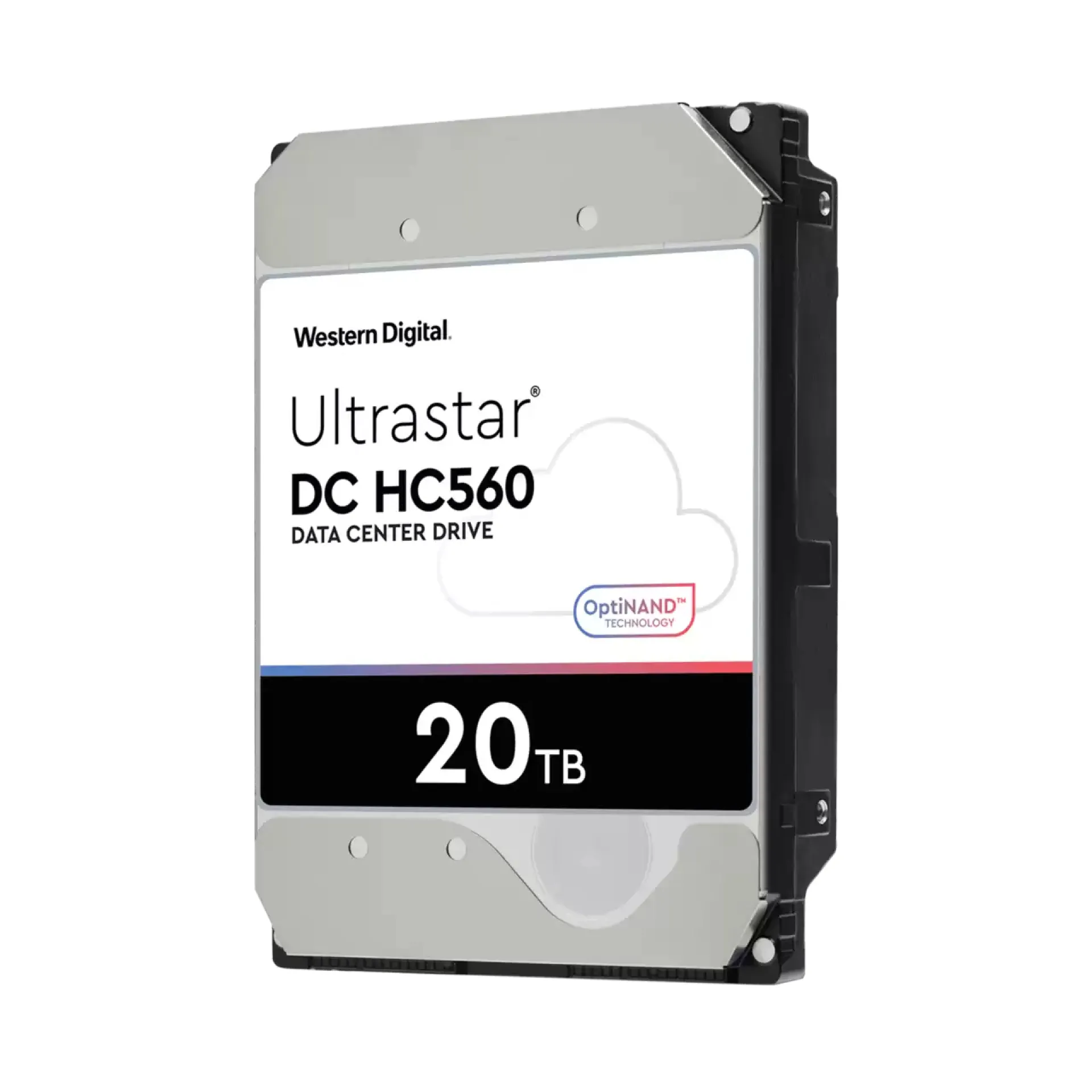

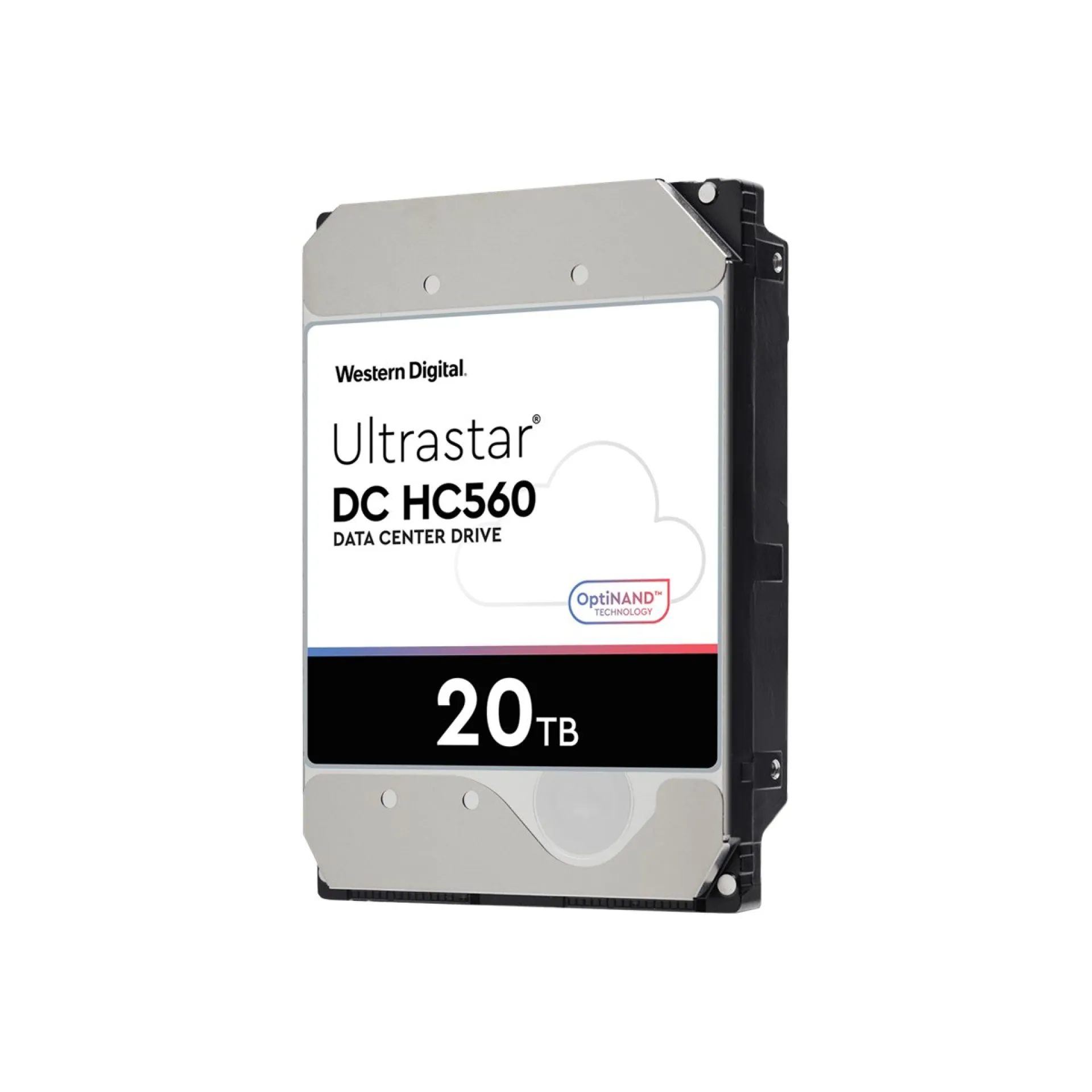

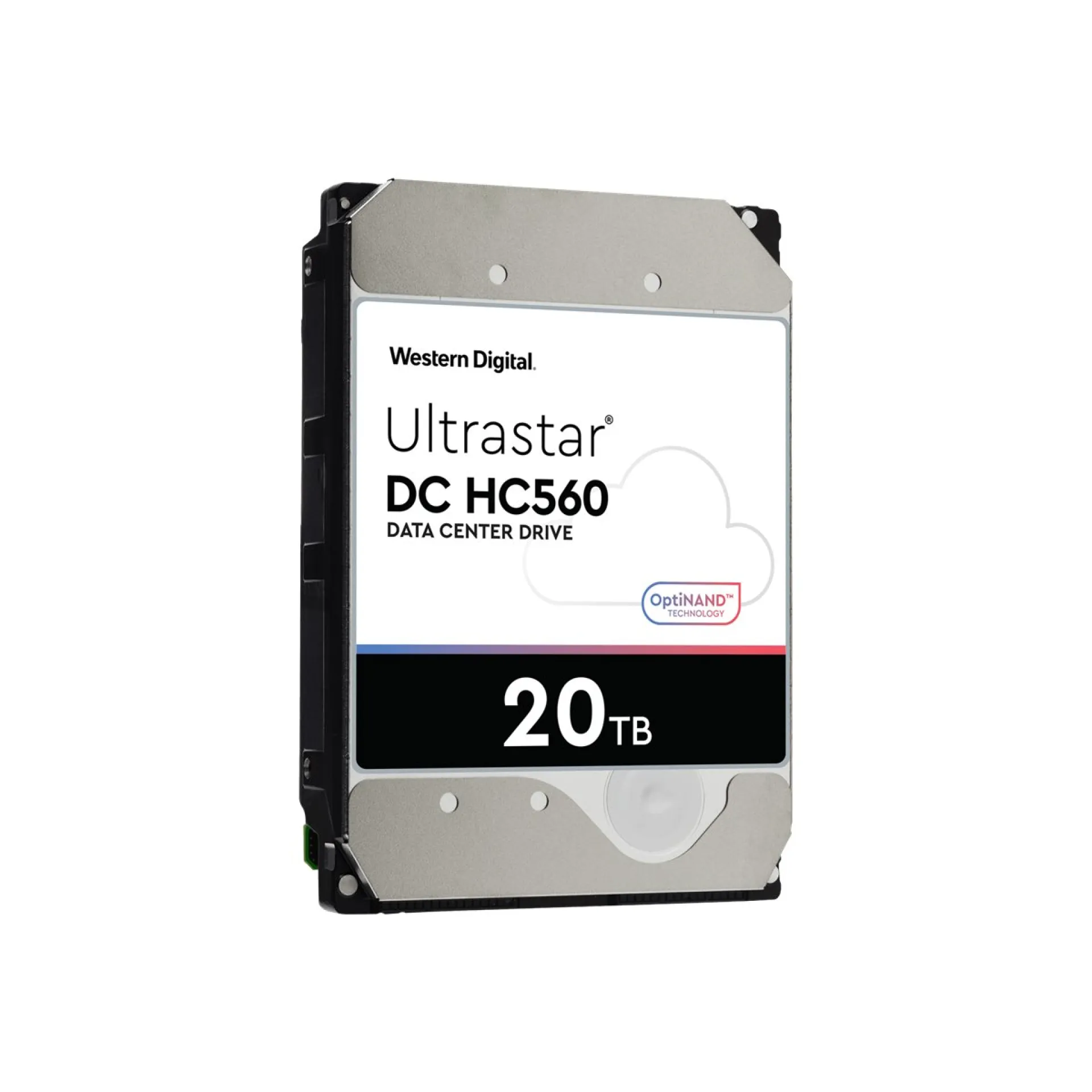

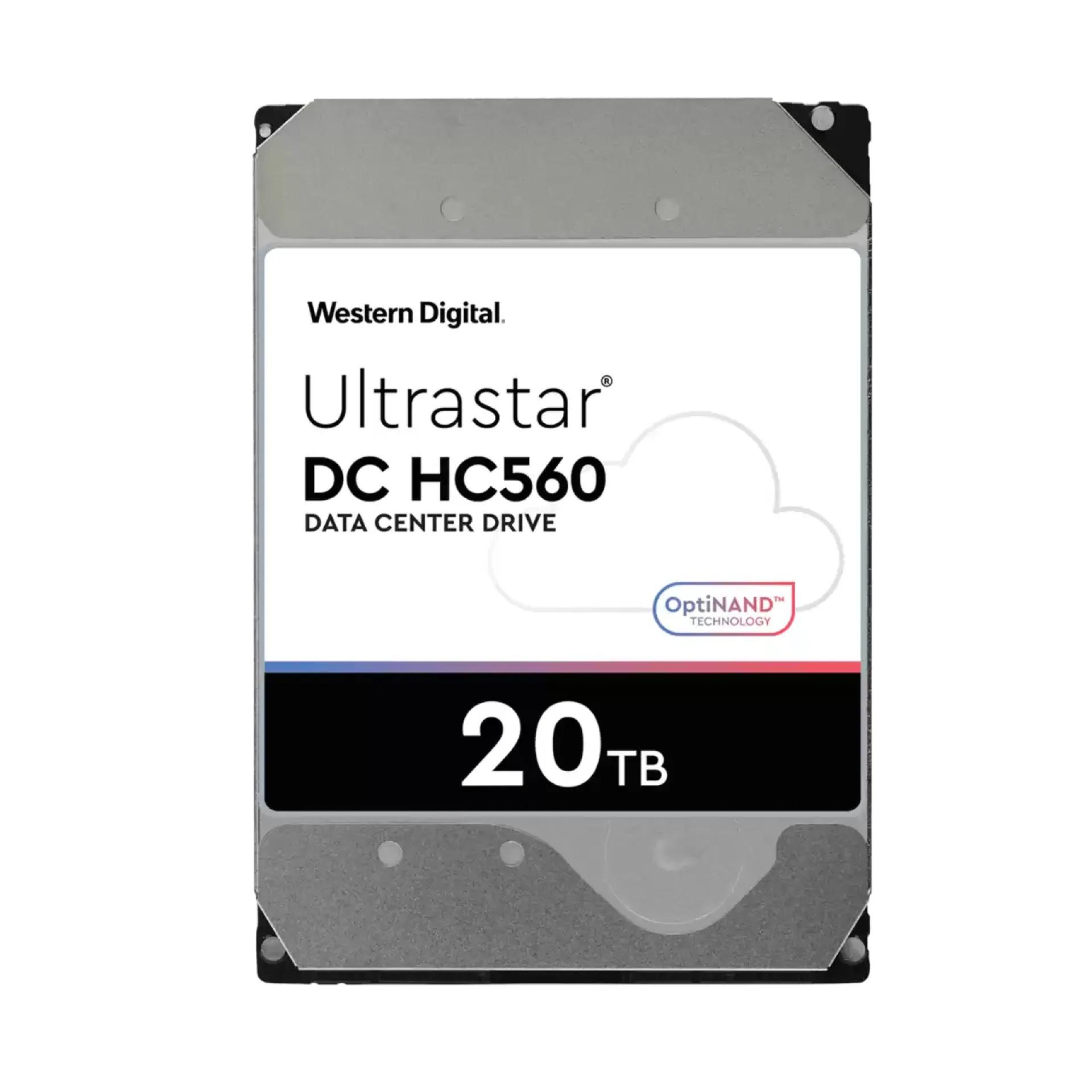

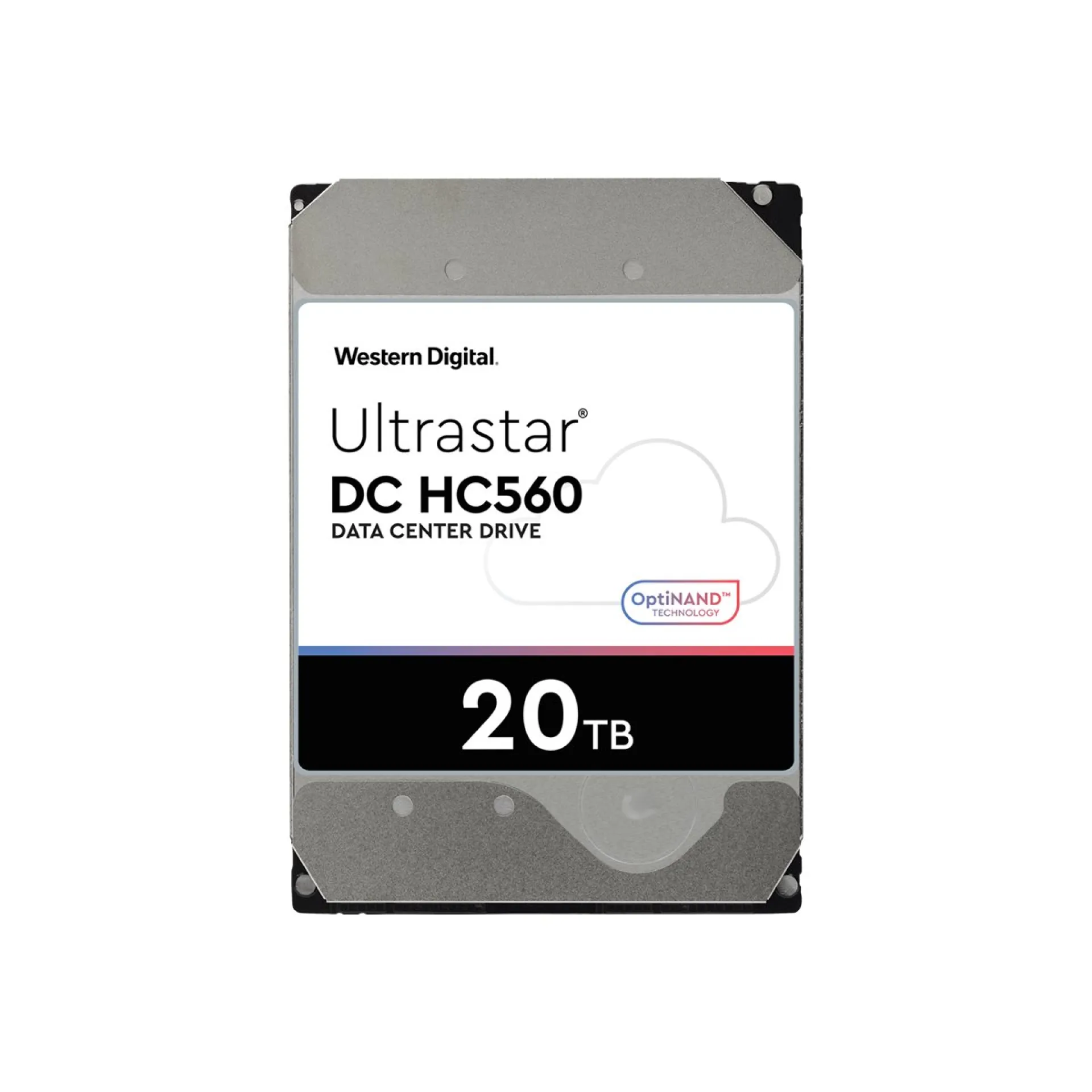

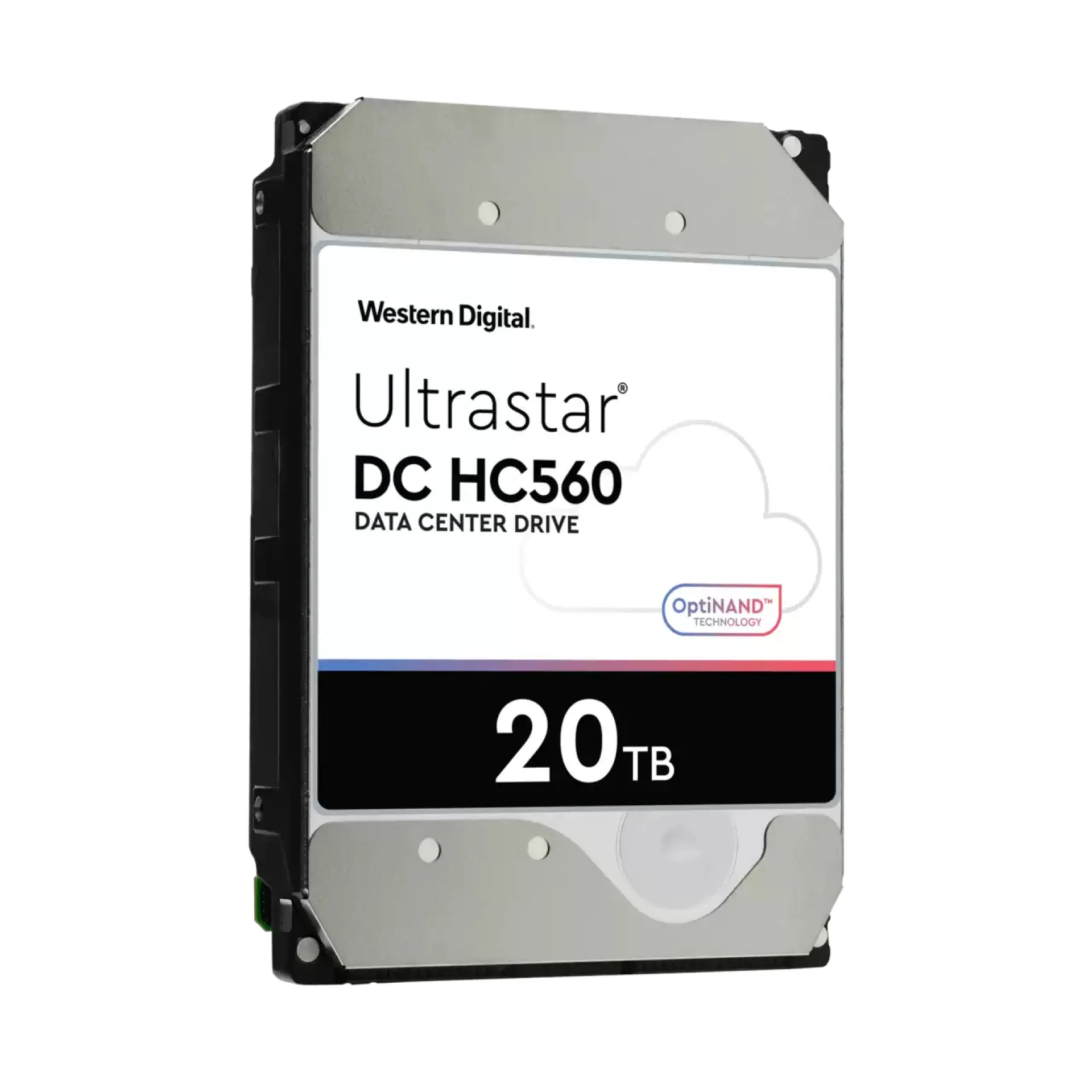

0F38651 WD Ultrastar DC HC560 20TB SAS 512 MB 3.5" Workstation HDD

Product line:

Ultrastar

See all HDDs / SSDs

See other WD products

This product is currently not priced. Request a personalized quote now.

Out of stock

Happyware Article Number:

SH1H6769-314023

Manufacturer Number:

0F38651

Brand:

Are you a reseller?

Do you have questions about this product 0F38651?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

0F38651

High-Capacity 3.5-inch Enterprise SAS HDD featuring encrypted bulk storage with the 0F38651

The 0F38651 is a WD Ultrastar DC HC560 20TB internal 3.5-inch HDD engineered for dense data centre storage where predictable throughput, high capacity per bay, and security controls are mandatory. Using 12Gb/s SAS connectivity with 4Kn media and 512e emulation, the 0F38651 integrates cleanly into enterprise backplanes and RAID controllers while supporting consistent addressing and alignment practices across mixed fleets.

Architecturally, the 0F38651 combines 7200 RPM CMR recording with EAMR to sustain write behaviour suited to rebuild-heavy RAID sets, backup tiers, and object storage nodes. A 512MB cache and OptiNAND assist metadata handling and performance stability under queue depth, while the helium platform and Triple Stage Actuator improve positioning accuracy for better array-level consistency. For regulated environments, the 0F38651 implements SED hardware encryption and Sanitize Crypto Erase to enable secure decommissioning without operational disruption.

Why Choose the 0F38651?

The 0F38651 delivers a strong capacity-to-slot ratio for scale-out designs, reducing rack footprint and controller ports per TB while keeping SAS manageability and enterprise serviceability. With 2.5M hours MTBF and support for modern data centre integration practices, the 0F38651 is built for predictable lifecycle planning, repeatable deployment in homogeneous drive groups, and scalable expansion across nodes and shelves.

WD designs Ultrastar platforms around continuous duty cycles, vibration-aware mechanics, and data centre operational standards. Features such as OCP 2.0 support and helium-based efficiency align WD engineering with modern fleet telemetry, power governance, and secure handling requirements across multi-tenant infrastructure.

Key Applications:

High-capacity RAID arrays
Backup and archive tiers
Object storage nodes
Scale-out storage systems
Bulk storage for servers and workstations

At Happyware - Server Hardware you benefit from Non-Binding Offers tailored to your storage architecture and procurement process, plus an Extended Warranty up to 6 years to protect long-lived capacity deployments.

Technical details of 0F38651

Capacity:

20TB

Form Factor:

3.5"

Interface:

SAS

Rotations:

7200RPM

Cache:

512 MB

Noise Level Operation:

20dB

Noise Level Idle:

20dB

How long is the Warranty and how you can get technical support for 0F38651

Warranty:	12 months (part)
RMA Url:	https://support-de.wd.com/app/rmastatus/
Description:	The item must be returned first for evaluation; if deemed defective, a replacement will be shipped. No guaranteed delivery times are offered
