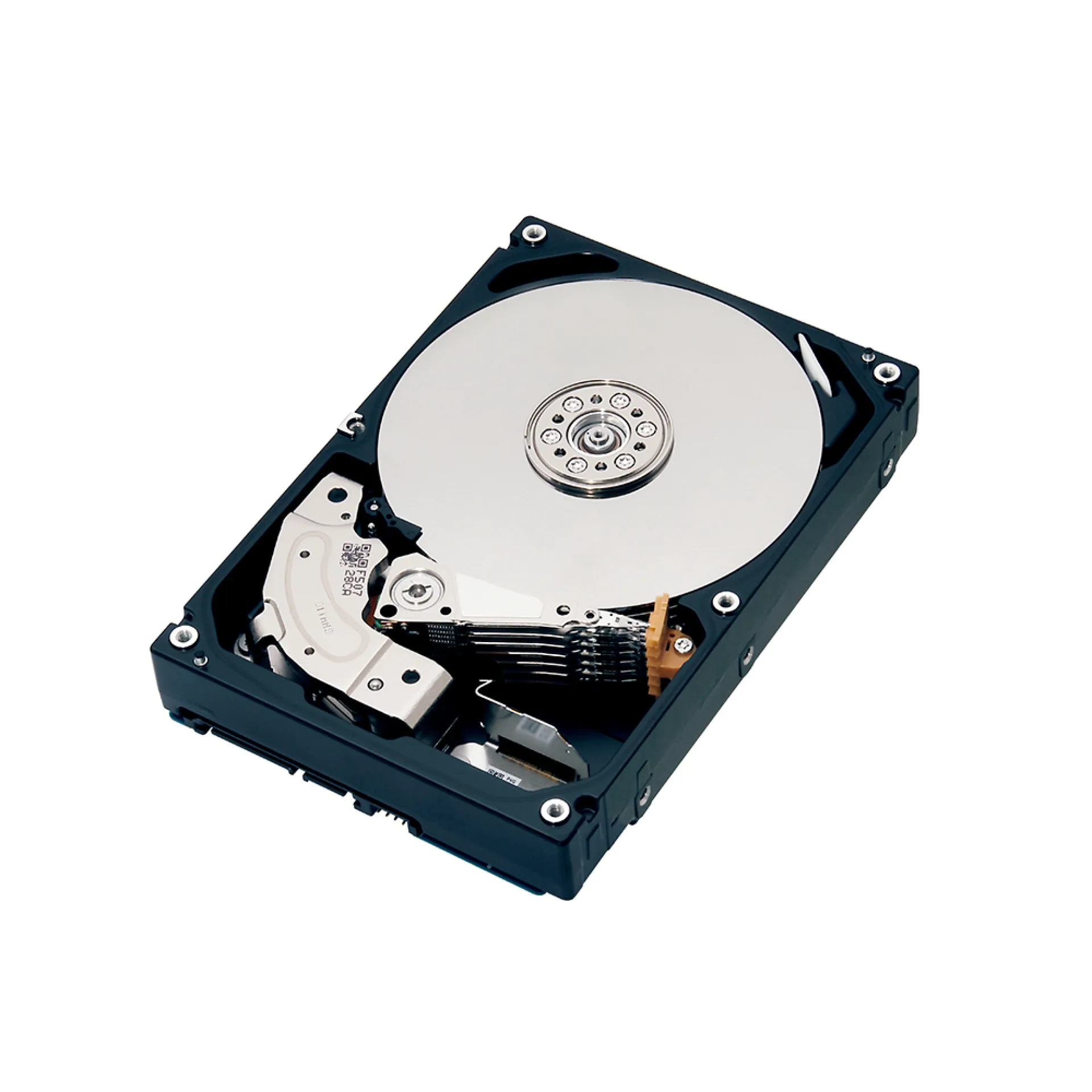

MG05ACA800E Toshiba MG05ACA 8TB SATA 128 MB 3.5" 24x7 Operation HDD

High-Density 3.5-inch Enterprise SATA Capacity HDD architecture with the MG05ACA800E

The MG05ACA800E is engineered as a 24x7 enterprise internal HDD for rack servers, storage nodes, and JBOD enclosures where predictable throughput and sustained capacity per bay are primary design constraints. As a 3.5-inch SATA 6Gb/s platform, it integrates cleanly into standard backplanes and expander-based topologies, enabling straightforward scaling across multi-bay chassis and mixed vendor storage shelves.

Built on CMR recording with a 7200RPM mechanical profile, the MG05ACA800E is aligned to RAID arrays and general-purpose capacity tiers that require consistent write behavior and stable rebuild characteristics. Advanced Format 4Kn physical sectors with 512e emulation supports modern file systems while preserving broad OS and controller compatibility. Persistent Write Cache support and 128MB cache help protect in-flight data during transient power events when integrated with appropriate controller policies, supporting backup, archive, and bulk repositories without introducing SSD-class cost and endurance requirements.

Why Choose the MG05ACA800E?

The MG05ACA800E delivers a balanced density-to-performance profile for enterprises standardizing on SATA capacity tiers, with deployment logic optimized for high-bay-count servers and modular JBOD scaling. With a 2.0M hours MTBF/MTTF rating and 24x7 duty cycle positioning, the MG05ACA800E supports predictable fleet behavior, simplifies sparing strategies, and enables consistent capacity planning across RAID groups and archival pools.

Toshiba designs the MG-series with a focus on controlled thermals, sustained operation, and qualification pathways suited to modern data centre storage standards, helping integrators maintain reliability targets across heterogeneous controller and enclosure environments.

Key Applications:

• Rack server capacity tiers
• JBOD expansion shelves
• RAID arrays for general-purpose storage
• Backup repositories
• Archive and bulk data pools

At Happyware - Server Hardware you benefit from non-binding offers tailored to your storage architecture and rollout schedule, and can extend the warranty up to 6 years to align lifecycle coverage with enterprise refresh plans for MG05ACA800E deployments.
