SYS-E50-14AM-N5 Supermicro SuperServer Single Atom Embedded Barebone
Get extra volume discount for SYS-E50-14AM-N5 and save cash:
| Quantity | Unit price |
|---|---|
| To 9 |
€565.34
|
| To 19 |
€541.04
€565.34
(4.3% saved)
|
| To 49 |
€529.74
€565.34
(6.3% saved)
|
| From 50 |
€512.84
€565.34
(9.29% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
€565.34
Do you have questions about this product SYS-E50-14AM-N5?
SYS-E50-14AM-N5
Fanless Embedded Edge Networking Appliance built for Multi-LAN security and IoT gateways with the SYS-E50-14AM-N5
The SYS-E50-14AM-N5 is a compact, fanless embedded box PC engineered around the Intel Atom Alder Lake-N N97 SoC (4 cores, up to 7W TDP) for always-on edge networking where deterministic operation and low power draw matter more than raw compute. The platform targets firewall/UTM, SD-WAN/CPE, and 5G edge gateway roles by combining multi-port Intel networking with a secure boot chain and TPM 2.0 for device integrity in remote deployments.

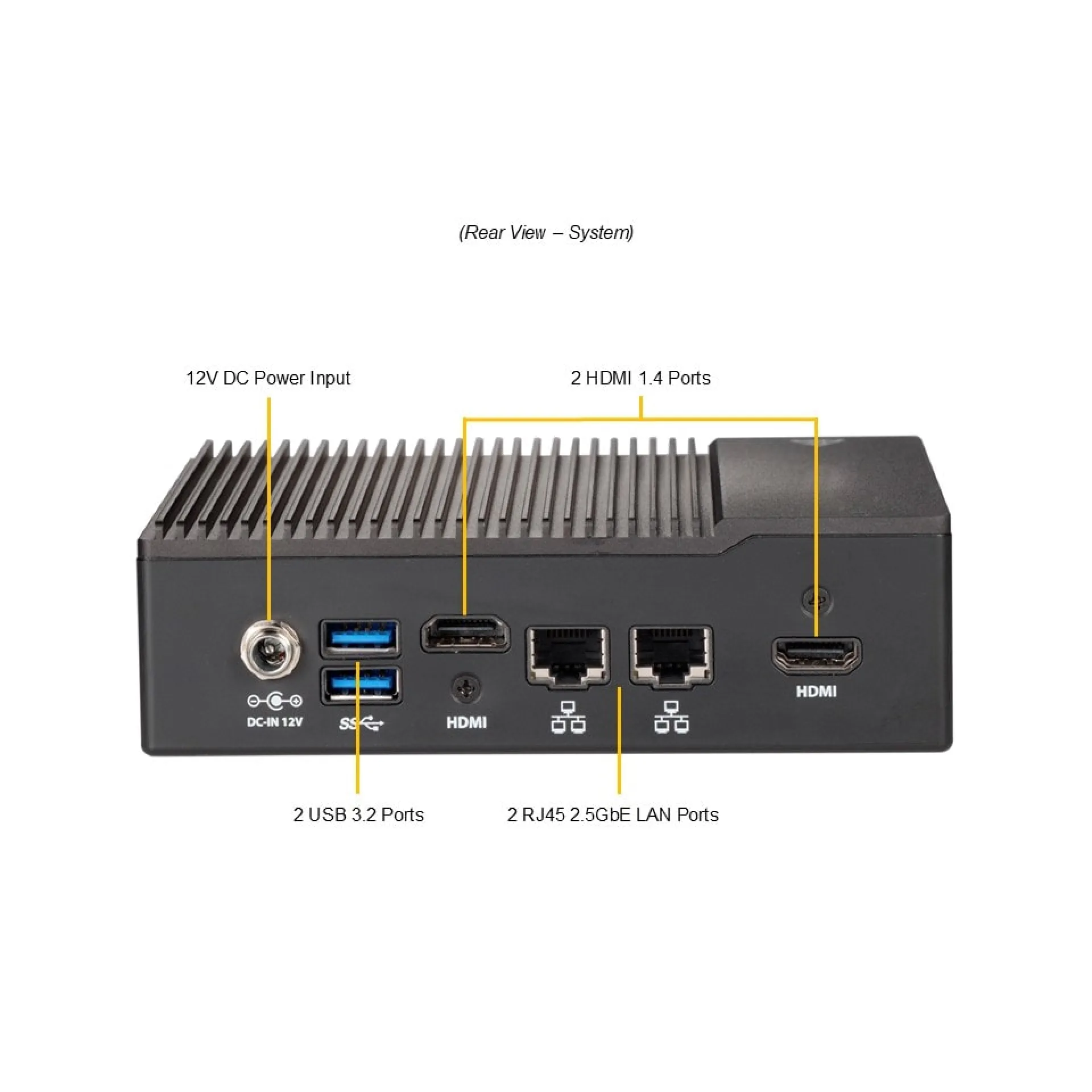

Its memory architecture uses a single DDR5 SO-DIMM channel (1 slot, up to 16GB, non-ECC), aligning the SYS-E50-14AM-N5 with lightweight packet processing, protocol translation, and control-plane workloads. Storage is split between a fixed 2.5" SATA bay for rugged OS/data placement and an M.2 B-Key 2242/3042 slot supporting SATA or PCIe Gen3 for compact SSD provisioning; a second M.2 E-Key 2230 slot (USB 2.0) supports wireless or module integration. Dual HDMI 1.4 enables local HMI or signage, while USB 3.2 Gen2 and COM provide edge I/O flexibility without introducing a serviceable fan assembly.
Why Choose the SYS-E50-14AM-N5?

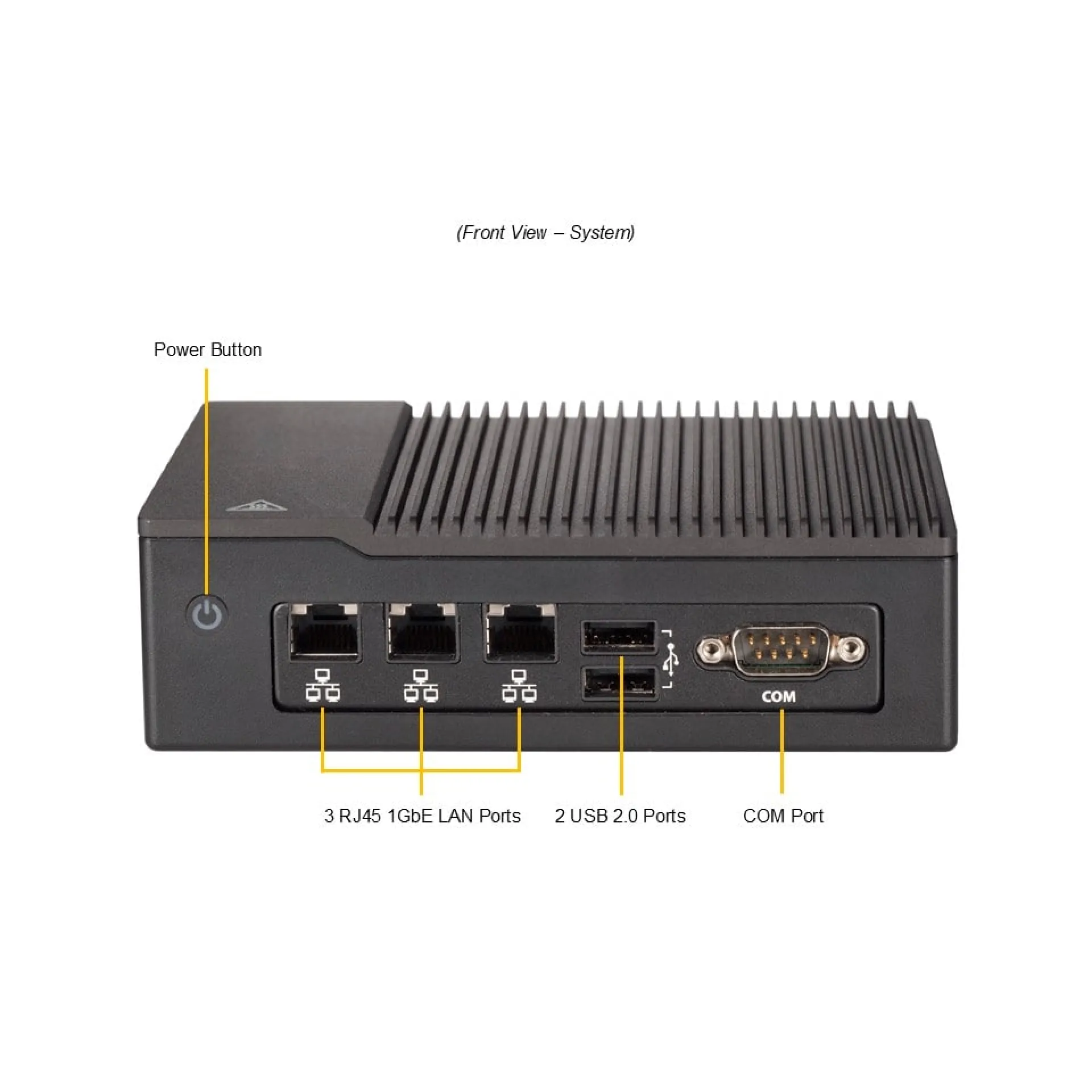

The SYS-E50-14AM-N5 delivers a high density-to-performance profile for branch and industrial edge by concentrating 5 RJ45 ports (2 x 2.5GbE plus 3 x 1GbE via Intel I210) into a sealed, fanless chassis that reduces failure points and maintenance windows. It scales cleanly across fleet rollouts with consistent I/O, straightforward storage provisioning, and security primitives suited to controlled, unattended environments.
Supermicro applies data-centre-grade engineering discipline to embedded systems, emphasizing component validation, stable platform lifecycles, and mechanical designs optimized for continuous duty. The result is an edge-ready appliance aligned with modern security expectations, standard management tooling at the OS layer, and predictable integration into enterprise network architectures.
Key Applications:
- Firewall/UTM appliances
- SD-WAN/CPE endpoints
- 5G edge gateways
- Industrial IoT protocol gateways
- Retail kiosks and digital signage nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment volumes for the SYS-E50-14AM-N5, enabling accurate standardization across sites while maintaining procurement flexibility, and you can extend the warranty up to 6 years to secure long-lived edge operations.
Technical details of SYS-E50-14AM-N5
How long is the Warranty and how you can get technical support for SYS-E50-14AM-N5
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
