SYS-E403-14B-FRN2T Supermicro SuperServer Single Xeon 6500 w/ P-cores 2.5U Server
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
Do you have questions about this product SYS-E403-14B-FRN2T?
SYS-E403-14B-FRN2T
High-Density 2.5U Short-Depth Edge Rack Server featuring PCIe Gen5 Accelerator Expansion with the SYS-E403-14B-FRN2T
The SYS-E403-14B-FRN2T is a 406mm short-depth, GPU-capable edge rack server barebone designed for deployments that require data centre-class compute and security in constrained racks. Built on a single-socket Intel Xeon 6 platform (LGA4710), it supports Granite Rapids or Sierra Forest configurations, scaling to high core counts for virtualised services while keeping power and thermal envelopes predictable at the edge.

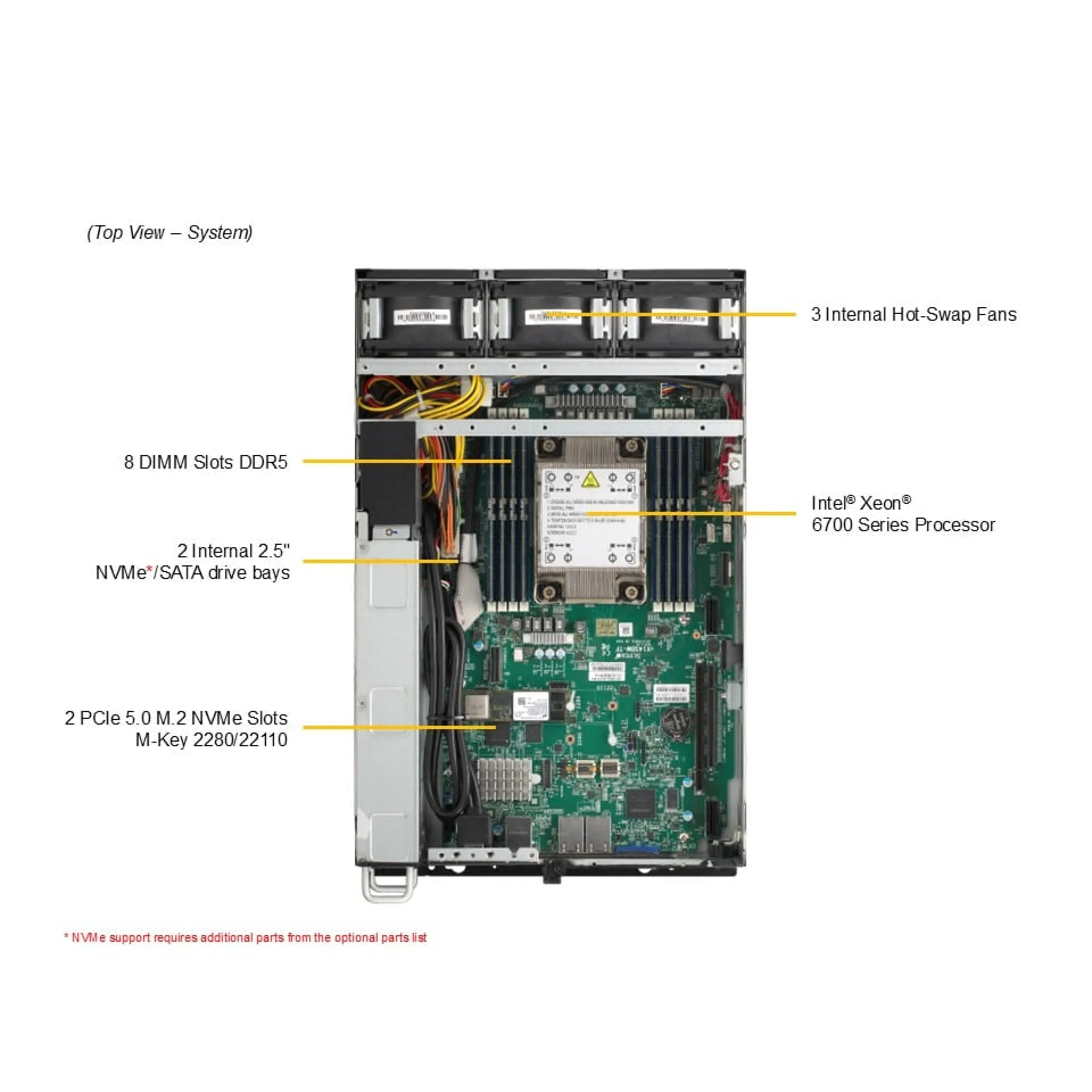

For memory-bound analytics and consolidation, SYS-E403-14B-FRN2T provides 8x DDR5 ECC RDIMM slots up to 1TB (1DPC), balancing capacity and bandwidth for multi-VM uCPE/NFV and real-time inference pipelines. Expansion is optimised around PCIe Gen5 with 3x x16 FHFL slots, enabling add-in GPU/accelerator density up to 1x double-width or 2x single-width depending on chassis limits. Storage architecture prioritises low-latency NVMe with 2x front hot-swap 2.5-inch NVMe bays and dual PCIe Gen5 M.2 NVMe for boot or cache tiers, complemented by 2x internal 2.5-inch SATA positions for local retention when controller/cabling is provisioned.
Why Choose the SYS-E403-14B-FRN2T?

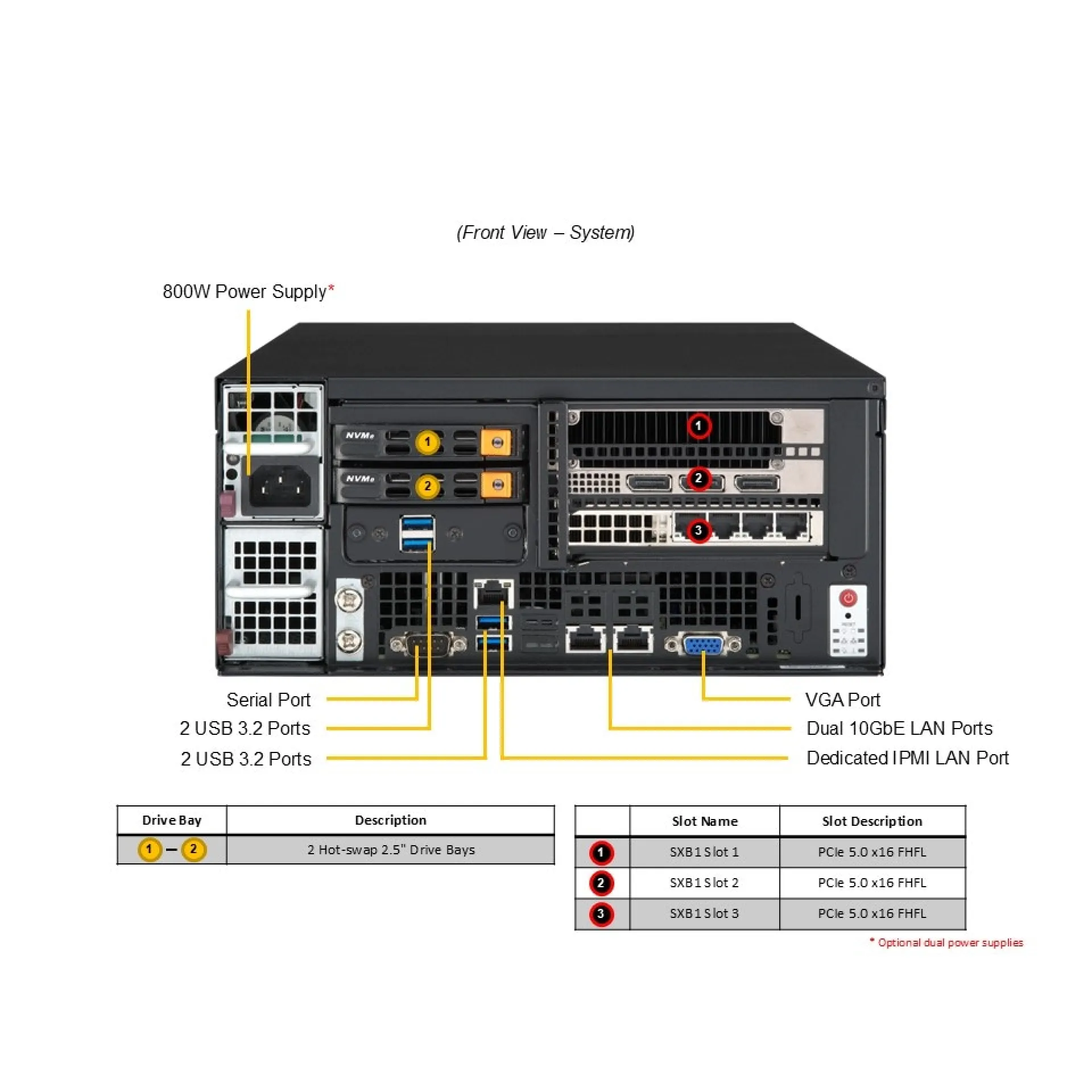

The SYS-E403-14B-FRN2T delivers a practical density-to-performance ratio by combining Xeon 6 efficiency, PCIe Gen5 accelerator readiness, and redundant power into a short-depth form factor suited to edge closets and micro data centres. With 2x 10GbE BASE-T uplinks and a dedicated BMC management port, SYS-E403-14B-FRN2T supports scalable rollouts with consistent remote operations and serviceability.
Supermicro engineering focuses on modular platform design, validated thermals, and enterprise lifecycle control. SYS-E403-14B-FRN2T aligns with modern data centre standards through IPMI management, 80 PLUS Platinum redundant PSUs, and platform security including TPM 2.0 header and NIST 800-193 Silicon Root of Trust with signed firmware and recovery.
Key Applications:
- Edge AI inference and video analytics
- uCPE and NFV virtualised network services
- Industrial gateway aggregation and local analytics
- Secure branch compute and VDI edge pods
At Happyware - Server Hardware you benefit from non-binding offers tailored to your SYS-E403-14B-FRN2T configuration and an extended warranty of up to 6 years to support long-lived edge deployments with predictable service coverage.
Technical details of SYS-E403-14B-FRN2T
How long is the Warranty and how you can get technical support for SYS-E403-14B-FRN2T
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
