SuperServer
Do you have questions about this product SYS-E302-13AD?
SYS-E302-13AD
Compact Fanless Edge/IoT Embedded System enabling Alder Lake compute and dual 2.5GbE with the SYS-E302-13AD
The SYS-E302-13AD is a fanless Mini-ITX embedded platform built around 12th Gen Intel Core/Celeron processors on LGA1700, delivering up to 65W CPU headroom for edge AI inference, computer vision, and on-prem application delivery where acoustic and dust constraints drive design decisions. SYS-E302-13AD balances performance with deterministic thermals by pairing modern hybrid-core compute with a compact, non-rack chassis optimized for continuous operation at the network edge.

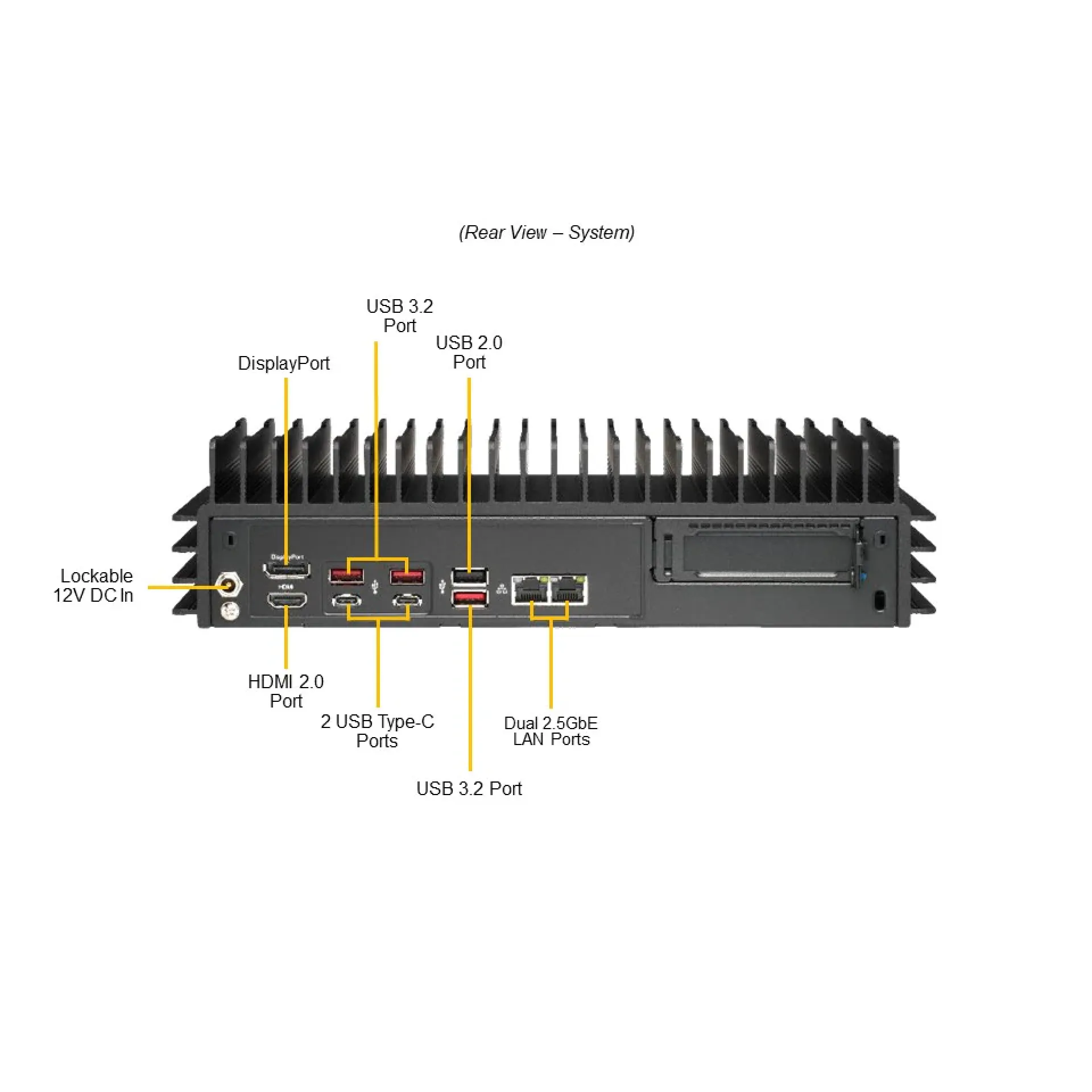

For memory, SYS-E302-13AD uses a DDR5 SO-DIMM architecture up to 32GB DDR5-4800, suitable for containerized gateway services, analytics pipelines, and low-latency inference models that benefit from higher bandwidth per module. Storage design combines an internal 2.5" SATA bay and dual SATA III ports for resilient local datasets, plus an M.2 2280 NVMe slot (PCIe 3.0 x4) for fast model and cache tiers. Expansion is delivered through dedicated M.2 E-key and B-key sockets to integrate WLAN or specialized I/O modules without consuming external ports. Dual Intel I225-LM 2.5GbE interfaces support segmented OT/IT networks, and HDMI 2.0b plus DisplayPort 1.4 enable local visualization or HMI use.
Why Choose the SYS-E302-13AD?
The SYS-E302-13AD provides a high density-to-performance footprint for edge deployments that cannot accommodate rack infrastructure, while still offering enterprise-class I/O and modular expansion. SYS-E302-13AD is designed for straightforward scaling across sites, with consistent platform characteristics that simplify validation, imaging, and lifecycle management in distributed environments.
Supermicro engineering emphasizes platform reliability, long-life embedded availability, and alignment with modern data centre and edge standards, including TPM 2.0 support and broad OS compatibility for Windows and Red Hat Enterprise Linux.
Key Applications:
- Edge AI inference
- Computer vision and video analytics
- Industrial and retail IoT gateway
- On-prem application delivery
- Space- and noise-constrained embedded compute
At Happyware - Server Hardware you benefit from non-binding offers tailored to your SYS-E302-13AD rollout and an extended warranty of up to 6 years to secure long-term operation in distributed edge environments.
Technical details of SYS-E302-13AD
How long is the Warranty and how you can get technical support for SYS-E302-13AD
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
