SYS-E101-14AM-H Supermicro SuperServer Single Atom x7835RE Server
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
Do you have questions about this product SYS-E101-14AM-H?
SYS-E101-14AM-H
Ultra-Compact Fanless Embedded Edge Server for industrial I/O and secure endpoints with the SYS-E101-14AM-H
SYS-E101-14AM-H is a fanless embedded edge server built around the Intel Atom x7835RE Armston Lake SoC, targeting deterministic edge compute where low power, silent operation, and extended temperature tolerance are critical. The 8-core platform supports modern instruction efficiency for control-plane services, lightweight analytics, and media endpoints, while maintaining a tight thermal envelope suitable for passive chassis deployments.

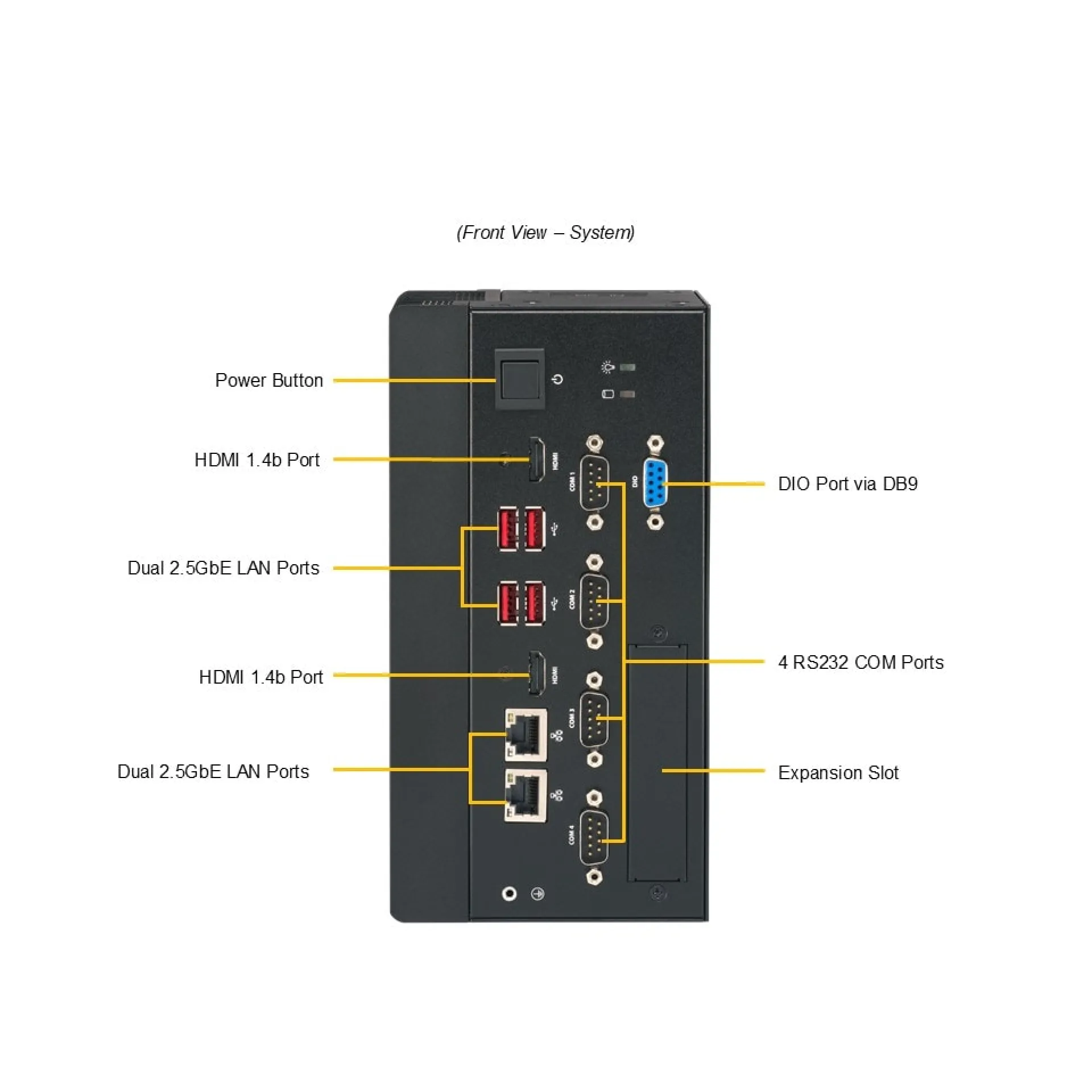

The SYS-E101-14AM-H memory architecture uses a single DDR5 SO-DIMM channel up to 16GB at 4800MT/s, prioritising predictable latency and simplified qualification over multi-channel density. For storage, SYS-E101-14AM-H provides dual M.2 M-Key slots supporting PCIe Gen3 and SATA/NVMe (slot-dependent), enabling separation of OS and data logging or mirrored application images via software tooling. Expansion via additional M.2 options (including E-Key/B-Key per configuration) supports Wi-Fi, cellular, or specialised edge modules without consuming external ports. Dual 2.5GbE Intel I226-IT interfaces deliver stable uplink and segmented OT/IT networking, complemented by 2x HDMI 1.4 for dual-display playback and a rich USB and COM port mix for legacy device integration.
Why Choose the SYS-E101-14AM-H?
The SYS-E101-14AM-H delivers a high density-to-performance ratio for space-constrained cabinets and distributed sites, combining fanless reliability with enterprise-class component selection. SYS-E101-14AM-H scales operationally through repeatable, low-touch deployments, using standard UEFI and SuperDoctor 5 for consistent provisioning and monitoring where a BMC is not required.
Supermicro designs systems with an engineering focus on long-life platforms, stable firmware baselines, and data centre-aligned validation practices, making the SYS-E101-14AM-H suitable for managed edge fleets that must meet consistent operational standards.
Key Applications:
- Industrial automation controllers
- IIoT gateways and protocol translation
- Edge media and digital signage
- Kiosk and interactive terminals
- Secure managed edge nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your SYS-E101-14AM-H rollout plan, enabling fast procurement alignment across projects and sites, and you can extend the warranty up to 6 years for additional security on long-lived edge deployments.
Technical details of SYS-E101-14AM-H
How long is the Warranty and how you can get technical support for SYS-E101-14AM-H
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
