SYS-E100-14AM-H Supermicro SuperServer Single Atom Embedded Barebone
Get extra volume discount for SYS-E100-14AM-H and save cash:
| Quantity | Unit price |
|---|---|
| To 9 |
€631.71
|
| To 19 |
€604.62
€631.71
(4.29% saved)
|
| To 49 |
€591.92
€631.71
(6.3% saved)
|
| From 50 |
€573.02
€631.71
(9.29% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
€631.71
Do you have questions about this product SYS-E100-14AM-H?
SYS-E100-14AM-H
High-Density Fanless Edge Compute Platform featuring Intel Atom and modular M.2 I/O with the SYS-E100-14AM-H
The SYS-E100-14AM-H is a compact, fanless embedded box PC designed for edge deployments where deterministic behavior, low power draw, and sealed operation matter more than rack-scale expansion. Built on the Intel Atom x7435RE (Armston Lake) platform with up to 8C/8T at up to 12W TDP, the SYS-E100-14AM-H targets always-on gateways and control endpoints that must operate reliably in space-constrained locations.

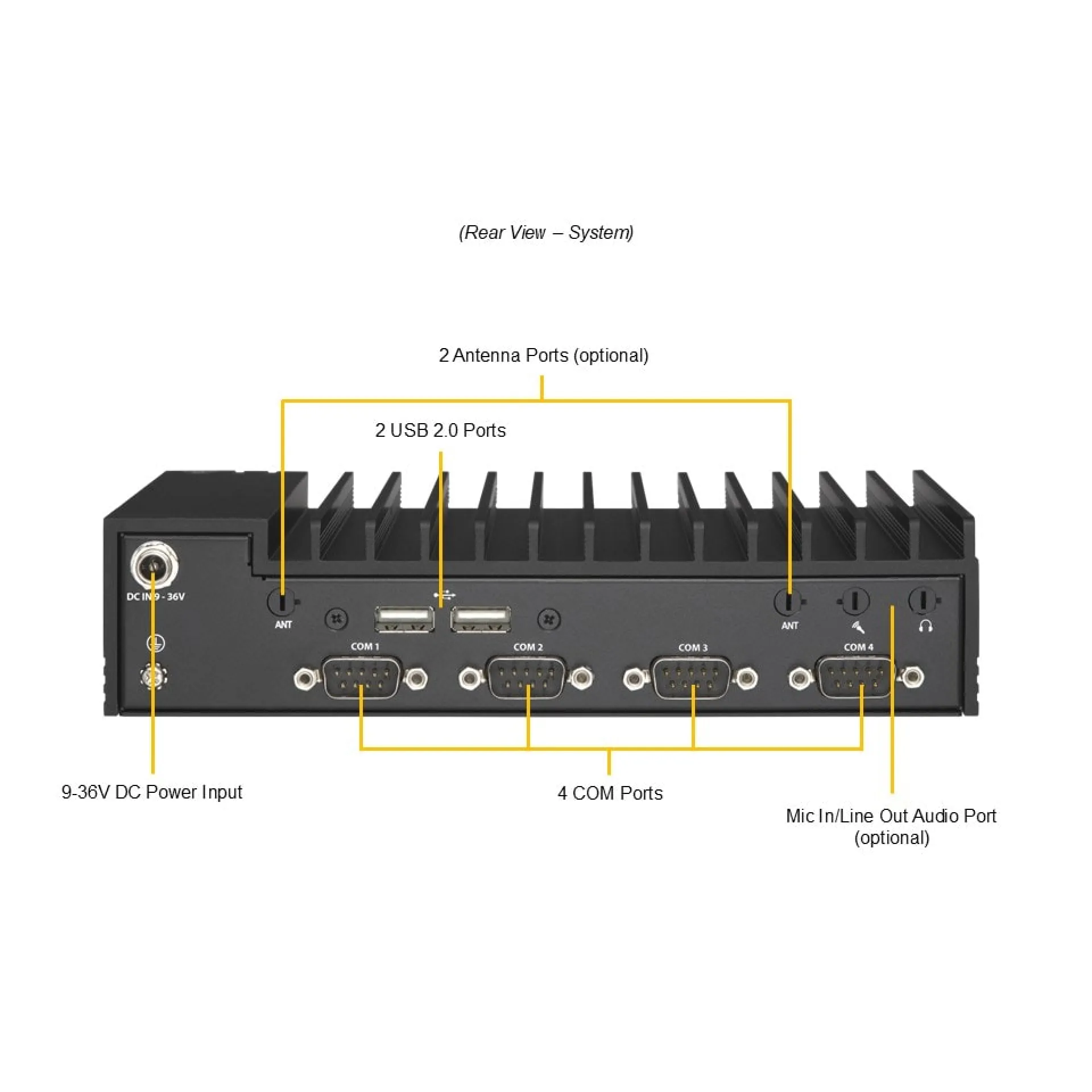

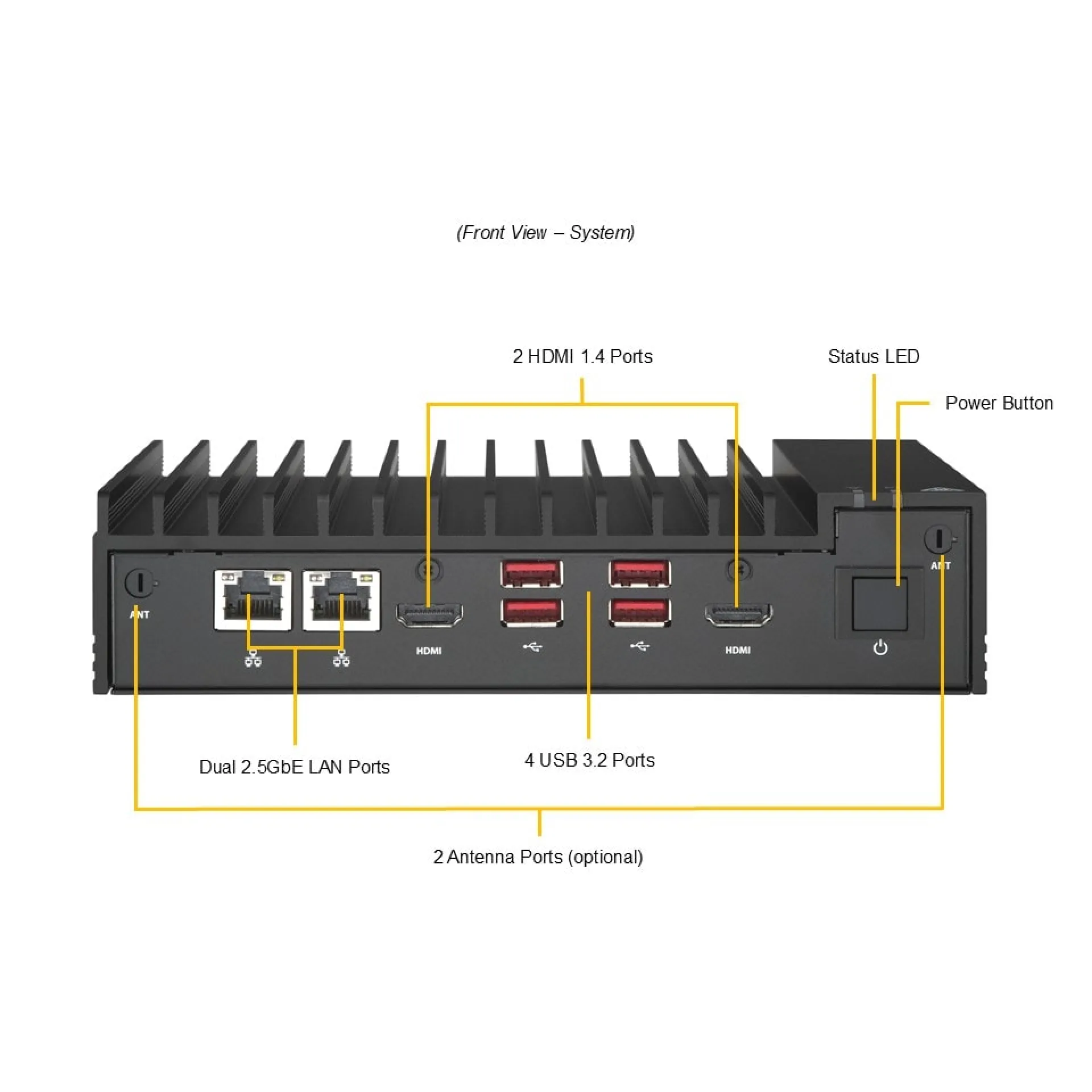

Memory is implemented via a single DDR5 SO-DIMM slot supporting up to 16GB, aligning the SYS-E100-14AM-H with lightweight virtualization, containerized services, and multi-process I/O workloads while keeping power and thermals predictable. Storage and expansion are optimized around PCIe Gen3 and M.2 modularity: an M-key slot for NVMe plus additional M.2 options (B-key and E-key) for SATA/PCIe and wireless or I/O modules, enabling role-specific configurations without PCIe add-in cards. Dual 2.5GbE (Intel I226) supports segmented edge networking, while HDMI outputs and extensive USB/COM connectivity align the SYS-E100-14AM-H with signage, kiosks, and industrial field interfaces.
Why Choose the SYS-E100-14AM-H?
The SYS-E100-14AM-H delivers a strong density-to-performance ratio by combining a fanless chassis with modern DDR5 and flexible M.2 expansion, reducing moving parts and maintenance windows at the edge. The platform scales through repeatable node deployment: standard interfaces, dual 2.5GbE, and modular storage/I/O allow consistent builds across sites while maintaining enterprise security features such as TPM 2.0 and Secure Boot.
Supermicro engineering emphasizes long-life embedded platforms, validated component integration, and mechanical designs aligned with modern data centre and distributed edge standards, supporting predictable lifecycle management across heterogeneous environments.
Key Applications:
- Industrial control and automation gateways
- Retail kiosks and interactive terminals
- Dual-display digital signage endpoints
- Secure edge data acquisition
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment and configuration targets, and you can extend the warranty up to 6 years to secure long-term edge fleet operation for SYS-E100-14AM-H rollouts.
Technical details of SYS-E100-14AM-H
How long is the Warranty and how you can get technical support for SYS-E100-14AM-H
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
