SYS-542AW-TR Supermicro SuperWorkstation Single Xeon 600 4U Server/Workstation Barebone
Get extra volume discount for SYS-542AW-TR and save cash:
| Quantity | Unit price |
|---|---|
| To 4 |
€2,222.08
|
| To 9 |
€2,155.93
€2,222.08
(2.98% saved)
|
| To 19 |
€2,111.83
€2,222.08
(4.96% saved)
|
| From 20 |
€2,067.73
€2,222.08
(6.95% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperWorkstation
€2,222.08
Not available
Do you have questions about this product SYS-542AW-TR?
SYS-542AW-TR
High-Performance 4U Convertible GPU Workstation/Server Platform with PCIe Gen5 Expansion using the SYS-542AW-TR
The SYS-542AW-TR is a convertible rack/tower 4U platform engineered around Intel Xeon 6 (Granite Rapids, LGA4710) to support CPU-dense compute alongside PCIe-attached accelerators. Its single-socket design targets high core counts with balanced I/O, enabling predictable CPU-to-GPU data paths through PCIe 5.0 x16 links for multi-GPU training, inference, and visual compute pipelines.

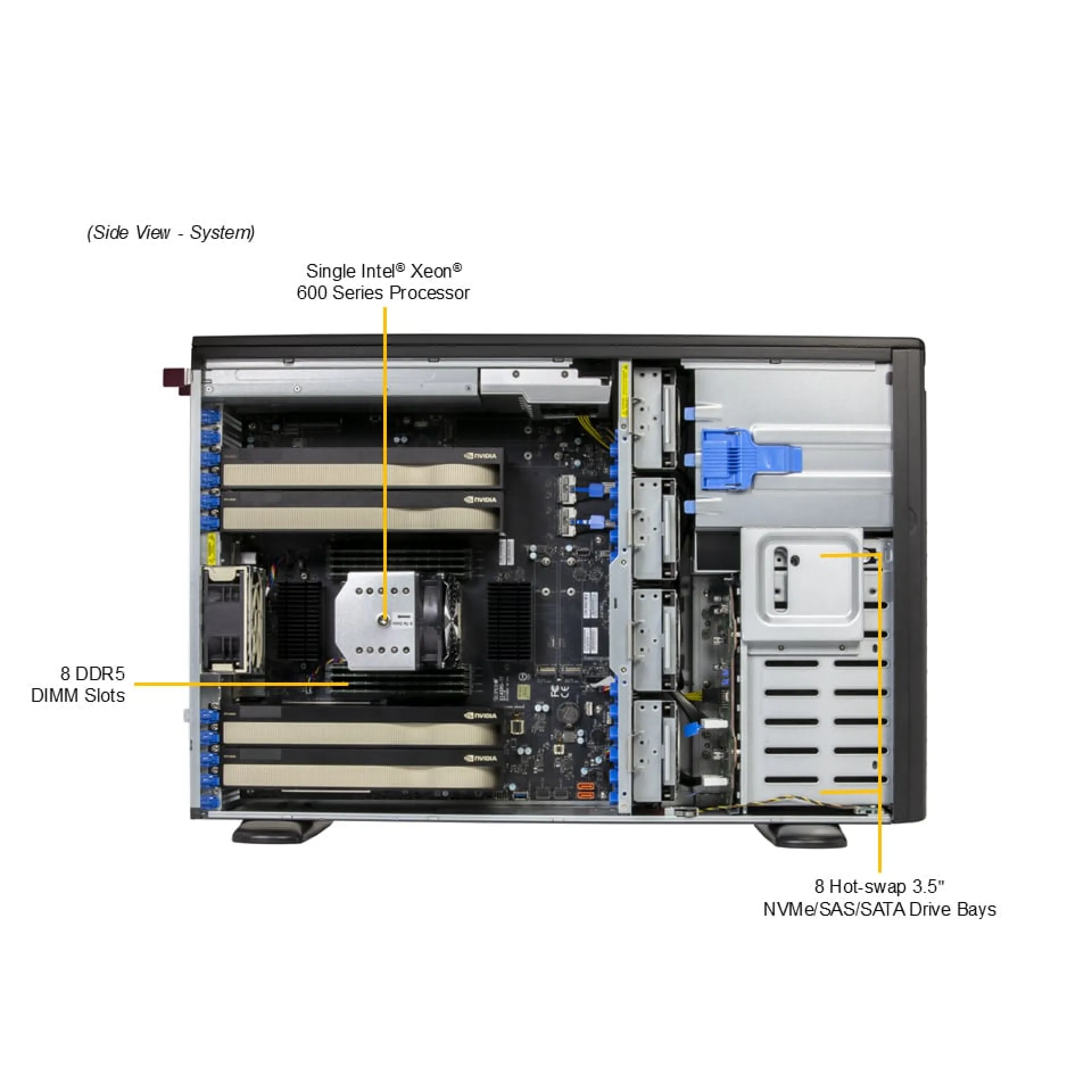

With 8x DDR5 ECC RDIMM slots supporting up to 2TB and up to 6400 MT/s, the SYS-542AW-TR focuses on memory bandwidth and reliability for simulation, VDI, and content creation workloads. Expansion is optimized for accelerators via 5x PCIe 5.0 x16 and 1x PCIe 5.0 x8 full-height, full-length slots, accommodating up to 2 triple-width or 4 double-width GPUs per platform guidance. Storage architecture combines 8x front hot-swap 2.5-inch NVMe/SAS/SATA bays with 4x M.2 NVMe (PCIe 4.0 and PCIe 5.0 options), supporting tiered datasets, fast scratch, and controller-dependent RAID strategies.
Why Choose the SYS-542AW-TR?
The SYS-542AW-TR delivers a strong density-to-performance profile for GPU-centric deployments without sacrificing serviceability, offering front hot-swap storage, redundant power, and enterprise management. It scales cleanly from single-node AI or VDI builds to repeatable clusters where standardized PCIe Gen5 layouts, predictable thermals, and remote lifecycle control simplify rollout and ongoing operations.
Supermicro applies a data center-first engineering approach with validated platform integration, remote management via AST2600 BMC/IPMI, and security features such as TPM 2.0 and secure boot to align with modern compliance and firmware governance expectations.
Key Applications:
- AI training and inference with PCIe GPUs
- HPC simulation and compute workloads
- VDI and workstation-class visual compute
- Cloud gaming and GPU-accelerated streaming
- Media rendering and transcode pipelines
At Happyware - Server Hardware you benefit from non-binding offers tailored to the exact SYS-542AW-TR configuration you need, and an extended warranty up to 6 years to secure long-term platform availability in enterprise environments.
Technical details of SYS-542AW-TR
How long is the Warranty and how you can get technical support for SYS-542AW-TR
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
