SYS-520P-WTR-EU

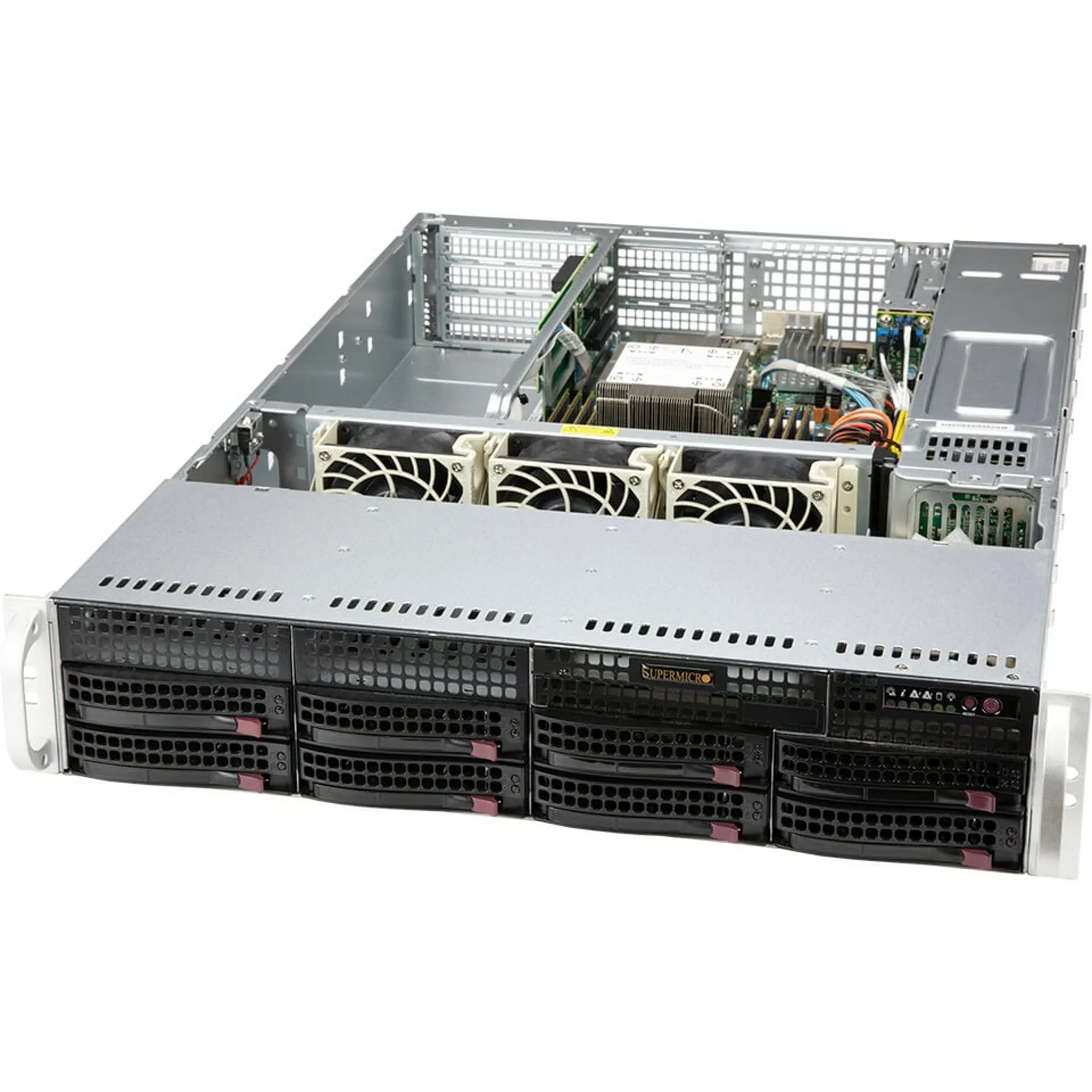

High-Performance 2U Rack Server Barebone optimised for scalable compute and storage with the SYS-520P-WTR-EU
The SYS-520P-WTR-EU is a 2U single-socket Intel Xeon Scalable 3rd Gen (Ice Lake) platform designed for balanced CPU throughput and I/O density in mixed enterprise roles. With up to 40 cores and a 270W TDP envelope on the C621A chipset, the architecture targets predictable performance under consolidation, database processing, and general-purpose data centre compute.

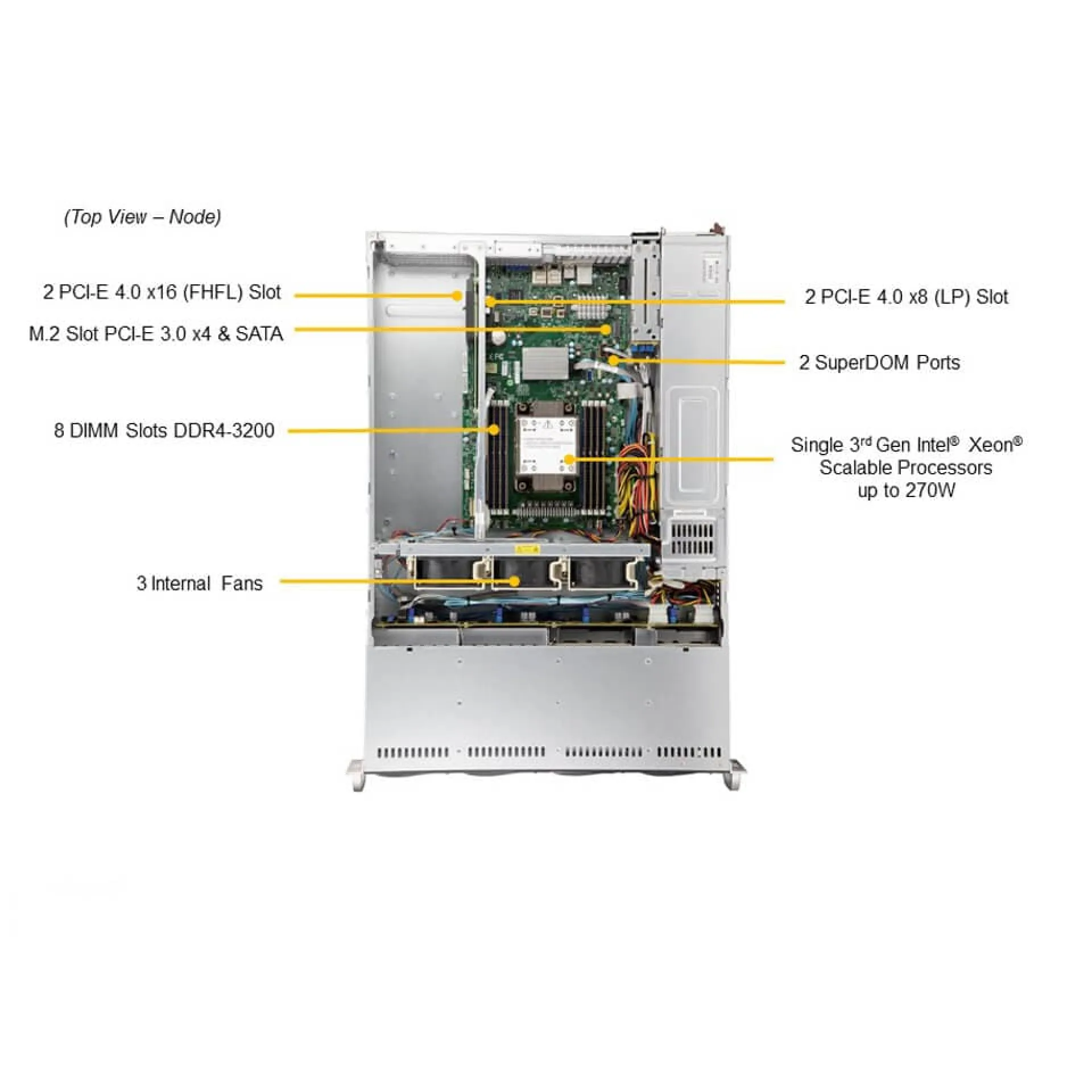

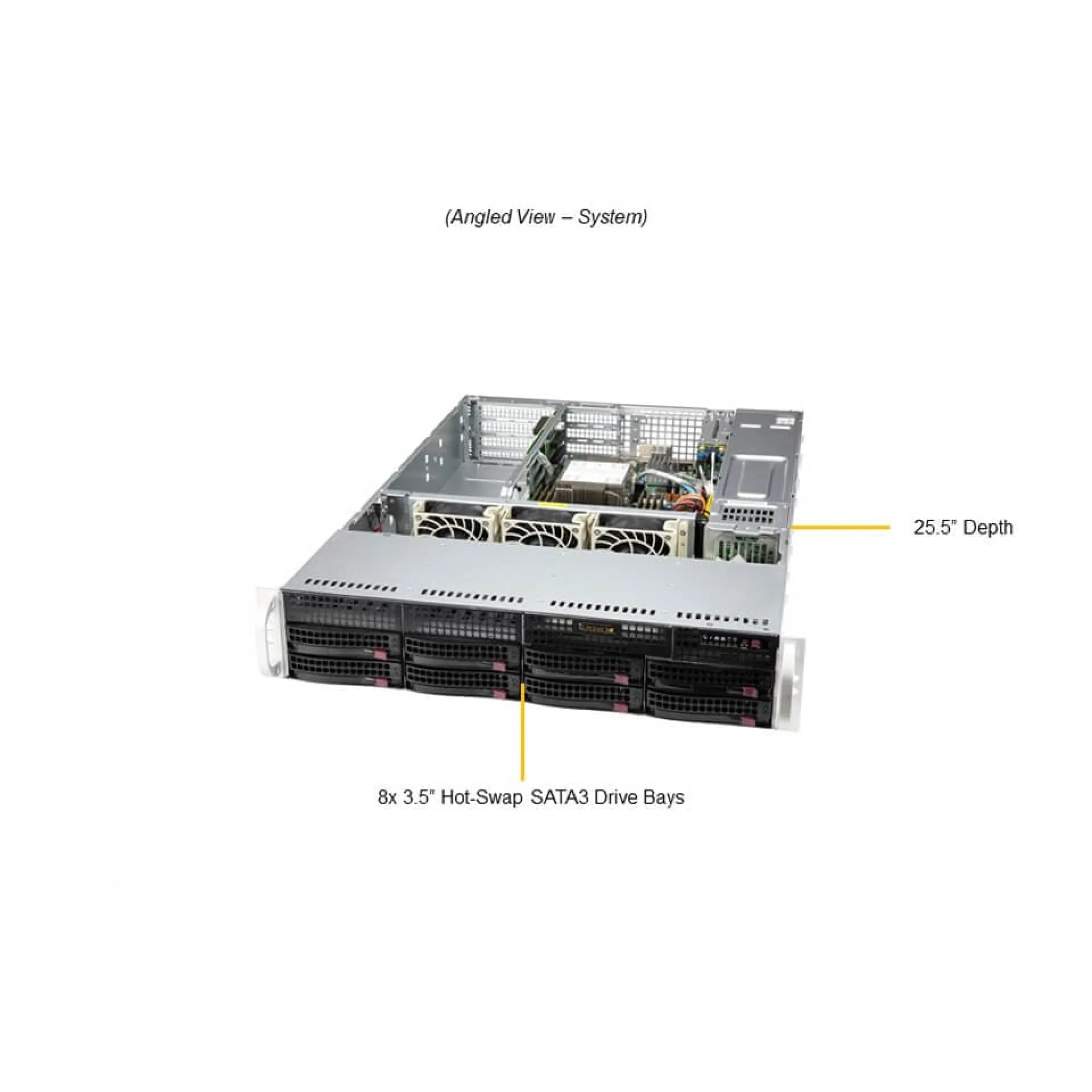

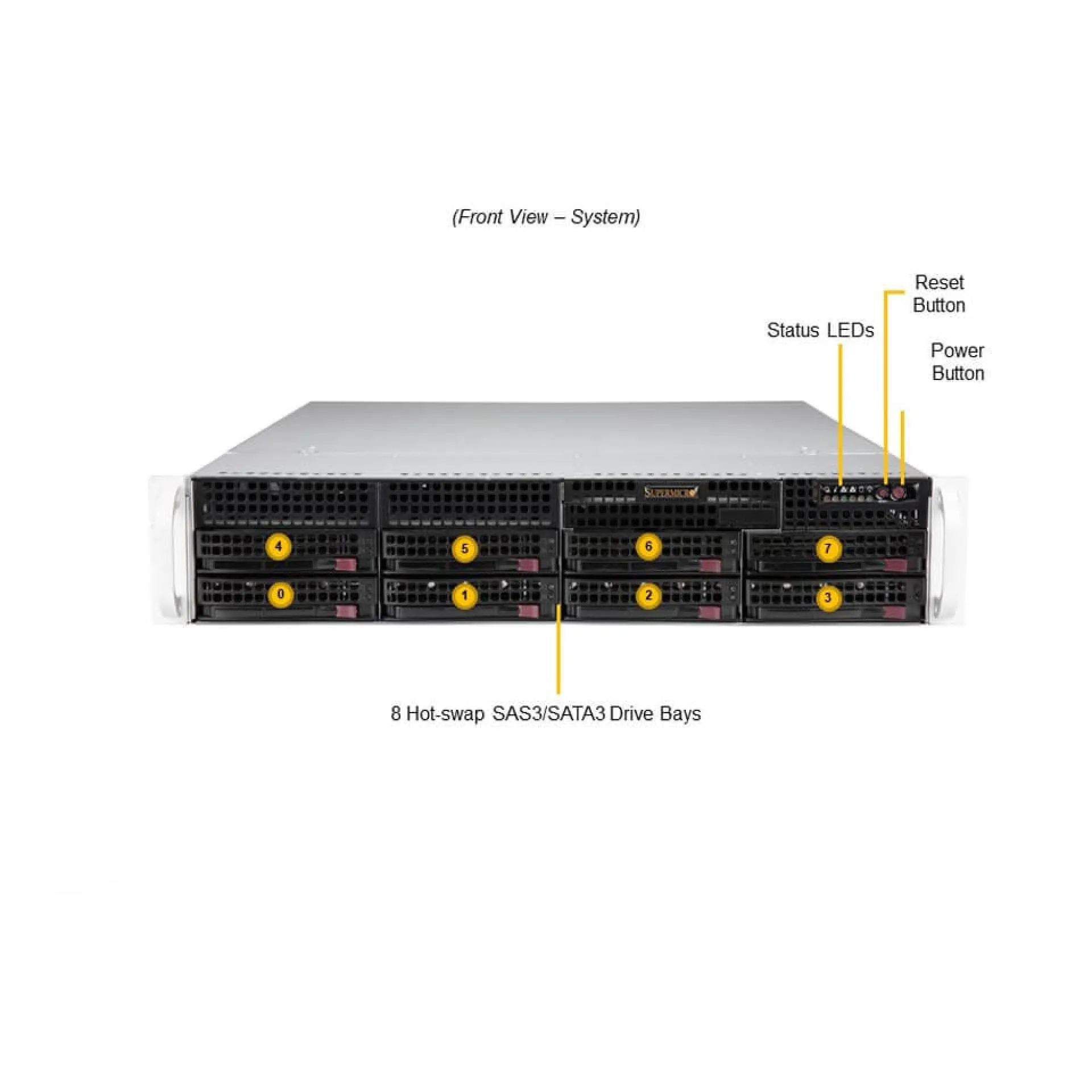

Memory design in the SYS-520P-WTR-EU centres on 8x DDR4 ECC RDIMM/LRDIMM slots scaling to 2TB, with support for Intel Optane Persistent Memory 200 series to reduce restart and checkpoint overhead for stateful services. PCIe Gen4 expansion provides 2x FHFL x16 and 2x LP x8 slots to integrate high-bandwidth accelerators, SmartNICs, or storage controllers without constraining lane availability. Storage is built around 8x 3.5in hot-swap SAS/SATA bays for capacity-first tiering, complemented by an M.2 (22110/2280) NVMe PCIe 3.0 x4 or SATA boot option to isolate the OS from data volumes.
Why Choose the SYS-520P-WTR-EU?
The SYS-520P-WTR-EU delivers an efficient density-to-performance ratio by combining single-socket compute with enterprise storage front-loading and PCIe Gen4 headroom. Dual 10GbE (Intel X550) supports east-west traffic and storage networks, while the dedicated BMC management port enables separated out-of-band control for scalable deployment and lifecycle operations.
Supermicro engineering prioritises serviceability, validated component interoperability, and standards-aligned platform management. The redundant 650W 80 PLUS Titanium hot-swap power design, IPMI via ASPEED AST2600, and RAID 0/1/5/10 support align the SYS-520P-WTR-EU with modern data centre reliability and maintainability requirements.
Key Applications:
- Virtualization and private cloud clusters
- Database processing and analytics
- Scale-up storage nodes
- General-purpose compute for data centres
- Network appliances with 10GbE connectivity
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your SYS-520P-WTR-EU deployment and an extended warranty up to 6 years to protect long-term infrastructure investments.
