SYS-5019D-4C-FN8TP Supermicro SuperServer Single Xeon D 1U Network security appliance/SD-WAN, vCPE controller box/NFV edge computing server/Virtualization server/IoT Edge Computing
Get extra volume discount for SYS-5019D-4C-FN8TP and save cash:
| Quantity | Unit price |
|---|---|
| To 4 |
€1,037.82
|
| To 9 |
€1,014.48
€1,037.82
(2.25% saved)
|
| To 19 |
€993.78
€1,037.82
(4.24% saved)
|
| From 20 |
€972.98
€1,037.82
(6.25% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
€1,037.82
Do you have questions about this product SYS-5019D-4C-FN8TP?
SYS-5019D-4C-FN8TP
High-Density 1U Network/Edge Appliance featuring Xeon D SoC and multi-10GbE connectivity with the SYS-5019D-4C-FN8TP

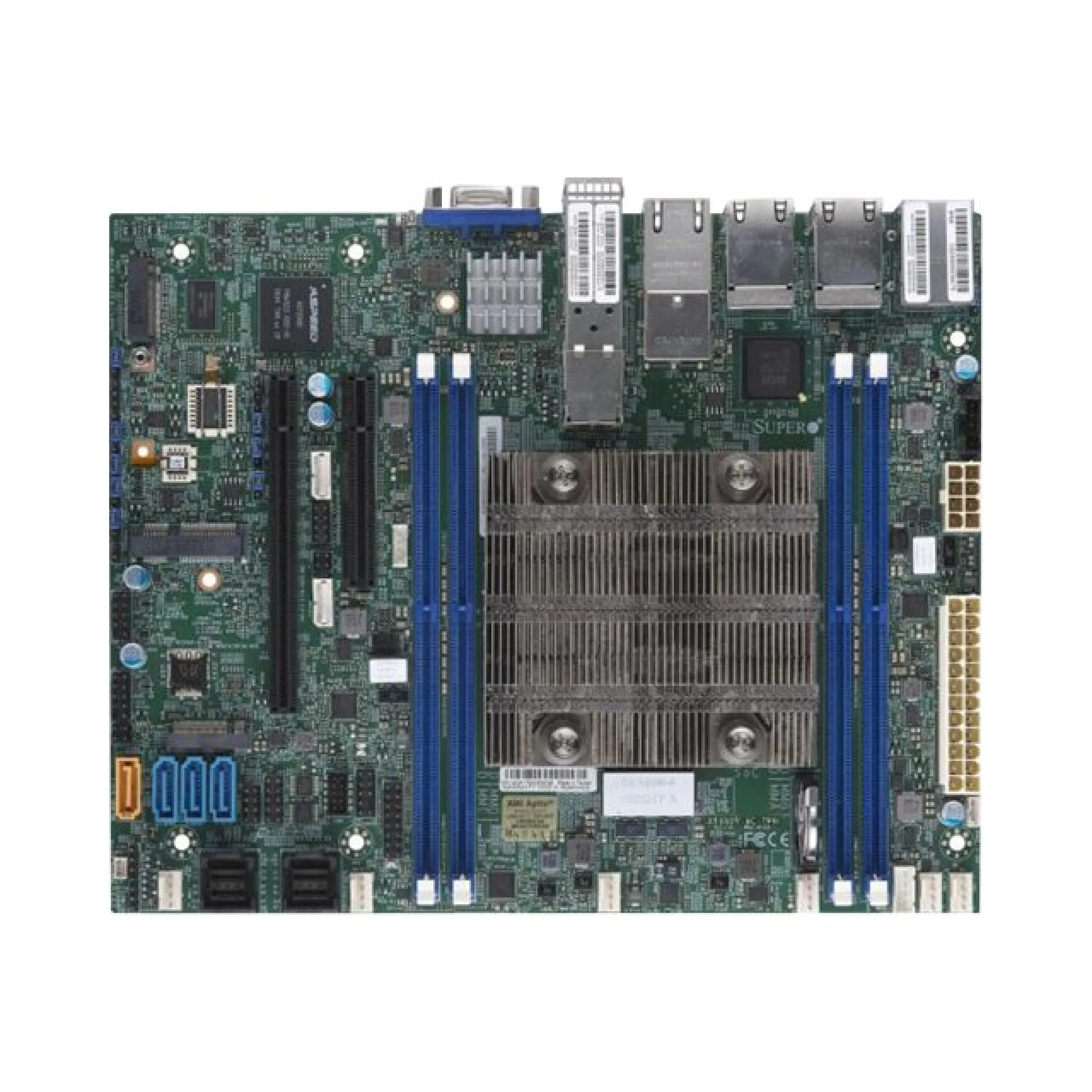

The SYS-5019D-4C-FN8TP is a 1U rack network and edge appliance barebone designed for NFV, vCPE, SD-WAN control, and security gateway roles where deterministic I/O and compact deployment matter. Built on the Intel Xeon D-2123IT SoC platform, it combines 4 cores/8 threads with an integrated, low-power server architecture and an ASPEED AST2500 BMC for out-of-band operations.

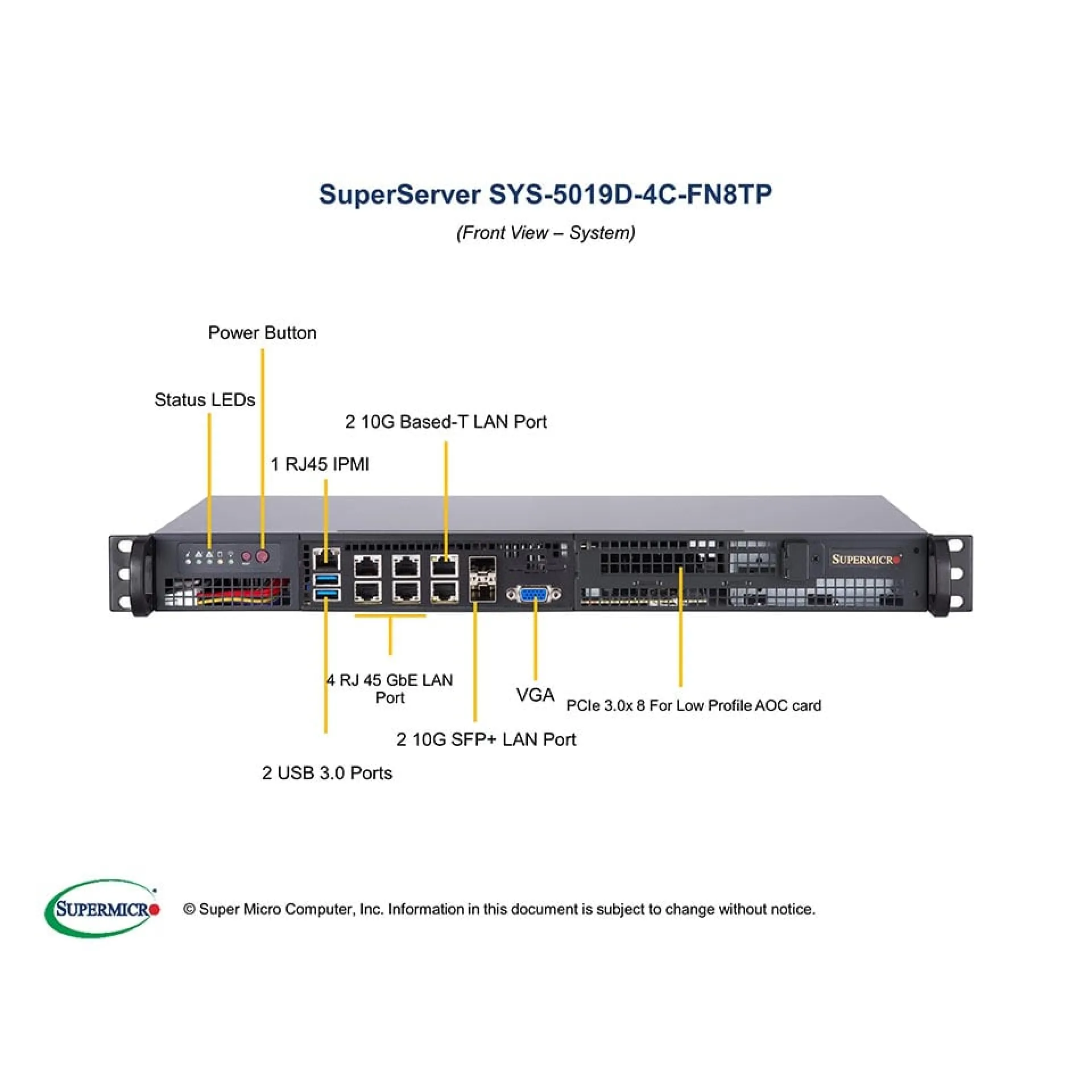

Memory scalability is enabled through 4 DDR4 ECC DIMM slots supporting RDIMM/LRDIMM configurations to align capacity with virtualization density and stateful services. PCIe 3.0 expansion is provided via a full-height x8 slot for NIC, accelerator, or specialized interface cards, while storage design balances simplicity and resilience: 4 fixed 2.5" SATA 6Gb/s bays plus dual M.2 (M-Key PCIe 3.0 and B-Key PCIe 3.0/SATA) for OS, caching, or mirrored boot media. The SYS-5019D-4C-FN8TP integrates high-density networking with 2x 10GbE SFP+, 2x 10GBASE-T, and 4x 1GbE ports, isolating data-plane throughput from management via a dedicated IPMI interface.
Why Choose the SYS-5019D-4C-FN8TP?
The SYS-5019D-4C-FN8TP delivers an enterprise-ready density-to-performance profile for distributed edge footprints, consolidating routing, firewalling, and service chaining into a single 1U node. Its I/O-centric architecture, IPMI 2.0 with KVM-over-LAN, and TPM header support consistent remote operations, lifecycle control, and security posture across multi-site rollouts.
Supermicro engineering prioritizes standardized platform integration, predictable thermals, and serviceability for modern data centre and edge racks, with management features and component validation aligned to long-term enterprise deployment requirements.
Key Applications:
- NFV and vCPE edge nodes
- SD-WAN controllers
- Network security appliances
- Service gateway consolidation
- Light virtualization at the edge
At Happyware - Server Hardware you benefit from non-binding offers tailored to SYS-5019D-4C-FN8TP deployment targets and extended warranty options up to 6 years to secure long-running edge and branch-site infrastructures.
Technical details of SYS-5019D-4C-FN8TP
How long is the Warranty and how you can get technical support for SYS-5019D-4C-FN8TP
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
