SYS-422GL-NR
High-Performance 4U GPU Server featuring dual-root PCIe 5.0 accelerator architecture with the SYS-422GL-NR
The SYS-422GL-NR is a 4U rackmount GPU platform engineered for multi-accelerator AI training and HPC, combining 2x Intel Xeon 6 6900 series processors (Granite Rapids) with a dual-root PCIe 5.0 topology to sustain predictable CPU-to-GPU bandwidth and balanced I/O. This design supports high core density and large memory footprints while maintaining deterministic expansion behavior across heterogeneous compute stacks.

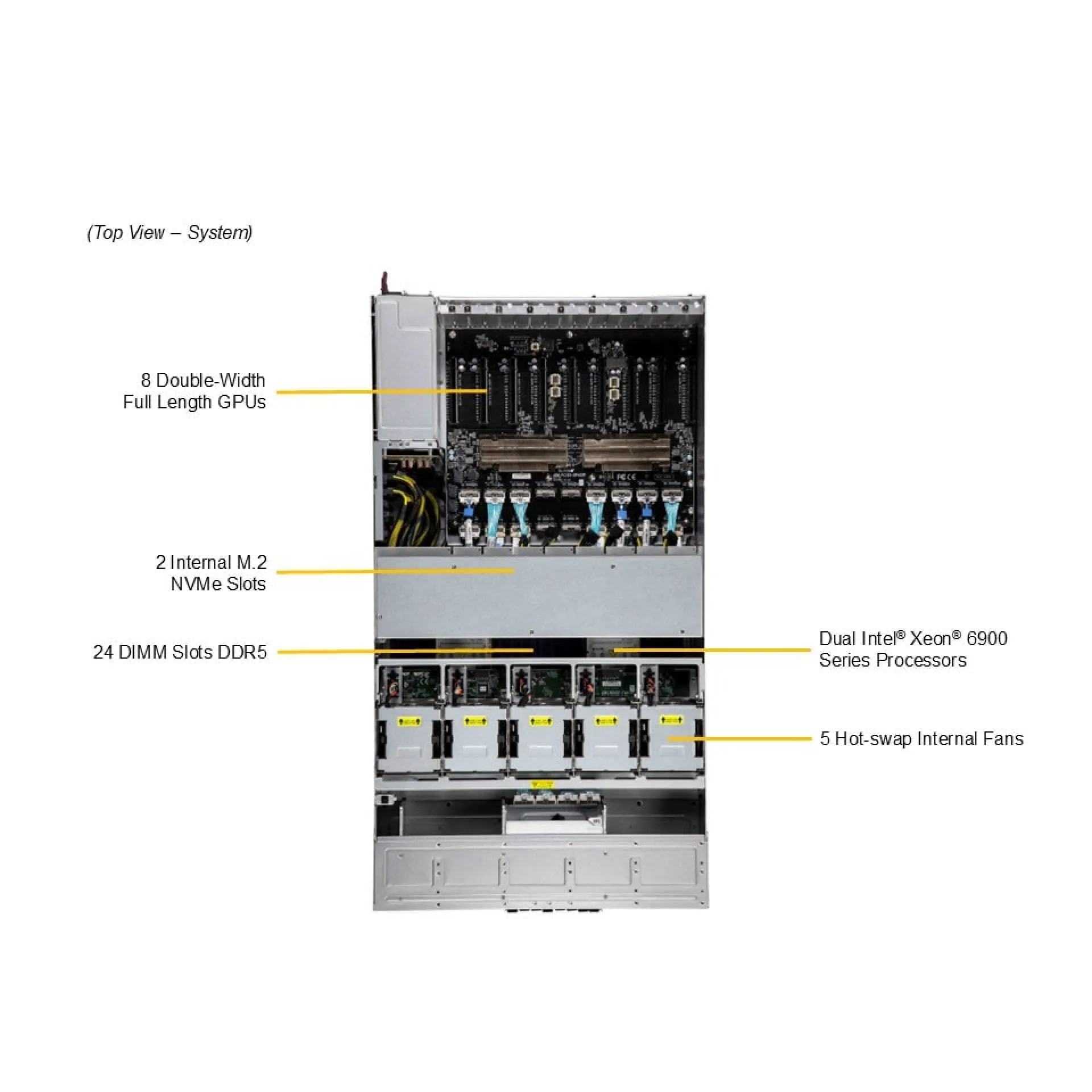

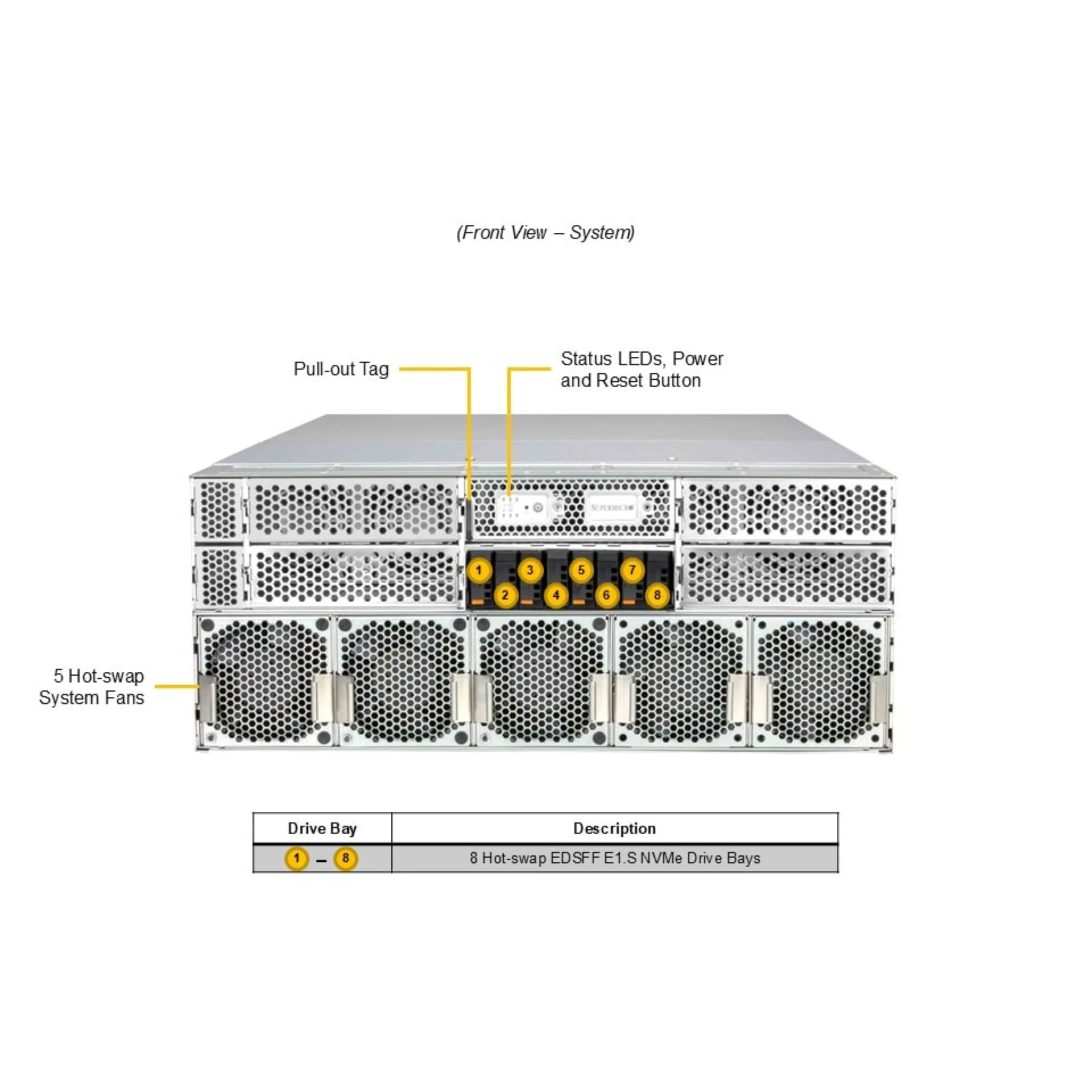

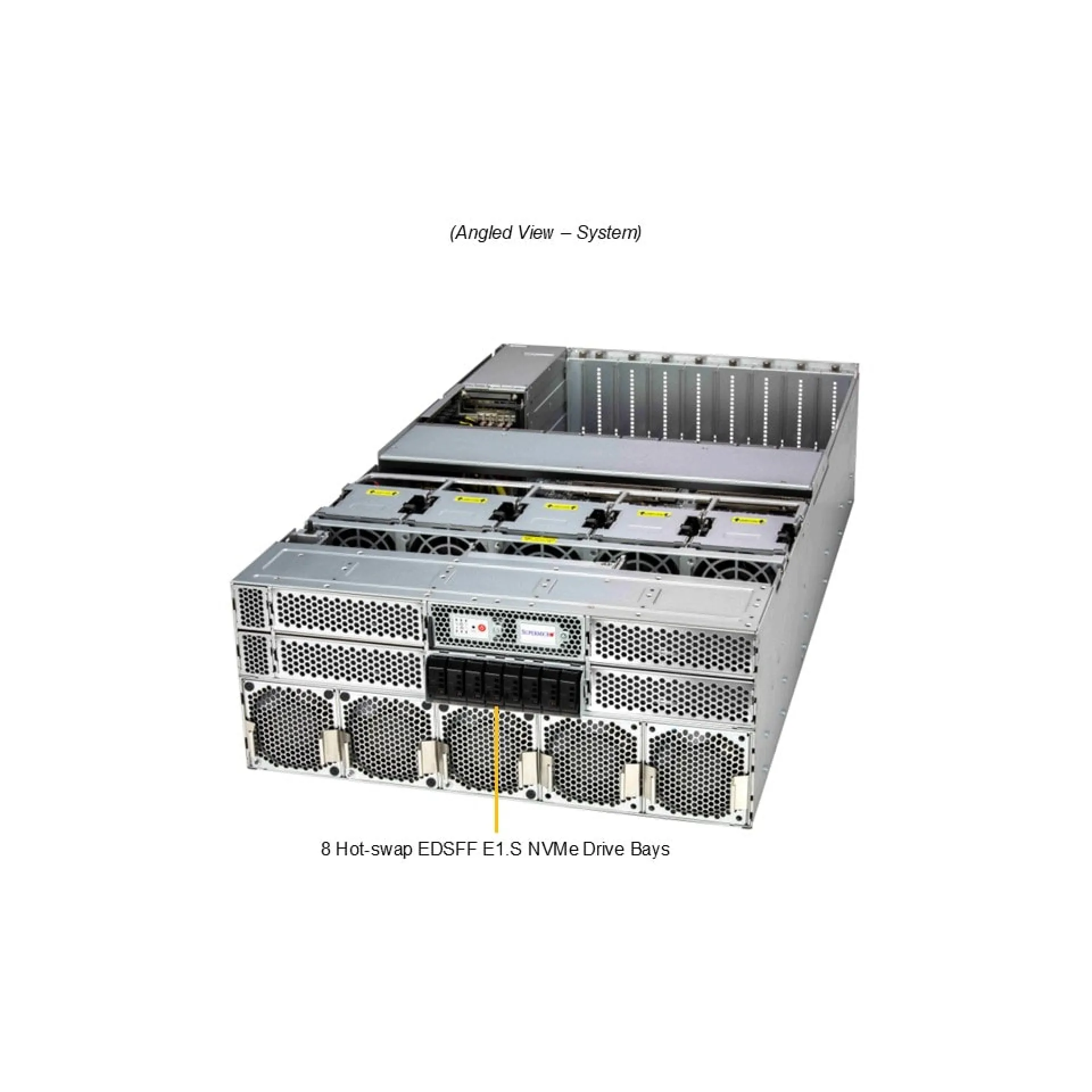

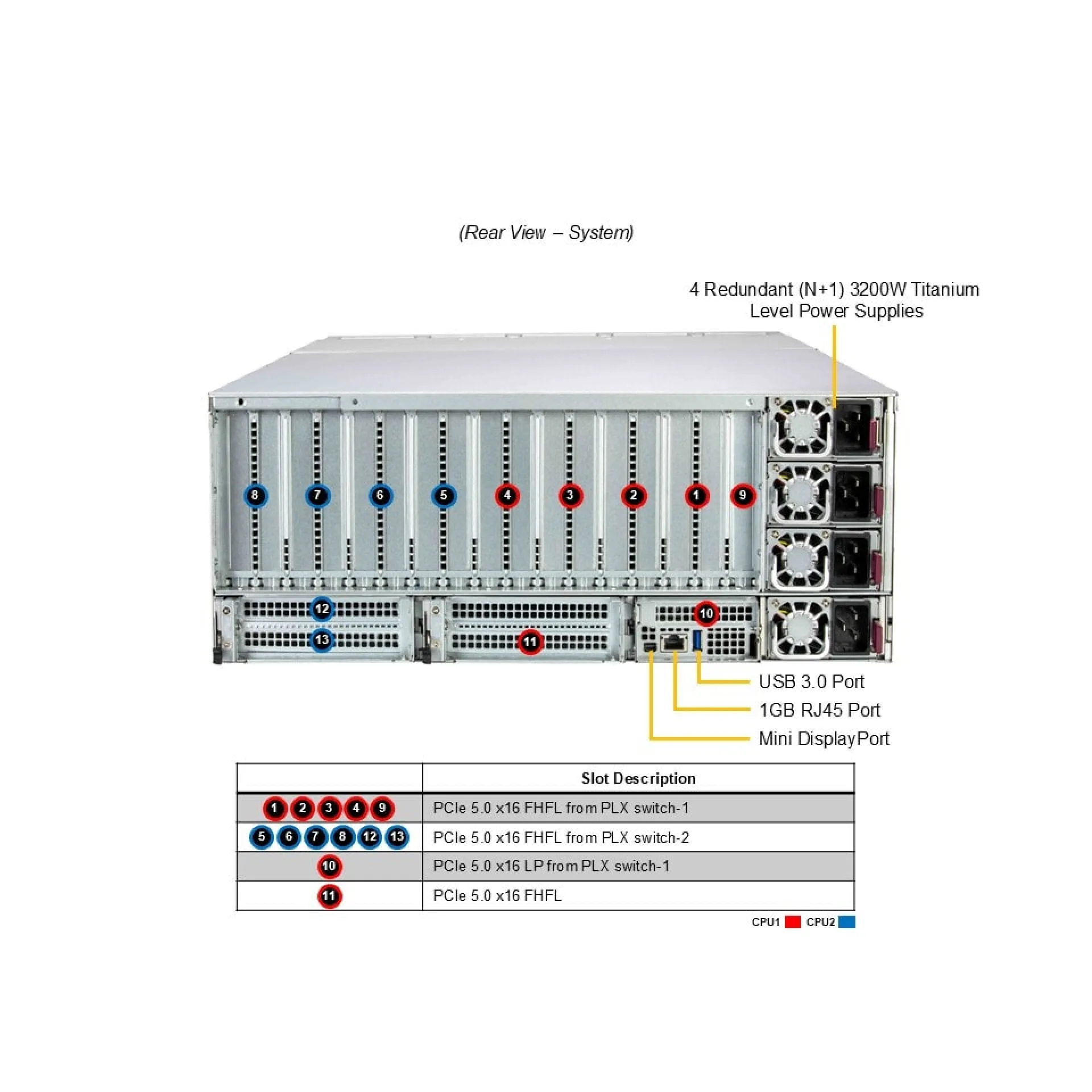

With 24x DDR5 ECC DIMM slots supporting RDIMM or MRDIMM configurations, the SYS-422GL-NR scales memory capacity to align with data-intensive training, simulation, and analytics pipelines. The PCIe 5.0 switching fabric exposes 8x full-height, double-width x16 GPU slots plus 4x PCIe 5.0 x16 HHHL slots for high-speed NICs, DPUs, or additional I/O, while optional NVLink bridging can be used for GPU-to-GPU locality where the accelerator set supports it. For storage, 8x front hot-swap E1.S NVMe bays provide serviceable, high-IOPS scratch and dataset tiers, complemented by dual M.2 NVMe boot devices to keep OS and hypervisor traffic isolated from workload media.
Why Choose the SYS-422GL-NR?
The SYS-422GL-NR targets density-to-performance efficiency in a single 4U node, consolidating multi-GPU compute, high-memory CPU resources, and PCIe 5.0 expansion into an enterprise-ready platform. It is suited for scalable cluster builds where repeatable topology, redundant power, and out-of-band management simplify rollout, lifecycle operations, and capacity growth.
Supermicro platforms are built around data centre integration priorities, emphasizing validated thermals, serviceable storage and power subsystems, and firmware governance. The SYS-422GL-NR also supports TPM 2.0 and NIST 800-193-aligned Silicon Root of Trust protections with secure boot to strengthen supply-chain and runtime assurance.
Key Applications:
- AI model training and fine-tuning
- HPC simulation and parallel compute
- High-memory analytics and inference pipelines
- GPU-accelerated virtualization and VDI
- Scale-out accelerator clusters
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your SYS-422GL-NR deployment plan and an extended warranty option up to 6 years to secure long-lived GPU cluster investments.
Technical details of SYS-422GL-NR
How long is the Warranty and how you can get technical support for SYS-422GL-NR
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
