SYS-242B-NR
High-Performance 2U 4-Socket Rack Server Barebone with PCIe Gen5 I/O and flexible hot-swap storage in the SYS-242B-NR

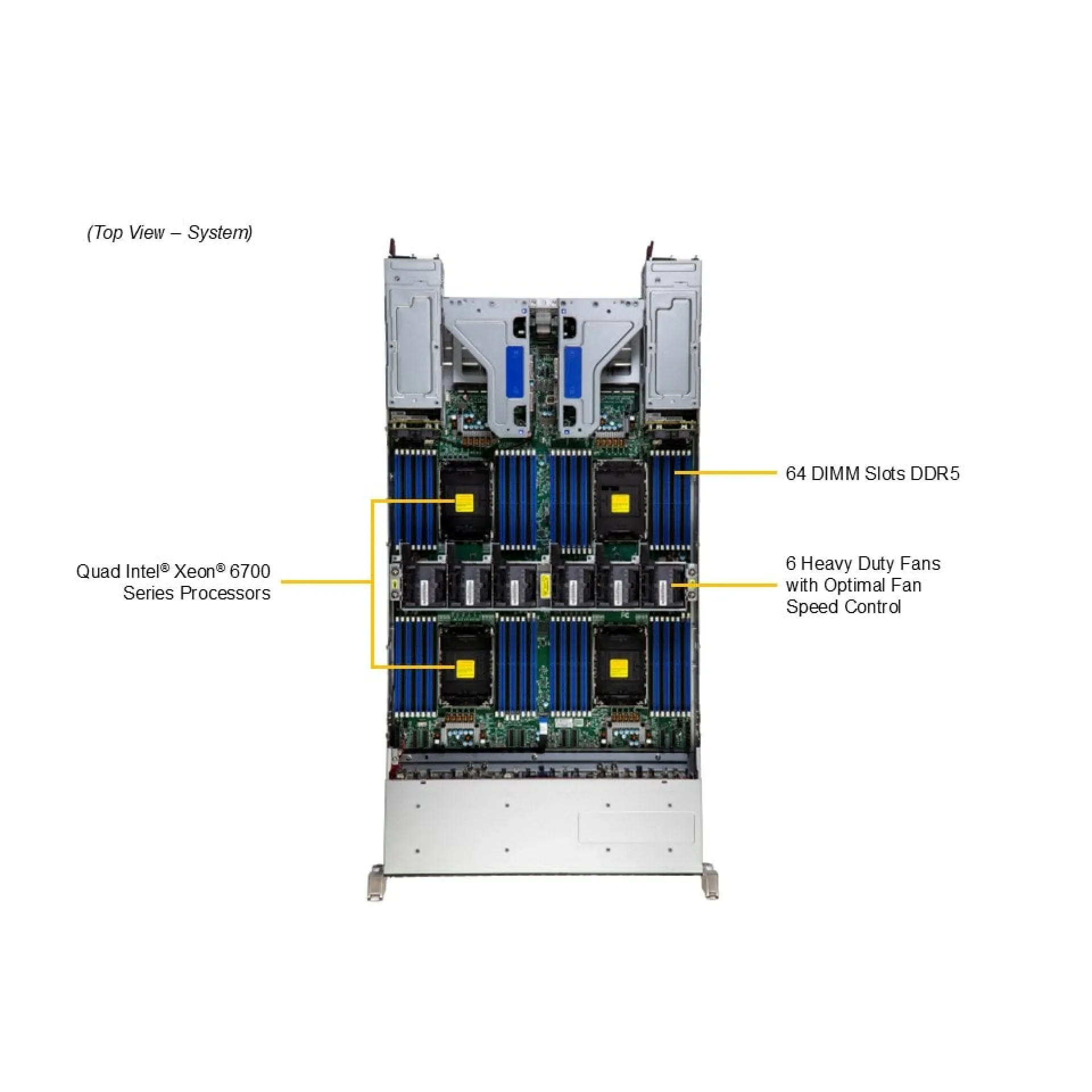

SYS-242B-NR is a 2U 1-node platform engineered for 4-socket Intel Xeon 6 (Granite Rapids) deployments where CPU throughput, memory capacity, and PCIe Gen5 connectivity must scale together. With up to 4 x Xeon 6700 processors and a dense DDR5 ECC RDIMM topology, it targets consolidation of large enterprise workloads that benefit from high core counts and sustained memory bandwidth.

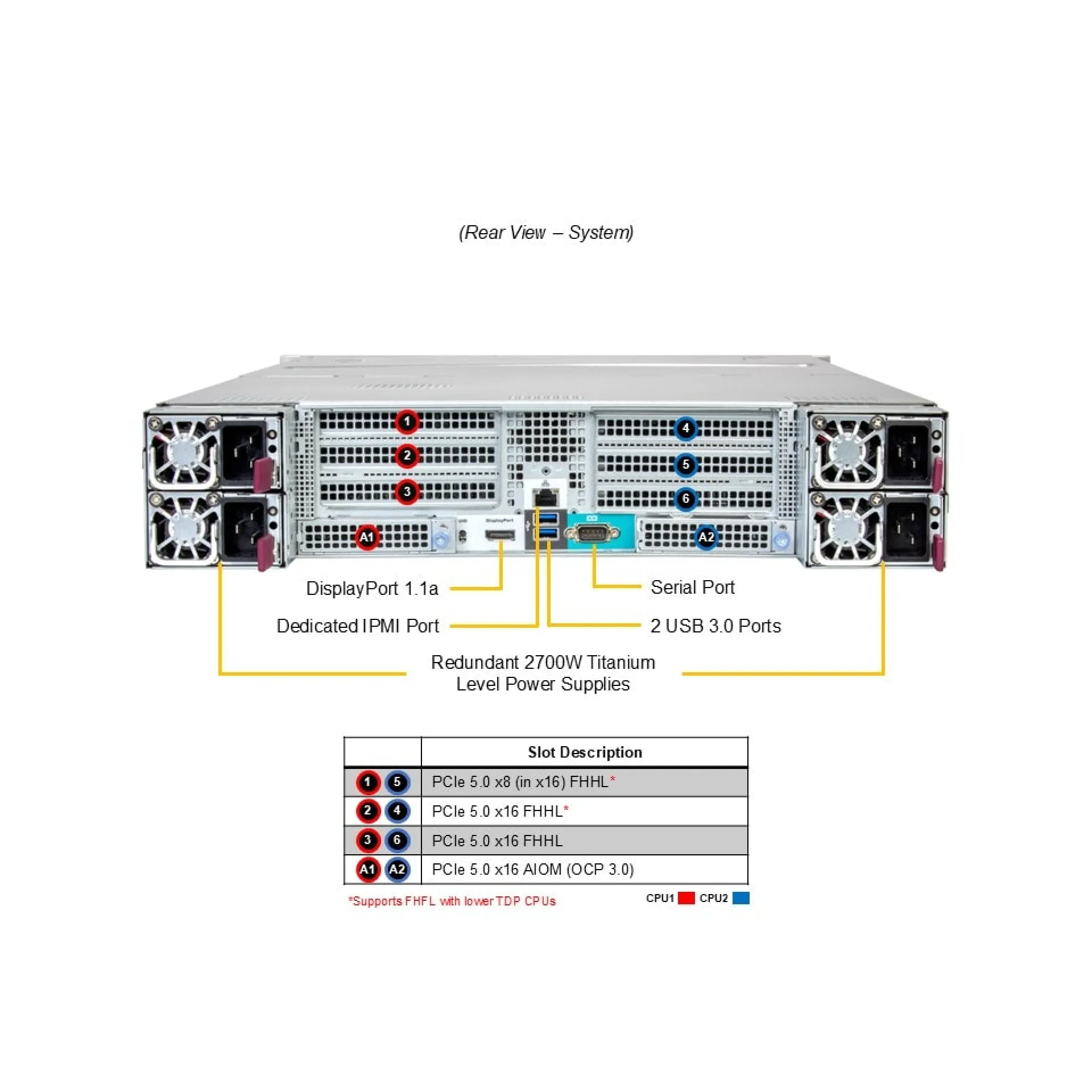

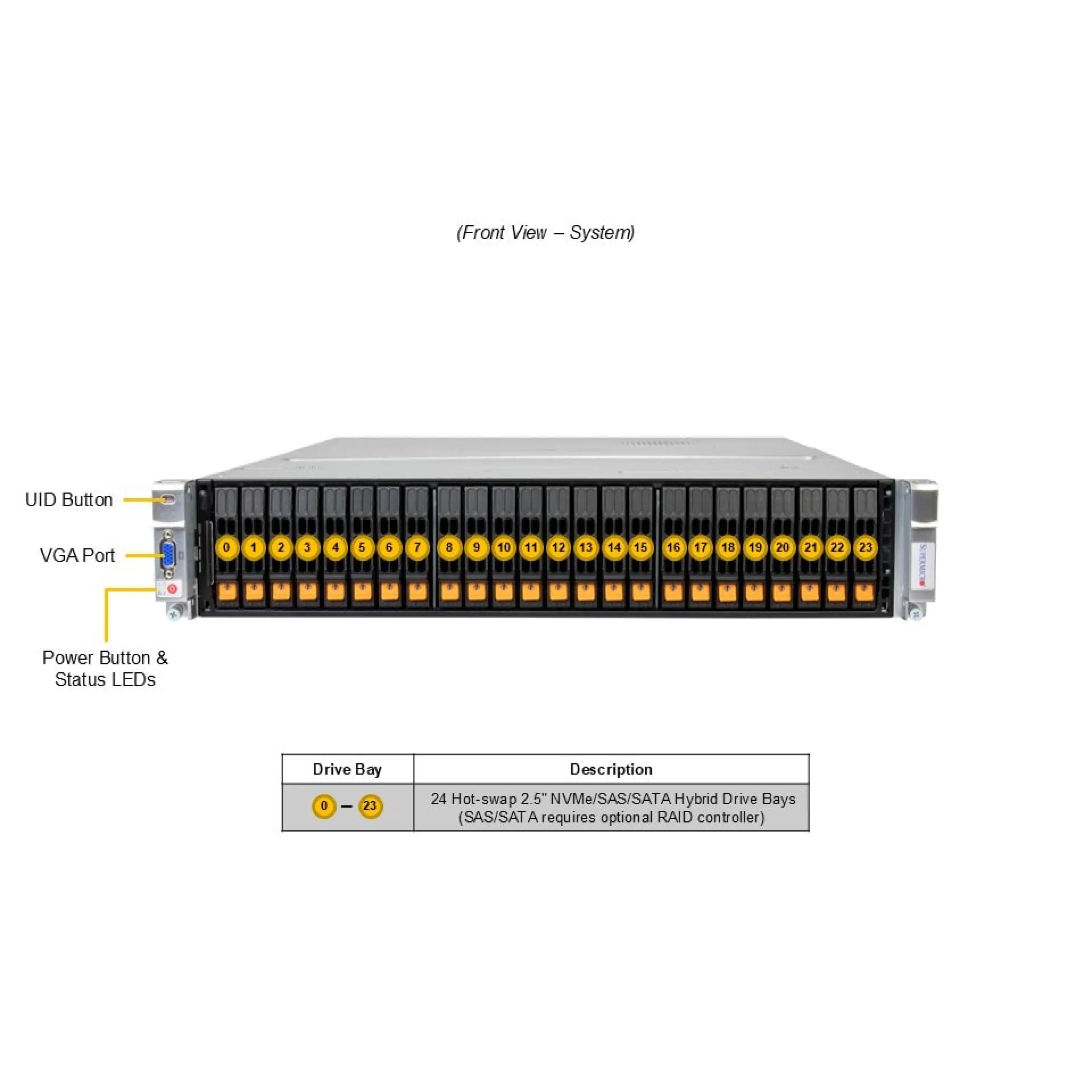

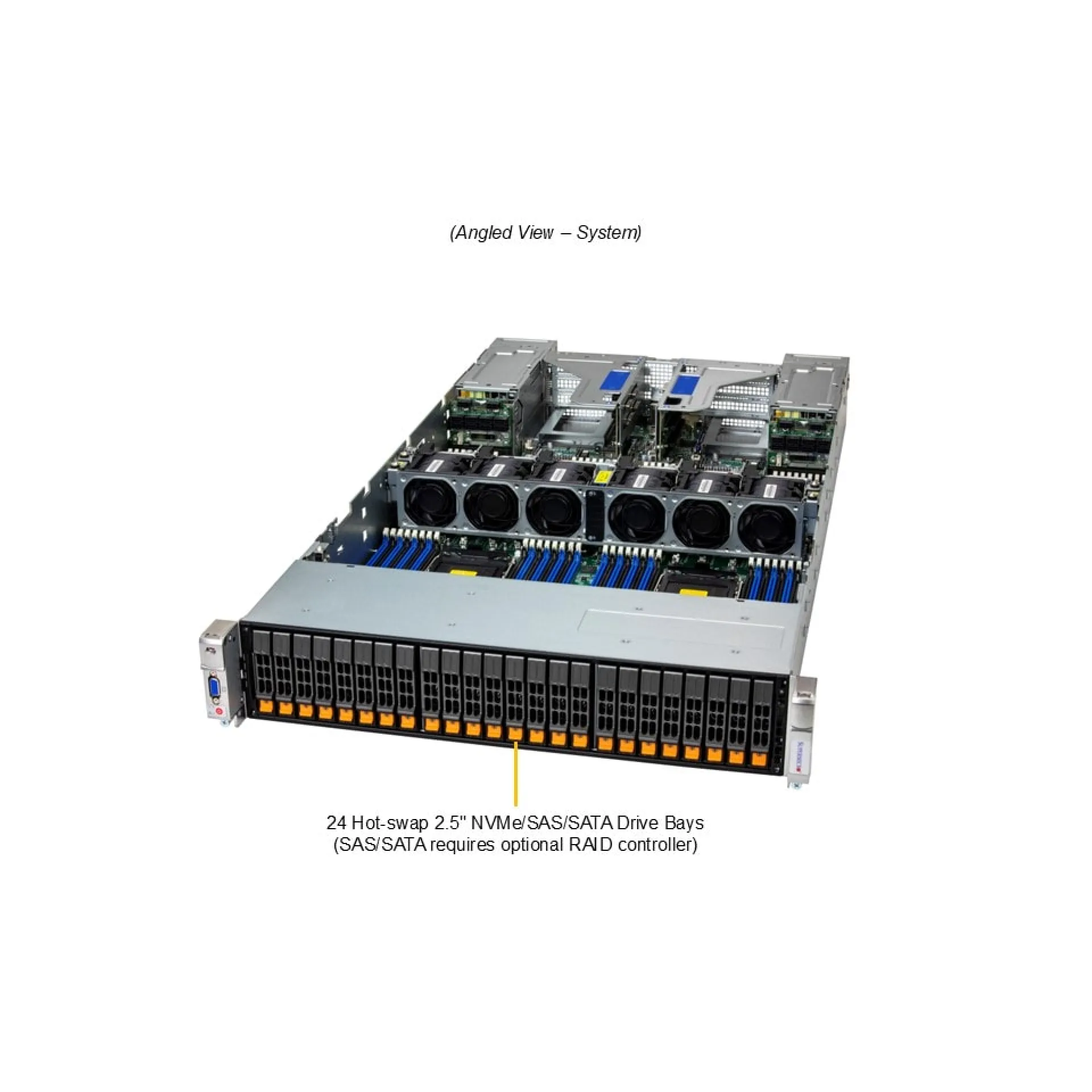

The memory subsystem provides 64 DDR5 channels across the chassis, enabling very large footprints for virtualization, HCI, and in-memory databases while retaining ECC protections. SYS-242B-NR exposes PCIe 5.0 expansion for accelerator and high-speed I/O integration, including FHHL slots and optional support for up to 2 double-width FHFL PCIe 5.0 x16 positions for compatible GPUs. Storage architecture centers on 24 x 2.5in hot-swap bays with NVMe U.2 support and optional SAS/SATA enablement via appropriate controllers/cabling, complemented by dual internal M.2 NVMe (PCIe Gen4) boot devices to isolate OS and hypervisor media from data tiers.
Why Choose the SYS-242B-NR?
SYS-242B-NR delivers a balanced density-to-performance profile for rack-scale compute, combining 4-socket CPU scaling, high DDR5 slot count, and PCIe Gen5 lanes in a serviceable 2U form factor. It is designed for repeatable enterprise rollout with remote management, redundant power design, and clear growth paths for networking via dual OCP NIC 3.0 AIOM slots.
Supermicro builds this platform with a focus on data centre operability and lifecycle resilience, integrating IPMI/BMC management, TPM 2.0, secure boot, and NIST 800-193 aligned firmware protection to support controlled, standards-driven infrastructure deployments.
Key Applications:
- SAP HANA consolidation
- In-memory enterprise databases
- High-density virtualization
- HCI compute nodes
- PCIe Gen5 analytics and AI I/O
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your SYS-242B-NR configuration goals, and from an extended warranty of up to 6 years to secure long-term operation in enterprise environments.
Technical details of SYS-242B-NR
How long is the Warranty and how you can get technical support for SYS-242B-NR
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
