SYS-222HE-FTN
High-Density 2U Short-Depth Rack Server featuring dual-socket Xeon 6 and PCIe 5.0 expansion with the SYS-222HE-FTN
SYS-222HE-FTN is a 2U short-depth single-node platform engineered for space-constrained edge and enterprise racks that require full front serviceability without compromising dual-socket compute. Built on Intel Xeon 6 (Granite Rapids/Sierra Forest) with up to 2 processors, it targets consolidation and latency-sensitive services by pairing high core density with a balanced I/O and memory subsystem.

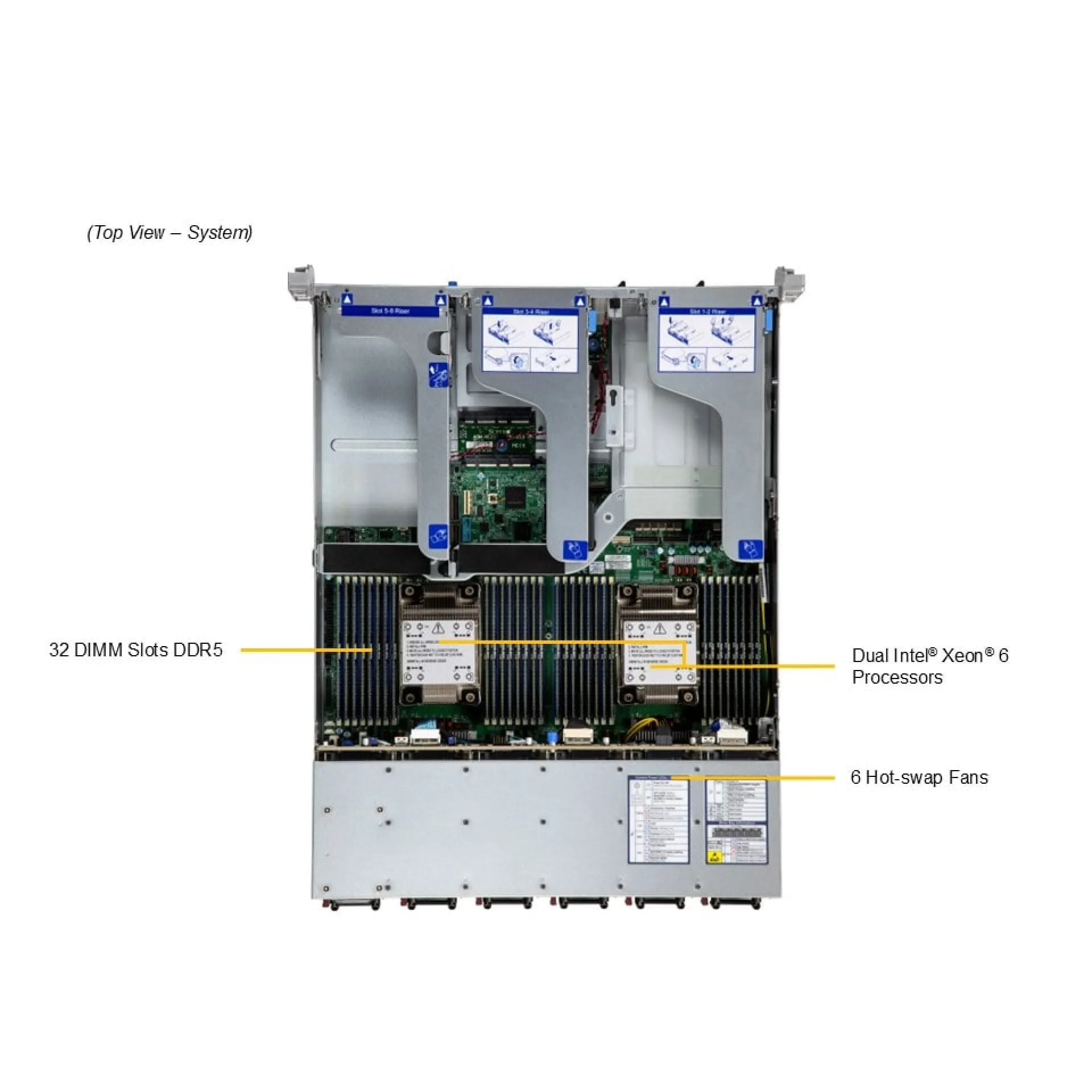

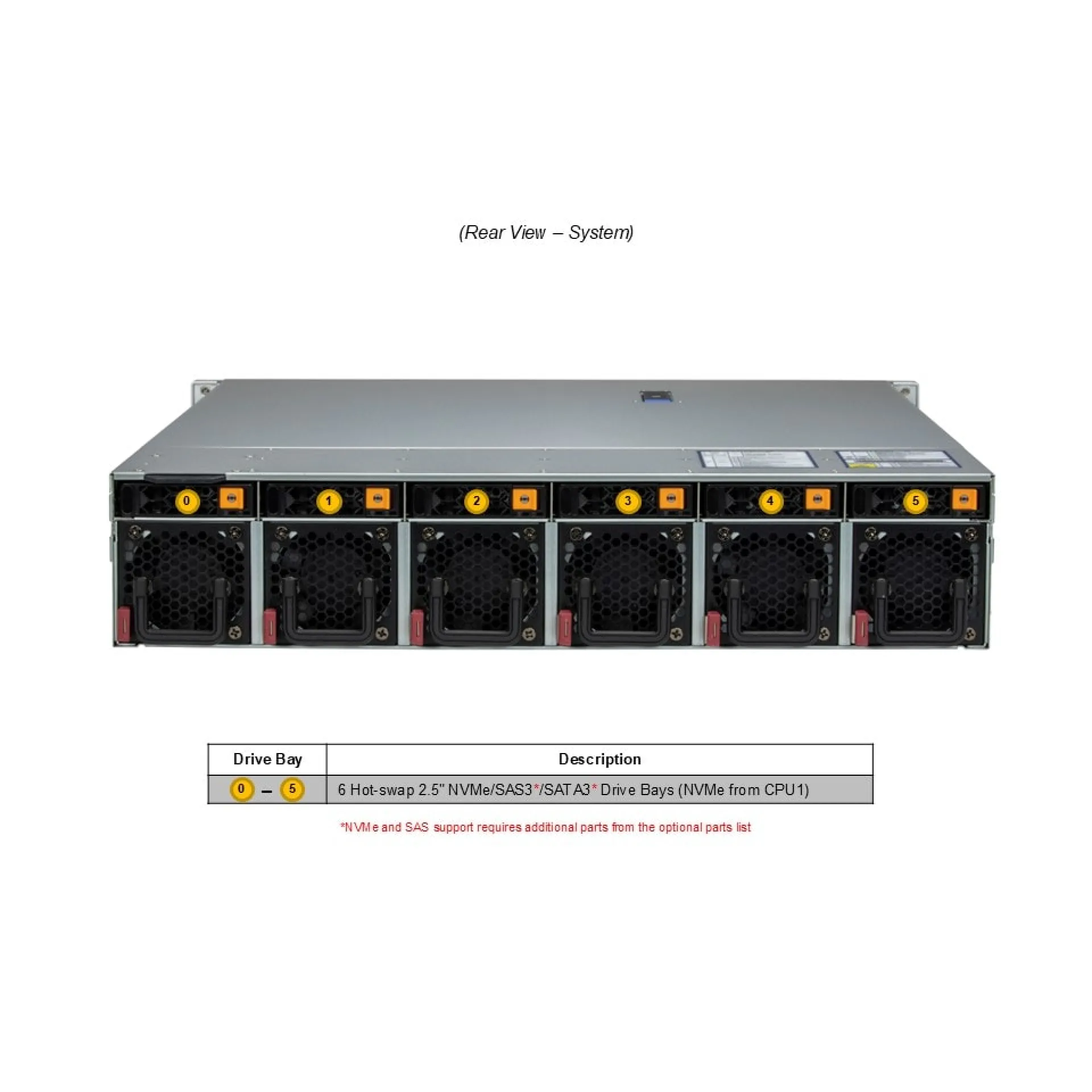

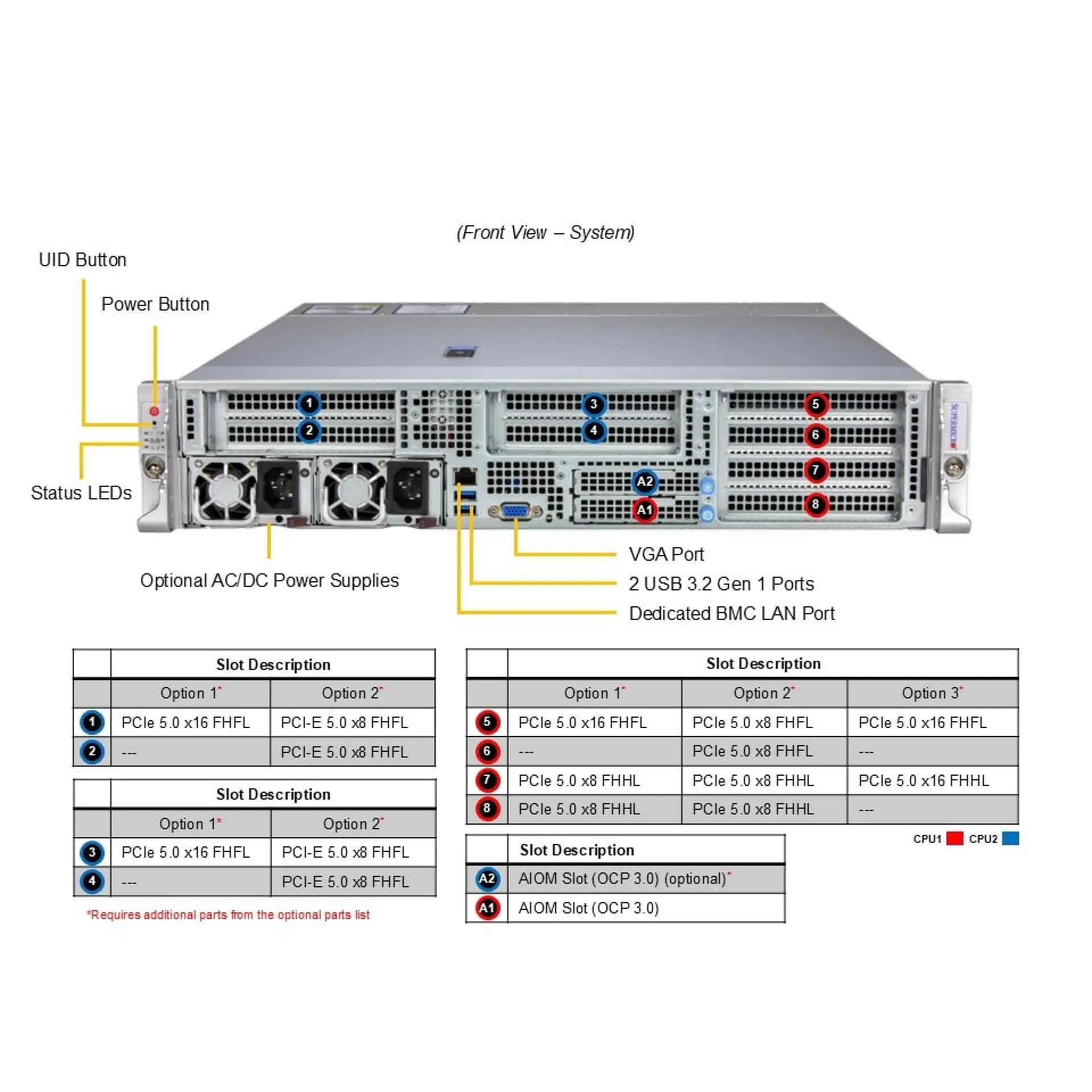

For memory-bound virtualization and database tiers, SYS-222HE-FTN provides 32 DDR5 RDIMM ECC slots across 16 channels, enabling high-capacity footprints while sustaining bandwidth for multi-VM and container scheduling. PCIe 5.0 expansion is optimized for accelerators and modular networking: configurable double-width-capable x16 slots support GPU-based inference, while 2 PCIe 5.0 x16 AIOM (OCP 3.0 compatible) slots decouple network selection from server lifecycle. Storage design aligns with software-defined stacks, combining 6 hot-swap 2.5" bays for mixed NVMe/SAS/SATA with optional front bay expansion, plus dual M.2 NVMe PCIe Gen5 for resilient boot. CXL 2.0 readiness extends SYS-222HE-FTN for emerging memory and accelerator attach models.
Why Choose the SYS-222HE-FTN?
SYS-222HE-FTN delivers a strong density-to-performance profile in a short-depth chassis, enabling dual-socket consolidation where rack depth and front-access service models are non-negotiable. Its PCIe 5.0 topology, AIOM modularity, and hot-swap storage options make SYS-222HE-FTN scalable across edge, ROBO, and core deployments while preserving enterprise reliability through redundant 2000W Titanium power and secure platform controls.
Supermicro designs platforms around serviceability, thermal discipline, and standards-aligned integration, combining validated server building blocks with data centre-ready management, security, and lifecycle stability for modern heterogeneous workloads.
Key Applications:
- 5G core and edge compute
- ROBO virtualization consolidation
- AI inference with PCIe Gen5 GPUs
- Software-defined storage (NVMe/SAS/SATA)
- CXL-enabled memory expansion pilots
At Happyware - Server Hardware you benefit from non-binding offers tailored to your SYS-222HE-FTN configuration and rollout plan, plus an extended warranty of up to 6 years to protect long-life edge and enterprise deployments.
Technical details of SYS-222HE-FTN
How long is the Warranty and how you can get technical support for SYS-222HE-FTN
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
