SYS-222BT-HNC9R Supermicro SuperServer Dual Xeon 6500 w/ P-cores 2U Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
Do you have questions about this product SYS-222BT-HNC9R?
SYS-222BT-HNC9R
High-Density 2U 4-Node BigTwin Rack Server featuring dual-socket Intel Xeon 6 compute with the SYS-222BT-HNC9R

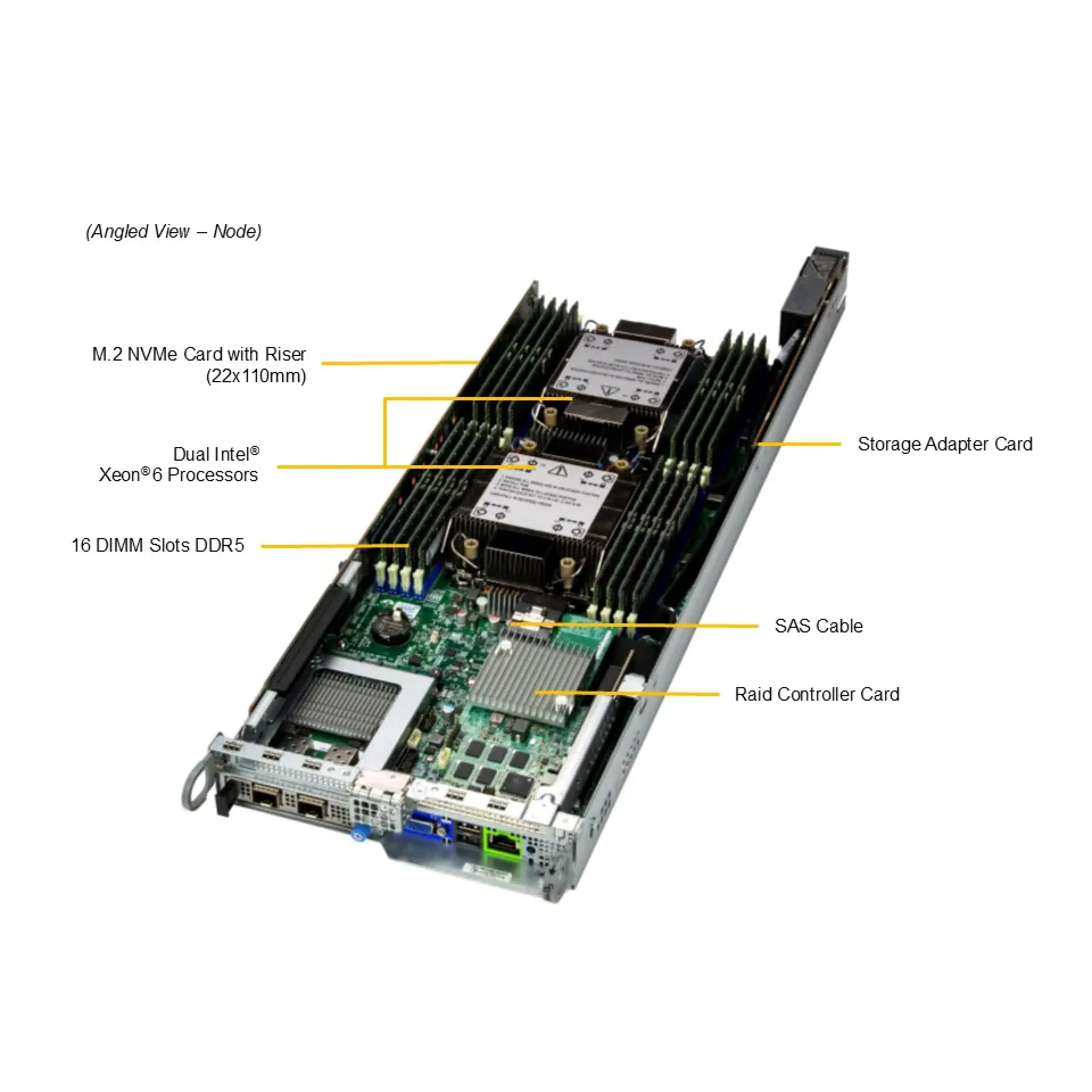

The SYS-222BT-HNC9R is a 2U BigTwin multi-node platform engineered for scale-out clusters where per-rack CPU throughput and memory capacity must be maximized without expanding chassis footprint. Each node runs dual Intel Xeon 6 processors (Granite Rapids/Sierra Forest, Xeon 6500/6700 series) on Socket E2 (LGA4710), enabling dense consolidation for private cloud, virtualization, and CPU-centric HPC scheduling.

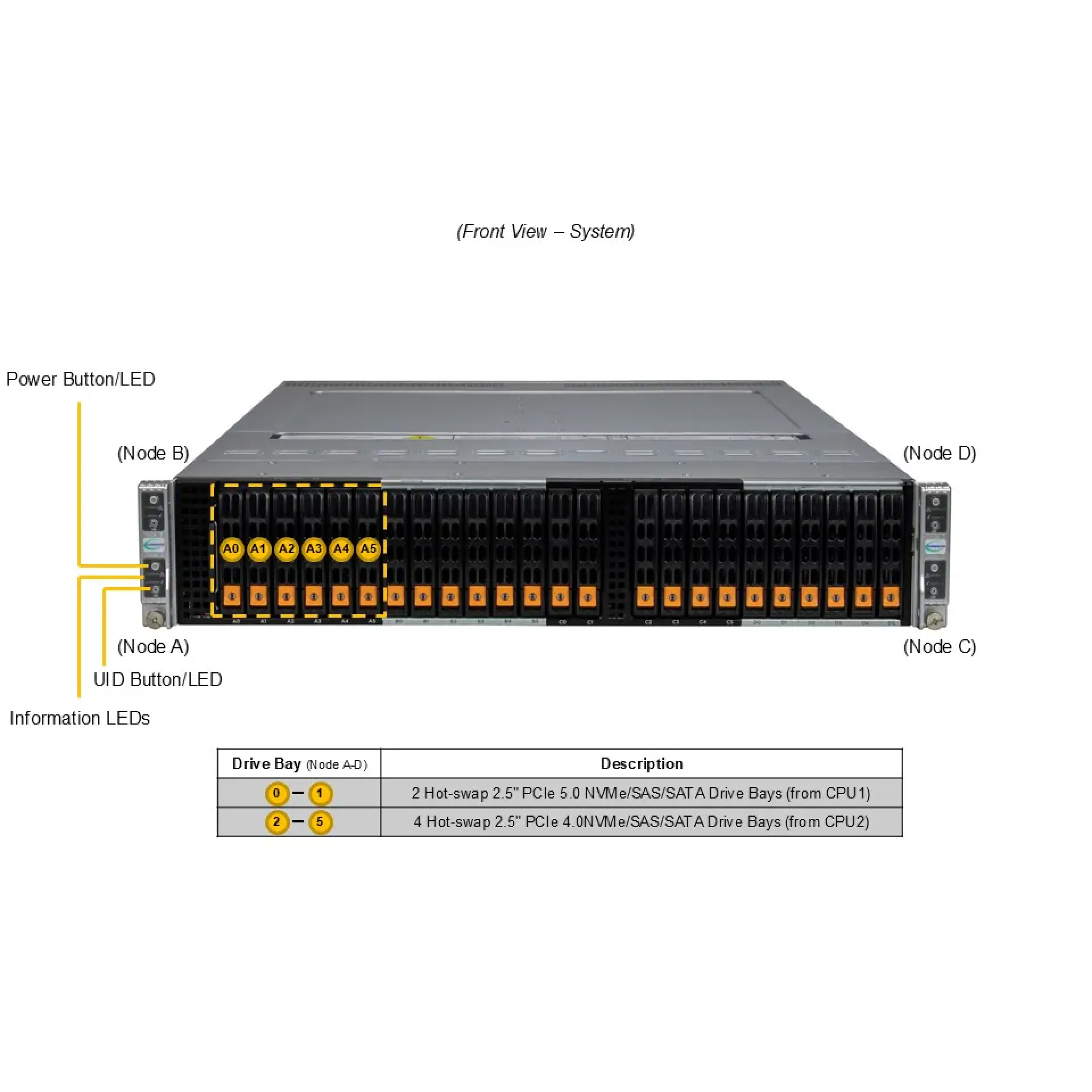

Per node, the memory subsystem provides 16 DDR5 ECC RDIMM slots supporting up to 4TB at 6400 MT/s (1DPC), targeting high in-memory analytics and VM density with predictable latency. The SYS-222BT-HNC9R delivers PCIe Gen5 I/O where it matters: a PCIe 5.0 x16 low-profile slot for high-bandwidth adapters and a PCIe 5.0 x16 AIOM slot aligned to OCP NIC 3.0 for modular network design. Storage is optimized for mixed tiers with 6 hot-swap 2.5in bays per node—2x PCIe Gen5 NVMe/SAS plus 4x PCIe Gen4 NVMe/SAS—supported by Broadcom 3908 SAS 12Gb/s RAID (0/1/5/10). Dual PCIe Gen5 x4 M.2 22110 NVMe supports fast boot and cache (VROC required for RAID on M.2).
Why Choose the SYS-222BT-HNC9R?

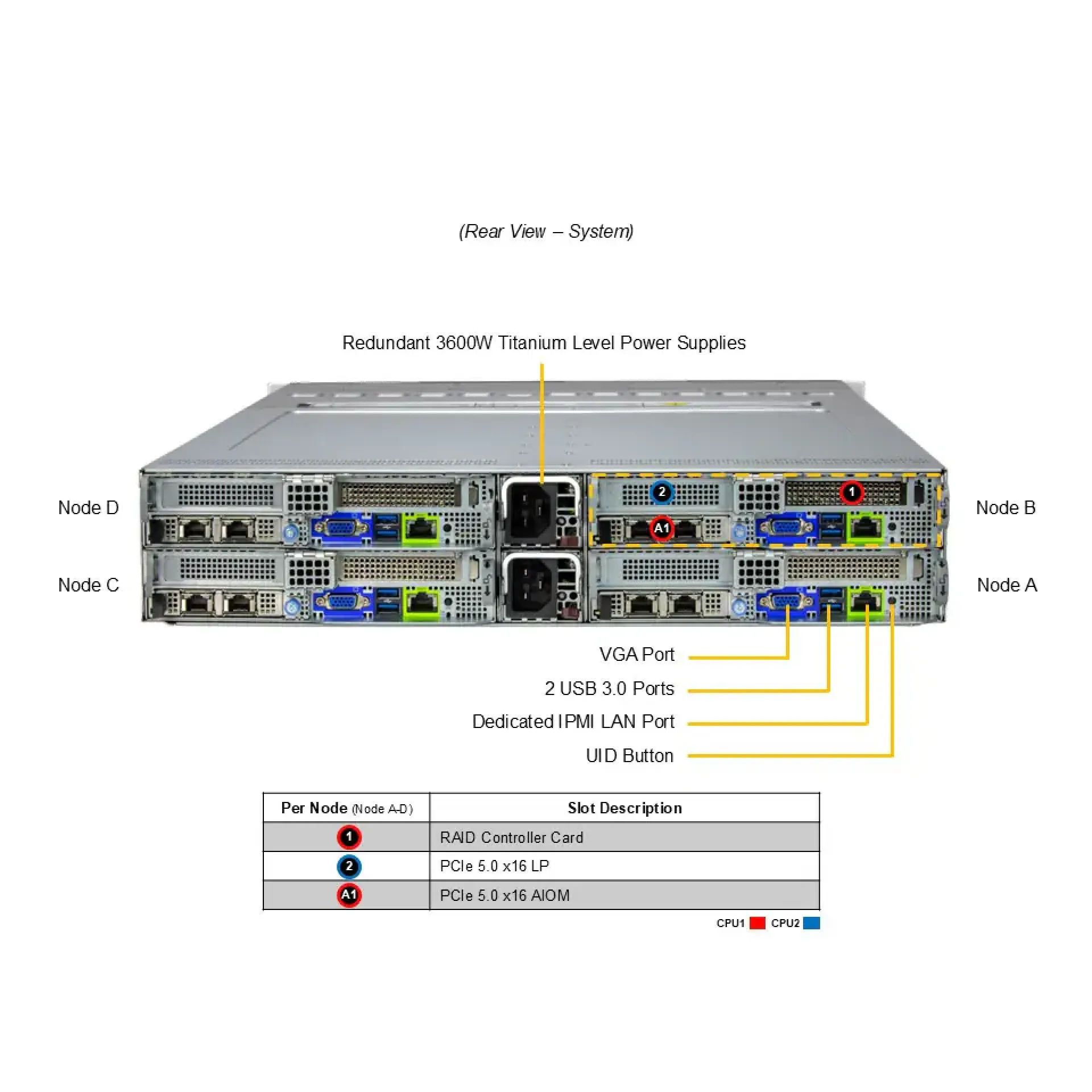

The SYS-222BT-HNC9R consolidates 4 independent dual-socket servers into 2U, improving density-to-performance ratios for standardized fleet deployments while keeping node-level isolation for multi-tenant operations. Its Gen5-ready I/O and AIOM-based networking scale cleanly with fabric upgrades, and redundant 1+1 3600W 80 PLUS Titanium power supports continuous service in enterprise racks.
Supermicro designs platforms around serviceability, validated component ecosystems, and data centre-aligned power and management. With dedicated BMC/IPMI management, TPM 2.0, and NIST 800-193 Silicon Root of Trust capabilities, the SYS-222BT-HNC9R is engineered for controlled lifecycle operations and secure provisioning.
Key Applications:
- High-density cluster compute
- Private cloud infrastructure
- CPU-centric HPC scale-out
- Virtualization consolidation
- NVMe/SAS mixed analytics storage
At Happyware - Server Hardware you benefit from non-binding offers tailored to your SYS-222BT-HNC9R configuration and an extended warranty of up to 6 years to protect long-term platform standardization in production environments.
Technical details of SYS-222BT-HNC9R
How long is the Warranty and how you can get technical support for SYS-222BT-HNC9R
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
