High-Density 2U Dual-Node All-Flash Storage and HCI Platform with the SYS-220BT-DNC8R
The SYS-220BT-DNC8R is a 2U multi-node barebone designed for all-flash HCI, object storage, and NVMe-over-Fabrics building blocks where predictable latency and serviceability drive architectural decisions. Each of the 2 independent nodes supports up to 2x 3rd Gen Intel Xeon Scalable (Ice Lake, LGA4189) processors, aligning the platform with modern PCIe 4.0 I/O and high core-density virtualization or storage services per rack unit.

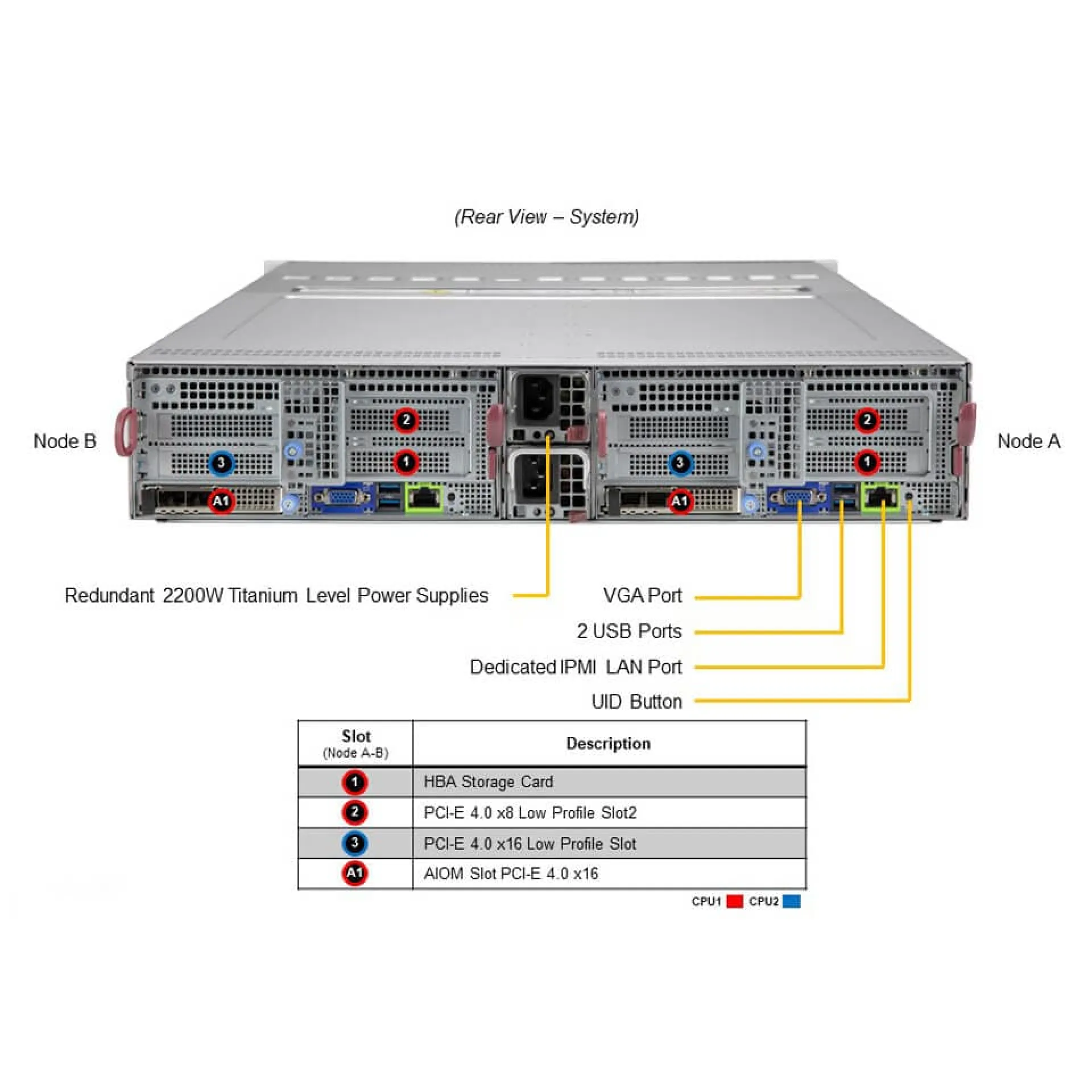

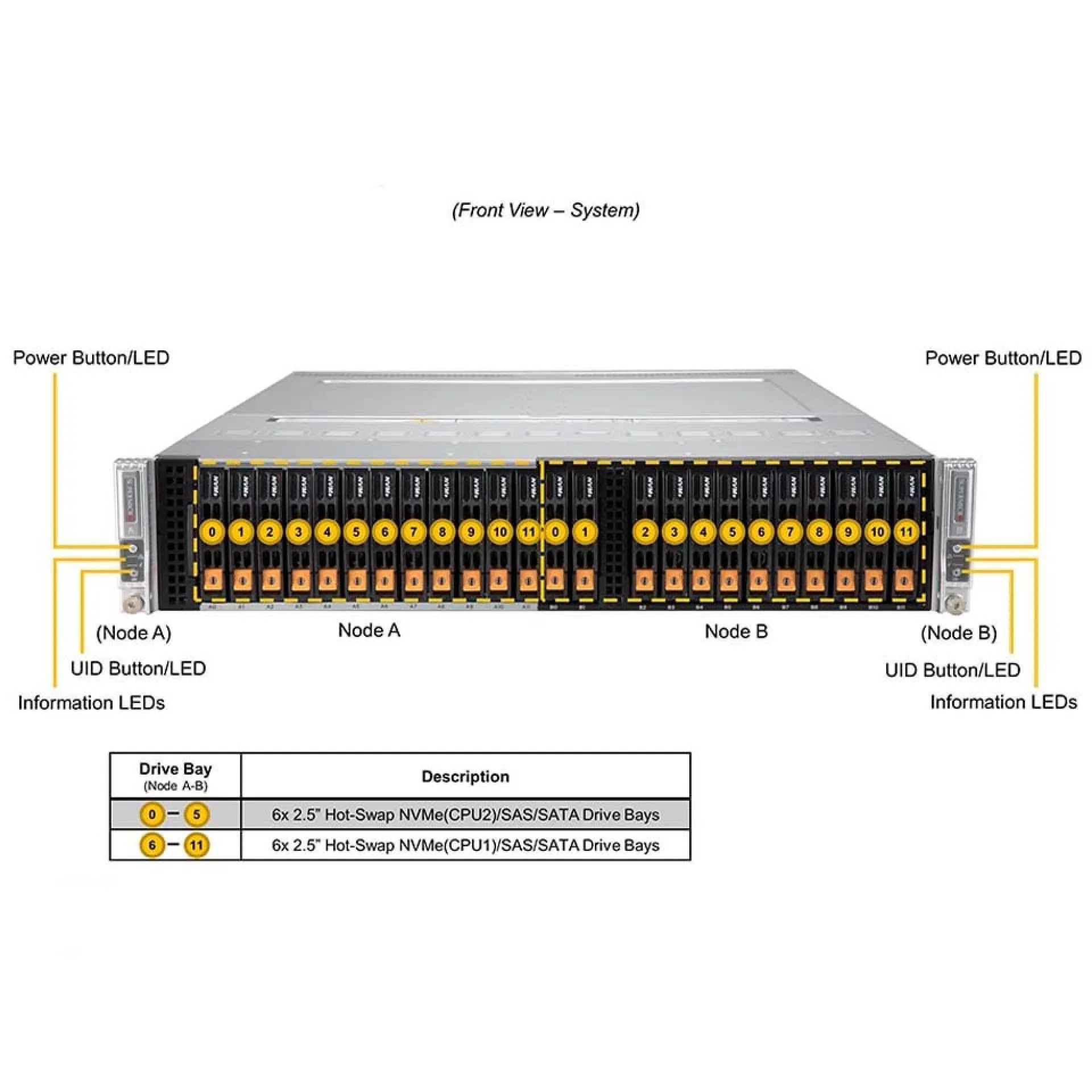

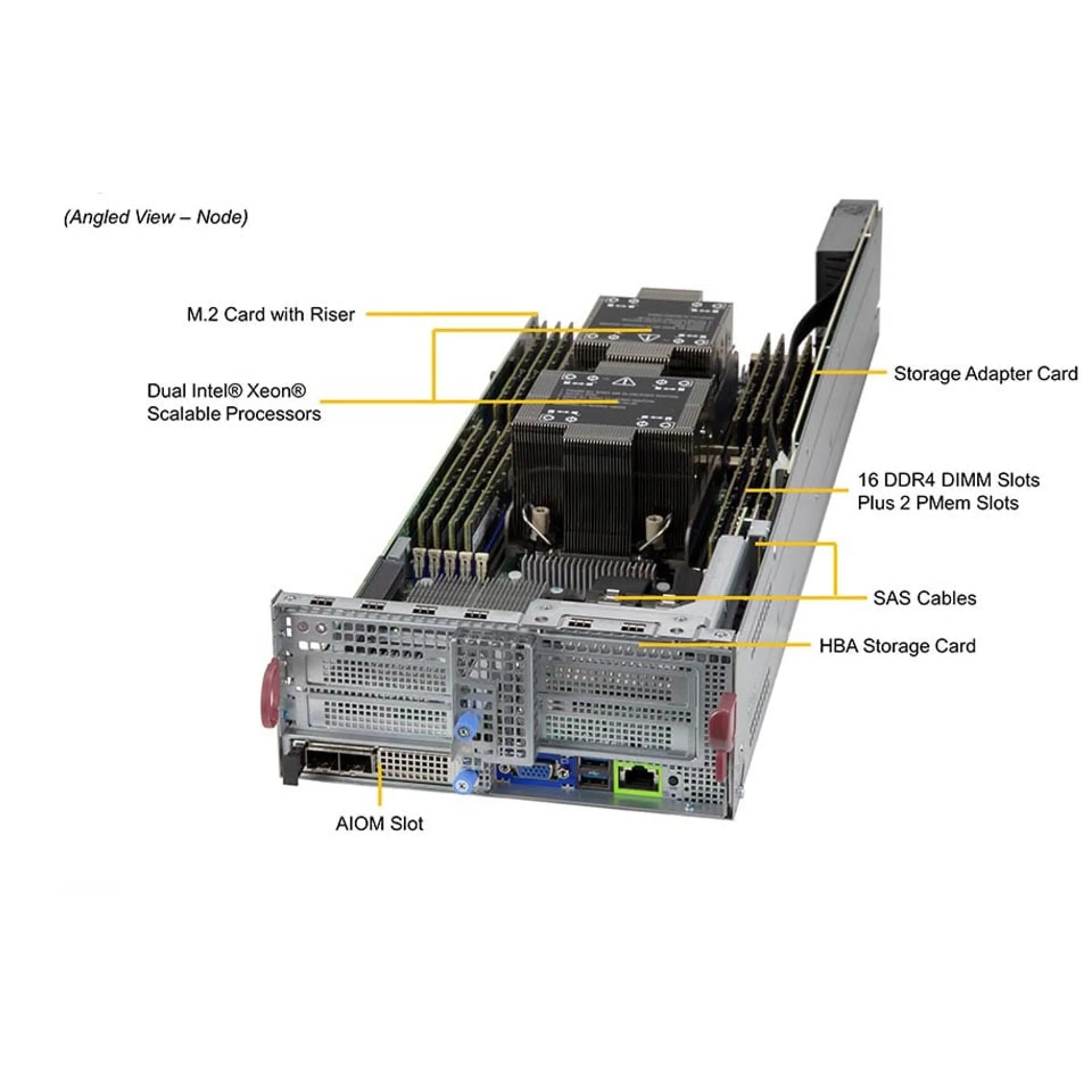

Per node, 16x DDR4 ECC RDIMM slots scale to 4TB and support Intel Optane Persistent Memory 200 series, enabling higher cache tiers and metadata acceleration without sacrificing DRAM capacity. The SYS-220BT-DNC8R pairs this memory architecture with a tri-mode storage front end: 12x 2.5-inch hot-swap bays per node supporting U.2 NVMe as well as SAS and SATA, plus 2x M.2 2280 for boot or read cache isolation. For expansion, 2x PCIe 4.0 low-profile slots per node support high-bandwidth NICs or storage adapters, while AIOM/OCP NIC options and a dedicated 1GbE BMC port separate data and management planes.
Why Choose the SYS-220BT-DNC8R?
The SYS-220BT-DNC8R delivers a strong density-to-performance ratio by consolidating 2 full dual-socket nodes into a single 2U chassis while maintaining independent failure domains for clustered storage designs. This layout supports scalable rollouts, consistent cabling, and fast service workflows, making the SYS-220BT-DNC8R well-suited for standardized all-flash pods and repeatable data centre deployments.
Supermicro engineering focuses on efficient thermals, component interoperability, and long-life enterprise platforms aligned to modern rack standards. With ASPEED AST2600 BMC management, IPMI-based remote operations, and integrated security features, the SYS-220BT-DNC8R is built for controlled, auditable infrastructure.
Key Applications:
- All-flash HCI compute and storage nodes
- NVMe-over-Fabrics storage building blocks
- All-flash object storage clusters
- Virtualization and private cloud infrastructure
- Software-defined storage with high IOPS
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your SYS-220BT-DNC8R project requirements and an extended warranty up to 6 years to secure long-term platform availability for enterprise rollouts.
Technical details of SYS-220BT-DNC8R
How long is the Warranty and how you can get technical support for SYS-220BT-DNC8R
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
