SYS-211E-FRN13P Supermicro SuperServer Single Xeon Scalable 4th Gen 2U Server
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
Do you have questions about this product SYS-211E-FRN13P?
SYS-211E-FRN13P
High-Density 2U Short-Depth Edge Rack Server with precision timing and 25GbE I/O in the SYS-211E-FRN13P
The SYS-211E-FRN13P is a 2U short-depth rack platform engineered for telecom and edge deployments that need deterministic timing and high-port-count 25GbE aggregation in a compact node. Built on a single-socket Intel Xeon Scalable 4th/5th Gen (LGA4677, C741) foundation, it balances core density up to 32 cores with controlled power envelopes for constrained edge racks and central office micro-DC footprints.

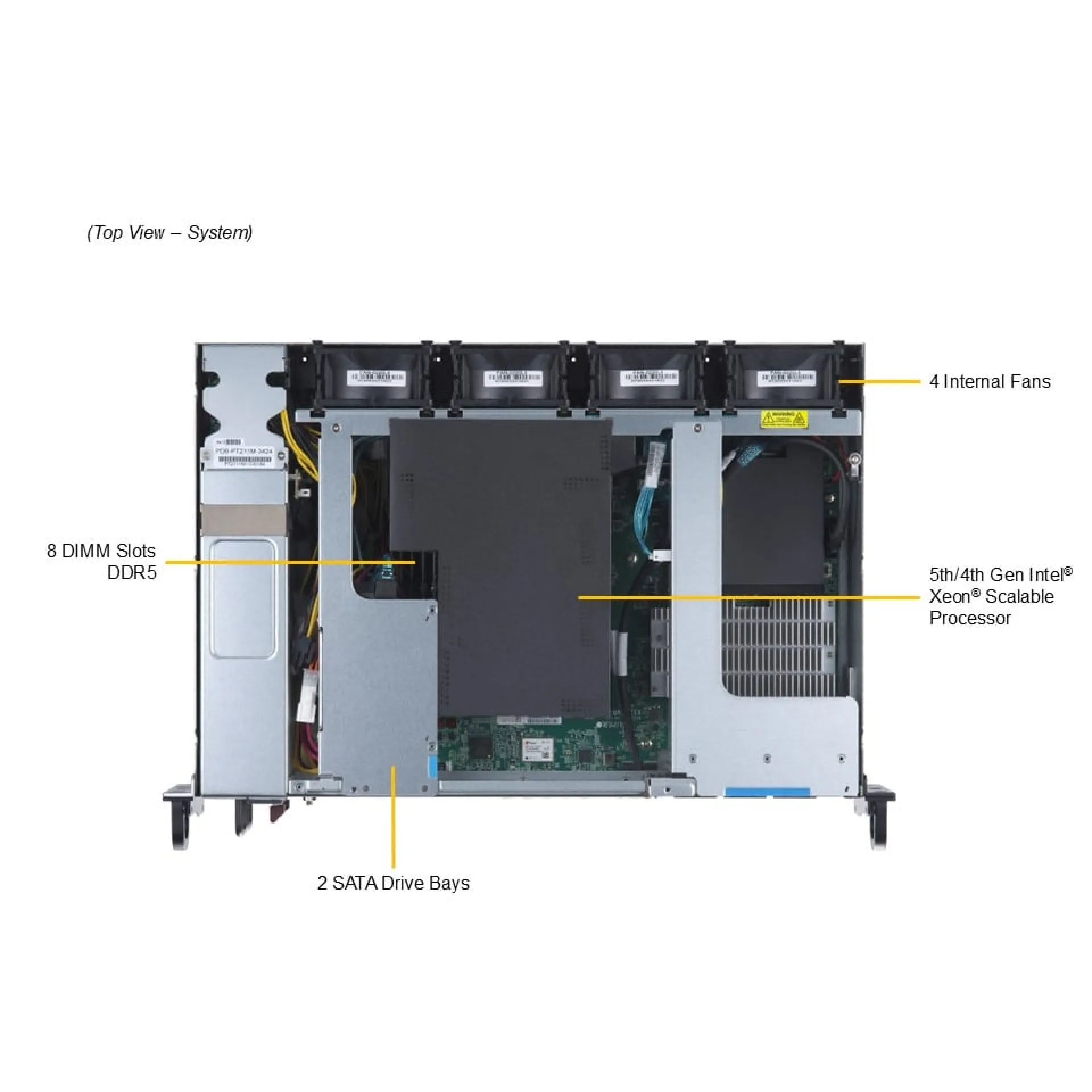

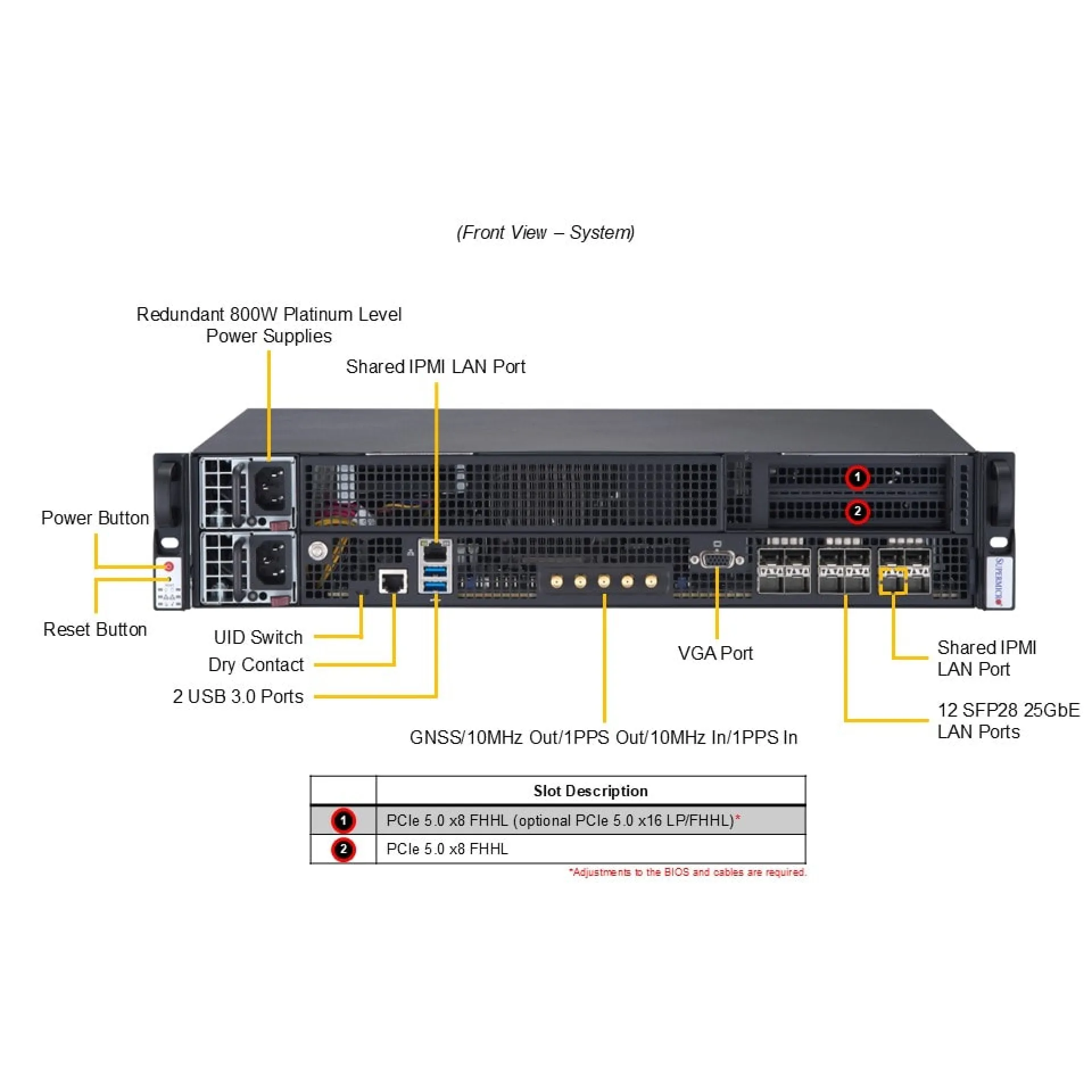

To sustain NFV and vRAN data planes, the SYS-211E-FRN13P uses 8x DDR5 ECC RDIMM/LRDIMM slots for high-bandwidth memory scaling, while PCIe 5.0 expansion enables low-latency attach for acceleration, storage, or specialized network adapters. The storage layout focuses on resilient local boot and serviceability: an M.2 2280 NVMe device for OS/boot roles plus 2x internal 2.5" SATA bays with RAID 0/1 enablement via Intel VROC key. Integrated I/O is optimized for aggregation and synchronization-heavy services with 12x 25GbE SFP28 (Intel E810) and precision timing interfaces supporting IEEE 1588 PTP, SyncE, and GNSS, including 1PPS and 10MHz via SMA and dry-contact signaling for site integration.
Why Choose the SYS-211E-FRN13P?
The SYS-211E-FRN13P delivers a high density-to-performance ratio by combining short-depth mechanical design with carrier-grade timing and a 25GbE-heavy network profile, reducing external appliances in vRAN, Open RAN vBBU, and timing-dependent NFV stacks. With redundant 80 PLUS Platinum power, remote management via IPMI, and scalable PCIe 5.0 I/O, the SYS-211E-FRN13P supports repeatable rollouts across edge sites while keeping operational models consistent.
Supermicro designs the SYS-211E-FRN13P around enterprise validation, secure firmware and management features, and standards-aligned components intended for long lifecycle operation in distributed data centre and telecom environments.
Key Applications:
- 5G CU/DU and vRAN/FlexRAN
- Open RAN vBBU
- NFV and uCPE
- PTP/SyncE timing and synchronization services
- Edge cloud 25GbE aggregation
At Happyware - Server Hardware you benefit from non-binding offers tailored to SYS-211E-FRN13P rollouts and an extended warranty of up to 6 years to protect long-lived edge infrastructure investments.
Technical details of SYS-211E-FRN13P
How long is the Warranty and how you can get technical support for SYS-211E-FRN13P
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
