SYS-120U-TNR
High-Performance 1U GPU-Capable Rack Server featuring dual-socket Intel Ice Lake scalability with the SYS-120U-TNR

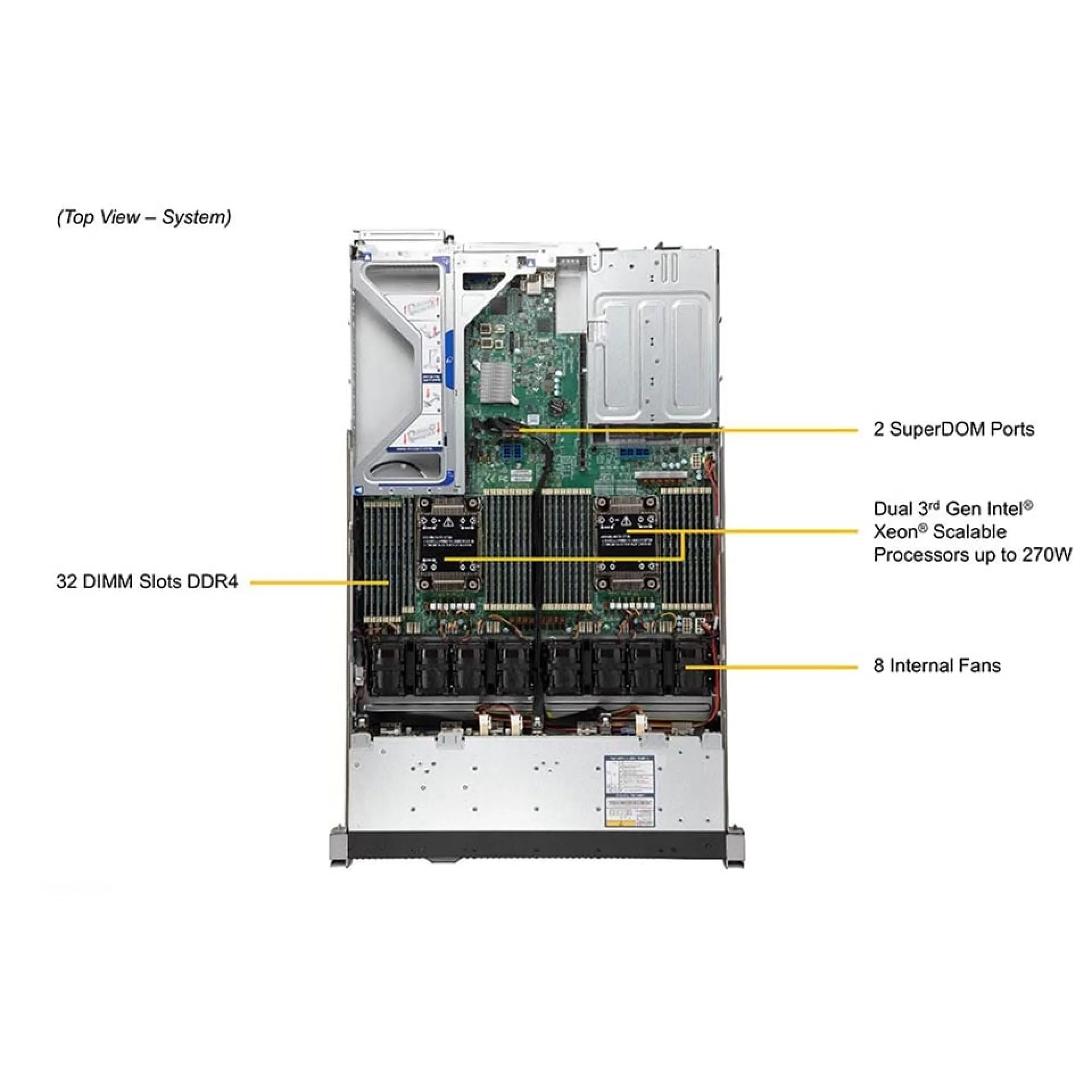

The SYS-120U-TNR is a dense 1U platform engineered for dual Intel Xeon Scalable 3rd Gen (Ice Lake) compute, enabling high core counts with PCIe 4.0 bandwidth for GPU acceleration and modern I/O consolidation. With 32 DDR4-3200 ECC DIMM slots, the architecture supports large memory footprints for virtualization and in-memory services, and can be extended with Intel Optane Persistent Memory 200 series to align memory tiering with predictable latency profiles.

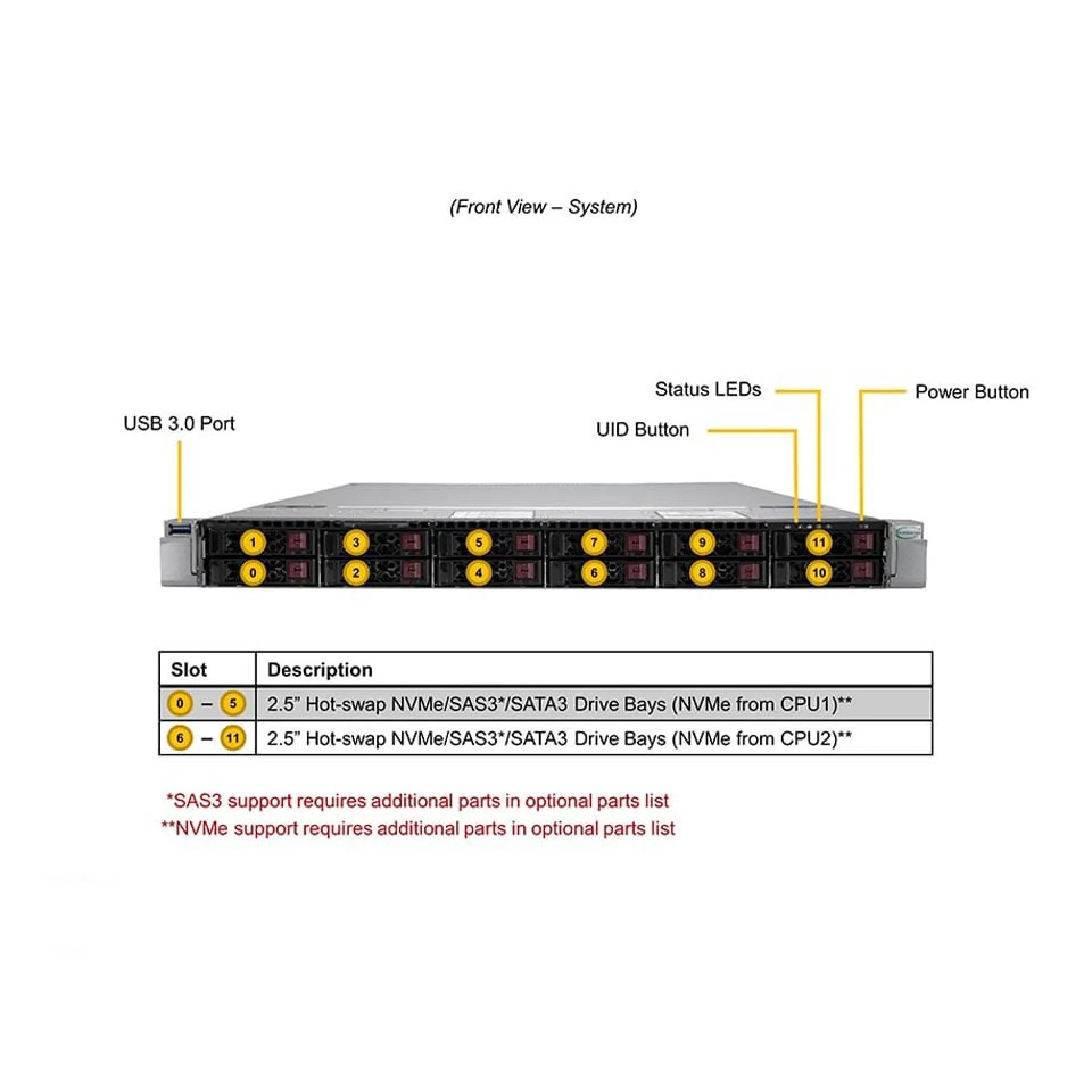

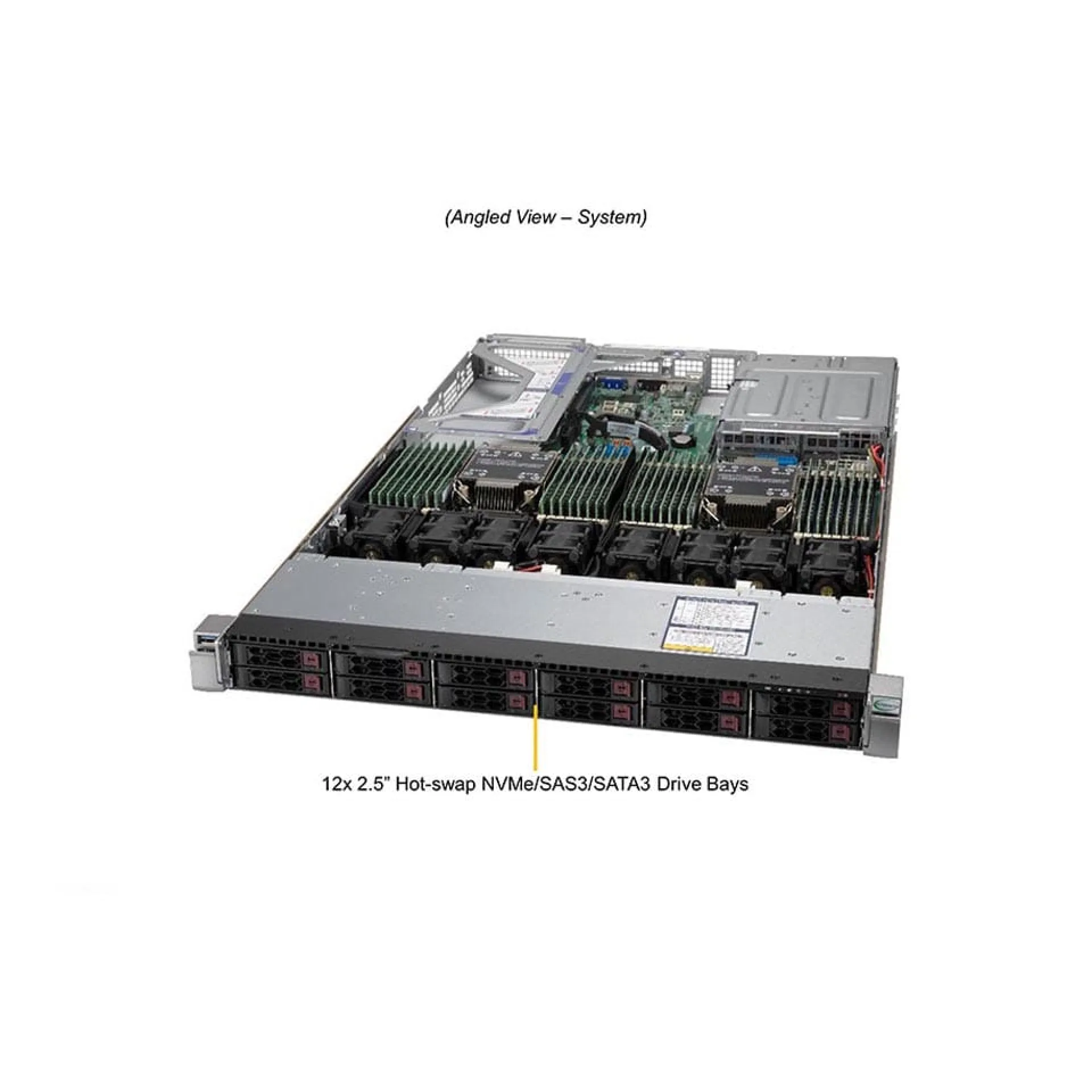

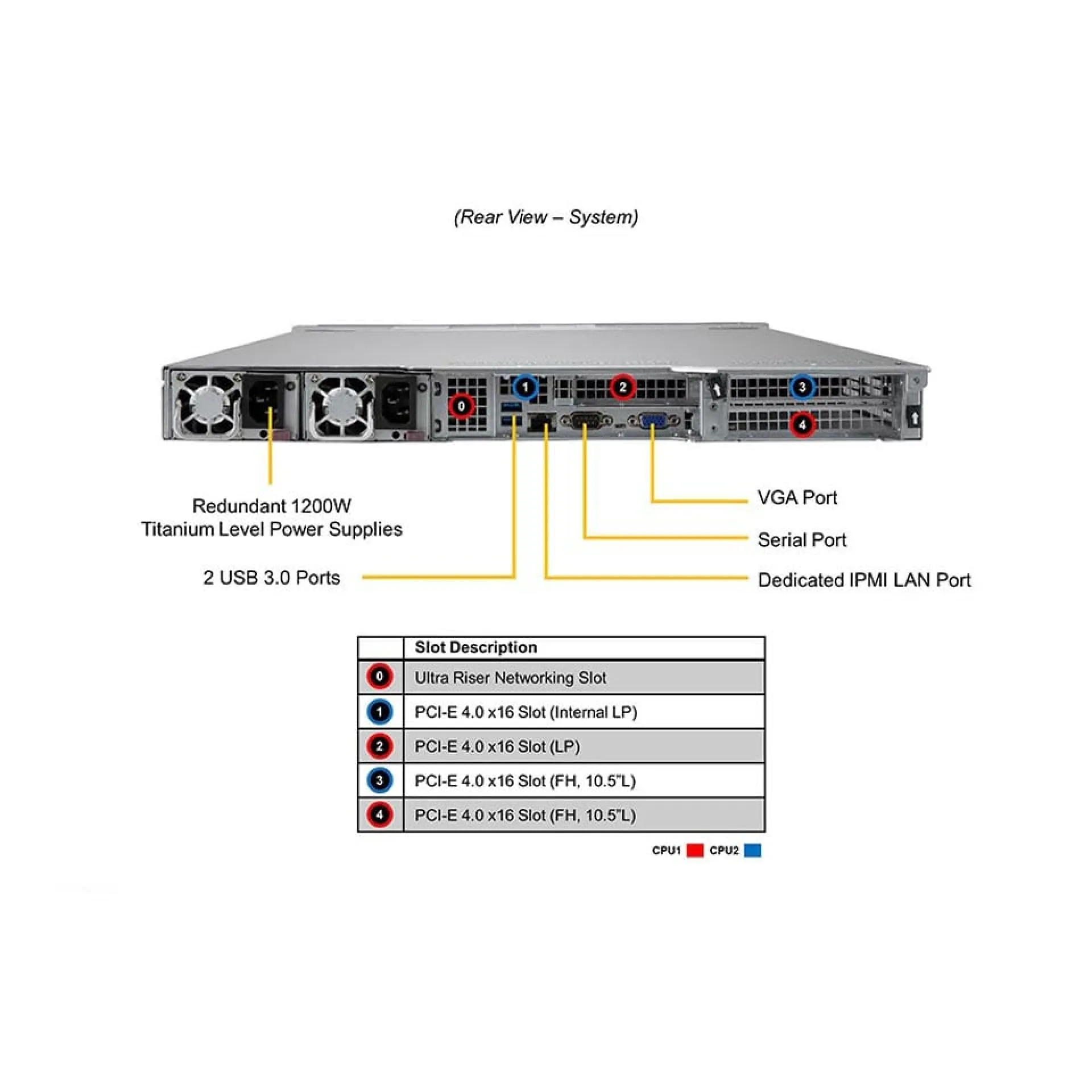

For storage-centric designs, the SYS-120U-TNR provides 12 front-access 2.5in hot-swap bays that can be populated with U.2 NVMe and SATA, and can be made SAS-capable with the appropriate controller and cabling, allowing mixed-media layouts for software-defined storage. Expansion is optimized around PCIe Gen4 with GPU-capable full-height x16 slots and additional x16 low-profile slots to balance inference, VDI, and accelerator-driven application tiers while preserving serviceability in a 1U envelope.
Why Choose the SYS-120U-TNR?
The SYS-120U-TNR targets enterprises that need high density without sacrificing accelerator readiness, delivering a practical performance-per-rack-unit profile for private cloud clusters, edge service nodes, and GPU-enabled application tiers. Platform security features such as TPM 2.0 and NIST 800-193 aligned firmware protection support standardized deployment in controlled environments, while redundant 80 PLUS Titanium power supplies and hot-swap storage help sustain uptime and maintenance windows at scale.
Supermicro designs the SYS-120U-TNR around modular server building blocks, emphasizing validated thermal behavior, service-friendly chassis access, and management integration via IPMI/BMC for lights-out operations. The result is an enterprise-aligned system that fits modern data center governance, from secure boot and recovery to consistent remote lifecycle control.
Key Applications:
- Enterprise virtualization and private cloud compute
- GPU-accelerated AI inference
- VDI and graphics-enabled application delivery
- Software-defined storage with mixed NVMe/SAS/SATA tiers
- Telco edge services and application-tier nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your SYS-120U-TNR configuration requirements, helping you align CPU, memory, storage, and GPU choices with your rollout plan. For long-term operational security, an extended warranty of up to 6 years can be added to protect the SYS-120U-TNR investment across refresh cycles.
Technical details of SYS-120U-TNR
How long is the Warranty and how you can get technical support for SYS-120U-TNR
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
