SYS-120C-TN10R Supermicro SuperServer Dual Xeon Scalable 3rd Gen 1U Server
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
Do you have questions about this product SYS-120C-TN10R?
SYS-120C-TN10R
High-Density 1U Rack Server featuring Dual Intel Xeon Ice Lake and 10-Bay Hot-Swap Storage with the SYS-120C-TN10R

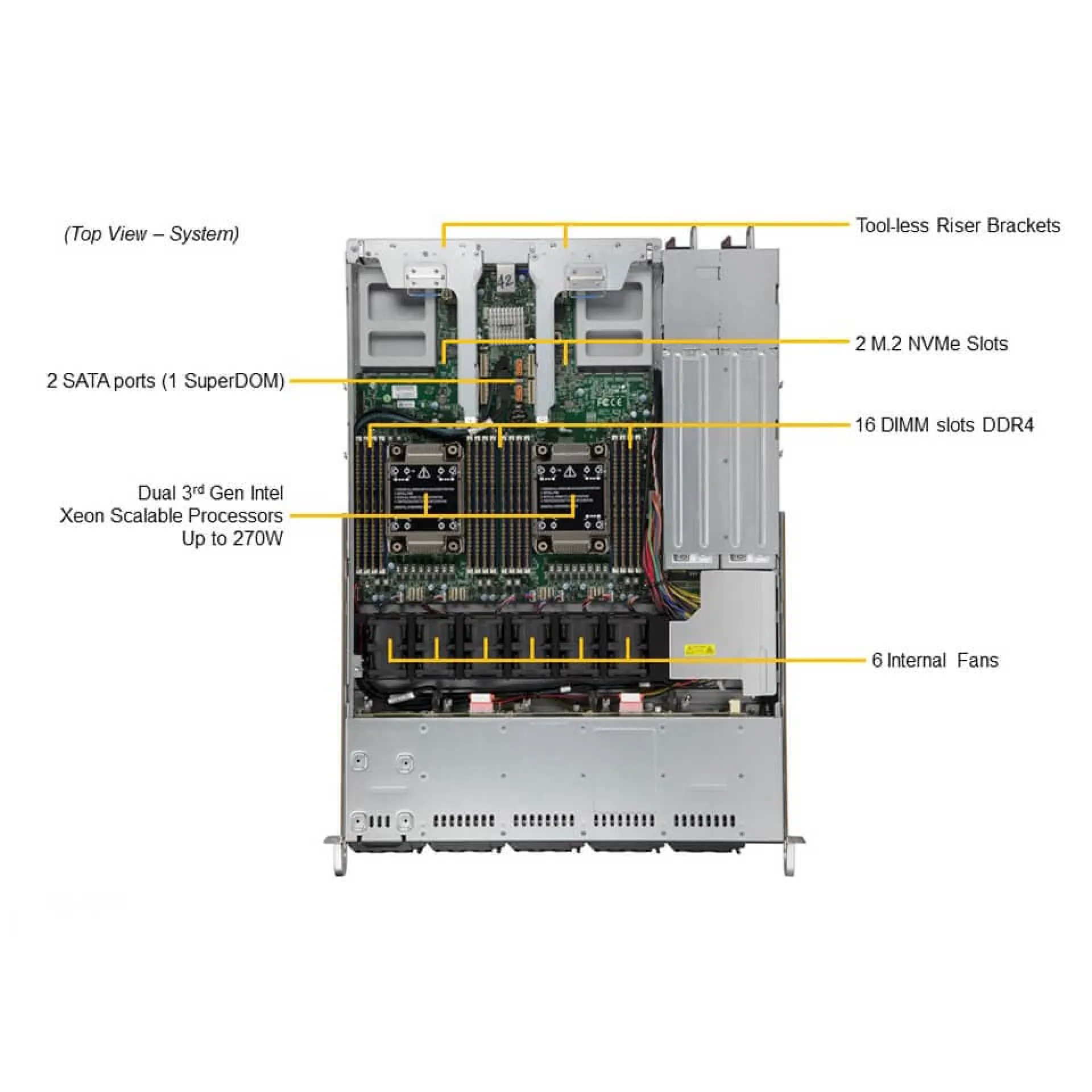

The SYS-120C-TN10R is a 1U dual-socket platform built on Intel Xeon Scalable 3rd Gen (Ice Lake) for dense virtualization and high-IO service tiers where predictable latency matters. With 16 DDR4 ECC DIMM slots and support for Intel Optane Persistent Memory 200, the SYS-120C-TN10R enables balanced capacity and memory persistence to reduce restart times and accelerate stateful workloads.

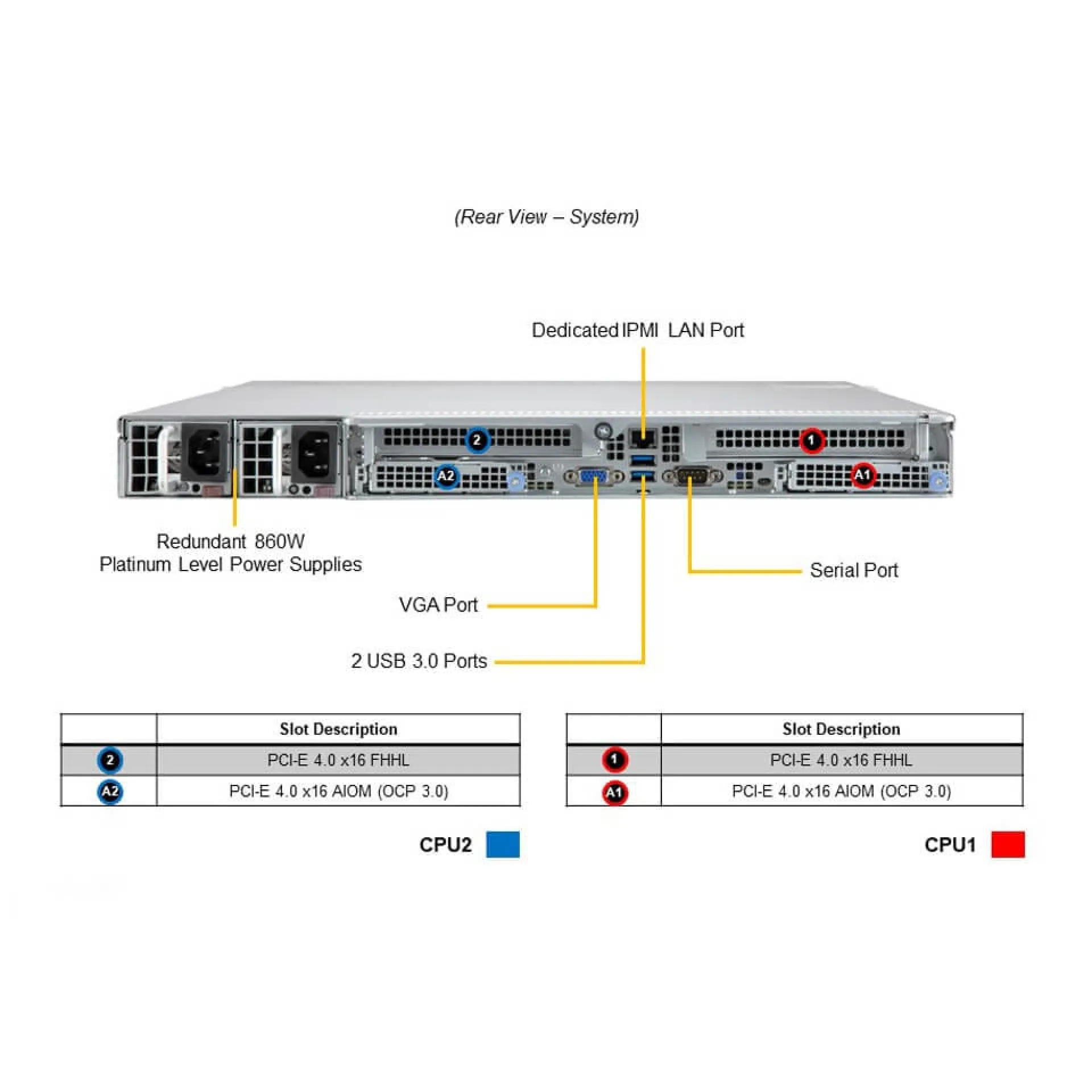

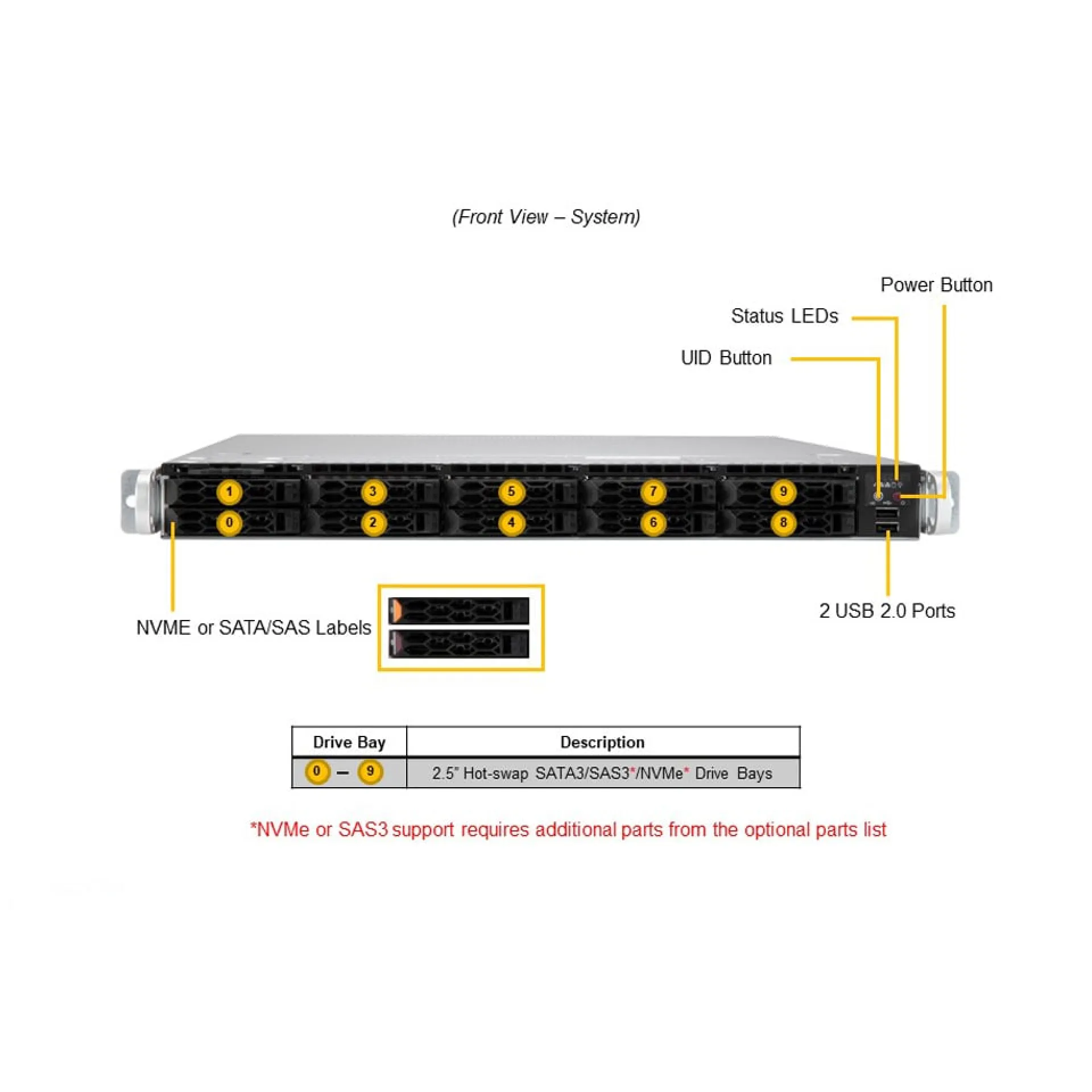

PCIe 4.0 expansion is central to the SYS-120C-TN10R design: two PCIe 4.0 x16 FHHL slots support up to 2 single-width accelerators, while dual OCP NIC 3.0 (PCIe 4.0 x16) slots allow modular high-speed networking without sacrificing internal slots. The front 10x 2.5in hot-swap backplane supports NVMe U.2, SAS, or SATA (configuration dependent), and dual M.2 NVMe plus SuperDOM options provide resilient boot and cache separation aligned with enterprise operational practices.
Why Choose the SYS-120C-TN10R?
The SYS-120C-TN10R delivers a strong density-to-performance ratio by consolidating compute, storage, and network modularity in 1U, making it suitable for scalable cluster rollouts. The SYS-120C-TN10R also prioritizes serviceability with hot-swap drive bays and redundant 80 PLUS Platinum power, supporting consistent uptime targets in mixed workload environments.
Supermicro engineering emphasizes data center-aligned platform consistency, validated thermals in constrained racks, and lifecycle-friendly configurability. The SYS-120C-TN10R integrates enterprise controls such as ASPEED AST2600 IPMI/BMC management, Silicon Root of Trust aligned to NIST 800-193, TPM 2.0, and secure boot with firmware recovery to support standardized security baselines.
Key Applications:
- VMware and hypervisor clusters
- Private cloud compute nodes
- NVMe-centric storage tiers
- Edge security and gateway consolidation
- AI inference with low-profile PCIe GPUs
At Happyware - Server Hardware you benefit from non-binding offers tailored to your SYS-120C-TN10R configuration targets and an extended warranty up to 6 years to reduce long-term operational risk in enterprise deployments.
Technical details of SYS-120C-TN10R
How long is the Warranty and how you can get technical support for SYS-120C-TN10R
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
