SYS-1019D-FHN13TP Supermicro SuperServer Single Xeon D-2146NT 1U Barebone
Get extra volume discount for SYS-1019D-FHN13TP and save cash:
| Quantity | Unit price |
|---|---|
| To 4 |
€1,937.89
|
| To 9 |
€1,880.26
€1,937.89
(2.97% saved)
|
| To 19 |
€1,841.76
€1,937.89
(4.96% saved)
|
| From 20 |
€1,803.36
€1,937.89
(6.94% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
SuperServer
€1,937.89
Do you have questions about this product SYS-1019D-FHN13TP?
SYS-1019D-FHN13TP

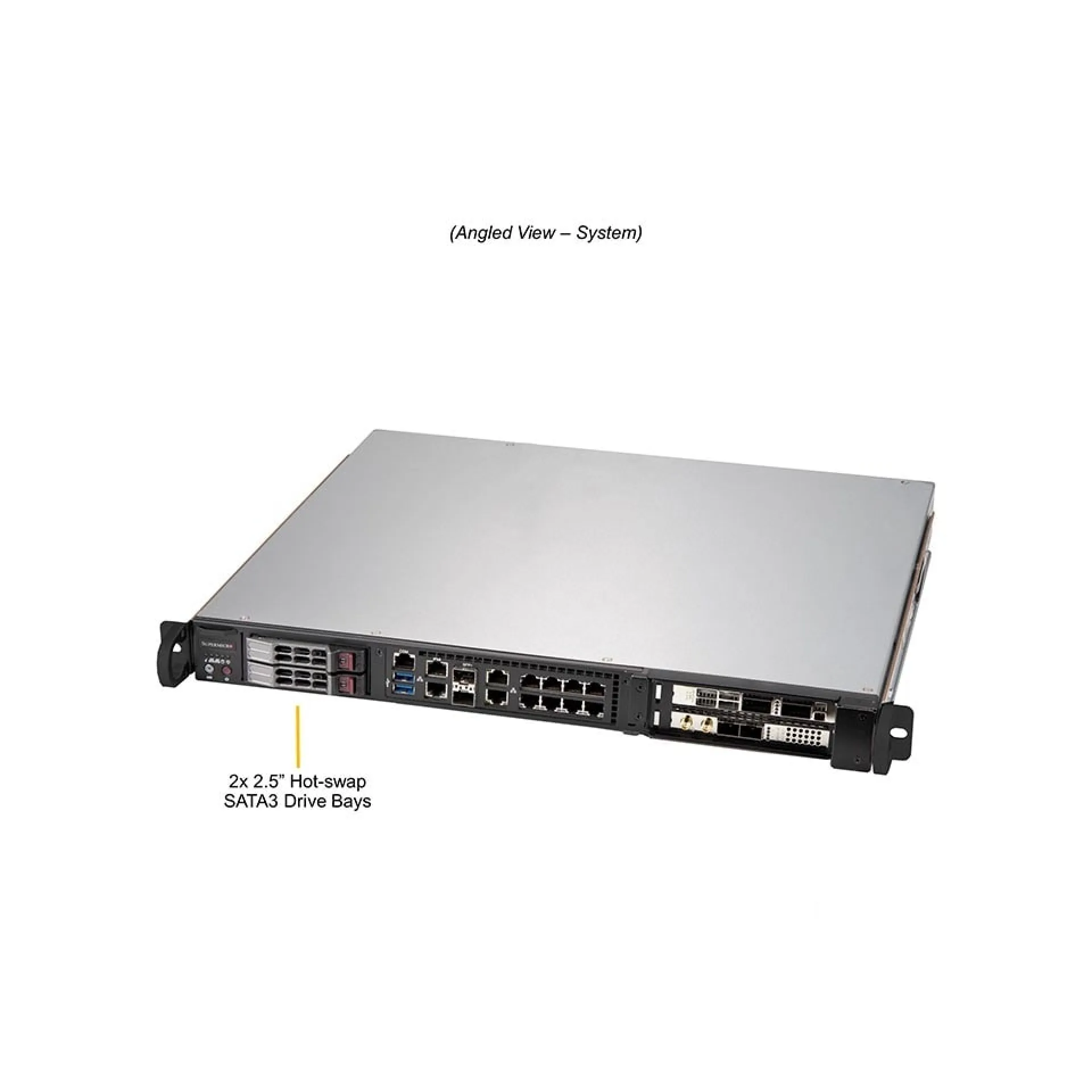

High-Density 1U Edge and NFV Rack Server featuring Xeon D SoC I/O integration with the SYS-1019D-FHN13TP
The SYS-1019D-FHN13TP is a compact 1U platform built around the Intel Xeon D-2146NT (Skylake-D) SoC, combining CPU, memory controller, and high-speed I/O for predictable latency and low power envelopes in distributed environments. This architectural approach aligns the SYS-1019D-FHN13TP with MEC nodes, uCPE, and security/service-chaining stacks where consistent throughput and port density matter more than multi-socket scaling.

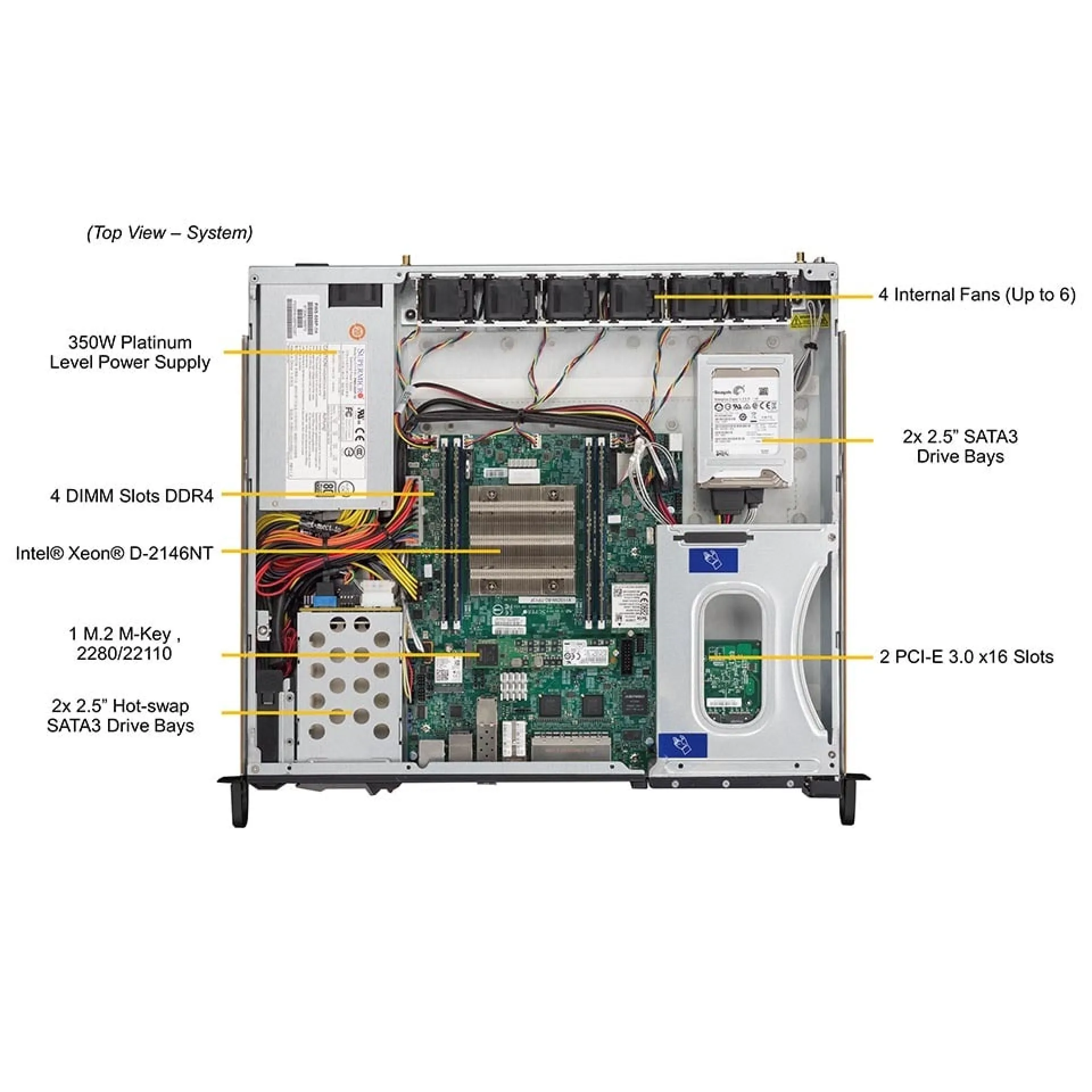

For memory, the SYS-1019D-FHN13TP provides 4x DDR4 ECC RDIMM/LRDIMM slots to support virtualization consolidation and stateful network functions with integrity safeguards. PCIe 3.0 expansion is delivered through 2x full-height, full-length x16 mechanical slots, enabling optional accelerators or SmartNIC-style add-ins while keeping deployment simple in 1U. Storage is split between 2x 2.5" SATA hot-swap bays and 2x internal 2.5" positions, complemented by multiple M.2 options (including 22110 PCIe 3.0 x4/SATA) for fast boot, caching, and log volumes without consuming front bays.
Why Choose the SYS-1019D-FHN13TP?
The SYS-1019D-FHN13TP delivers a high density-to-performance ratio by pairing an 8-core SoC with extensive onboard networking and targeted PCIe expansion, reducing the need for external switching and minimizing rack footprint at the edge. With IPMI 2.0 management, a dedicated BMC LAN, and a straightforward single-socket design, the SYS-1019D-FHN13TP scales cleanly as a repeatable building block across POPs, branch sites, and micro data centres.
Supermicro engineering emphasizes serviceable, standards-aligned platforms with enterprise firmware management and validated component interoperability, supporting consistent operation in mixed virtualization and network appliance roles across modern data centre and edge footprints.
Key Applications:
- MEC and edge virtualization nodes
- NFV, uCPE, and SD-WAN appliances
- Telco routing, firewalling, and service chaining
- Lightweight AI inference with PCIe accelerators
- High-port-density network aggregation
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout quantities and configuration targets for the SYS-1019D-FHN13TP, plus an extended warranty up to 6 years to protect long-lived edge deployments.
Technical details of SYS-1019D-FHN13TP
How long is the Warranty and how you can get technical support for SYS-1019D-FHN13TP
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
