SYS-1019D-16C-FRN5TP
High-Density 1U Edge and NFV Rack Server featuring Intel Xeon D SoC efficiency with the SYS-1019D-16C-FRN5TP
The SYS-1019D-16C-FRN5TP is a 1U single-socket platform built around the Intel Xeon D-2183IT (Skylake-D) SoC, delivering up to 16 cores/32 threads in a compact, low-latency footprint suited to telco edge and distributed enterprise deployments. Its integrated SoC design reduces platform complexity while maintaining predictable performance for virtualized network services and branch consolidation.

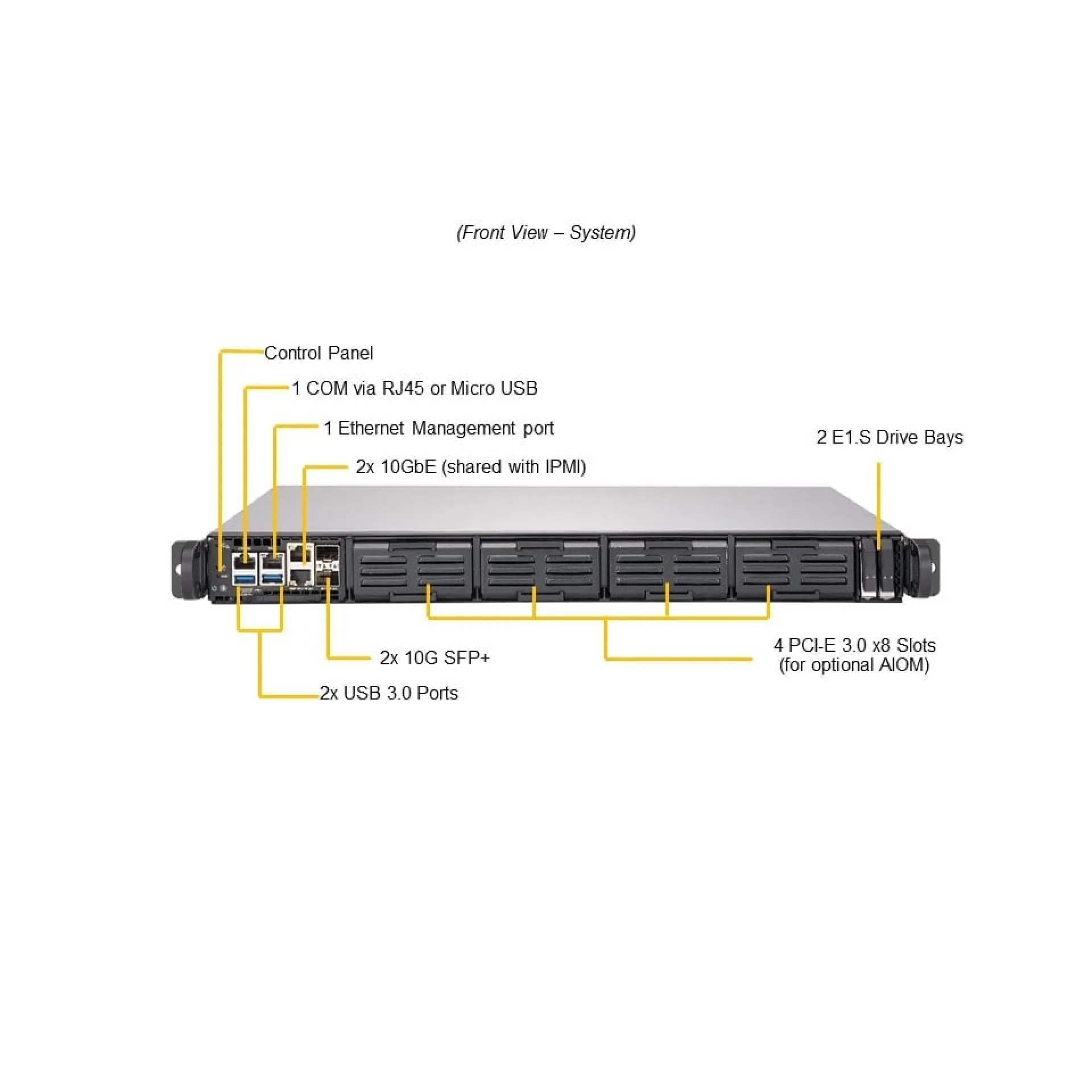

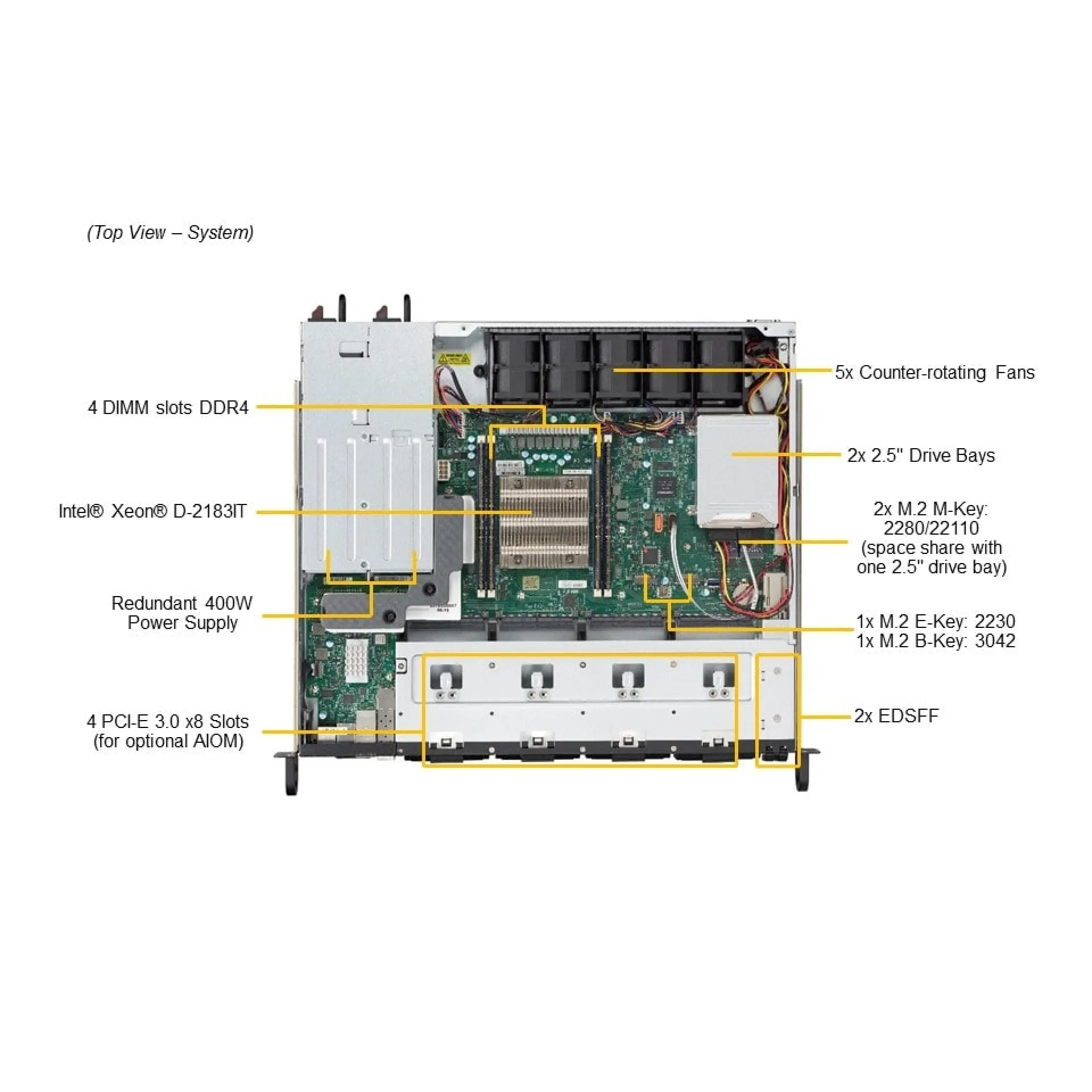

Memory architecture is optimized for reliability with 4 DDR4 ECC RDIMM/LRDIMM slots supporting up to 512GB, enabling dense VM packing and stateful network functions. PCIe 3.0 connectivity is exposed through multiple x8 slots/connectors for accelerators, NIC options, and service expansion without moving to larger chassis. Storage is structured for mixed media: 2 internal 2.5" SATA bays for OS or local logs, plus 2 E1.S NVMe bays and additional onboard SATA/NVMe ports, complemented by 3 storage-capable M.2 slots for flexible boot, cache, or persistent edge datasets. Integrated networking aligns with aggregation and service chaining needs via 2x 10GbE RJ45, additional SFP+ connectivity, and a dedicated BMC management port.
Why Choose the SYS-1019D-16C-FRN5TP?
The SYS-1019D-16C-FRN5TP targets high service density per rack unit, combining a 100W Xeon D SoC with ECC memory and redundant power to support always-on edge and NFV roles. The SYS-1019D-16C-FRN5TP scales efficiently across many sites, standardizing on a single 1U node design that simplifies remote operations while preserving I/O flexibility for evolving network topologies.

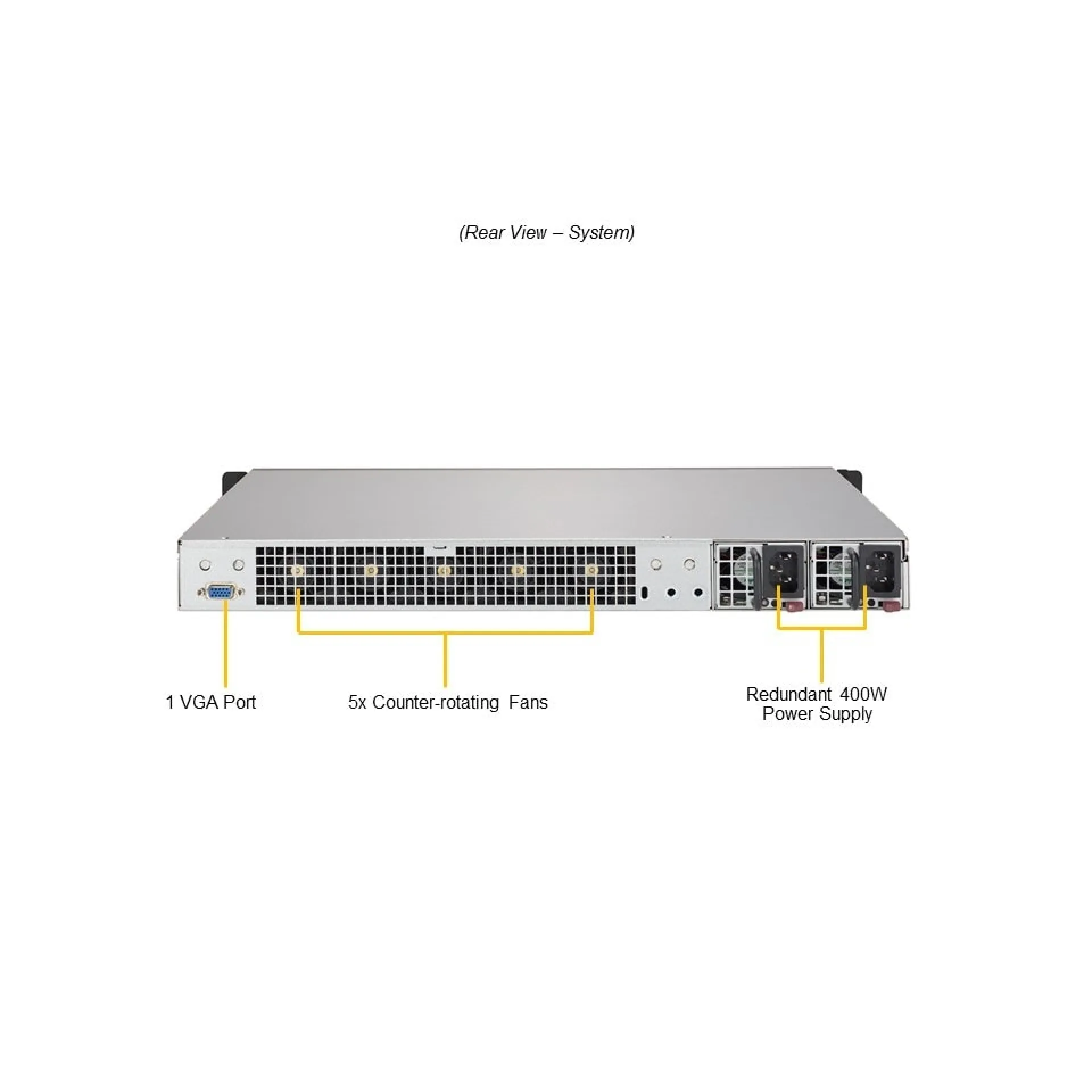

Supermicro engineering prioritizes data center-operable platforms with validated server components, consistent firmware management, and out-of-band control via IPMI 2.0 on the ASPEED AST2500 BMC. The SYS-1019D-16C-FRN5TP reflects this approach with hot-swap redundant 80 PLUS Platinum power supplies and a service-friendly layout aligned to modern edge rack standards.
Key Applications:
- NFV and virtual network functions
- uCPE and SD-WAN consolidation
- vRAN/C-RAN edge nodes
- Branch office virtualization
- Network security services
At Happyware - Server Hardware you benefit from non-binding offers tailored to your SYS-1019D-16C-FRN5TP rollout and an extended warranty of up to 6 years to secure long-lived edge deployments.
Technical details of SYS-1019D-16C-FRN5TP
How long is the Warranty and how you can get technical support for SYS-1019D-16C-FRN5TP
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
