SSG-542B-E1CR90

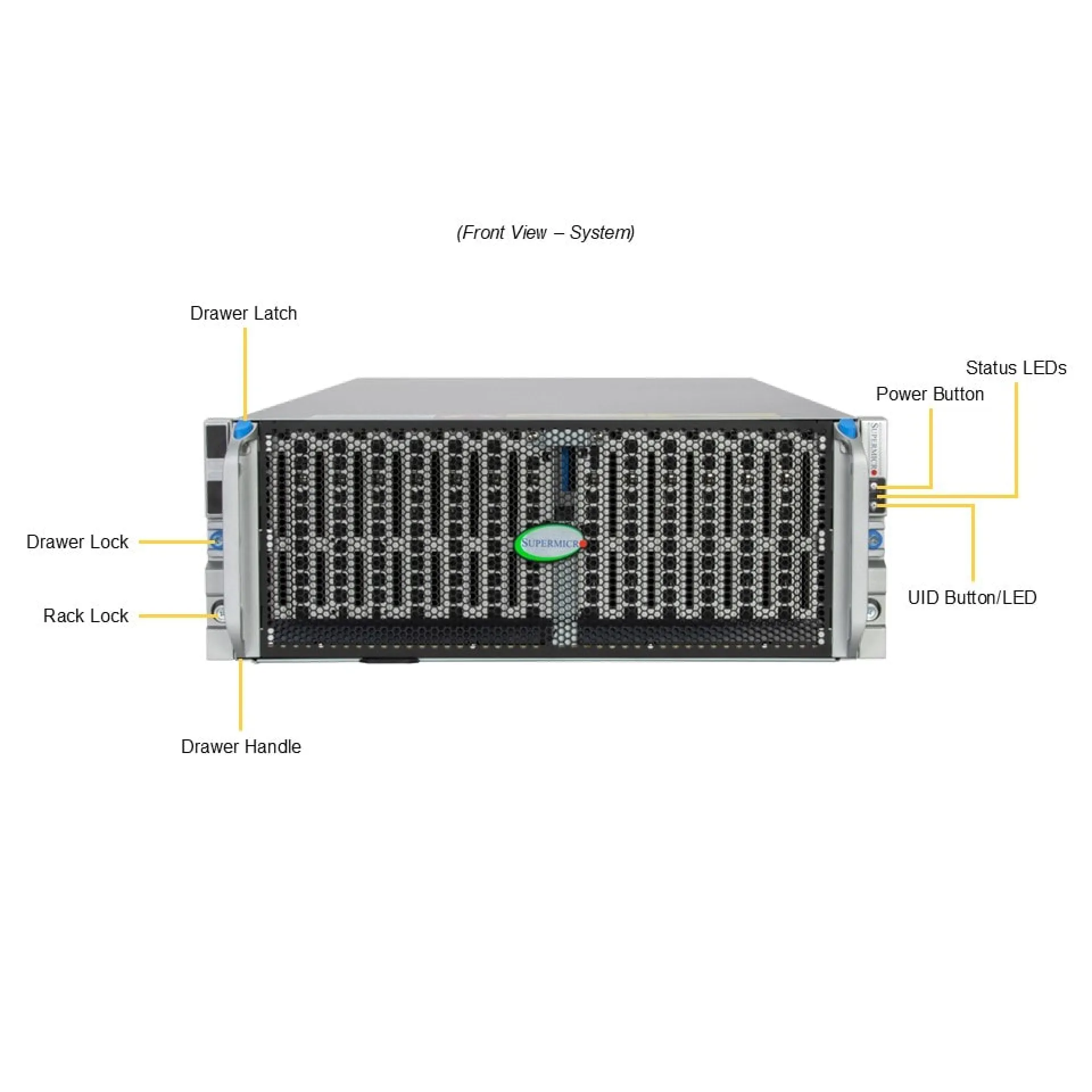

High-Density 4U Storage Server architecture with 90-bay SAS/SATA hot-swap design in the SSG-542B-E1CR90
The SSG-542B-E1CR90 is a 4U, top-loading high-density storage server engineered around a single-socket Intel Xeon 6 platform (LGA4710), aligning core density and I/O efficiency for large-capacity NAS, object, and backup repositories. With up to 144 cores available in Xeon 6700/6500 series configurations, the chassis targets throughput-oriented services where parallelism supports ingest, integrity operations, and multi-tenant consolidation.

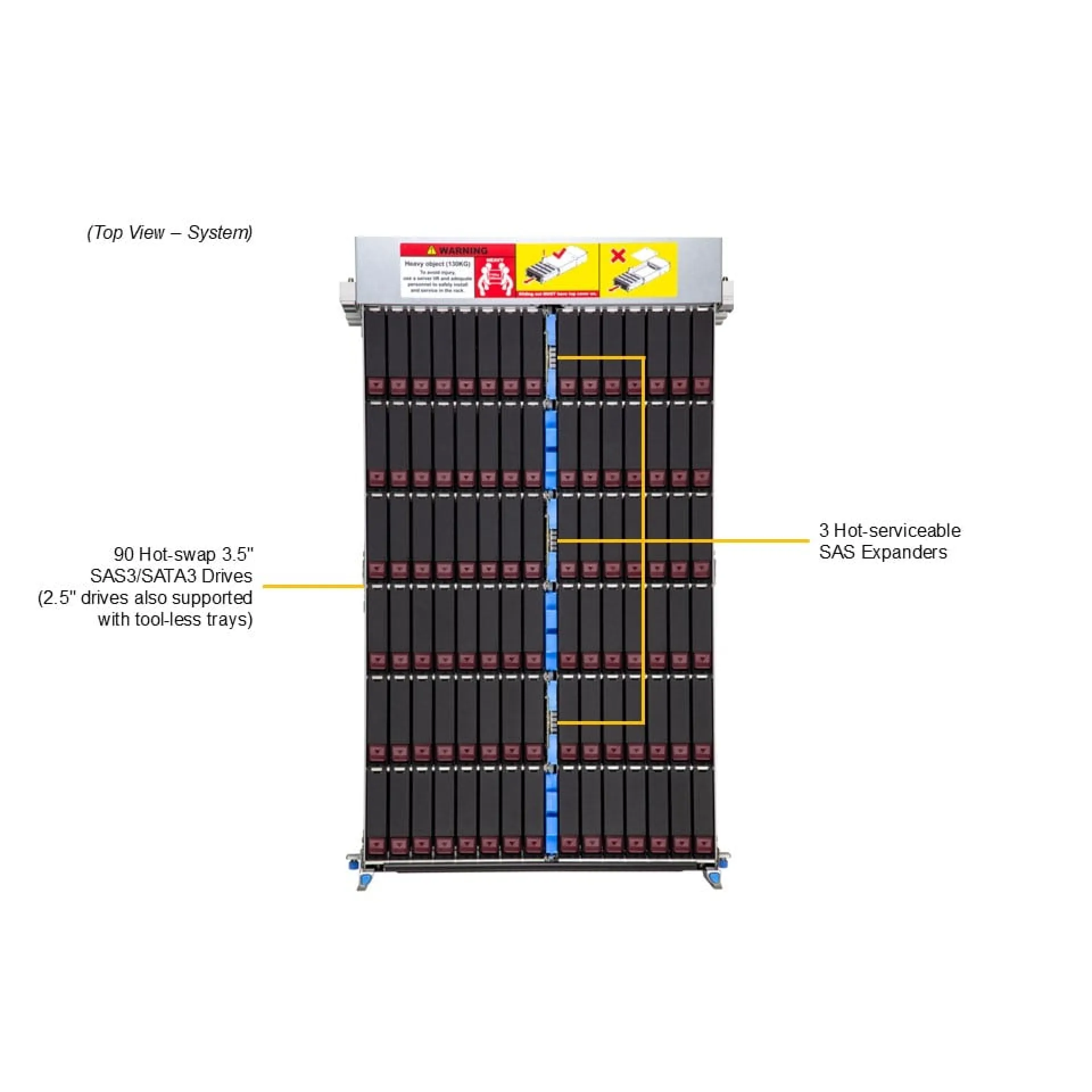

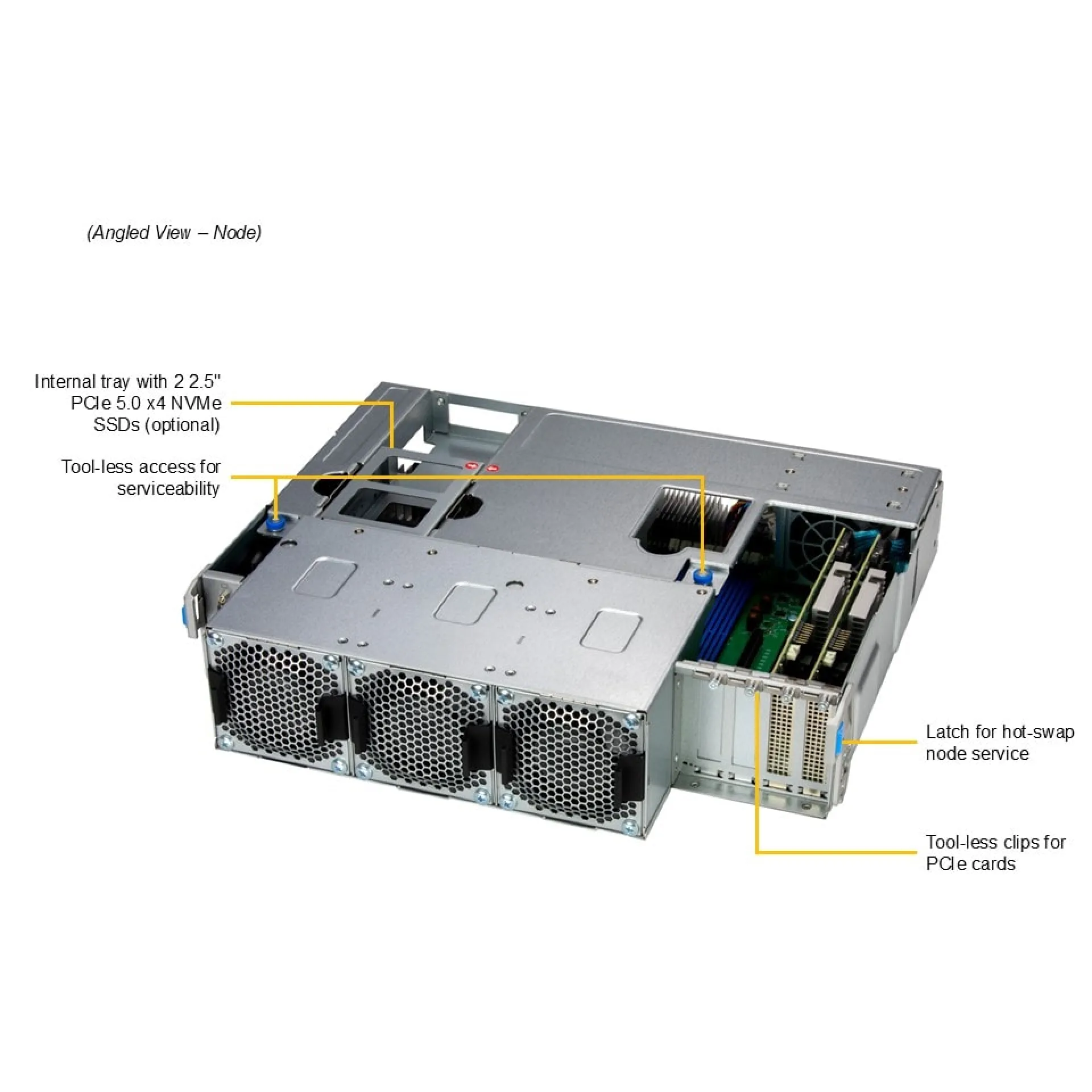

Memory architecture in the SSG-542B-E1CR90 is built on 16x DDR5 ECC RDIMM slots to support large ARC/cache footprints and metadata-heavy namespaces while maintaining enterprise error correction. For expansion, the SSG-542B-E1CR90 provides PCIe Gen5 headroom via 4x HHHL slots (3x x16, 1x x8) for storage controllers, SAS HBAs, or high-speed NICs, while separating GPU-centric requirements from storage-first layouts. The storage plane centers on 90x 3.5"/2.5" SAS/SATA hot-swap bays with a top-loading backplane, complemented by dual M.2 NVMe boot devices (PCIe Gen4) and optional rear or internal NVMe bays for tiering, logging, or metadata acceleration.
Why Choose the SSG-542B-E1CR90?
The SSG-542B-E1CR90 delivers a density-to-performance profile optimized for scalable capacity with predictable serviceability, enabling cold/warm tier design and footprint reduction in rack-constrained environments. The SSG-542B-E1CR90 integrates platform security controls and management features suited for standardized deployment, while redundant 80 PLUS Titanium power supports continuous operation in enterprise storage clusters.
Supermicro designs systems with data center integration in mind, emphasizing serviceable chassis engineering, validated platform interoperability, and reliability features aligned to modern security baselines and remote management requirements.
Key Applications:
- High-capacity NAS and file services
- Object storage and content repositories
- Backup, archiving, and compliance retention
- Data lake storage tiers
- Service provider multi-tenant storage consolidation
At Happyware - Server Hardware you benefit from non-binding offers tailored to your storage and controller configuration requirements, helping you align the SSG-542B-E1CR90 to your capacity and I/O targets, and you can extend the warranty up to 6 years for added operational security.
Technical details of SSG-542B-E1CR90
How long is the Warranty and how you can get technical support for SSG-542B-E1CR90
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
