SSG-542B-DE1CR90
High-Density 4U 2-Node Rack Storage Server featuring 90-bay SAS/SATA architecture with the SSG-542B-DE1CR90
The SSG-542B-DE1CR90 is a 4U, 2-node storage platform engineered for capacity-led tiers where predictable throughput, serviceability, and fault containment matter as much as raw TB density. Each node is built on Intel Xeon 6th Gen (Xeon 6500/6700) to align modern core-dense compute with storage services, metadata processing, and data lifecycle tasks without external compute dependency.

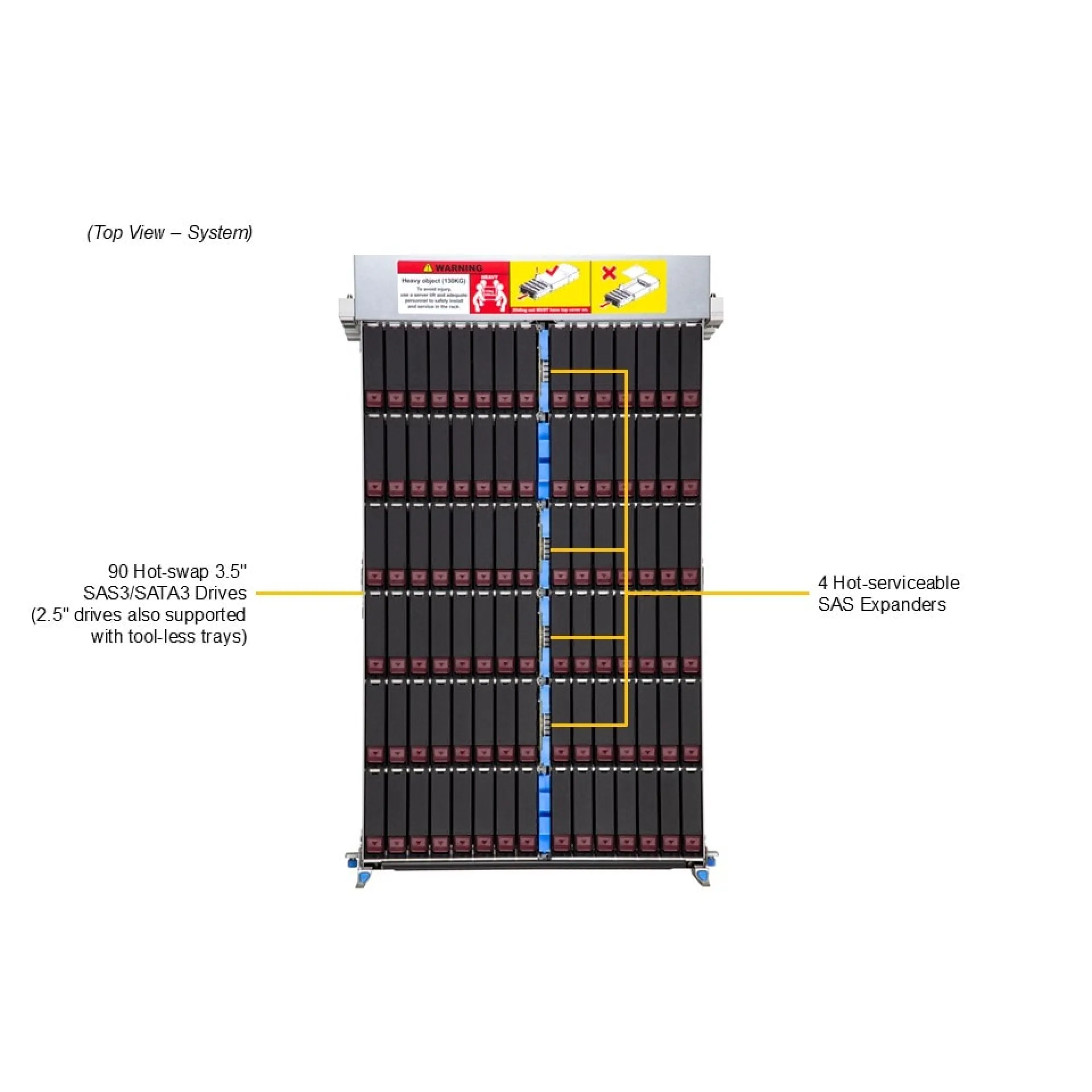

Per node, 16 DDR5 ECC RDIMM slots support large memory footprints for caching, indexing, and parallel ingest. The expansion layout exposes PCIe 5.0 for controllers and I/O cards, while internal NVMe options enable fast boot and cache separation from the primary capacity pool. The 90 hot-swap SAS/SATA bays (system-wide) are optimized for top-loading operational workflows, sustained rebuild behavior, and scalable JBOD/RAID topologies, making the SSG-542B-DE1CR90 suitable for archive, backup/restore, and dataset repositories that must grow without re-architecting.
Why Choose the SSG-542B-DE1CR90?
The SSG-542B-DE1CR90 delivers a strong density-to-performance profile by pairing dual independent nodes with a shared, high-bay chassis, reducing rack footprint and power distribution complexity per usable TB. Enterprise resilience is reinforced through hot-swap drive access and redundant 1+1 Titanium PSUs, while the compute and PCIe 5.0 headroom supports scaling from simple capacity nodes to cache-accelerated tiers as requirements evolve.
Supermicro designs platforms around practical serviceability, validated component interoperability, and data centre alignment, emphasizing modular node construction, remote management, and long-life platform consistency for controlled fleet operations.
Key Applications:
- Data lake and archive storage
- Backup and restore repositories
- Video surveillance retention
- Multi-tenant capacity nodes
- HPC/AI dataset repository
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the SSG-542B-DE1CR90 and the option to extend the warranty up to 6 years to secure long-term operations for the SSG-542B-DE1CR90 platform.
Technical details of SSG-542B-DE1CR90
How long is the Warranty and how you can get technical support for SSG-542B-DE1CR90
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
