SSG-229J-5BE36JBF Supermicro Rack 2U JBOF Chassis

High-Density 2U Dual-Node NVMe/GPU Rack Server with PCIe 5.0 Expansion using the SSG-229J-5BE36JBF

The SSG-229J-5BE36JBF is a 2U dual-node platform built on the Intel Xeon Scalable processor architecture to consolidate compute and acceleration while keeping storage physically close to the workload. Its in-chassis GPU capability supports AI/ML training and inference where low-latency data access and predictable throughput matter as much as raw FLOPS.

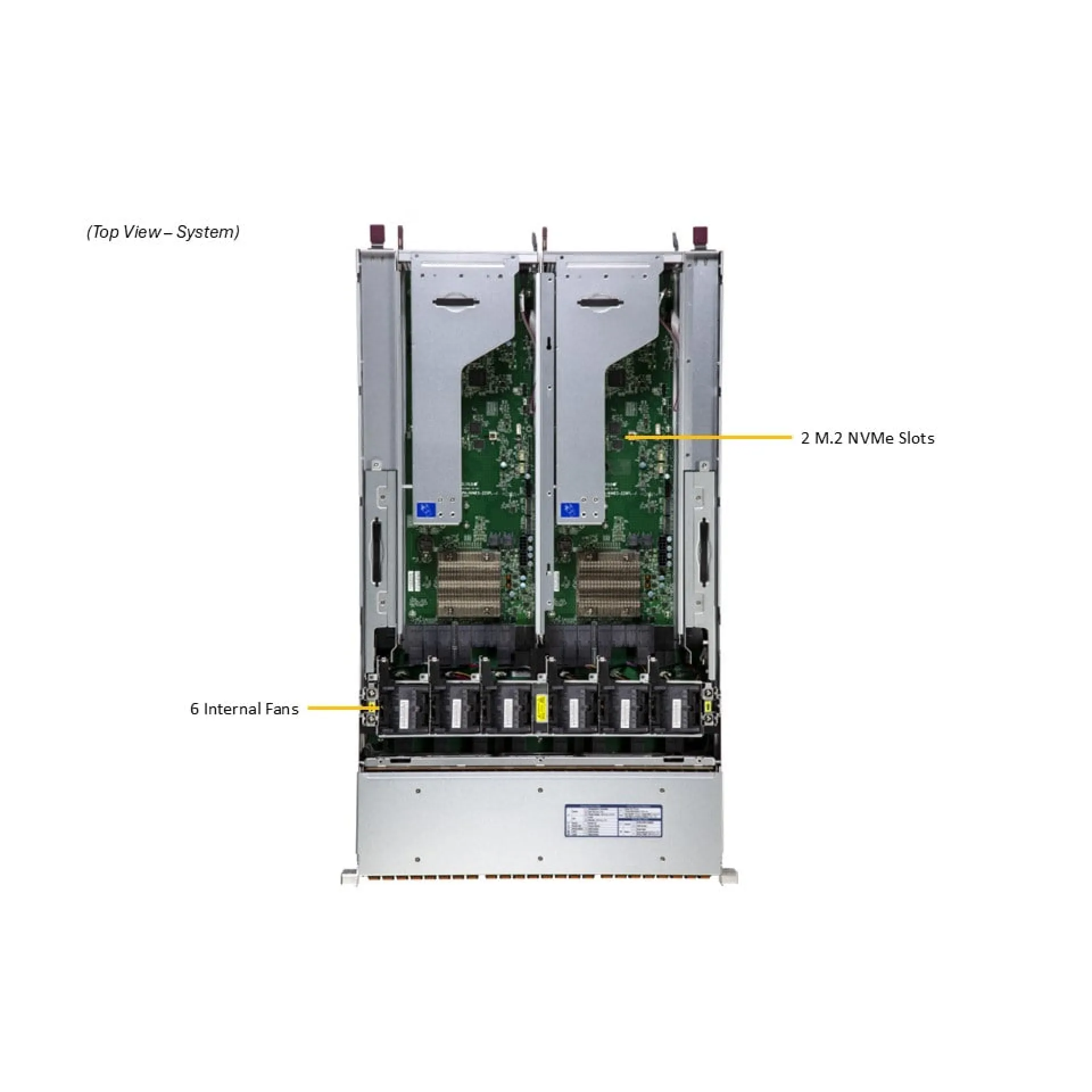

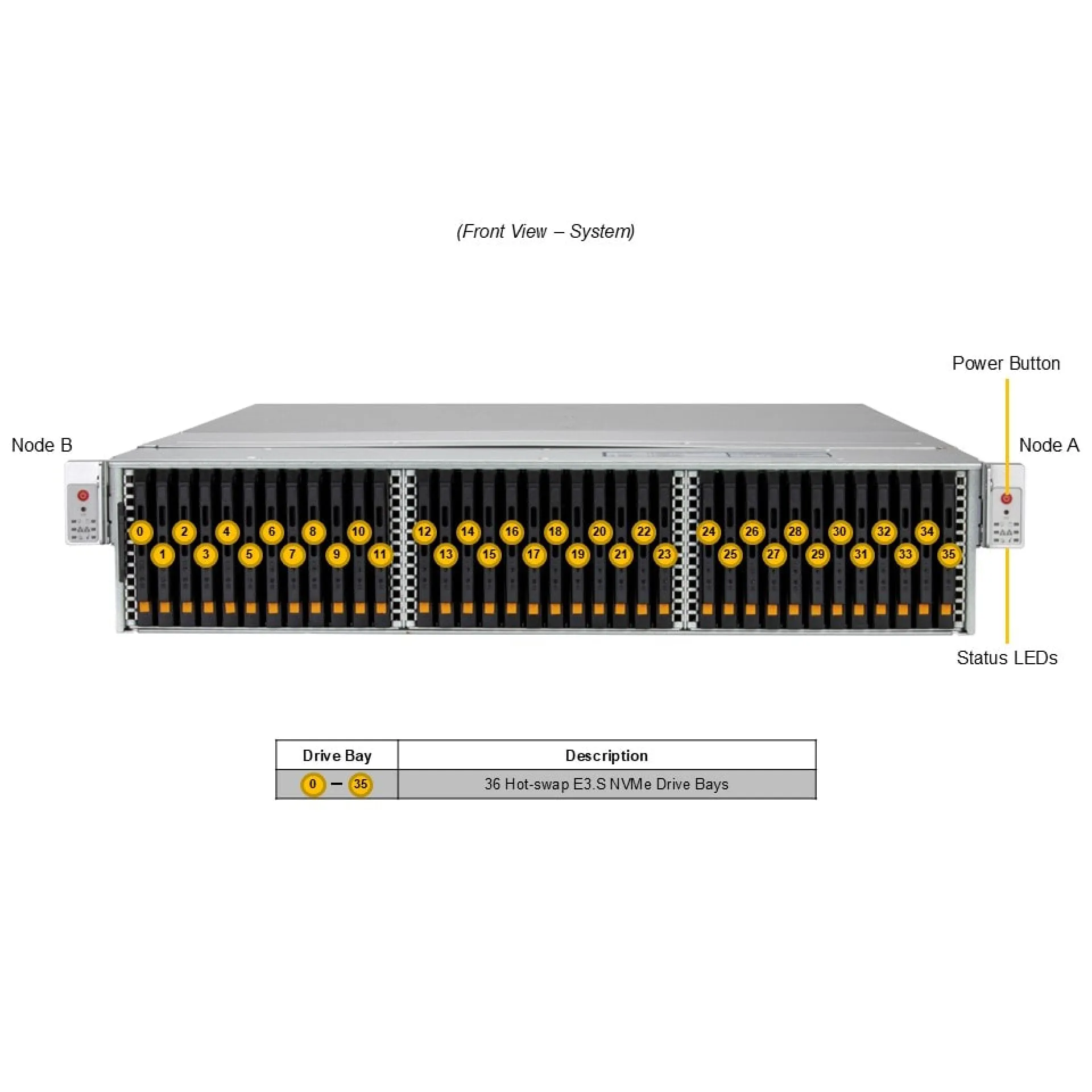

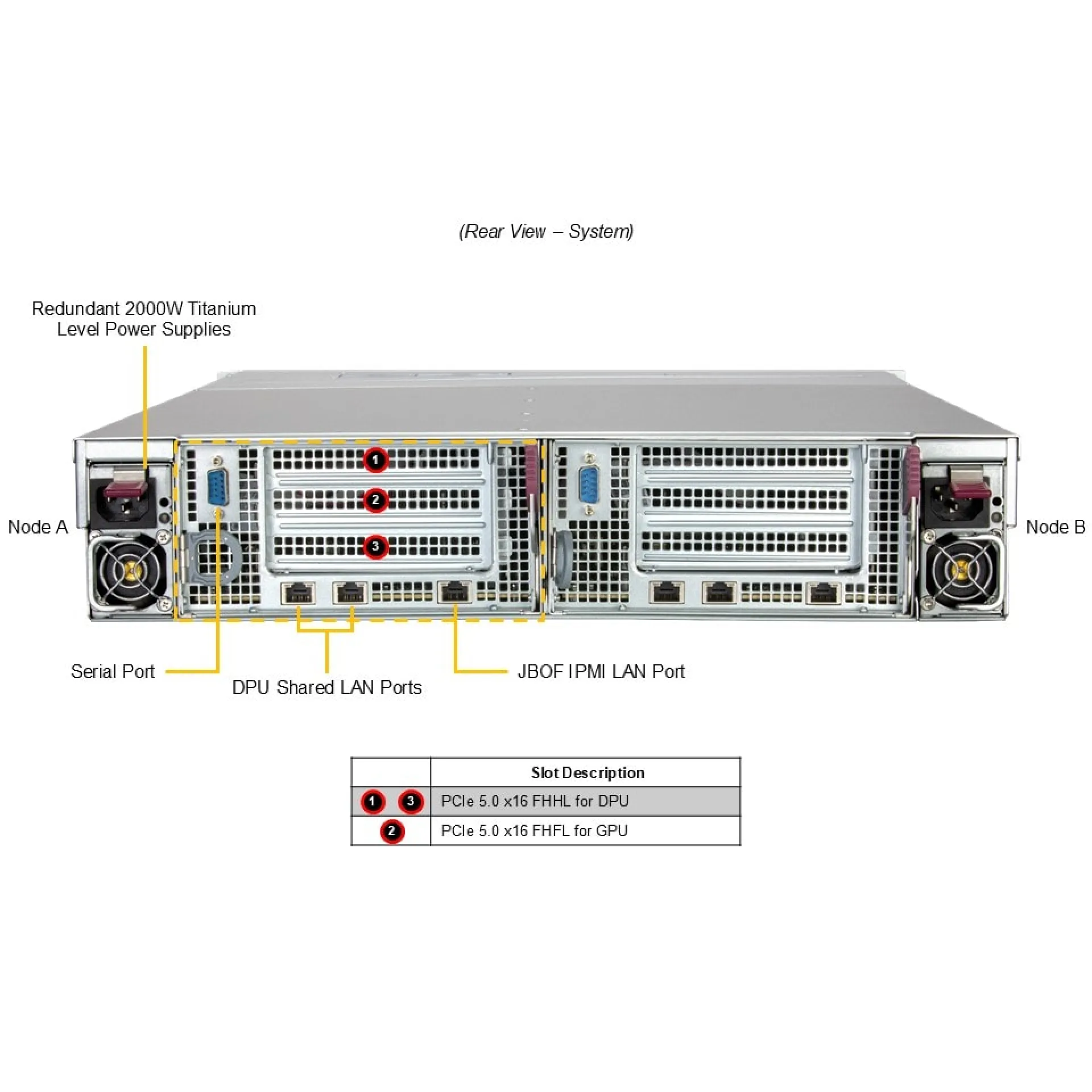

For I/O-centric designs, the SSG-229J-5BE36JBF centers on a 36x E3.S NVMe hot-swap, all-flash front architecture and adds internal M.2 NVMe (PCIe Gen5) for boot or local services. PCIe 5.0 x16 full-height, full-length expansion enables GPU/DPU integration and high-bandwidth fabrics, aligning the chassis with modern NVMe-over-Fabrics targets and HPC nodes that require local NVMe scratch. Integrated 200Gbps-class networking, IPMI/BMC remote management, and redundant 80 PLUS Titanium power provide the operational characteristics expected in clustered deployment.

Why Choose the SSG-229J-5BE36JBF?

The SSG-229J-5BE36JBF delivers a strong density-to-performance ratio by combining 2 compute nodes, GPU-ready PCIe 5.0 lanes, and a high-bay E3.S NVMe front plane in a single 2U footprint. This architecture simplifies scaling: replicate identical building blocks across racks, maintain consistent cabling and service procedures, and allocate flash, compute, and acceleration where each cluster partition needs it.

Supermicro designs platforms with serviceability and data centre compatibility in mind, pairing modular subsystems, validated thermals, and out-of-band management to support reliable operations at scale. The SSG-229J-5BE36JBF follows this approach with hot-swap power, enterprise cooling, and remote management aligned to standard rack and fleet tooling.

Key Applications:

• AI/ML training and inference with in-chassis GPUs
• NVMe-over-Fabrics targets and flash serving
• HPC cluster nodes with local NVMe scratch
• Analytics and high-throughput data processing
