SSG-222B-NE3X24R
High-Density 2U NVMe All-Flash Storage Server featuring PCIe Gen5 E3.S bays with the SSG-222B-NE3X24R

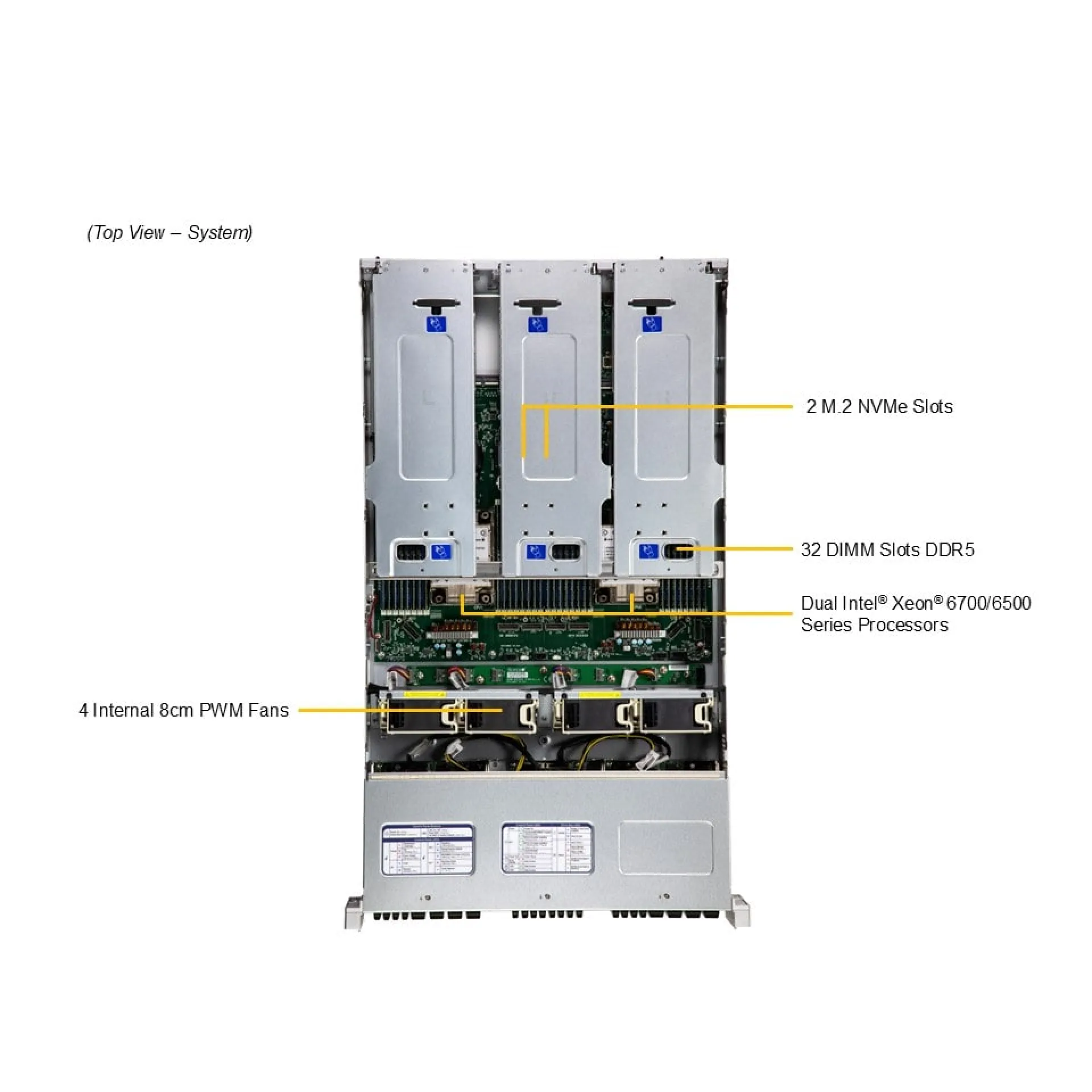

The SSG-222B-NE3X24R is a 2U rack platform engineered for scale-out all-flash storage and NVMe-oF target roles where predictable latency and sustained throughput drive architectural outcomes. Dual-socket Intel Xeon 6 (6700/6500 series) processors enable balanced core density for storage services, metadata handling, and data-path processing, while DDR5 ECC RDIMM/LRDIMM support across 32 DIMM slots provides the memory headroom required for large cache layers and software-defined storage control planes.

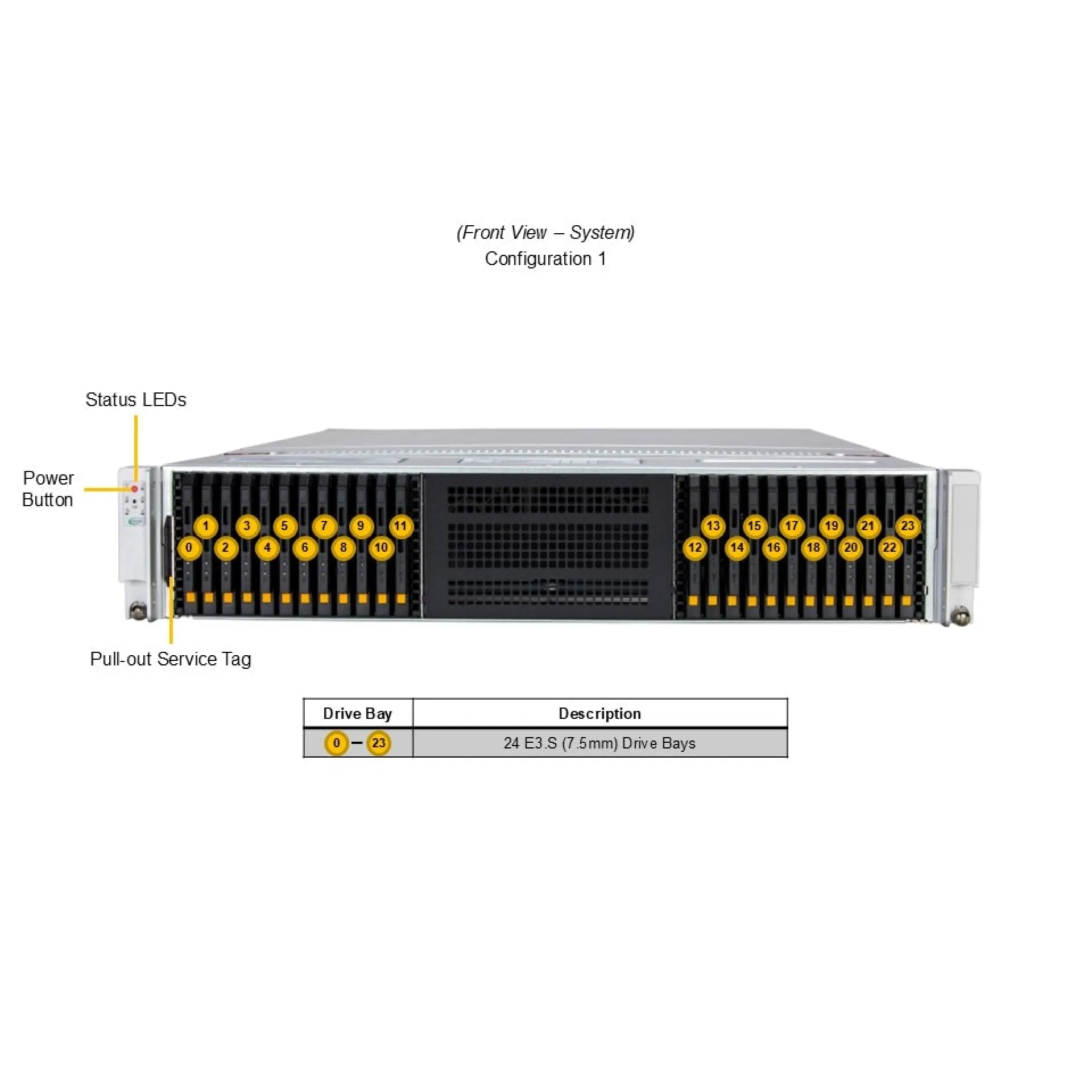

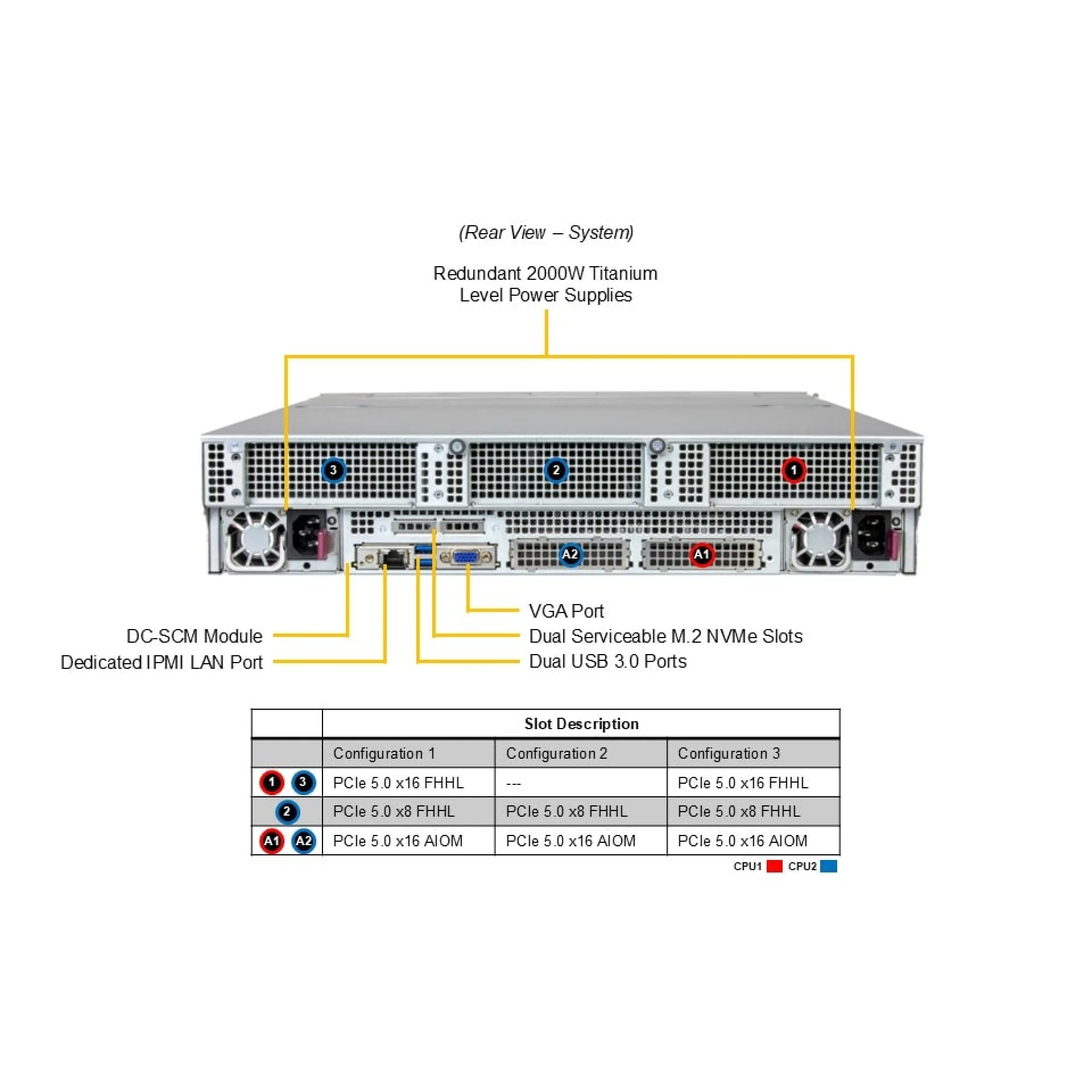

Storage in the SSG-222B-NE3X24R is optimized around 24 front hot-swap E3.S 1T NVMe bays with PCIe 5.0 x4 per drive, aligning the backplane with modern all-flash media bandwidth and parallelism. PCIe Gen5 expansion supports both high-bandwidth NICs and optional GPU acceleration, with 2 AIOM OCP NIC 3.0 SFF slots for fabric connectivity and additional FHFL slots for IO or up to 2 double-width GPUs when the workload benefits from in-node processing. For platform assurance, redundant 80 PLUS Titanium PSUs and BMC/IPMI management support high-availability deployment patterns.
Why Choose the SSG-222B-NE3X24R?
The SSG-222B-NE3X24R delivers an efficient density-to-performance profile by combining 24x PCIe Gen5 NVMe hot-swap bays with dual Xeon 6 compute and enterprise serviceability in a 2U footprint. The architecture scales cleanly for clustered storage nodes, provides deterministic IO paths without onboard RAID dependency, and supports secure deployment with TPM 2.0 and hardware root-of-trust capabilities.
Supermicro platforms emphasize modular system design, validated thermals, and datacenter-aligned manageability to simplify lifecycle operations. The SSG-222B-NE3X24R reflects this approach with serviceable front-access NVMe, redundant power, and standards-based integration for modern storage fabrics and automated provisioning.
Key Applications:
- Scale-out all-flash storage
- Software-defined storage
- NVMe-oF target infrastructure
- Databases
- Real-time analytics
- AI/HPC data staging and scratch
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment requirements for the SSG-222B-NE3X24R, helping you standardize configurations across storage tiers. For long-term operational security, you can also extend the warranty up to 6 years to match enterprise refresh cycles.
Technical details of SSG-222B-NE3X24R
How long is the Warranty and how you can get technical support for SSG-222B-NE3X24R
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
