SBI-422B-5NE14
High-Density SuperBlade Compute Module delivering dual-socket Xeon 6 performance with the SBI-422B-5NE14

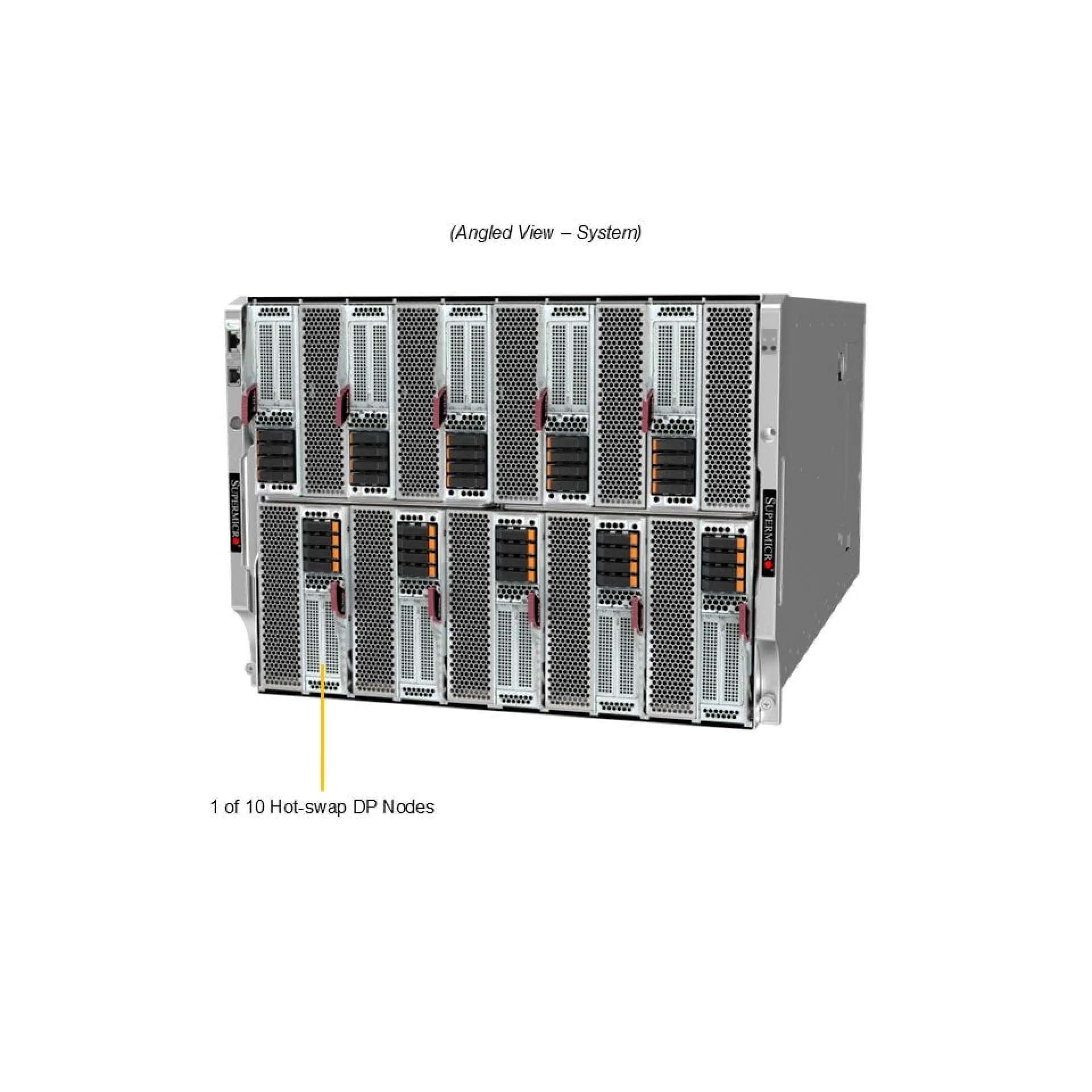

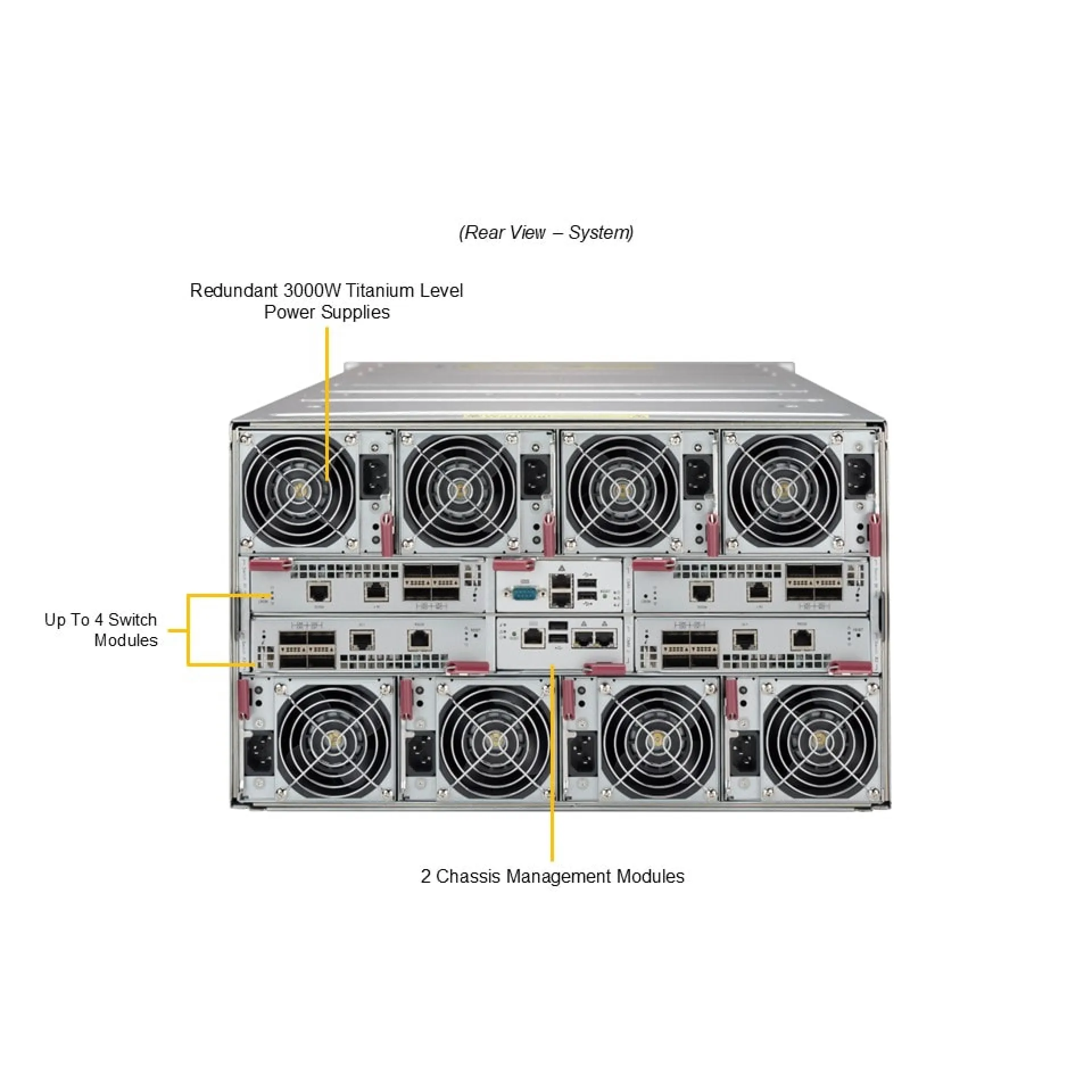

The SBI-422B-5NE14 is a 1-node compute blade engineered for Supermicro SuperBlade 8U enclosures, optimised for dense CPU throughput and shared chassis power/cooling. Built on the Intel Xeon 6 platform (Xeon 6700/6500 families, Granite Rapids or Sierra Forest) and the Intel C741 chipset, it supports dual-socket configurations that scale to high core counts for HPC, virtualisation, and data services where rack-level efficiency matters.

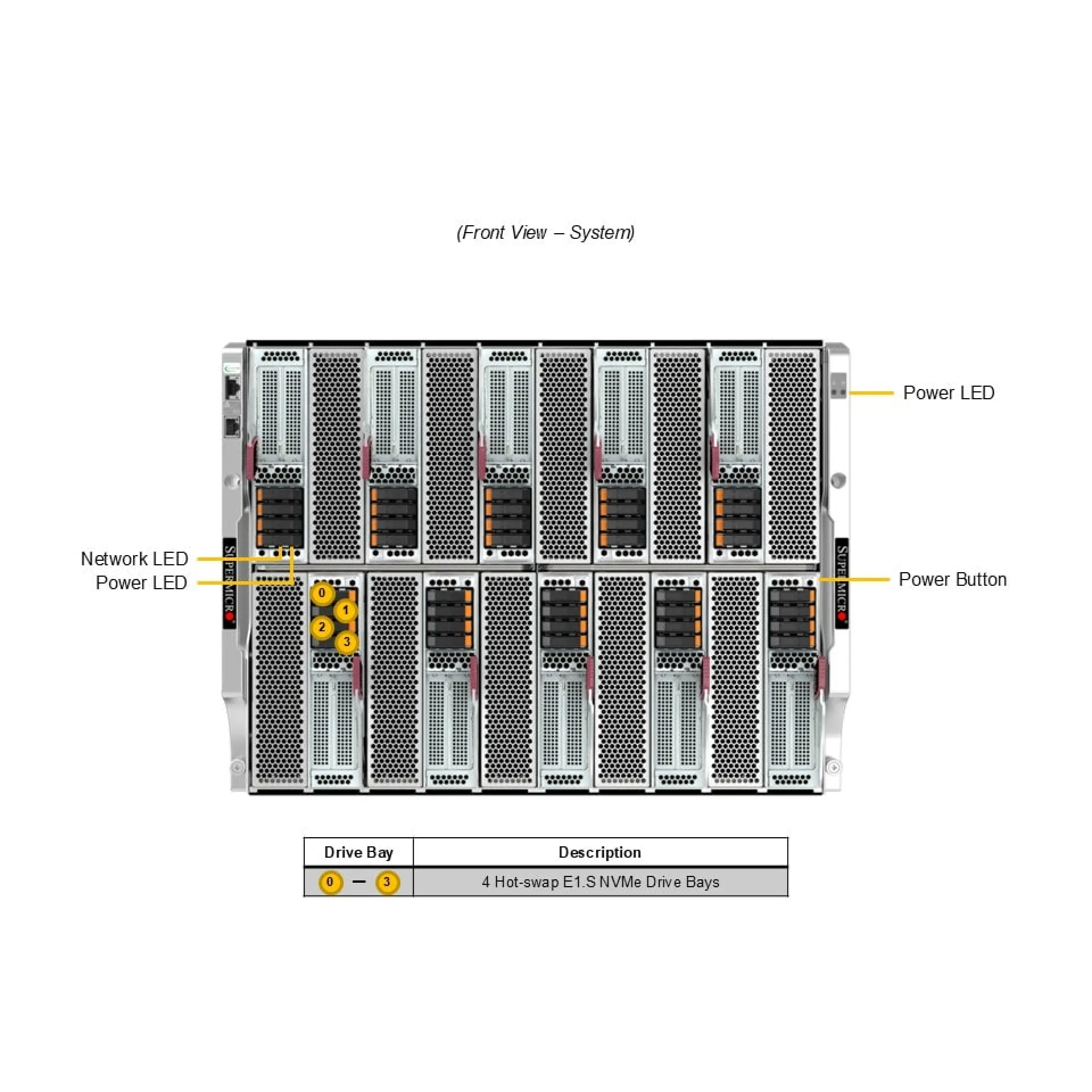

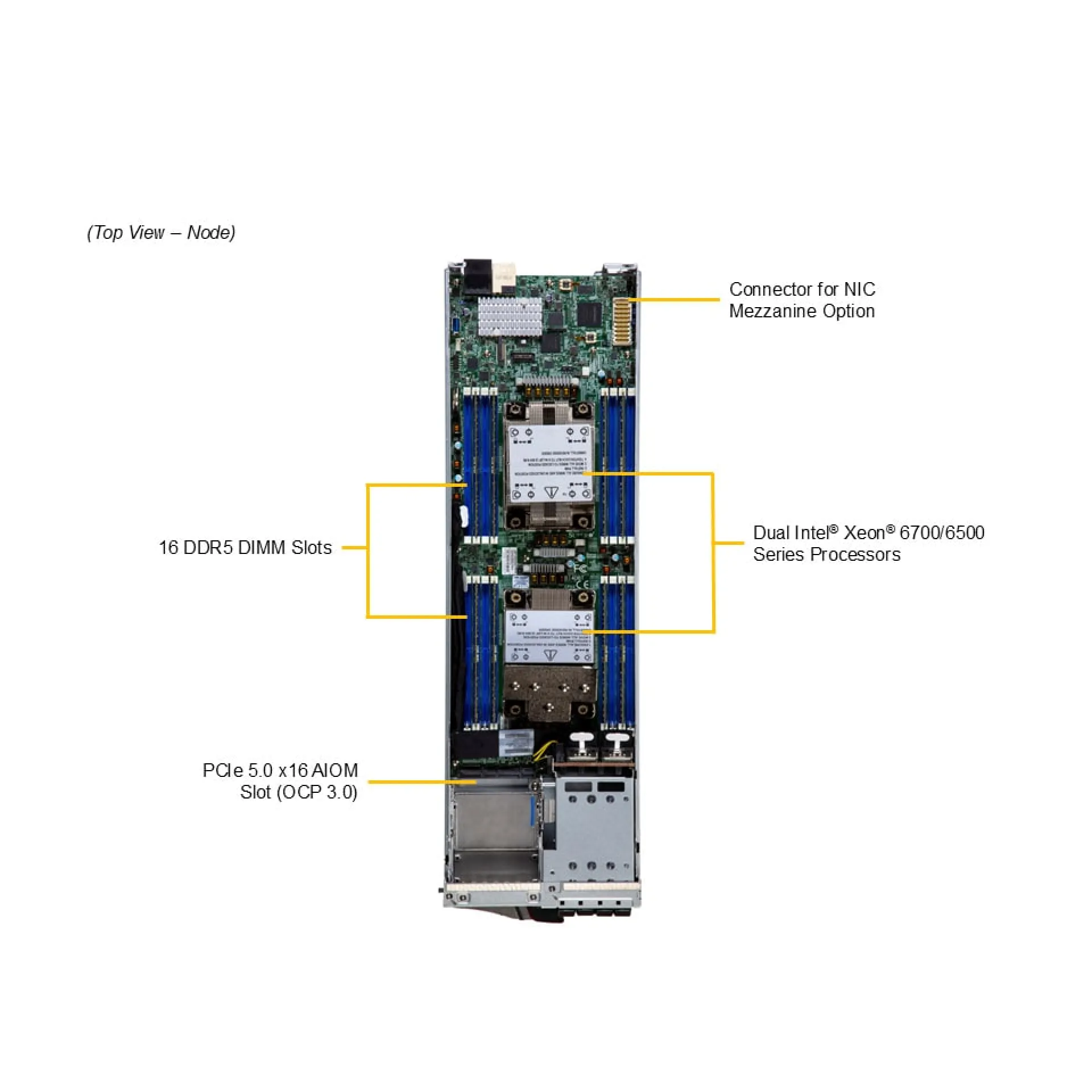

For memory-bound workloads, the SBI-422B-5NE14 provides 16 DDR5 ECC DIMM slots supporting RDIMM, 3DS-RDIMM, or MRDIMM, enabling high bandwidth and large capacity footprints for consolidation and in-memory processing. PCIe Gen5 I/O is exposed through an OCP NIC 3.0 SFF slot, aligning the blade with modern fabric and NIC roadmaps. Local data placement is addressed by 4 E1.S NVMe bays for low-latency scratch or dataset staging, complemented by an onboard M.2 NVMe (PCIe Gen4) for OS boot or hypervisor images, keeping the primary NVMe bays available for applications.
Why Choose the SBI-422B-5NE14?
The SBI-422B-5NE14 is designed to maximise compute density per enclosure while retaining enterprise-grade serviceability and consistent performance under sustained load. Its dual-socket Xeon 6 architecture, DDR5 scalability, and PCIe Gen5 networking path enable predictable scale-out clusters, while chassis-shared power and cooling reduce per-node overhead and simplify capacity planning for growth.
Supermicro designs SuperBlade platforms around efficient airflow, modular field replacement, and standards-aligned management. With an ASPEED AST2600 BMC supporting IPMI 2.0, Redfish, and KVM-over-IP, the SBI-422B-5NE14 integrates cleanly into automated provisioning and secure lifecycle operations, including TPM 2.0 and firmware protection features.
Key Applications:
- HPC and scientific computing
- Engineering simulation
- Cloud and virtualisation clusters
- Big-data analytics with NVMe local storage
- Enterprise application hosting
At Happyware - Server Hardware you benefit from non-binding offers tailored to your SuperBlade deployment and an extended warranty of up to 6 years to protect long-life data centre investments built around the SBI-422B-5NE14.
Technical details of SBI-422B-5NE14
How long is the Warranty and how you can get technical support for SBI-422B-5NE14
| Warranty: | 12 months (part) 36 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | 1 year Advance Cross-Ship |
| Support Portal: | https://support.happyware.com |
|---|
