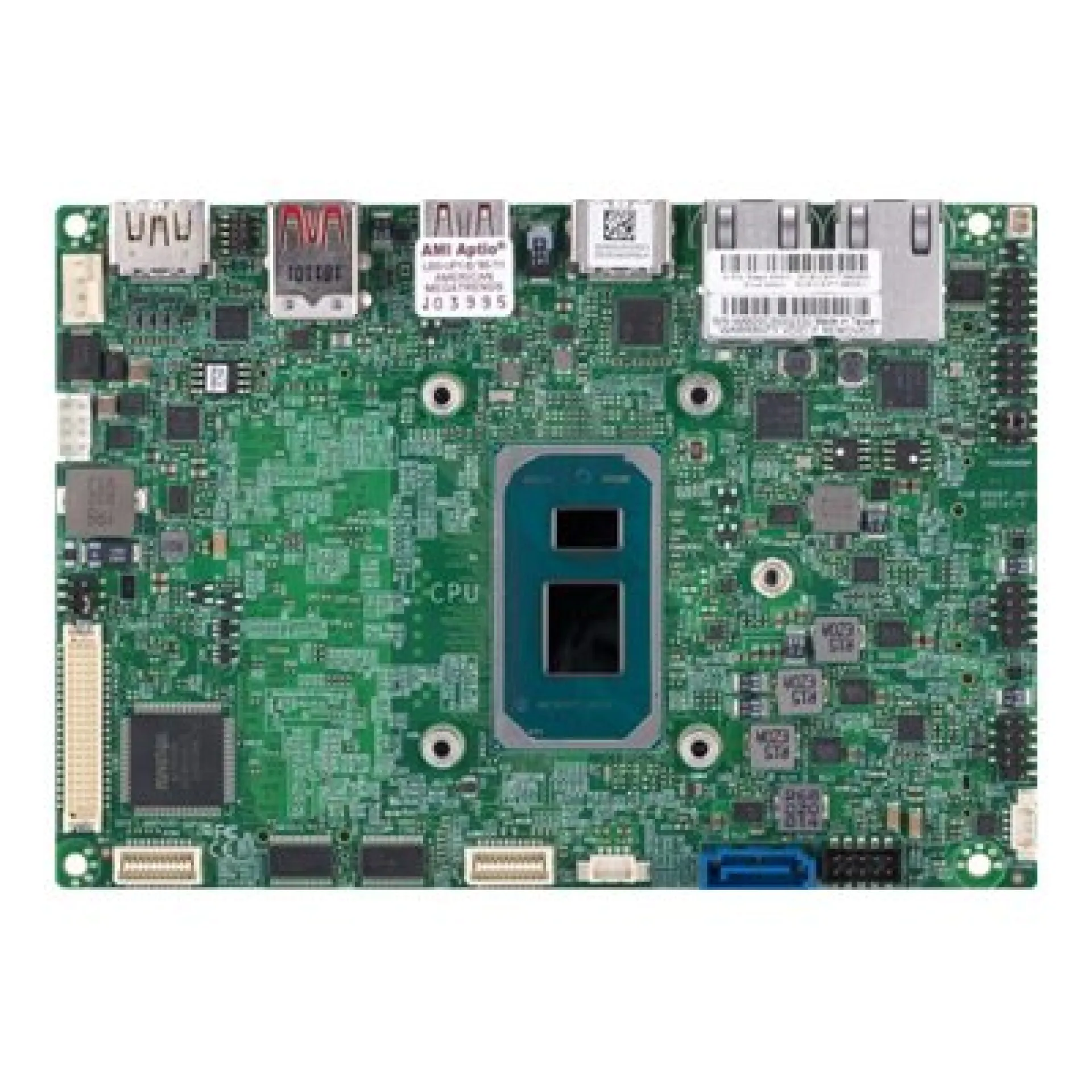

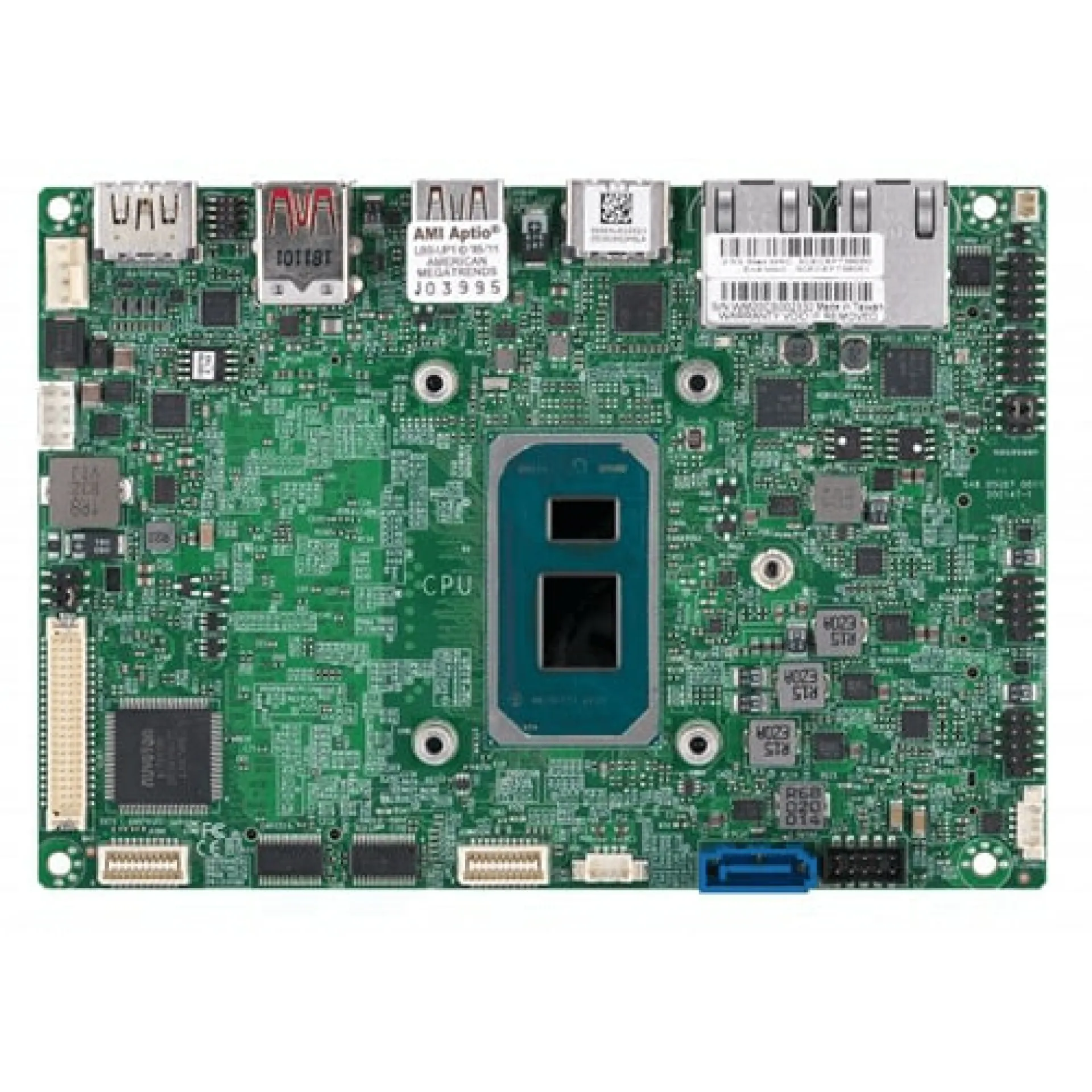

MBD-X12STN-H-WOHS-O Supermicro 3.5" SBC Single FCBGA1449 2 SO-DIMM Slots Embedded Mainboard

High-Density 3.5" Embedded SBC Architecture with PCIe 4.0 NVMe Expansion using the MBD-X12STN-H-WOHS-O

The MBD-X12STN-H-WOHS-O is a Supermicro 3.5" single board computer built on a 1-socket Intel Core i7 FCBGA1449 SoC platform, optimized for embedded edge compute where power envelopes, thermals, and integration simplicity drive system design. Its 28W-class CPU architecture targets deterministic control and responsive HMI while maintaining headroom for compact general compute and light virtualization.

With 2x DDR4 SO-DIMM supporting up to 64GB, the MBD-X12STN-H-WOHS-O delivers a balanced memory architecture for multi-service edge nodes without the footprint of a full server board. PCIe 4.0 x4 via the M-Key M.2 slot enables high-throughput NVMe storage, while additional B-Key and E-Key M.2 interfaces support mixed SATA/PCIe connectivity and CNVi/Wi-Fi modules for modular I/O. A 2.5GbE Intel I225-IT uplink supports modern edge aggregation, and multi-display output via DisplayPort plus dual HDMI aligns with signage and kiosk deployments. The storage topology combines SATA III with M.2 flexibility to separate OS, logs, and local cache according to workload.

Why Choose the MBD-X12STN-H-WOHS-O?

The MBD-X12STN-H-WOHS-O provides an enterprise-focused density-to-performance profile for edge cabinets and space-constrained enclosures, combining PCIe 4.0 NVMe capability, 2.5GbE networking, and broad serial/USB expansion in a serviceable SBC form factor. For fleet deployments, the MBD-X12STN-H-WOHS-O supports repeatable platform standardization, scalable peripheral integration, and predictable power planning.

Supermicro designs the MBD-X12STN-H-WOHS-O to align with data center-derived reliability practices, emphasizing validated firmware via AMI UEFI BIOS, integration-ready headers including TPM 2.0, and electrical design suitable for 12–24V DC input environments common in industrial and edge sites.

Key Applications:

• Industrial control and automation gateways
• IoT edge aggregation and protocol conversion
• Kiosk and HMI systems
• Multi-display digital signage
• Compact virtualization and microserver nodes
