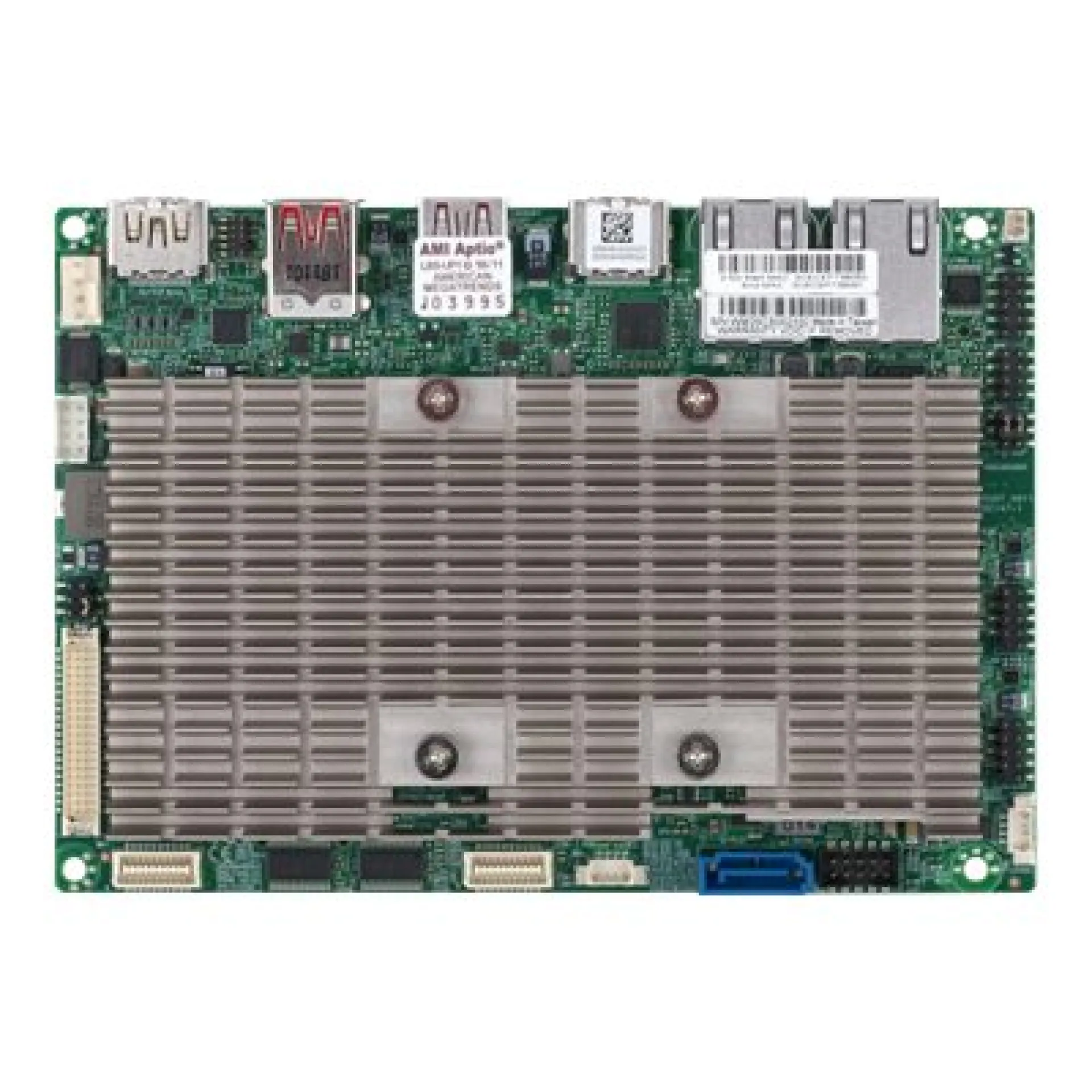

MBD-X12STN-H-O Supermicro 3.5" SBC Single FCBGA1449 2 SO-DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STN-H-O and save cash:

Quantity	Unit price
To 4	€957.00
To 9	€929.00 €957.00 (2.93% saved)
To 19	€910.00 €957.00 (4.91% saved)
From 20	€891.00 €957.00 (6.9% saved)

Product line:

X13

See other Supermicro products

€957.00

In stock

Happyware Article Number:

SH0M3625-872725

Manufacturer Number:

MBD-X12STN-H-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STN-H-O

Industrial 3.5" SBC Embedded Motherboard Optimised for Edge I/O with the MBD-X12STN-H-O

The MBD-X12STN-H-O is a 3.5" single board computer engineered for space-constrained edge and industrial deployments where deterministic I/O and platform stability matter more than raw expansion. An onboard Intel SoC CPU in the FCBGA1449 package supports Intel Core i7 and Celeron families with integrated graphics, enabling compact nodes that can run control logic, gateway services, and multi-display endpoints without a discrete GPU.

For memory bandwidth in small-footprint virtualization, the MBD-X12STN-H-O implements dual-channel DDR4 via 2x SO-DIMM slots up to 64GB at DDR4-3200, supporting responsive container hosts and local analytics. PCIe-centric storage is addressed through an M.2 M-Key slot wired for PCIe 4.0 x4 NVMe, complemented by a SATA III port for mirrored boot or legacy media. Additional flexibility comes from the M.2 B-Key and E-Key sockets for modular storage, USB, or wireless options, aligning the MBD-X12STN-H-O with configurable field deployments.

Why Choose the MBD-X12STN-H-O?

The MBD-X12STN-H-O delivers a high density-to-performance ratio by combining an onboard Intel SoC platform, dual 2.5GbE, and NVMe-first storage in a 3.5" SBC footprint, simplifying enclosure design and reducing integration risk. With AMI UEFI firmware, TPM 2.0 header support, and an extended -40°C to +60°C operating range, the MBD-X12STN-H-O is suited for scalable rollouts where reliability and consistent hardware BOM control are required.

Supermicro designs embedded platforms with an engineering focus on long-life availability, validated component interoperability, and compliance with modern data centre and industrial integration practices, supporting predictable lifecycle management across distributed installations.

Key Applications:

Embedded control and automation
IoT gateway and protocol translation
Compact compute nodes with NVMe boot
Light virtualization at the edge
Digital signage and kiosk systems

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment requirements for the MBD-X12STN-H-O and the option to extend the warranty up to 6 years to protect long-running edge installations.

Technical details of MBD-X12STN-H-O

CPU Socket: FCBGA1449

Onboard Memory: No

CPU Manufacturer: Intel

CPU Supported Type: Core i7, Celeron

Form Factor: 3.5" SBC

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 64GB

Max RAM Frequency : 3200MHz

RAM Slots: 2 SO-DIMM DDR4

RAM Channels: Dual-Channel

M.2 Slots: 1 CNVi/PCIe 3.0 x1/USB 2.0 M.2 2230 E-Key, 1 PCIe 4.0 x4 M.2 2242, M.2 2280 M-Key, 1 USB 3.0/USB 2.0/SATA/PCIe 3.0 x1 M.2 2242, M.2 3042, M.2 2280 B-Key

Network Ports: 2 RJ45 2.5 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Onboard CPU: Yes

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x LVDS, 2x HDMI

USB Ports: 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 2 Type-A, 4x USB 2.0 header

Other Ports: 1x HD Audio header, 1x LVDS - header, 1x SIM (Nano-SIM), 1x SMBus Header, 1x Speaker-Header, 1x System Fan, 1x TPM Header, 2x GPIO - header, 4x USB 2.0 header, 6x serial Header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC888S

Embedded: Yes

GPIO Pins: 8

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12STN-H-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
