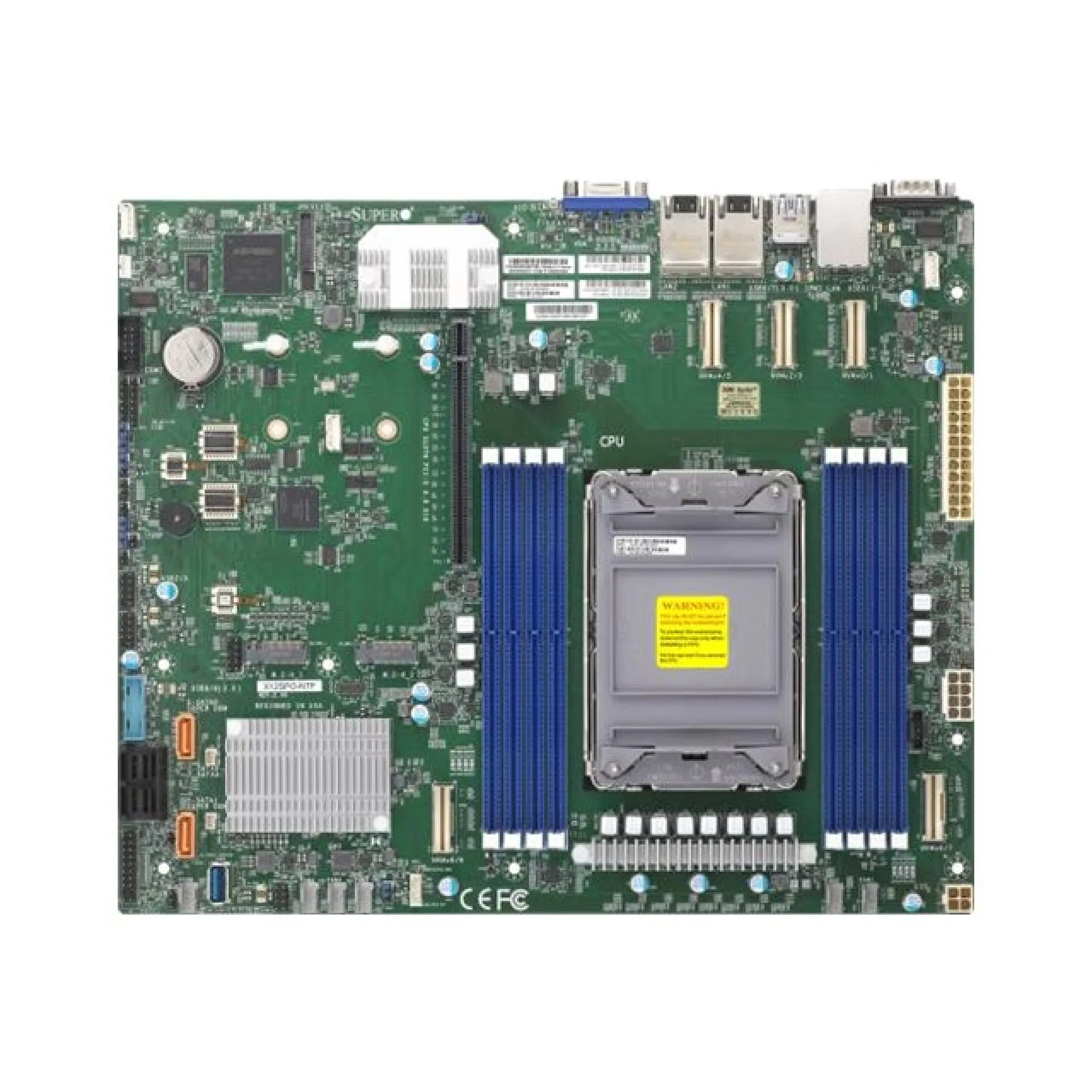

MBD-X12SPO-NTF-B Supermicro ATX Single P+ (LGA 4189) 8 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12SPO-NTF-B and save cash:

Quantity	Unit price
To 9	€694.00
To 19	€660.00 €694.00 (4.9% saved)
To 49	€646.00 €694.00 (6.92% saved)
From 50	€626.00 €694.00 (9.8% saved)

Product line:

X12

See all ECC RAM Supported Motherboard

See other Supermicro products

€694.00

Out of stock

Not available

Happyware Article Number:

SH2M6704-842814

Manufacturer Number:

MBD-X12SPO-NTF-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12SPO-NTF-B

High-Performance ATX Server Motherboard featuring 3rd Gen Intel Xeon Scalable architecture with the MBD-X12SPO-NTF-B

MBD-X12SPO-NTF-B is an ATX server motherboard built for 1-socket platforms based on 3rd Gen Intel Xeon Scalable processors (LGA4189) and the Intel C621A chipset, targeting balanced compute, virtualization density, and storage-oriented node designs. The platform focus is predictable performance per rack unit with enterprise manageability, supporting CPU configurations up to 270W for sustained core throughput in mixed infrastructure workloads.

The memory subsystem of MBD-X12SPO-NTF-B provides 8 DDR4 ECC DIMM slots with capacity scaling up to 2TB and speeds up to 3200 MT/s, enabling stable consolidation ratios for hypervisors and private cloud stacks. PCIe expansion is centered on PCIe 4.0 with a mechanical x16 slot to accommodate high-bandwidth adapters such as NICs, HBAs, or accelerators, while storage architecture is optimized for software-defined storage nodes through a combination of 10 x SATA 6Gb/s and 10 x NVMe ports plus dual M.2 (PCIe 3.0 x4/SATA) for boot or cache tiering. Integrated dual 10GBase-T via Intel X550 simplifies top-of-rack connectivity planning.

Why Choose the MBD-X12SPO-NTF-B?

MBD-X12SPO-NTF-B delivers a practical density-to-performance profile for single-socket servers where memory headroom, NVMe scale, and onboard 10GbE reduce add-in requirements and streamline qualification. With IPMI/BMC management based on ASPEED AST2600 and TPM support, MBD-X12SPO-NTF-B aligns with remote operations, controlled lifecycle management, and security baselines across distributed deployments.

Supermicro designs platforms with a strong emphasis on datacenter compatibility, long-run stability, and serviceability, pairing validated server-grade component choices with management features that integrate cleanly into modern monitoring and provisioning workflows.

Key Applications:

Virtualization and private cloud nodes
Software-defined storage and NVMe tiers
General purpose rack and tower compute
Edge infrastructure with remote management

At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration and deployment targets, plus extended warranty options up to 6 years to protect long lifecycle server builds based on MBD-X12SPO-NTF-B.

Technical details of MBD-X12SPO-NTF-B

CPU Socket:

P+ (LGA 4189)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon

Form Factor:

ATX

Chipset:

Intel C621A

RAM Maximum Capacity:

2048GB

Max RAM Frequency :

3200MHz

RAM Slots:

8 DIMM DDR4

PCIe Slots:

1 PCIe 4.0 x16

M.2 Slots:

2 PCIe 3.0 x4/SATA M.2 22110, M.2 2280 M-Key

Network Ports:

2 RJ45 10 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Aspeed AST2600

Video Output:

1x VGA

Other Ports:

2x COM Port 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X12SPO-NTF-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
