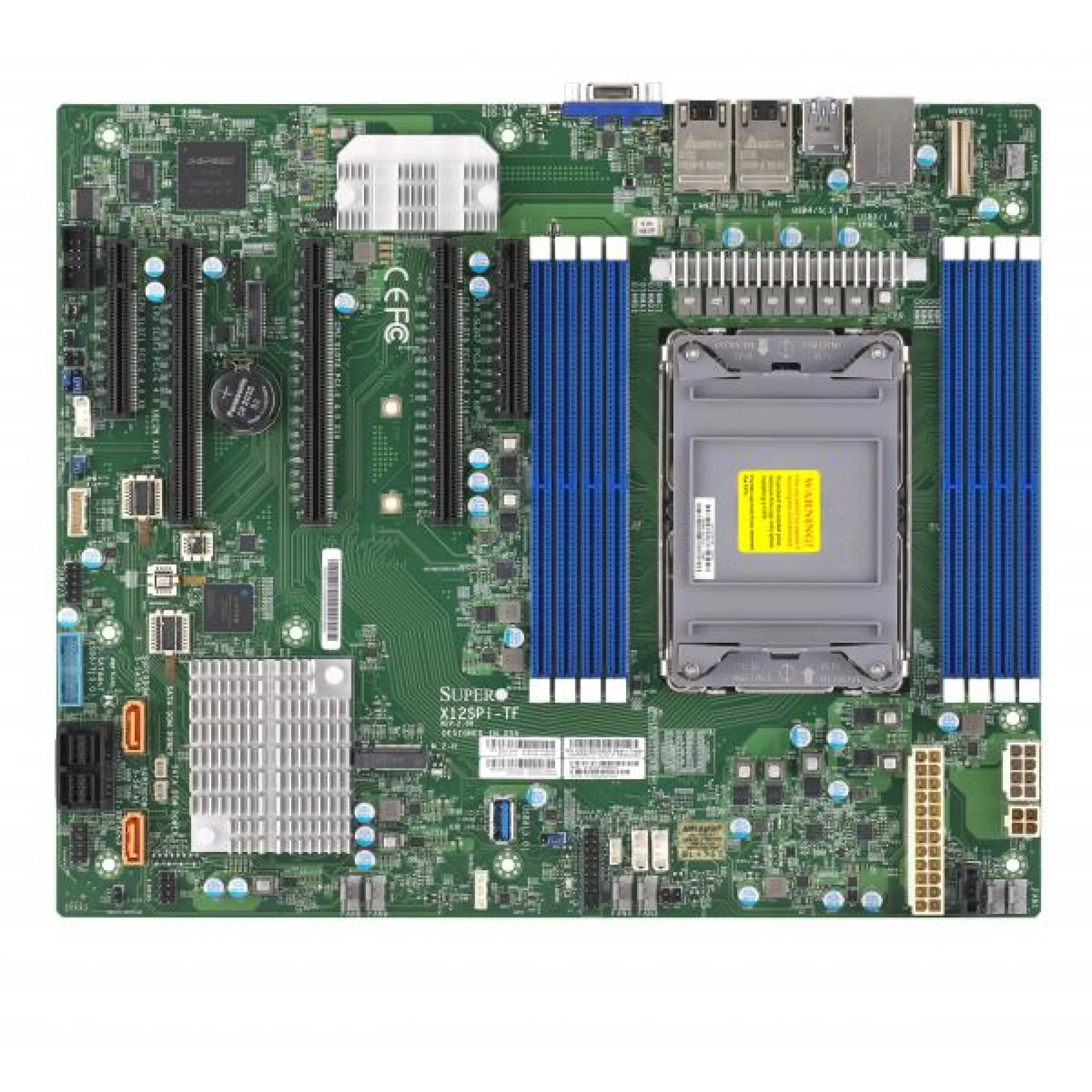

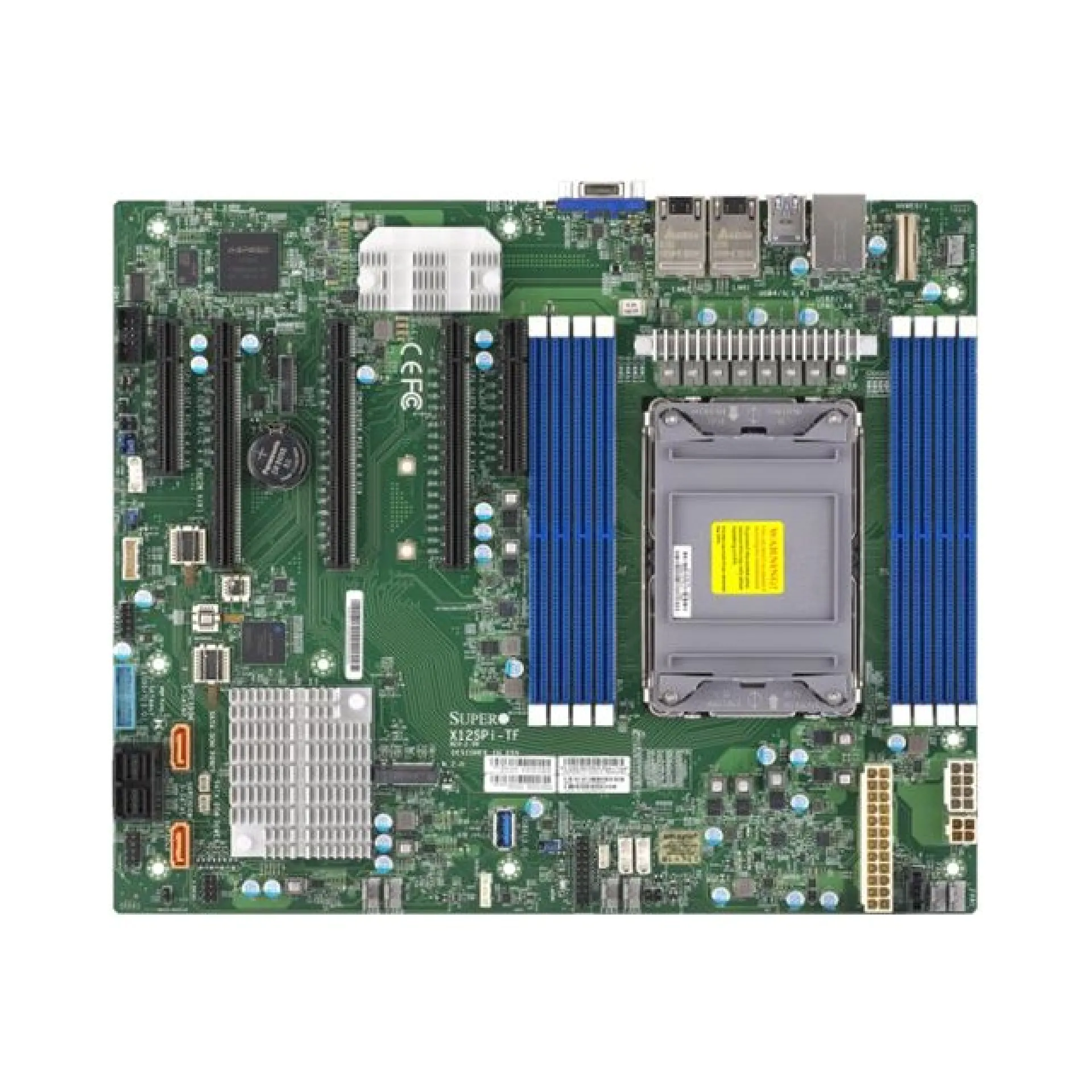

MBD-X12SPI-TF-B

High-Performance ATX Server Motherboard featuring PCIe 4.0 expansion and 10GbE with the MBD-X12SPI-TF-B

The MBD-X12SPI-TF-B is an ATX server motherboard built on the single-socket Intel Xeon Scalable 3rd Gen (LGA4189) platform with the Intel C621A chipset, targeting efficient general-purpose rack or tower systems. By concentrating budget and power into one CPU socket while maintaining enterprise I/O, the MBD-X12SPI-TF-B supports dense compute per node without sacrificing network and management capabilities.

Memory is optimized for virtualization and database roles through 8 DDR4 ECC DIMM slots delivering up to 2TB capacity at DDR4-3200, enabling high-memory VM consolidation and in-memory caching. For expansion, the MBD-X12SPI-TF-B exposes 5 PCIe 4.0 slots, including dual x16 connectivity for high-throughput accelerators or high-speed storage/DPUs, plus additional x8-class slots for HBAs and NICs. Storage architecture balances compatibility and scalability with 10 SATA 6Gb/s ports, a dedicated NVMe port, and an M.2 slot supporting PCIe 3.0 x4 or SATA, suitable for boot mirroring, metadata tiers, or local hot data.

Why Choose the MBD-X12SPI-TF-B?

The MBD-X12SPI-TF-B delivers a practical density-to-performance profile for single-socket deployments where PCIe 4.0 lanes, 10GbE connectivity, and predictable thermals matter more than dual-socket complexity. Integrated IPMI via the ASPEED AST2600 BMC enables consistent remote provisioning and lifecycle operations, while TPM support and platform RAID options align the MBD-X12SPI-TF-B with standard enterprise governance and scalability patterns.

Supermicro designs platforms with data center operability in mind, combining validated server-grade components, long lifecycle support, and management-first engineering to meet modern reliability expectations across core, edge, and departmental infrastructure.

Key Applications:

Virtualization hosts
Database and caching nodes
General-purpose rack or tower servers
Edge services with 10GbE uplinks
Software-defined storage controllers

At Happyware - Server Hardware you benefit from non-binding offers tailored to your project requirements for the MBD-X12SPI-TF-B, helping you standardize builds efficiently across environments. For larger rollouts, Bulk Order Discount options support cost-controlled scaling of MBD-X12SPI-TF-B-based server fleets.

Technical details of MBD-X12SPI-TF-B

CPU Socket: P+ (LGA 4189)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon Scalable

Form Factor: ATX

Chipset: Intel C621A

RAM Maximum Capacity: 2048GB

Max RAM Frequency : 3200MHz

RAM Slots: 8 DIMM DDR4

PCIe Slots: 1 PCIe 4.0 x16, 2 PCIe 4.0 x8, 2 PCIe 4.0 x16

M.2 Slots: 1 PCIe 3.0 x4/SATA M.2 2280, M.2 22110 M-Key

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

Other Ports: 1x COM Port, 1x TPM Header, 2x SATA DOM (Disk on Module)

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Bluetooth integrated: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12SPI-TF-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
