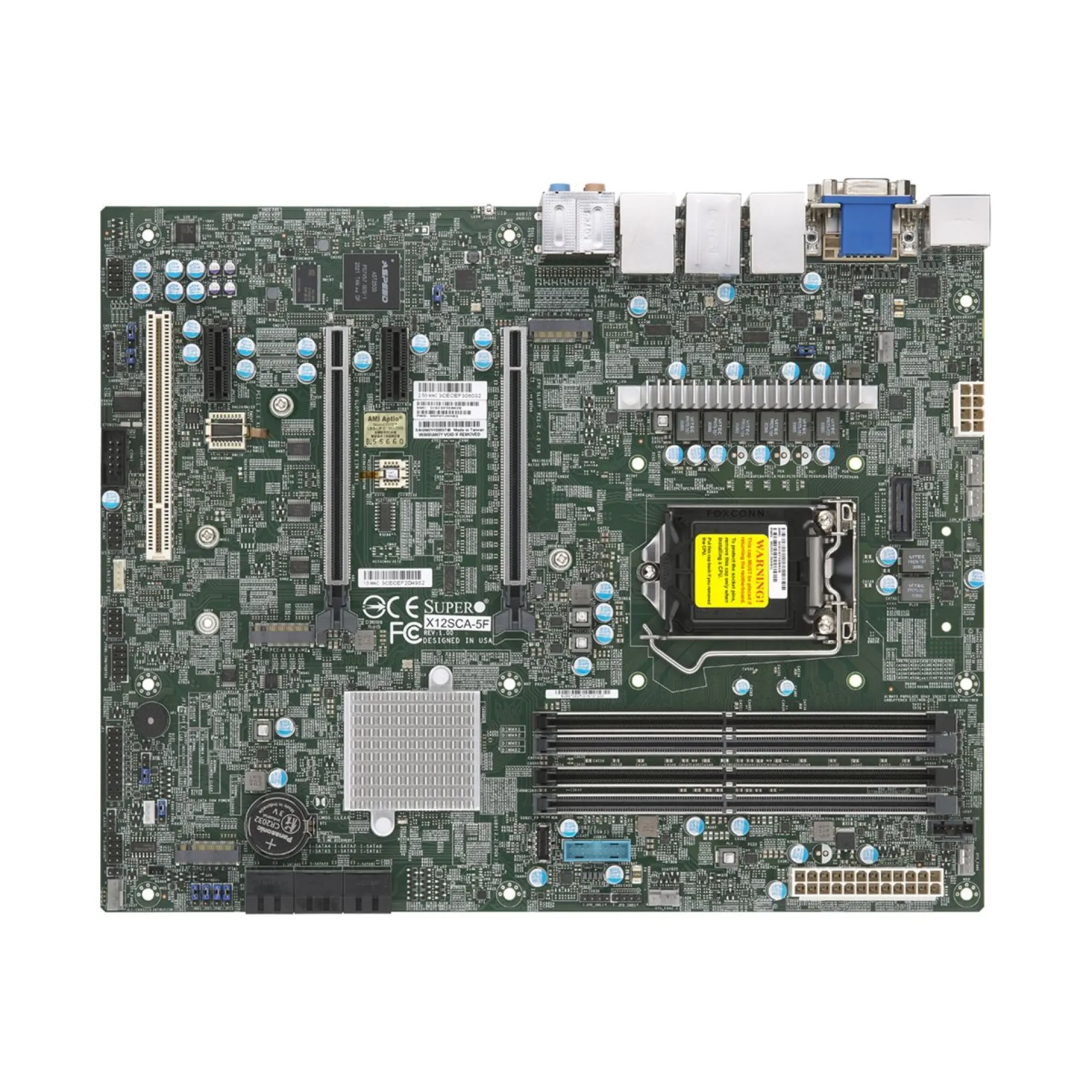

MBD-X12SCA-5F-B
High-Performance ATX Server/Workstation Motherboard featuring remote management and PCIe 4.0 expansion with the MBD-X12SCA-5F-B
MBD-X12SCA-5F-B is an ATX platform engineered for 1P Intel Xeon W-1200 and 10th Gen Intel Core deployments where workstation-class compute must be operated with server-grade control. The Intel W580 chipset and LGA1200 socket enable a balanced CPU platform for edge servers, labs, and departmental infrastructure that require predictable I/O and straightforward serviceability.
For memory architecture, MBD-X12SCA-5F-B provides dual-channel DDR4-3200 across 4 UDIMM slots up to 128GB, supporting ECC or non-ECC depending on CPU selection to align cost, integrity, and compliance requirements. Expansion is optimized for mixed accelerators and high-throughput adapters via 2 PCIe 4.0 x16 slots supporting x16 or x8/x8 bifurcation, complemented by PCIe 3.0 lanes for ancillary I/O. Storage design favors local performance and resilience: 6 SATA 6Gb/s ports with RAID plus 3 M.2 NVMe sockets (1 PCIe 4.0 x4 and 2 PCIe 3.0 x4) for tiered boot, cache, or dataset volumes. Integrated networking combines 1GbE and 2.5GbE, while dedicated IPMI LAN decouples management traffic.
Why Choose the MBD-X12SCA-5F-B?
MBD-X12SCA-5F-B delivers an efficient density-to-performance profile for compact server and workstation builds by combining PCIe 4.0 expansion, NVMe-centric storage, and out-of-band management in a standard ATX footprint. It supports scalable configurations from minimal edge nodes to I/O-rich systems without changing the platform, reducing validation effort and simplifying fleet operations.
Supermicro designs this board with a data centre-aligned approach focused on lifecycle stability, remote operability, and component-level interoperability. The integrated ASPEED AST2500 BMC with IPMI 2.0 supports consistent provisioning and monitoring workflows, while TPM support assists with platform security baselines.
Key Applications:
- Remote-managed edge servers
- Departmental virtualization hosts
- NVMe/SATA local storage appliances
- Engineering workstations with PCIe accelerators
- Test and CI infrastructure nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MBD-X12SCA-5F-B deployment plan and bulk order discount options for standardizing larger rollouts across teams or sites.
Technical details of MBD-X12SCA-5F-B
How long is the Warranty and how you can get technical support for MBD-X12SCA-5F-B
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
