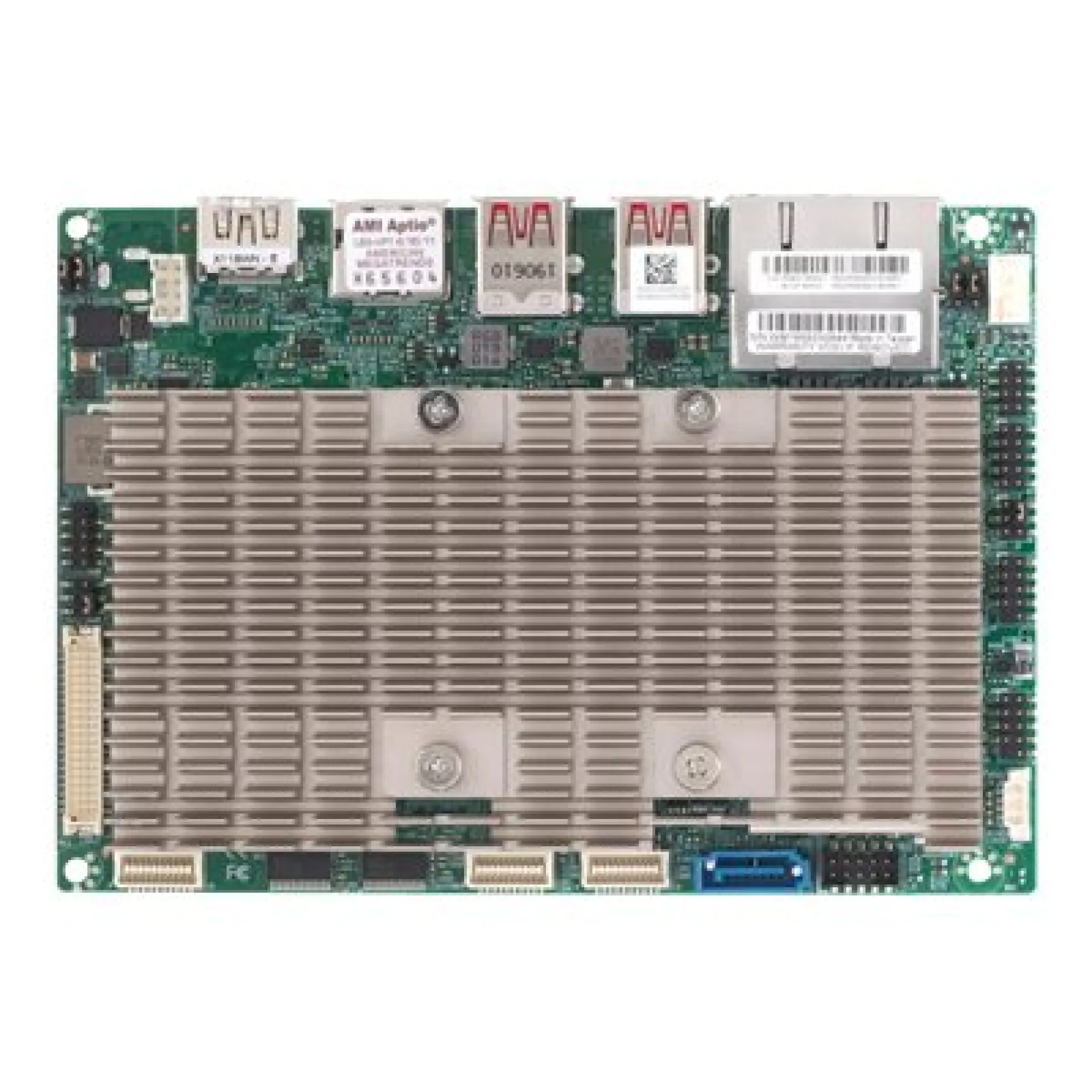

MBD-X11SWN-C-O Supermicro 3.5" SBC Single FCBGA1528 2 SO-DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SWN-C-O and save cash:

Quantity	Unit price
To 9	€307.00
To 19	€292.00 €307.00 (4.89% saved)
To 49	€286.00 €307.00 (6.84% saved)
From 50	€277.00 €307.00 (9.77% saved)

Product line:

X11

See all Embedded Motherboard

See other Supermicro products

€307.00

In stock

Happyware Article Number:

SH9M1109-125493

Manufacturer Number:

MBD-X11SWN-C-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SWN-C-O

Embedded 3.5" SBC server motherboard featuring Intel SoC efficiency with the MBD-X11SWN-C-O

The MBD-X11SWN-C-O is a compact Supermicro X11SWN-C embedded platform engineered for edge control and lightweight network services where predictable thermals and I/O density matter more than socketed CPU flexibility. Built on an Intel SoC (FCBGA1528) with Intel UHD Graphics 610 in a 15W TDP class, it supports responsive appliance workloads while maintaining a low power envelope for sealed enclosures and space-constrained nodes.

For memory architecture, the MBD-X11SWN-C-O provides 2 DDR4 SO-DIMM channels up to 64GB, enabling sufficient in-memory caching and packet-processing buffers for firewall/router roles and compact NAS-lite designs. Expansion and storage are optimized around PCIe 3.0 with versatile M.2 options: an M-Key slot for PCIe 3.0 x4 NVMe or SATA, plus B-Key and E-Key interfaces to integrate cellular/Wi-Fi modules or specialized I/O. A SATA III 6Gb/s port supports cost-efficient local storage, while HDMI, DP++, and LVDS enable direct display attachment for kiosk and HMI deployments.

Why Choose the MBD-X11SWN-C-O?

The MBD-X11SWN-C-O delivers an enterprise-oriented density-to-performance profile by combining dual Intel Gigabit Ethernet controllers with serial-rich connectivity in a 3.5" SBC footprint. For distributed rollouts, the architecture reduces external adapters, improves cabling simplicity, and supports scalable standardization across OT/IoT sites where uptime, repeatability, and controlled thermal behavior are operational priorities.

Supermicro designs the MBD-X11SWN-C-O with a pragmatic engineering focus on platform stability, firmware maturity, and long-life embedded deployment requirements. The board aligns with modern data centre and industrial standards through UEFI-based provisioning workflows, TPM support for measured boot strategies, and a 12–24V DC power input design suited to edge cabinets.

Key Applications:

Industrial gateways and protocol translation
Firewall, router, and secure edge appliances
Kiosk, POS, and digital signage controllers
Serial-centric OT/IoT aggregation nodes
Lightweight NAS-lite and local caching

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MBD-X11SWN-C-O deployment plan and an extended warranty of up to 6 years to protect long-lived embedded rollouts.

Technical details of MBD-X11SWN-C-O

CPU Socket: FCBGA1528

Onboard Memory: No

CPU Manufacturer: Intel

CPU Supported Type: Celeron

Form Factor: 3.5" SBC

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 64GB

Max RAM Frequency : 2133MHz

RAM Slots: 2 SO-DIMM DDR4

M.2 Slots: 1 CNVi/PCIe 3.0 x1/USB 2.0 M.2 2230 E-Key, 1 PCIe 3.0 x4/SATA M.2 2242, M.2 2280 M-Key, 1 USB 3.0/USB 2.0/SATA M.2 2242, M.2 3042, M.2 2280 B-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

Onboard Graphic: Yes

Video Output: 1x DP++(Dual-Mode DisplayPort), 1x HDMI, 1x LVDS

USB Ports: 4x USB 2.0, 4x USB 3.1 Gen2 Type-A

Other Ports: 1x TPM Header, 6x COM Port

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Bluetooth integrated: None

Onboard Audio Chipset: Realtek ALC888S

Embedded: Yes

GPIO Pins: 8

How long is the Warranty and how you can get technical support for MBD-X11SWN-C-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
