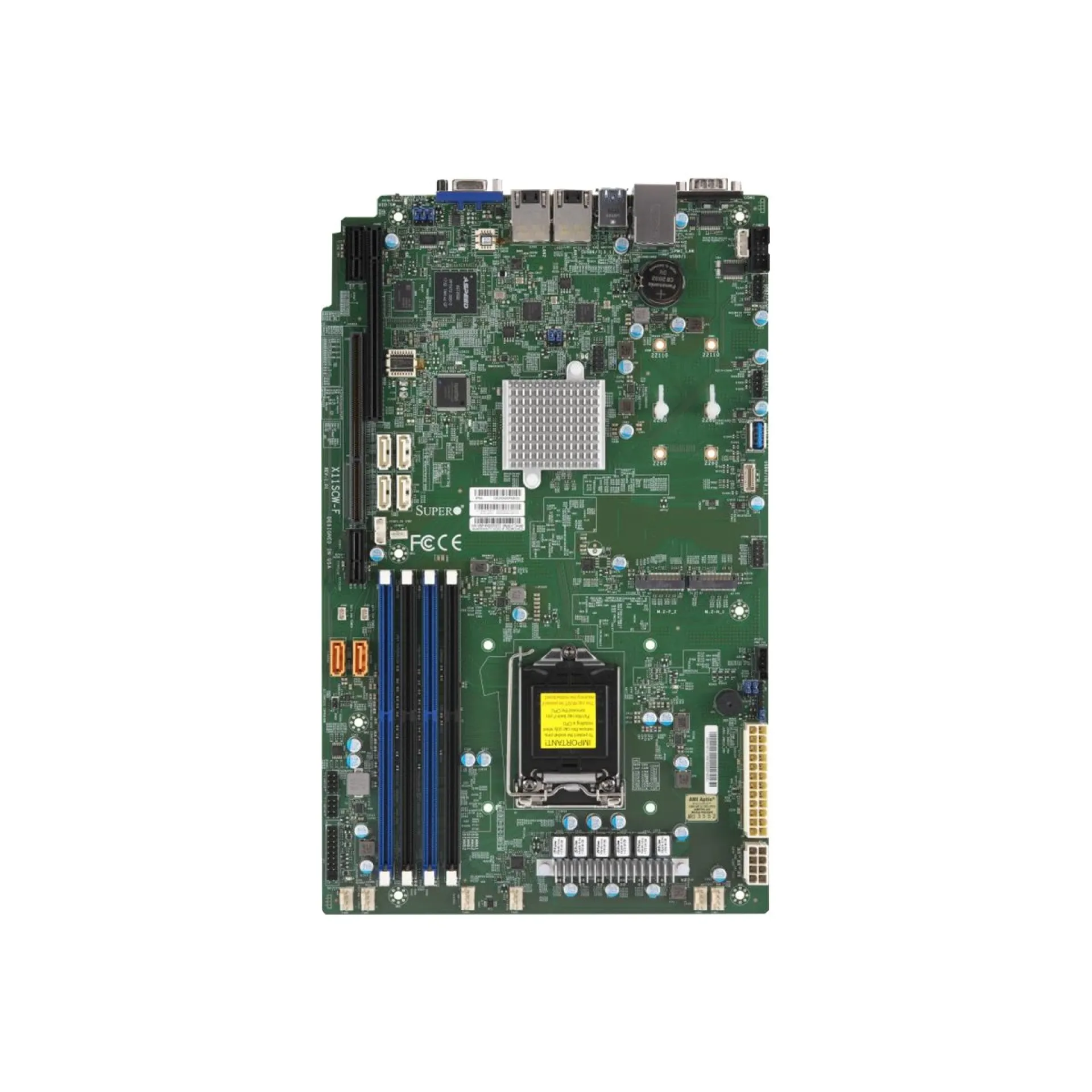

MBD-X11SCW-F-O Supermicro Proprietary WIO Single H4 (LGA 1151) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SCW-F-O and save cash:

Quantity	Unit price
To 9	€306.28
To 19	€293.09 €306.28 (4.31% saved)
To 49	€286.99 €306.28 (6.3% saved)
From 50	€277.79 €306.28 (9.3% saved)

Product line:

X11

See all GPU Compatible Motherboard

See other Supermicro products

€306.28

Out of stock

Happyware Article Number:

SH2M6418-817298

Manufacturer Number:

MBD-X11SCW-F-O

Brand:

Supermicro

Are you a reseller?

Do you have questions about this product MBD-X11SCW-F-O?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SCW-F-O

High-Performance WIO Server Motherboard for Edge and Branch Compute with the MBD-X11SCW-F-O

The MBD-X11SCW-F-O is a Supermicro X11 Series WIO server motherboard built on the Intel C246 platform, targeting compact enterprise nodes that require predictable CPU efficiency, remote manageability, and flexible I/O. With support for Intel Xeon E and 8th/9th Gen Core-class processors in LGA1151 (up to 95W), the MBD-X11SCW-F-O aligns well with always-on infrastructure services where deterministic latency and platform stability matter more than high core counts.

For memory, the MBD-X11SCW-F-O implements dual-channel DDR4 ECC UDIMM across 4 DIMM slots, enabling up to 128GB for lightweight virtualization, security appliances, and branch consolidation. PCIe 3.0 expansion is designed for practical device density: an x16 electrical slot for NICs or accelerators and an additional PCIe 3.0 x8 slot wired as x4 for storage controllers or high-throughput adapters. Storage architecture emphasizes operational simplicity with 6x SATA III ports plus 2x M.2 M-Key sockets supporting PCIe 3.0 x4 and SATA/PCIe modes, allowing a clean boot/cache tier without consuming front-access bays.

Why Choose the MBD-X11SCW-F-O?

The MBD-X11SCW-F-O delivers an enterprise-lean architecture optimized for remote sites and dense micro-edge deployments, balancing compute, ECC memory integrity, and expansion without over-provisioning. Integrated IPMI management with a dedicated port supports lights-out operations, while the WIO design streamlines system integration and scalable fleet rollouts across standardized chassis platforms.

Supermicro engineering focuses on datacenter-grade reliability and serviceability, pairing server-class component selection with long-life platform alignment. This approach supports modern operational models where consistent firmware behavior, BMC tooling, and validated interoperability reduce risk during deployment and lifecycle maintenance.

Key Applications:

Edge and branch virtualization hosts
AD/DNS and file/print services
Security appliances and network services
Monitoring, logging, and telemetry nodes
Entry SATA storage and backup targets

At Happyware - Server Hardware you benefit from non-binding offers tailored to your project requirements for the MBD-X11SCW-F-O, enabling precise bill-of-material planning for rollouts and spares. For long-term operational security, you can extend the warranty up to 6 years to match enterprise lifecycle policies.

Technical details of MBD-X11SCW-F-O

CPU Socket:

H4 (LGA 1151)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i3 Xeon E Pentium Celeron

Form Factor:

Proprietary WIO

Chipset:

C246

RAM Maximum Capacity:

128GB

Max RAM Frequency :

2666MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x8 1 PCIe 3.0 x16

Storage Ports:

6 SATA III (6Gb/s)

M.2 Slots:

1 PCIe 3.0 x4 M.2 2260, M.2 2280, M.2 22110 M-Key 1 SATA/PCIe 3.0 x4 M.2 2260, M.2 2280, M.2 22110 M-Key

Network Ports:

2 RJ45 1 Gbps

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

x1 VGA 0

USB Ports:

x2 USB 3.1 Gen 2 rear 0 x2 USB 3.1 Gen 2 header 0 x1 USB 3.1 Gen 1 Type A internal 0 x6 USB 2.0 0

Trusted Platform Module (TPM):

Yes

BIOS:

256MB UEFI

Wi-Fi Support:

None

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X11SCW-F-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
