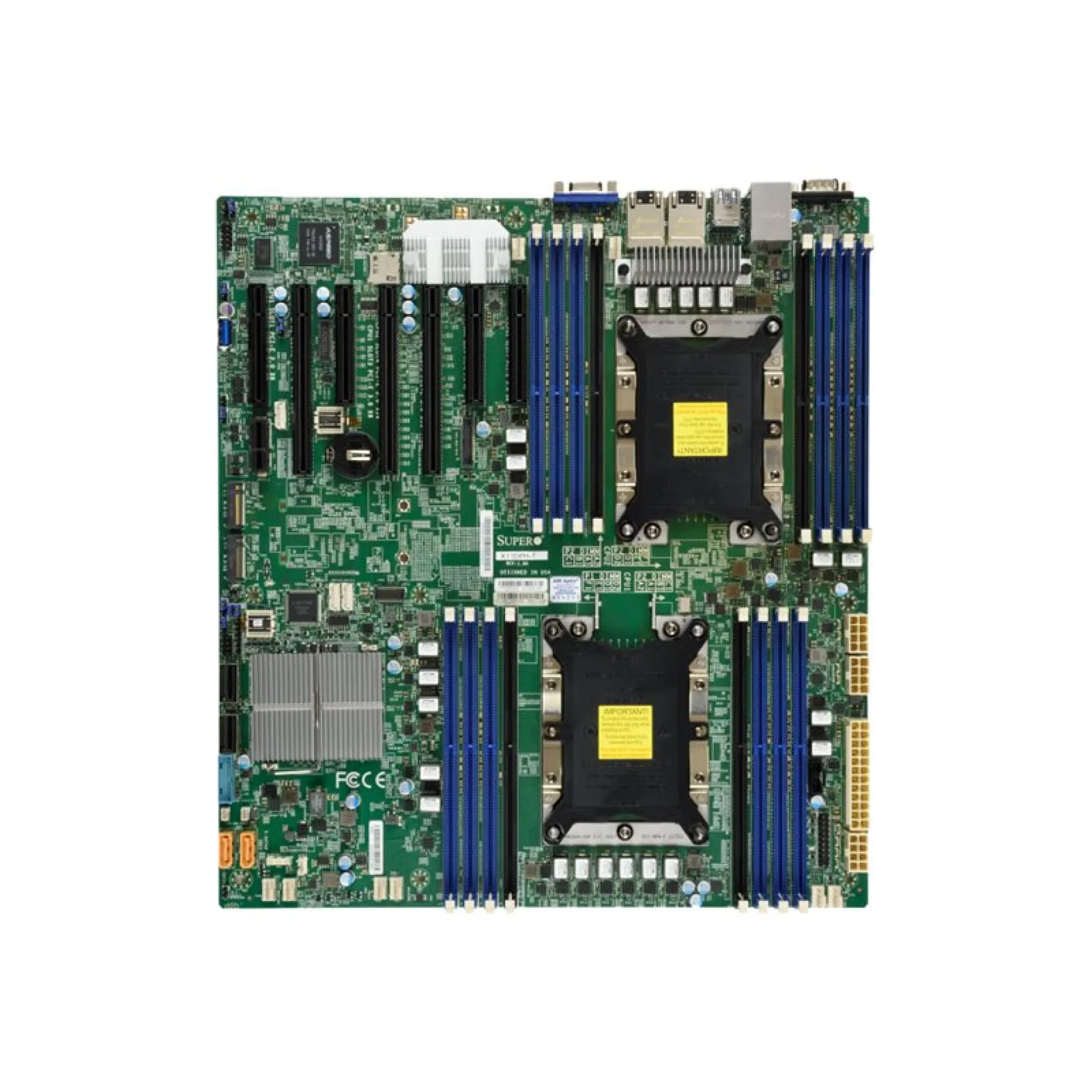

MBD-X11DPH-T-O Supermicro E-ATX Dual P (LGA 3647) 16 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11DPH-T-O and save cash:

Quantity	Unit price
To 4	€748.00
To 9	€726.00 €748.00 (2.94% saved)
To 19	€711.00 €748.00 (4.95% saved)
From 20	€697.00 €748.00 (6.82% saved)

Product line:

X11

See all Dual CPU Motherboard

See other Supermicro products

€748.00

Out of stock

Not available

Happyware Article Number:

SH1M7577-100694

Manufacturer Number:

MBD-X11DPH-T-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11DPH-T-O

High-Performance Dual-Socket E-ATX Server Motherboard featuring 10GbE and PCIe Gen3 expansion with the MBD-X11DPH-T-O

The MBD-X11DPH-T-O is a Supermicro X11 Series E-ATX platform engineered for dual Intel Xeon Scalable 1st/2nd Gen processors on LGA3647, enabling balanced compute density for virtualisation, databases, and general-purpose enterprise workloads. Its Intel C624 chipset and up to 205W CPU TDP support make the MBD-X11DPH-T-O suitable for sustained, multi-tenant utilisation where predictable thermals and power envelopes matter.

For memory-bound services, the MBD-X11DPH-T-O provides 16 DDR4 ECC DIMM slots across 6 memory channels, delivering high aggregate bandwidth and capacity scaling up to 1TB to reduce paging and improve VM consolidation. Expansion is optimised around PCIe 3.0 with 3 x16 and 4 x8 FHFL slots to accommodate multi-NIC, HBA, or accelerator cards while preserving lane availability for mixed I/O profiles. Storage design combines 10 SATA III ports with 2 PCIe 3.0 x4 M.2 sockets for fast boot, cache, or metadata tiers, supporting flexible RAID approaches via external controllers. Integrated dual 10GbE RJ45 (Intel X722 + X557) targets network-optimised nodes and simplifies top-of-rack connectivity.

Why Choose the MBD-X11DPH-T-O?

The MBD-X11DPH-T-O aligns performance per rack unit with practical serviceability by combining dual-socket compute, high-memory scalability, and expansion-dense PCIe Gen3 layouts in a proven E-ATX footprint. With integrated IPMI 2.0 BMC management, UEFI BIOS, and TPM support, the MBD-X11DPH-T-O is designed for controlled deployment, remote operations, and consistent lifecycle management across scalable clusters.

Supermicro focuses on data centre engineering that prioritises platform stability, validated component interoperability, and long-run availability. This approach positions the MBD-X11DPH-T-O for standardised builds that must conform to modern operational requirements for manageability, security baselines, and predictable integration in enterprise racks.

Key Applications:

Virtualisation hosts
Database servers
General-purpose compute nodes
10GbE network-optimised deployments
Expansion-dense I/O platforms

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your build requirements for the MBD-X11DPH-T-O and from extended warranty options up to 6 years to protect long-term infrastructure investments.

Technical details of MBD-X11DPH-T-O

CPU Socket: P (LGA 3647)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Family: Xeon, Xeon Bronze, Xeon Gold, Xeon Platinum, Xeon Silver

Form Factor: E-ATX

Chipset: Intel C624

Max RAM Frequency: 2933MHz

RAM Slots: 16 DIMM DDR4

RAM Channels: 6-Channel

PCIe Slots: 3 PCIe 3.0 x16, 4 PCIe 3.0 x8

M.2 Slots: 2 PCIe 3.0 x4 M.2 2260, M.2 2280, M.2 2242, M.2 22110 M-Key

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 1x USB 3.2 Gen 1 Type-A, 2x USB 3.2 Gen 1 Header, 4x USB 3.2 Gen 1 Type-A

Other Ports: 1x TPM Header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Bluetooth integrated: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11DPH-T-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
