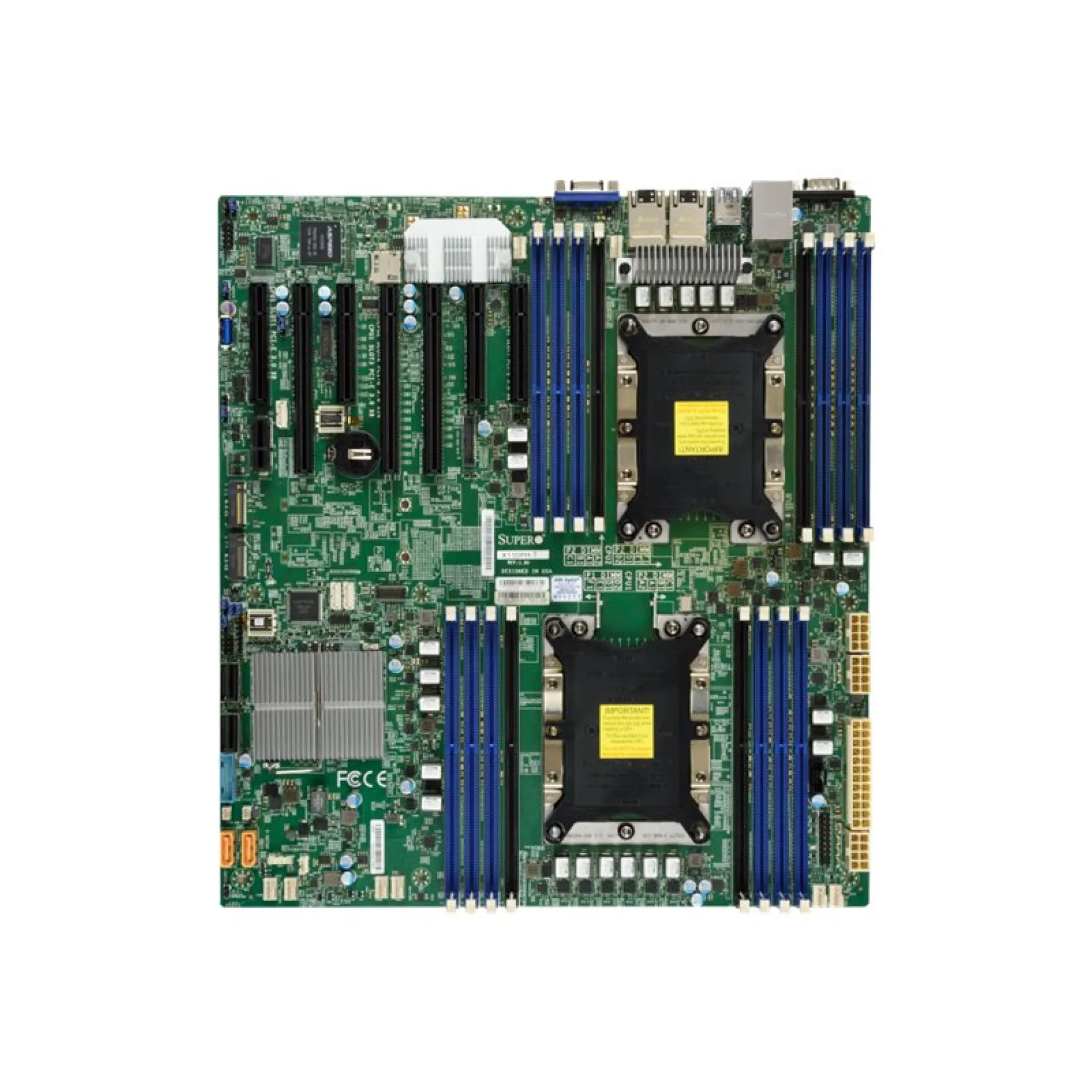

MBD-X11DPH-I-O Supermicro E-ATX Dual P (LGA 3647) 16 DIMM Slots Motherboard Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11DPH-I-O and save cash:

Quantity	Unit price
To 9	€626.00
To 19	€595.00 €626.00 (4.95% saved)
To 49	€583.00 €626.00 (6.87% saved)
From 50	€564.00 €626.00 (9.9% saved)

Product line:

X11

See all Dual CPU Motherboard

See other Supermicro products

€626.00

Out of stock

Not available

Happyware Article Number:

SH4M1751-400439

Manufacturer Number:

MBD-X11DPH-I-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11DPH-I-O

High-Performance E-ATX Dual-Socket Server Motherboard featuring Intel C621 architecture with the MBD-X11DPH-I-O

The MBD-X11DPH-I-O is an E-ATX Supermicro server motherboard engineered for dual-socket Intel Xeon Scalable processors on LGA3647, targeting virtualized enterprise platforms and scale-up application servers. Its Intel C621 chipset and balanced I/O design provide deterministic throughput for mixed compute and storage profiles while maintaining remote manageability for lights-out operations.

With DDR4 ECC across 16 DIMM slots, the MBD-X11DPH-I-O supports high-capacity memory footprints up to 2TB and up to 2933 MT/s, enabling dense VM consolidation and in-memory services that benefit from a 6-channel memory architecture per CPU. Expansion is optimized for PCIe Gen3 throughput, offering multiple full-height, full-length slots suited to accelerator, NIC, or HBA configurations, while storage connectivity combines 10x SATA III for capacity tiers with dual M.2 NVMe (PCIe 3.0 x4) for boot, cache, or metadata acceleration.

Why Choose the MBD-X11DPH-I-O?

The MBD-X11DPH-I-O delivers a pragmatic density-to-performance profile for dual-socket deployments where predictable PCIe Gen3 lane availability, ECC memory integrity, and structured storage options matter. For enterprise rollouts, the platform scales cleanly from virtualization hosts to HPC nodes that require multiple add-in cards, supported by integrated IPMI 2.0 management for consistent fleet operations.

Supermicro designs boards with a data-centre-first philosophy focused on compatibility, serviceability, and long-lifecycle stability. The MBD-X11DPH-I-O aligns with modern operational standards through UEFI BIOS, TPM support, chassis intrusion detection, and a dedicated management interface, enabling controlled provisioning and secure remote administration.

Key Applications:

Dual-socket virtualization hosts
Enterprise application servers
HPC nodes with multiple PCIe add-in cards
Storage-heavy servers with SATA tiers and NVMe boot/cache
Remote-managed infrastructure using IPMI

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MBD-X11DPH-I-O deployment and an extended warranty of up to 6 years to secure long-term platform availability in enterprise environments.

Technical details of MBD-X11DPH-I-O

CPU Socket:

P (LGA 3647)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon Phi

Form Factor:

E-ATX

Chipset:

Intel C621

RAM Maximum Capacity:

2048GB

Max RAM Frequency :

2933MHz

RAM Slots:

16 DIMM DDR4

RAM Channels:

6-Channel

PCIe Slots:

3 PCIe 3.0 x16 4 PCIe 3.0 x8

M.2 Slots:

2 PCIe 3.0 x4 M.2 22110/2280/2260/2242 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Motherboard

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 3.0 Gen 1 Header 4x USB 3.0 Type-A 1x USB 3.0 Type-A

Other Ports:

4x USB 3.0 1x Management-Port (RJ-45) 2x RJ-45 (Gigabit Ethernet) 1x serial 1x VGA

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

How long is the Warranty and how you can get technical support for MBD-X11DPH-I-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
