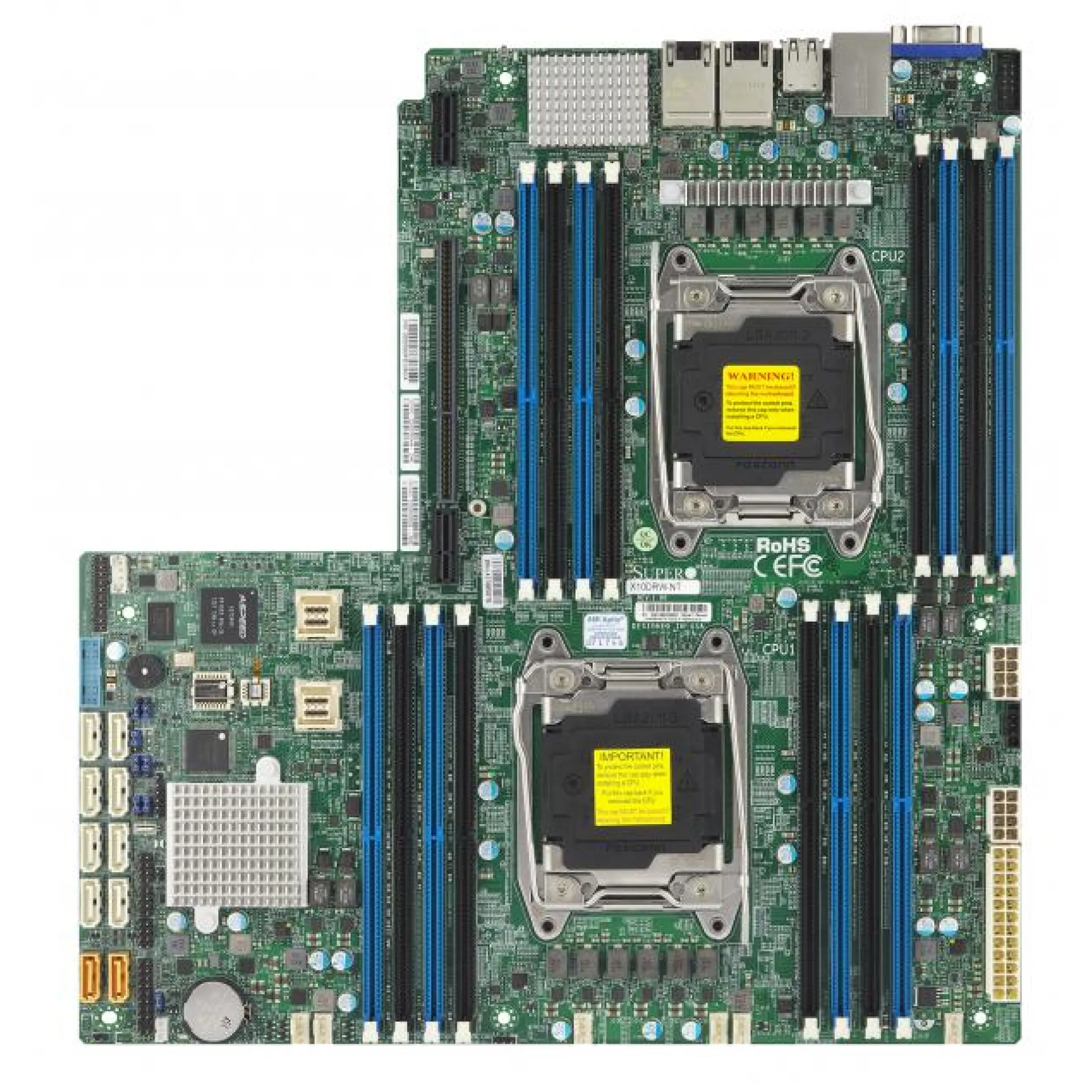

MBD-X10DRW-NT-O Supermicro Proprietary WIO Dual R (LGA 2011) 16 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X10DRW-NT-O and save cash:

Quantity	Unit price
To 9	€648.97
To 19	€621.14 €648.97 (4.29% saved)
To 49	€608.14 €648.97 (6.29% saved)
From 50	€588.64 €648.97 (9.3% saved)

Product line:

X10

See all Dual CPU Motherboard

See other Supermicro products

€648.97

Out of stock

Happyware Article Number:

SH2M2852-409229

Manufacturer Number:

MBD-X10DRW-NT-O

Brand:

Supermicro

Are you a reseller?

Do you have questions about this product MBD-X10DRW-NT-O?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X10DRW-NT-O

High-Performance proprietary WIO dual-socket server motherboard architecture with the MBD-X10DRW-NT-O

The MBD-X10DRW-NT-O is a Supermicro X10-series server motherboard built for dual Intel Xeon E5 processors on LGA2011 with the Intel C612 chipset, targeting stable compute for legacy virtualisation and transactional infrastructure. Its dual-socket platform enables predictable core scaling while maintaining compatibility with established E5 v3/v4-era ecosystems, supporting up to 145W TDP CPUs for balanced performance-per-node.

For memory architecture, the MBD-X10DRW-NT-O provides 16 DDR4 ECC DIMM slots with support for RDIMM, LRDIMM, and 3DS LRDIMM, enabling high-capacity configurations up to 2TB and up to 2400 MT/s to sustain VM density and database buffer requirements. Expansion is delivered via PCIe 3.0 with 2 x16 slots through the left riser path, allowing bandwidth for NICs, storage HBAs, or accelerator-class cards where chassis compatibility is validated. Storage connectivity is designed for mixed SATA throughput and fast boot/cache, with 10 SATA III 6Gb/s ports plus 2 NVMe ports to segment OS, cache, and bulk capacity. Integrated dual 10GbE RJ45 (Intel X540) and a dedicated IPMI management port align the board to edge aggregation, firewall/IDS, and remote-operated server roles.

Why Choose the MBD-X10DRW-NT-O?

The MBD-X10DRW-NT-O delivers a pragmatic density-to-performance profile for enterprises standardising on proven Xeon E5 platforms, combining compute scalability, resilient ECC memory, and integrated 10GbE to reduce add-in dependency. The proprietary WIO design supports consistent deployment in compatible Supermicro chassis/backplane ecosystems, while IPMI-based out-of-band management improves serviceability across distributed environments.

Supermicro engineering focuses on platform longevity, remote manageability, and data centre operability. With BMC/IPMI integration, ASPEED AST2400 graphics for basic console access, and TPM support, the MBD-X10DRW-NT-O aligns with controlled change management and secure infrastructure practices in mature enterprise estates.

Key Applications:

Legacy virtualisation nodes
Database and ERP servers
10GbE edge aggregation
Firewall and IDS platforms
SATA-based storage servers with NVMe boot/cache

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment and chassis compatibility requirements, and can extend the warranty up to 6 years to protect long-life platforms built on the MBD-X10DRW-NT-O.

Technical details of MBD-X10DRW-NT-O

CPU Socket:

R (LGA 2011)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon E5

Form Factor:

Proprietary WIO

Chipset:

C612

RAM Maximum Capacity:

2TB

Max RAM Frequency :

2400MHz

RAM Slots:

16 DIMM DDR4

PCIe Slots:

2 PCIe 3.0 x16

Storage Ports:

2 NVMe 10 SATA III (6Gb/s)

Network Ports:

2 RJ45 10 Gbps

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

x1 VGA 0

USB Ports:

x4 USB 2.0 Type-A rear 0 x2 USB 3.0 header 0

Trusted Platform Module (TPM):

Yes

BIOS:

AMI 128MB SPI Flash EEPROM

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X10DRW-NT-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/support/rma/
Description:	120 days Advance Cross-Ship
