MBA-315R-1G Supermicro MicroBlade Single EPYC 4005 6U Server
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
MicroBlade
Not available
Do you have questions about this product MBA-315R-1G?
MBA-315R-1G
High-Density MicroBlade Compute Node engineered for scalable cloud and edge deployments with the MBA-315R-1G

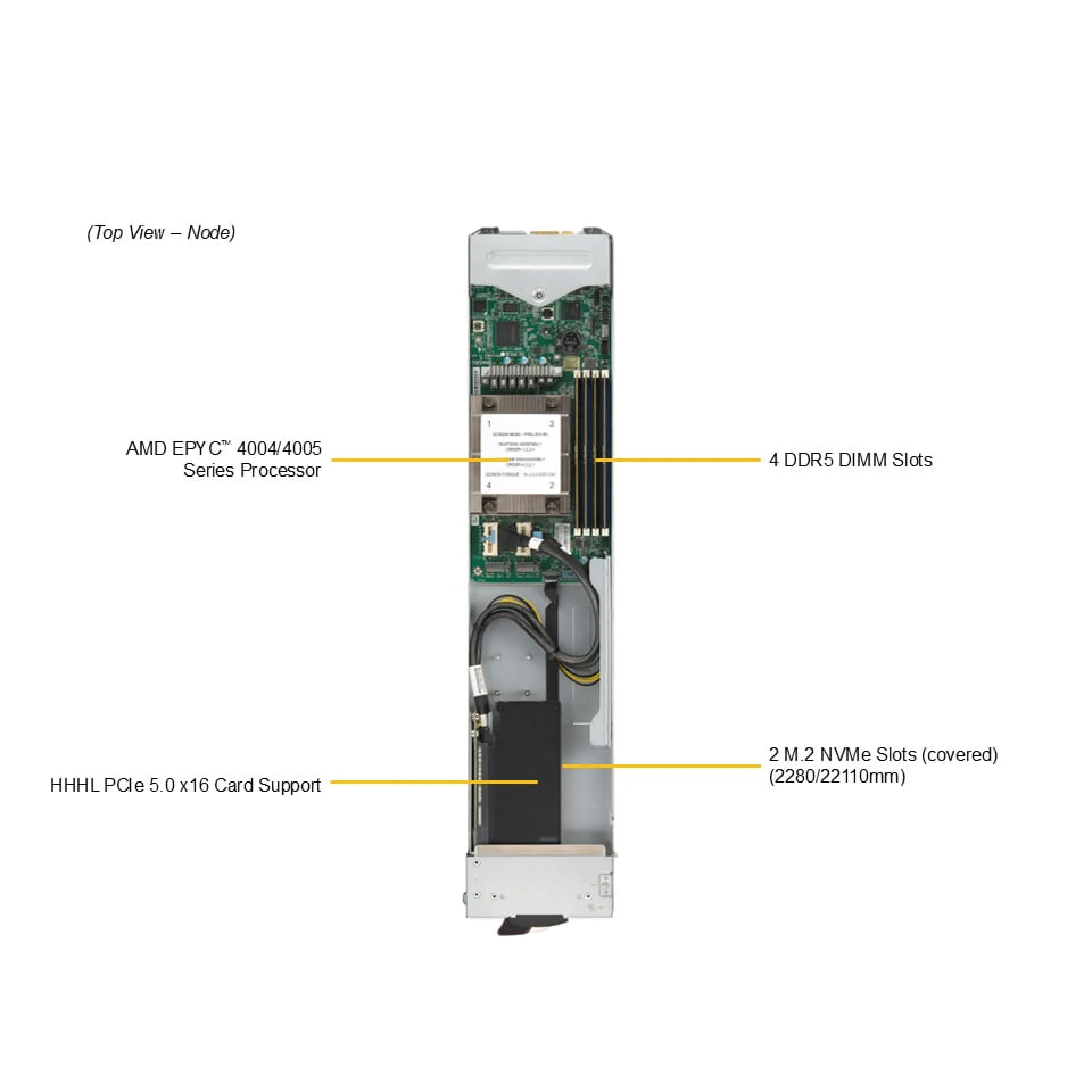

The MBA-315R-1G is a single-node Supermicro MicroBlade platform designed to deliver predictable per-node performance within a 6U MicroBlade enclosure class, aligning CPU efficiency, PCIe bandwidth, and network throughput for modern distributed services. It is built on a single-socket AMD EPYC 4004/4005 (AM5) foundation, enabling up to 16 cores and 32 threads with a power envelope suited to dense multi-node installations.
For memory, the MBA-315R-1G uses DDR5 ECC UDIMM across 4 DIMM slots to balance capacity growth with low-latency access, supporting virtualization and microservice consolidation without the complexity of registered DIMMs. PCIe 5.0 expansion enables a high-bandwidth add-in path for a single HHHL GPU (platform-dependent), while storage is optimized for fast local datasets through 2x 2.5" U.2 NVMe bays and 2x M.2 PCIe 4.0 x4 slots. Dual 10GbE RJ45 ports provide consistent east-west connectivity, and IPMI/BMC management with ASPEED AST2500 supports remote lifecycle operations at scale.
Why Choose the MBA-315R-1G?
The MBA-315R-1G delivers a strong density-to-performance ratio for environments that need many independent compute domains with standardized management. By combining EPYC 4004/4005 compute, DDR5 ECC UDIMM memory, NVMe-centric storage, and 10GbE networking, the MBA-315R-1G scales cleanly across a MicroBlade fabric while maintaining serviceability, controlled power budgets, and consistent configuration profiles for rapid rollouts.
Supermicro engineering emphasizes data center-aligned thermals, validated firmware stacks, and enterprise control-plane features. With UEFI/AMI BIOS on SPI flash and a proven IPMI toolchain, the MBA-315R-1G supports operational consistency across staging, production, and edge sites.
Key Applications:
- Cloud and web infrastructure
- Microservices and API platforms
- Virtualization and VDI pods
- Edge media processing and streaming
- AI inference with a single add-in GPU
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the MBA-315R-1G, with clear configuration guidance for enclosure-scale rollouts and integration into existing enterprise operations.
Technical details of MBA-315R-1G
How long is the Warranty and how you can get technical support for MBA-315R-1G
| Warranty: | 12 months (part) 36 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | 1 year Advance Cross-Ship |
| Support Portal: | https://support.happyware.com |
|---|
