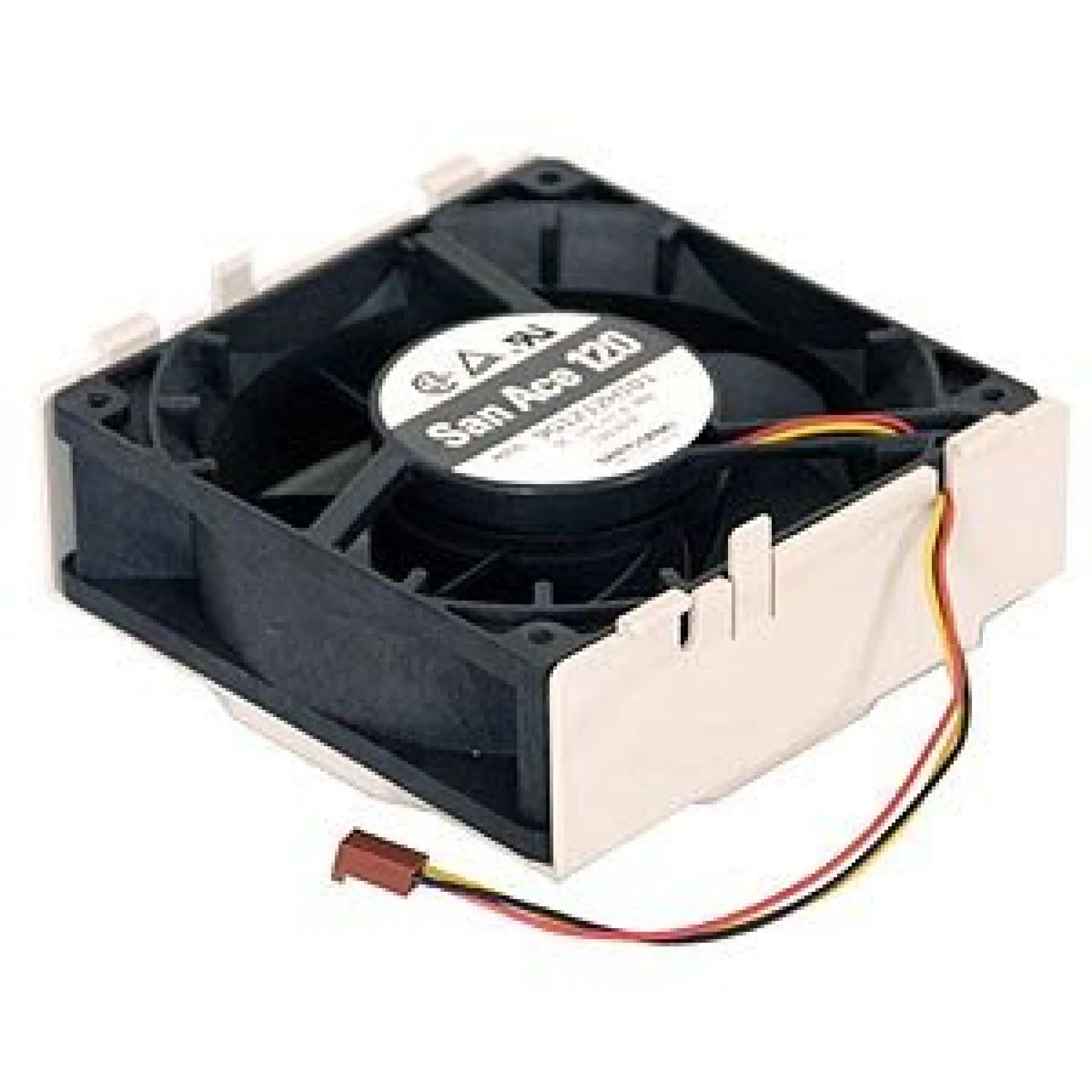

FAN-0109L4 Supermicro Case Fan

High-Availability Server/Chassis Cooling Module featuring hot-swap serviceability with the FAN-0109L4

The FAN-0109L4 is a Supermicro hot-swap fan module engineered to maintain chassis airflow integrity in dense rack servers where CPU and accelerator thermals are constrained by short airflow paths. In platforms built around multi-socket CPU generations and optional GPU expansion, sustained boost behavior and memory bandwidth stability depend on predictable cooling across VRMs, DIMMs, and PCIe I/O zones; the FAN-0109L4 supports this by restoring designed static pressure and directed airflow through the chassis cooling zone.

Designed for datacenter backplanes with 4-pin PWM headers, the FAN-0109L4 enables closed-loop fan control aligned with server firmware policies, helping operators keep acoustics and power within targets while responding to transient load. In PCIe-attached storage and high IOPS configurations, thermal consistency protects drive endurance and controller stability; the FAN-0109L4 reduces risk during maintenance by allowing rapid fan replacement without interrupting service, preserving workload continuity for virtualized, HPC, and AI inference nodes.

Why Choose the FAN-0109L4?

The FAN-0109L4 delivers a practical density-to-reliability advantage for enterprises standardizing on Supermicro chassis: it is a field-replaceable, hot-swap component that supports predictable cooling profiles at scale. By matching PWM control behavior and mechanical fit, the FAN-0109L4 simplifies spares strategy, minimizes mean time to repair, and keeps thermal headroom aligned with CPU, memory, and PCIe expansion requirements across mixed workload racks.

Supermicro designs serviceable server cooling components around controlled airflow, mechanical tolerance, and datacenter-operational repeatability. The FAN-0109L4 reflects this engineering focus by integrating cleanly into supported chassis zones and maintaining compatibility with modern rack management practices and standardized maintenance windows.

Key Applications:

• Hot-swap fan replacement for Supermicro rack servers
• Thermal maintenance in GPU and accelerator-enabled nodes
• Virtualization and private cloud infrastructure uptime
• HPC and AI inference cluster serviceability

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment and spares planning for the FAN-0109L4, ensuring procurement aligns with chassis populations and maintenance cycles.
