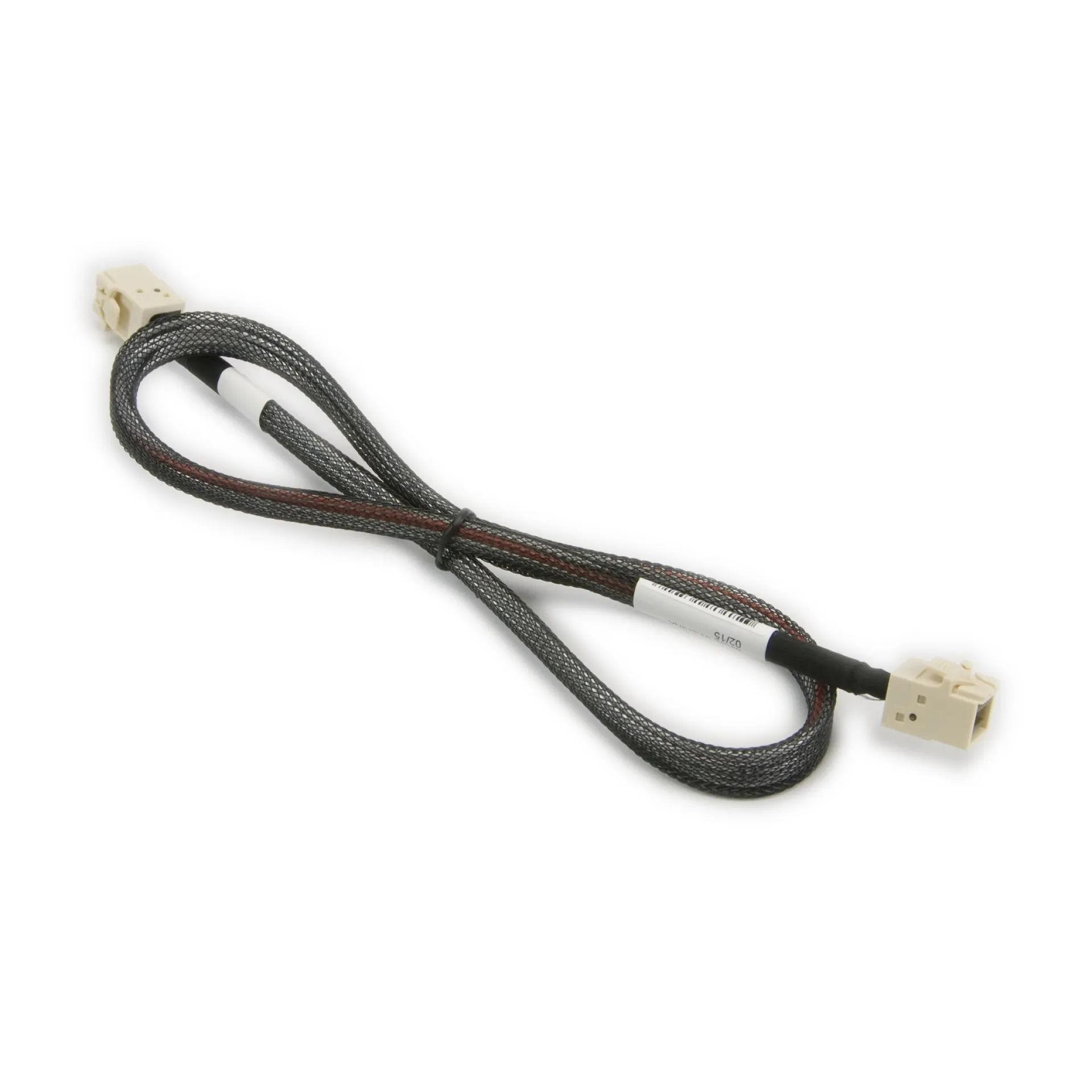

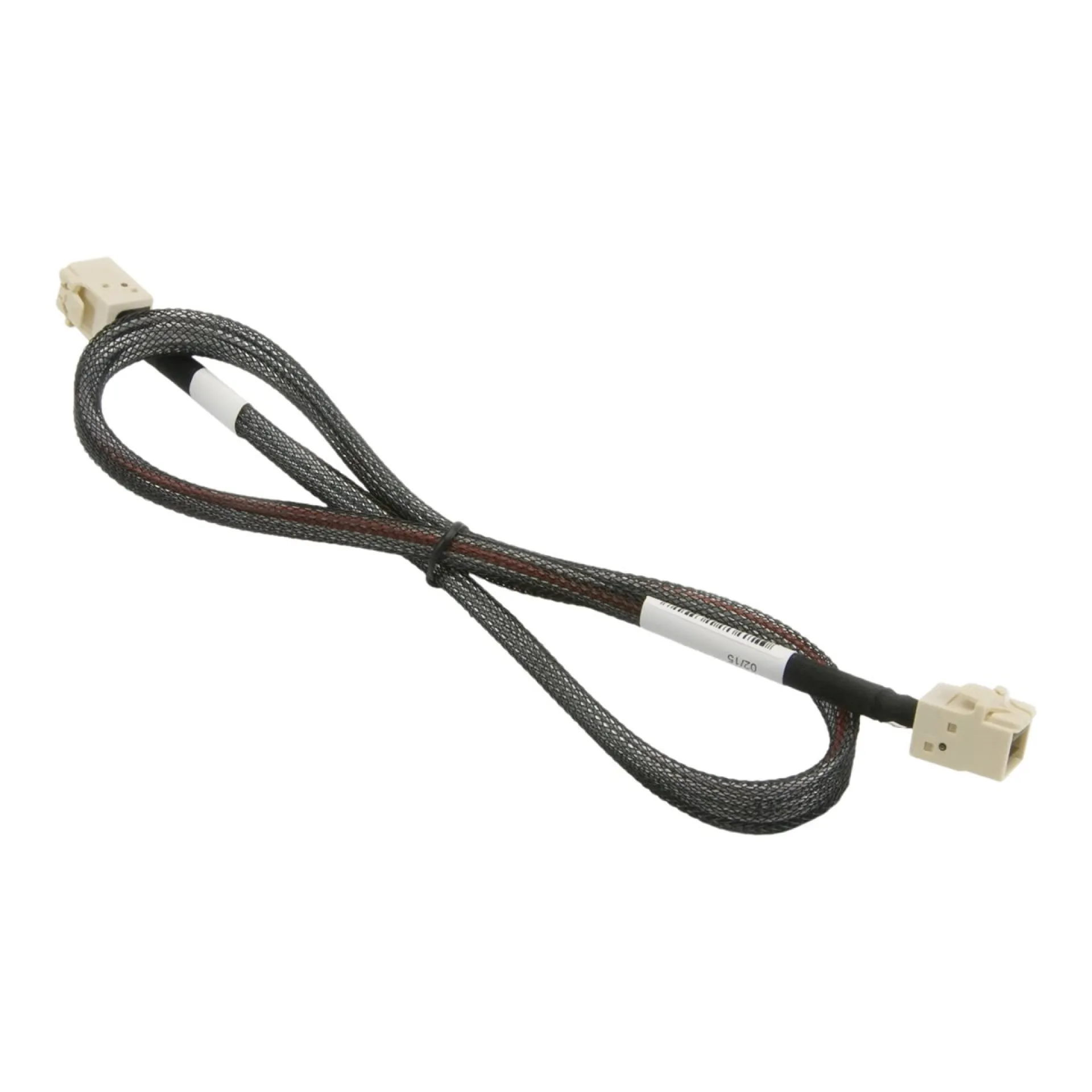

CBL-SAST-0658 Supermicro 60cm Cable

High-Density Internal SAS Storage Interconnect with the CBL-SAST-0658 for MiniSAS HD Backplane Links

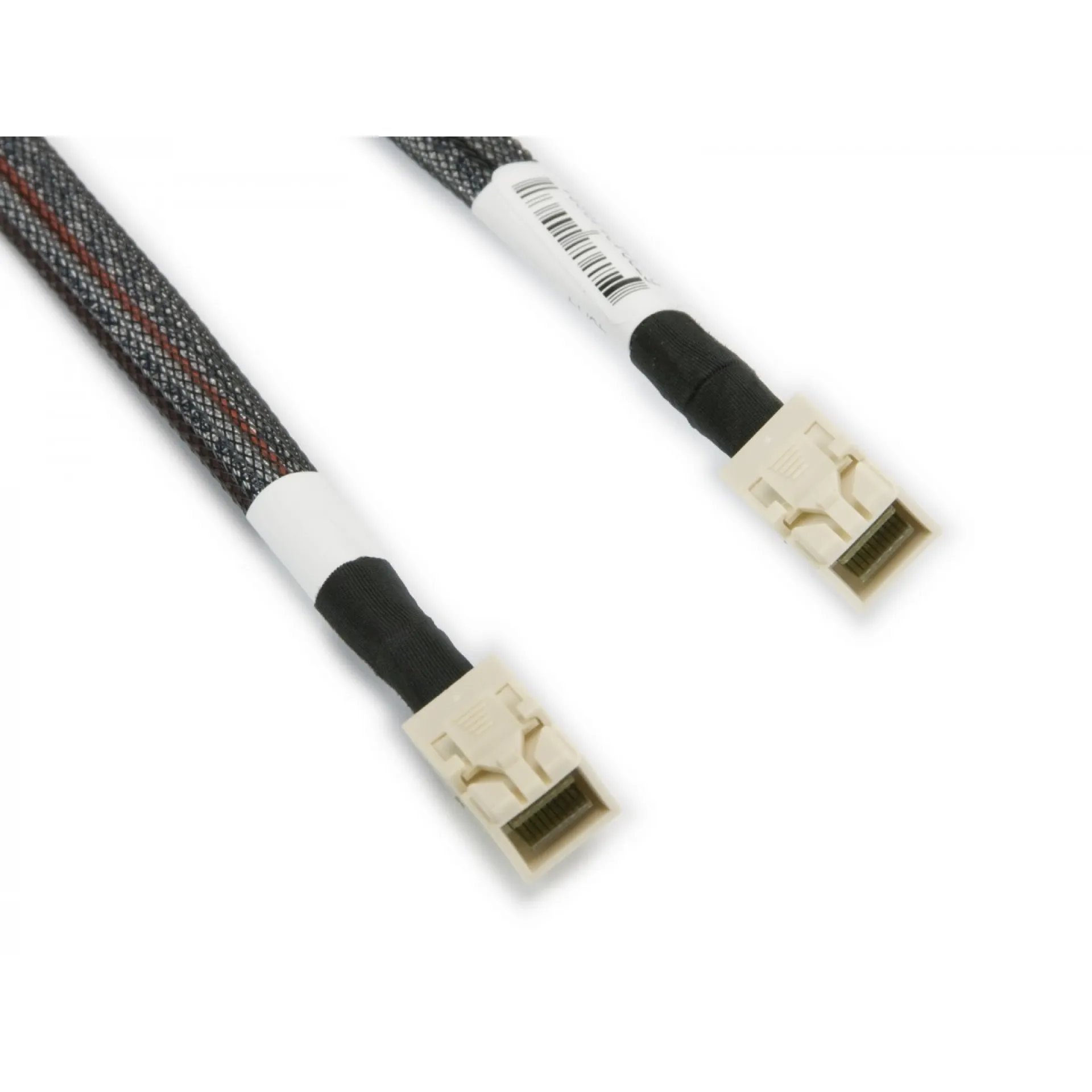

The CBL-SAST-0658 is a Supermicro internal MiniSAS HD SFF-8643 to SFF-8643 cable assembly designed to connect SAS/SATA HBAs or RAID controllers to storage backplanes with a clean, serviceable x4 lane architecture. In modern rack servers where PCIe-attached HBAs and RAID adapters aggregate multiple drives behind a shared backplane, the CBL-SAST-0658 provides the correct physical layer to keep the storage path deterministic and maintainable.

Optimised for internal chassis routing, the 0.6 m length supports disciplined cable management to protect airflow and reduce mechanical strain on connectors during maintenance cycles. The 4-lane MiniSAS HD topology aligns with typical server storage designs where a single controller port maps to a backplane segment, enabling consistent drive enumeration and predictable fault isolation. By using the CBL-SAST-0658 as the internal link between controller and backplane, systems engineers can preserve signal integrity expectations within validated platform wiring, supporting reliable SAS/SATA device connectivity across mixed SSD/HDD deployments.

Why Choose the CBL-SAST-0658?

The CBL-SAST-0658 is selected when architectural consistency matters: it matches Supermicro storage cabling conventions, simplifies field replacement, and supports scalable service operations across fleets. For density-focused platforms, the cable’s MiniSAS HD form factor helps maintain tight internal layouts while keeping the storage fabric aligned to the controller/backplane design for predictable expansion and uptime.

Supermicro engineers its internal interconnect ecosystem to integrate with chassis, backplanes, and controller options commonly deployed in enterprise and HPC racks. This approach prioritises repeatable builds, validated component fit, and dependable service spares that align with data centre maintenance standards.

Key Applications:

• Internal SAS/SATA backplane connectivity
• HBA and RAID controller-to-backplane links
• Data centre service spares and repairs
• System integration and lab validation

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout and spares strategy for the CBL-SAST-0658, with 24/7 customer service to support urgent maintenance windows and integration questions.
