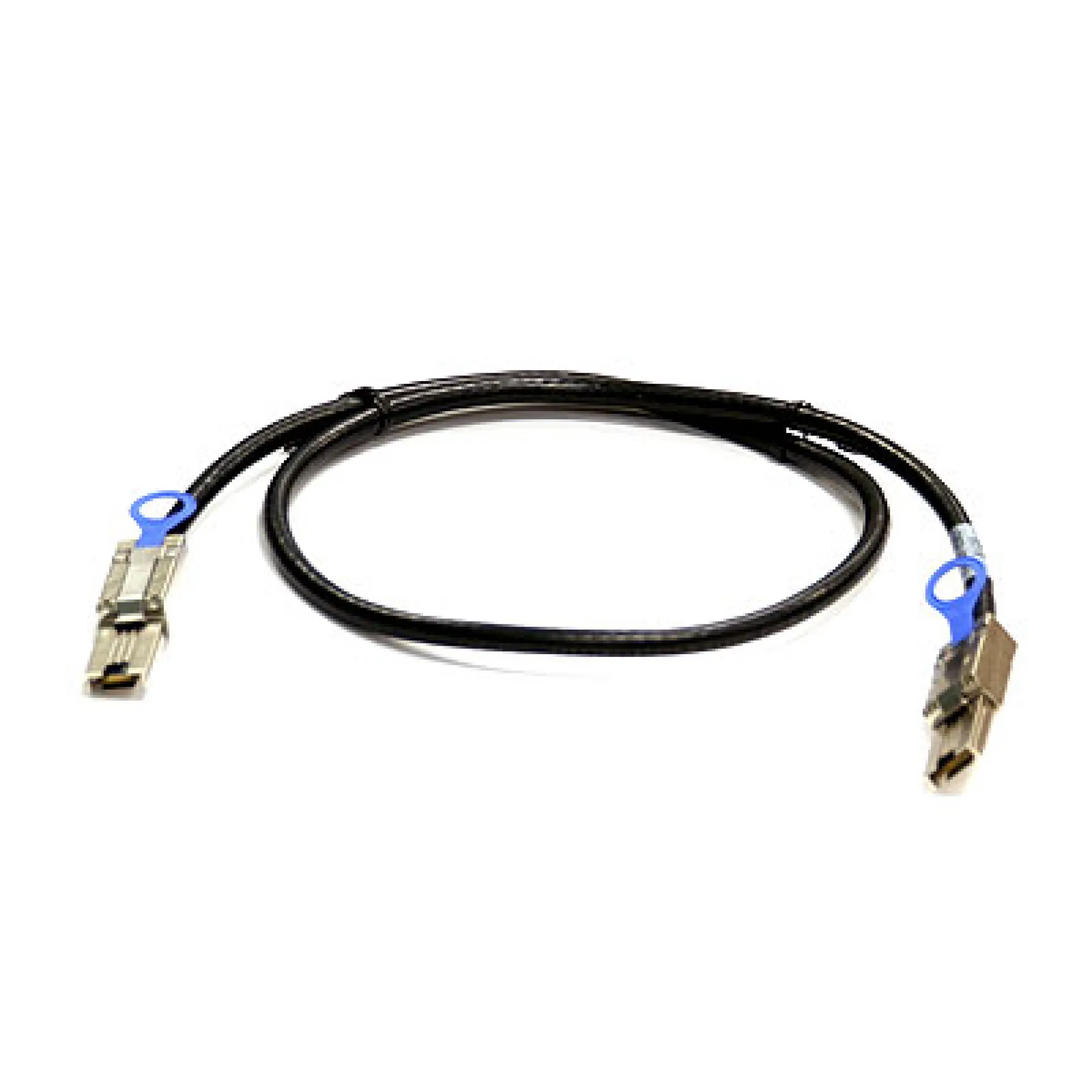

CBL-SAST-0532 Supermicro 50cm Cable

High-Integrity Internal SAS Storage Interconnect Cable for MiniSAS HD Ecosystems with the CBL-SAST-0532

The CBL-SAST-0532 is a Supermicro internal MiniSAS HD to MiniSAS HD harness engineered to preserve signal integrity across high-density backplane-to-controller paths in enterprise rack servers. Designed for SFF-8643 male-to-male connectivity, the CBL-SAST-0532 supports x4 SAS/SATA lane aggregation where consistent lane mapping and low-loss routing are critical to maintaining stable link training and predictable storage behavior.

In modern platforms, storage performance and availability are often bounded by the quality of the internal interconnect rather than controller capability. By aligning with MiniSAS HD (SFF-8643) ecosystems, the CBL-SAST-0532 enables clean integration between SAS HBAs/RAID adapters and backplanes, reducing installation variability and supporting orderly cable management within constrained chassis airflow zones. Its 50cm length is optimized for standard server layouts where controlled bend radius and secure seating help prevent intermittent link faults during service cycles.

Why Choose the CBL-SAST-0532?

The CBL-SAST-0532 provides a pragmatic density-to-reliability advantage for storage-heavy nodes by delivering a consistent internal SAS/SATA x4 pathway with an enterprise service profile. Deploying the CBL-SAST-0532 simplifies replacement and maintenance workflows, standardizes backplane-to-HBA/RAID cabling across fleets, and supports scalable storage topologies without introducing connector mismatches or nonstandard pinouts.

Supermicro designs cabling and interconnect components to match its server and backplane electrical specifications, prioritizing mechanical fit, repeatable assembly, and dependable operation in continuous-duty data centre environments. This approach helps ensure that the CBL-SAST-0532 aligns with modern chassis layouts, structured airflow, and serviceability expectations for enterprise deployments.

Key Applications:

• Backplane-to-HBA internal SAS connectivity
• Backplane-to-RAID controller cabling
• Internal SAS/SATA x4 lane aggregation
• Service replacement for MiniSAS HD harnesses

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your needs and bulk order discount options for standardising the CBL-SAST-0532 across server builds and maintenance stock.
