CBL-PWEX-0790 Supermicro 57cm Cable

Right-Angle PCIe GPU Auxiliary Power Adapter Cable for Dense Server Chassis with the CBL-PWEX-0790

The CBL-PWEX-0790 is a Supermicro internal GPU power cable engineered to route auxiliary PCIe power from an internal PSU harness to high-draw add-in accelerators where clearance and bend radius are constrained. In GPU nodes built around modern CPU platforms and large memory footprints, stable auxiliary power delivery is as critical as CPU generation, DDR5 capacity, or PCIe expansion density; CBL-PWEX-0790 addresses that requirement with a right-angle connector designed to reduce strain in tight GPU bays.

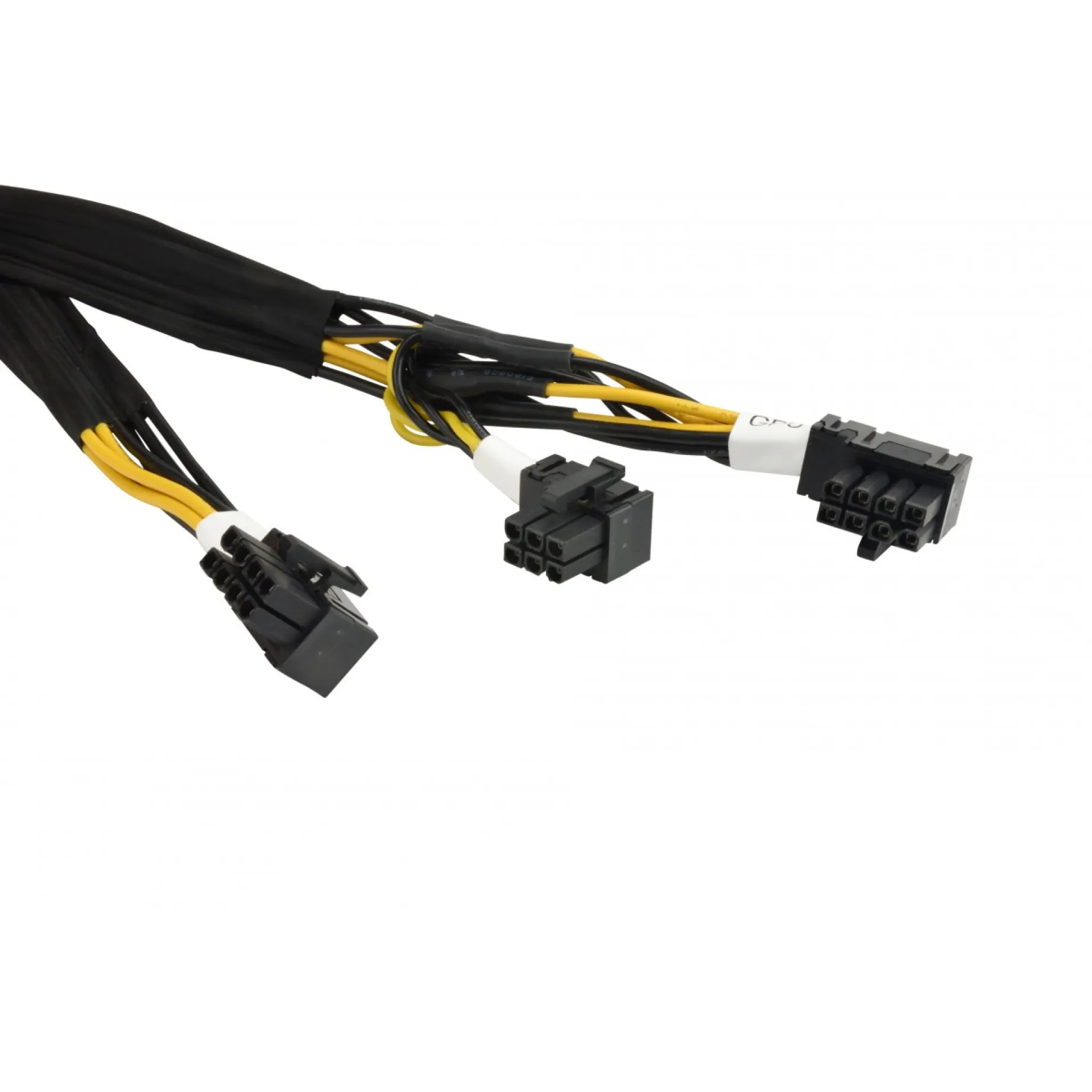

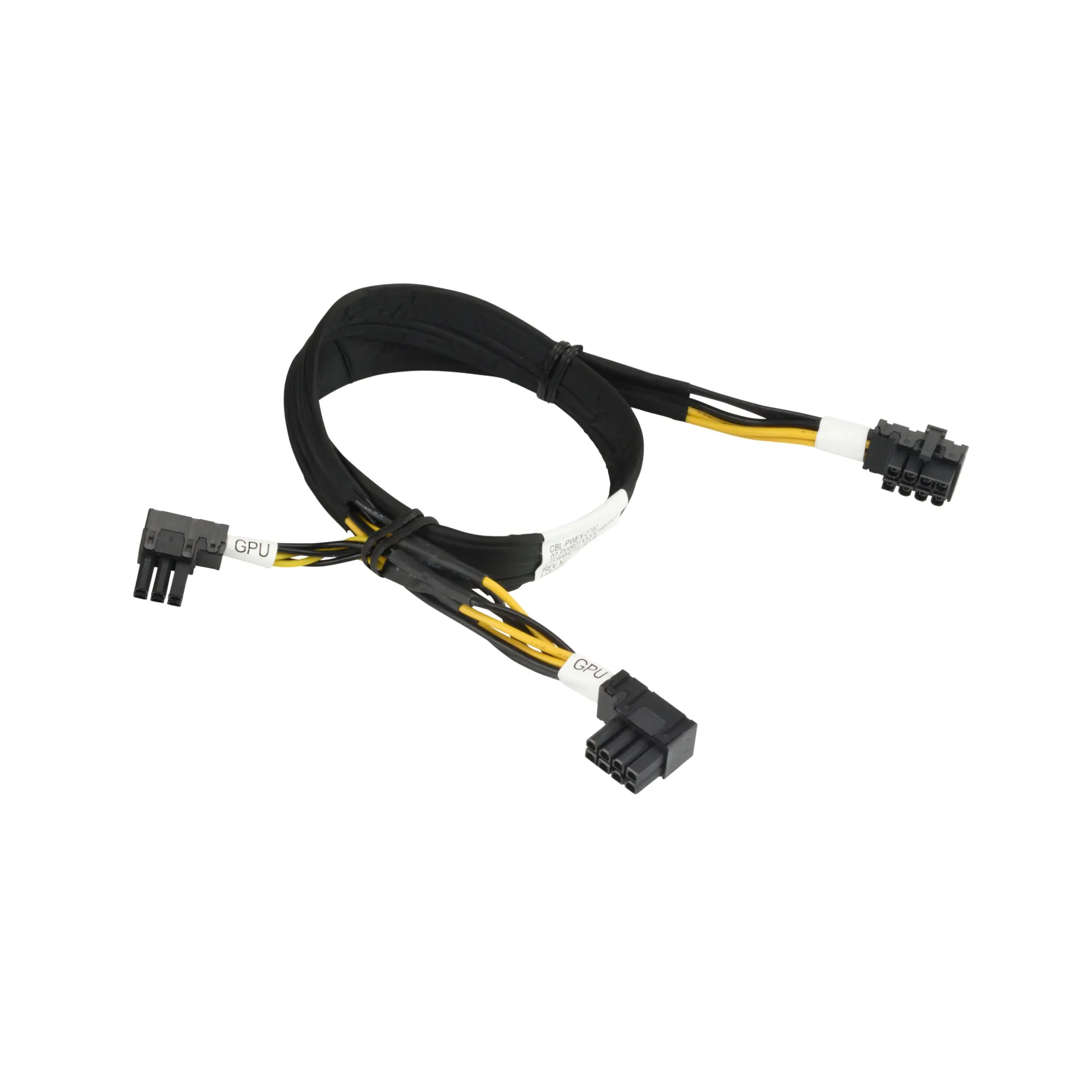

In PCIe Gen4 and PCIe Gen5 environments, accelerators and high-performance NICs depend on clean, consistent power paths alongside the signal integrity demands of high-lane-count slots. The CBL-PWEX-0790 provides a direct 8-pin internal power input to a combined PCIe 8-pin + 6-pin output, supporting common GPU auxiliary power topologies without improvised adapters. With a 57 cm length, CBL-PWEX-0790 enables serviceable routing across midplane areas and around airflow shrouds, helping maintain chassis thermals and avoiding cable interference with storage backplanes and fan walls.

Why Choose the CBL-PWEX-0790?

The CBL-PWEX-0790 is purpose-built for enterprise GPU-capable Supermicro platforms where density-to-performance is achieved through tight mechanical packaging and standardized internal power distribution. Selecting CBL-PWEX-0790 supports predictable integration, repeatable builds across fleets, and faster maintenance by using an OEM-matched cable assembly for retrofit and spares strategy.

Supermicro designs server component options to align with datacentre operational standards, focusing on validated fit, controlled part revisions, and reliable serviceability. This approach reduces integration risk in production clusters and supports consistent lifecycle management across GPU and HPC nodes.

Key Applications:

• GPU server power lead replacement
• AI training and inference nodes
• HPC accelerator deployments
• Dense PCIe expansion chassis
• Datacentre spare parts stocking

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for CBL-PWEX-0790, enabling standardized procurement for build-outs and spares without delay. For larger GPU cluster rollouts, bulk order discount options support efficient scaling across racks and sites.
