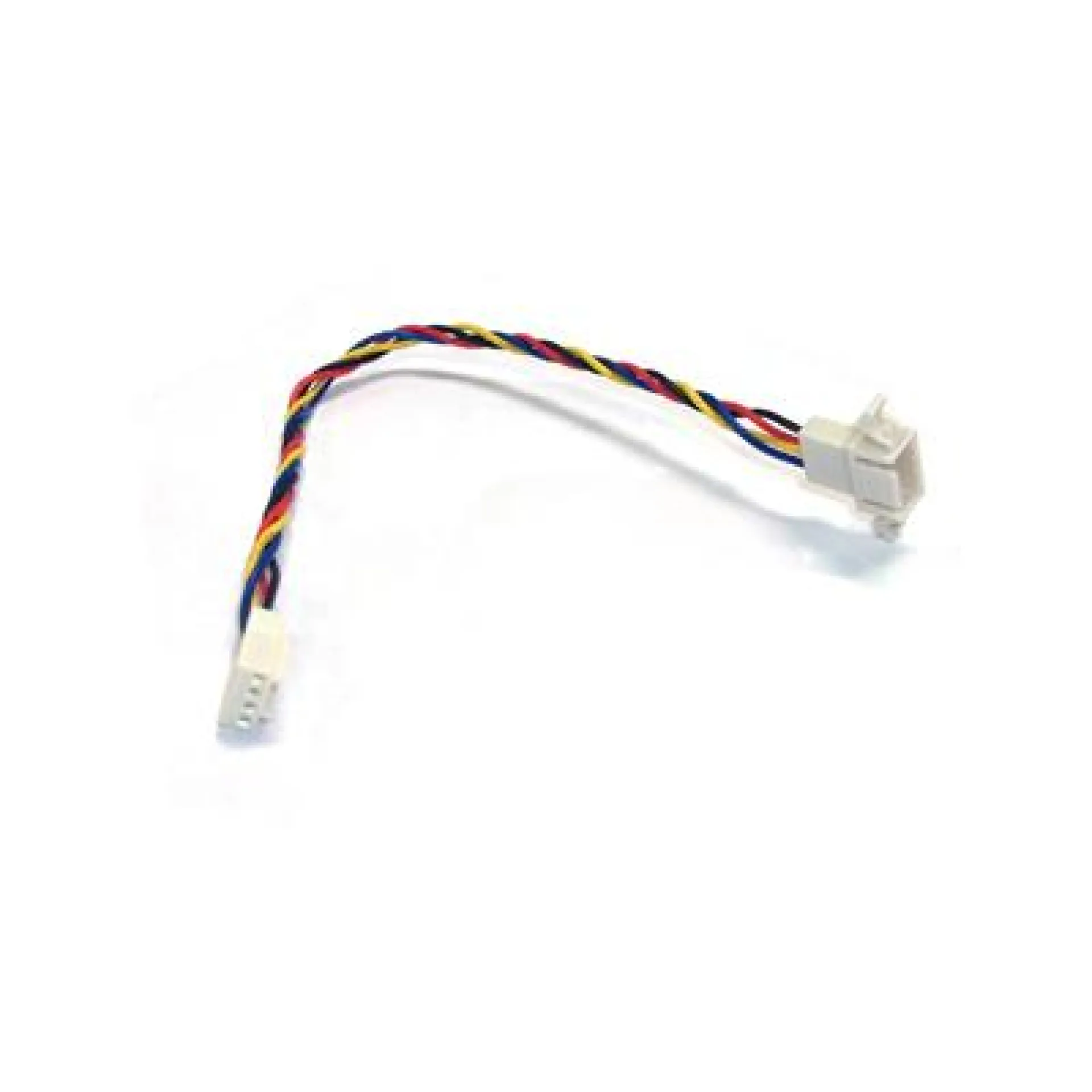

CBL-0216L Supermicro 21cm Cable

Enterprise Server Fan Harness Extension Cable enabling PWM control integrity with the CBL-0216L

The CBL-0216L is a Supermicro 4-pin to 4-pin PWM fan extension cable engineered for internal chassis routing where the native fan lead cannot reliably reach the system fan header. In dense rack server designs, maintaining correct PWM signaling and tach feedback is essential to keep platform thermal policies accurate and to prevent false fan faults during peak compute cycles.

Designed for modern Supermicro server platforms, the CBL-0216L supports predictable fan control behavior across multi-zone airflow designs, including high-static-pressure fan walls used in AI, HPC, and storage nodes. The 21cm length provides controlled slack for service loops and cable management without introducing excessive resistance or interference risk, helping preserve stable fan RPM telemetry and enabling consistent firmware-driven fan curves. This makes the CBL-0216L a practical spare/service part for field maintenance, where quick restoration of cooling paths directly protects CPU and GPU boost stability, memory reliability under sustained load, and PCIe add-in card thermals.

Why Choose the CBL-0216L?

The CBL-0216L delivers a straightforward, low-risk way to extend PWM fan connectivity while keeping enterprise chassis wiring serviceable and standards-aligned. By using the CBL-0216L as a controlled extension rather than improvised adapters, IT teams reduce troubleshooting time, maintain consistent fan zoning behavior, and support scalable deployment practices across homogeneous Supermicro fleets.

Supermicro designs service parts to fit the mechanical constraints and operational requirements of rack servers, prioritizing repeatable integration, long-term maintainability, and compatibility with platform management expectations. As a field-replaceable internal harness, the CBL-0216L aligns with data center maintenance workflows where rapid component swap and predictable operation are critical.

Key Applications:

• Server fan harness replacement and extension
• PWM fan-to-header routing in rack chassis
• Data center sparing and field maintenance
• Thermal zone cabling for GPU and storage nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored to your infrastructure requirements and bulk order discount options for standardizing spares such as the CBL-0216L across larger Supermicro deployments.
