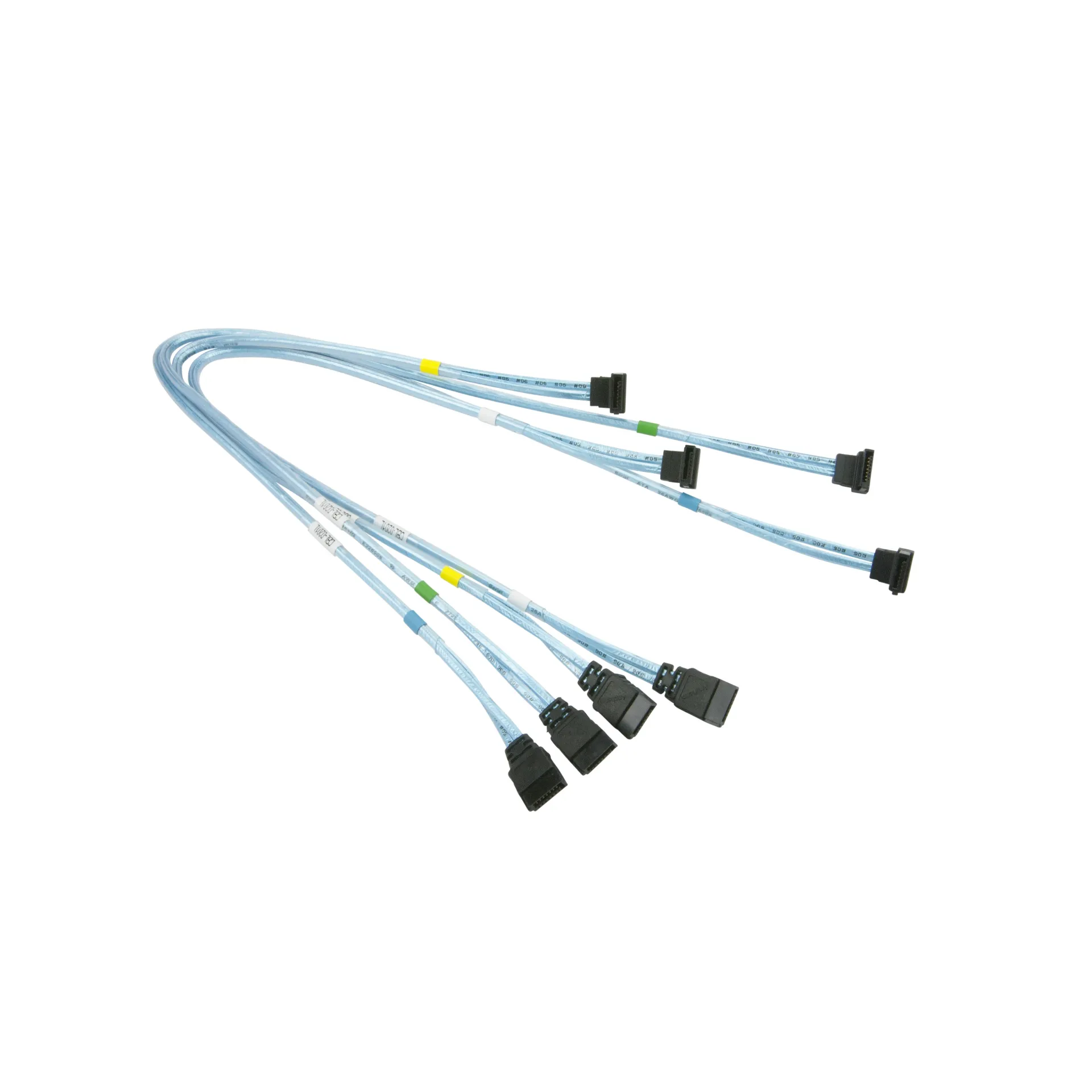

CBL-0201L Supermicro 51cm Cable

High-Density Internal SATA Storage Harness with Right-Angle Clearance Management using the CBL-0201L

The CBL-0201L is a Supermicro internal SATA multi-cable harness engineered for serviceable backplane-to-drive or controller-to-drive routing in rack servers and storage nodes. Designed for 4-lane SATA fan-out connectivity, the CBL-0201L supports clean signal distribution across dense 2.5-inch drive zones while maintaining predictable cable dressing for consistent airflow and access.

With an 8x SATA total (4x to 4x breakout) topology, the CBL-0201L aligns to common SATA HBA or onboard SATA controller port groupings typically deployed in mainstream x86 CPU platforms. It complements memory- and PCIe-driven expansion strategies by keeping SATA storage cabling mechanically controlled, reducing strain near PCIe riser areas and lowering the risk of intermittent drive detection during maintenance. Staggered leg lengths (up to 0.51 m) enable tiered routing from backplane headers to adjacent drive bays without excess slack, supporting high-bay-count chassis layouts and consistent service loops.

Why Choose the CBL-0201L?

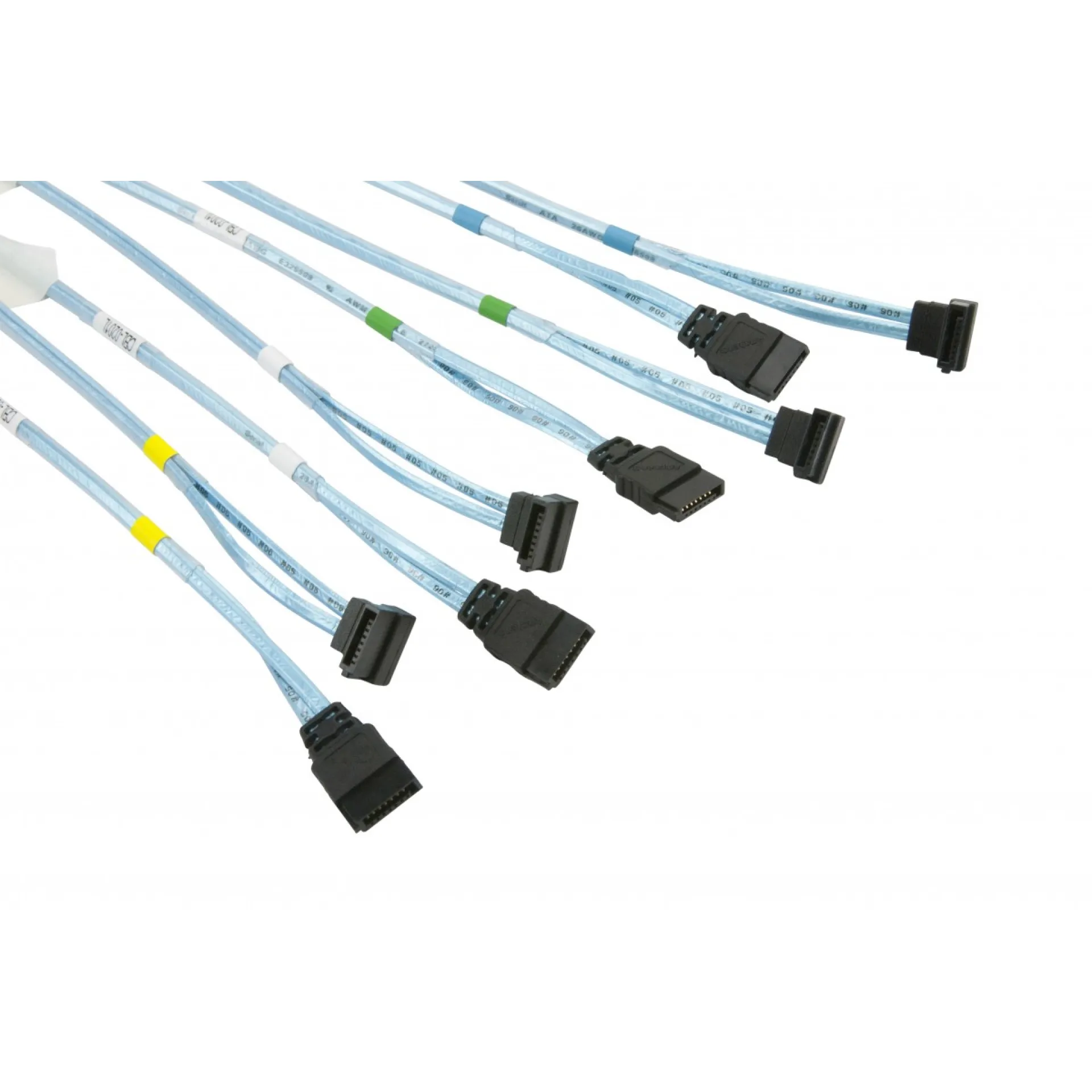

The CBL-0201L delivers an enterprise-appropriate balance of density, serviceability, and mechanical reliability for SATA HDD/SSD deployments where clearance is constrained. Its right-angle connector design improves fit in tight chassis channels, helping maintain repeatable build standards across nodes, and simplifying scale-out storage rollouts and field replacement workflows.

As a Supermicro spare/service part, the CBL-0201L reflects the manufacturer’s focus on platform-integrated components engineered to match chassis backplanes, controller placement, and modern data centre maintenance practices. This approach supports consistent interoperability, predictable routing, and reduced operational friction during upgrades or drive swaps.

Key Applications:

• 2.5-inch SATA HDD/SSD drive bay connectivity
• Backplane-to-controller SATA routing in rack servers
• High-density storage nodes with clearance constraints
• Spare/service replacement for Supermicro chassis
