CBL-0186L Supermicro 56cm Cable

High-Density Internal SATA Storage Harness for Backplane Fan-Out and Serviceability with the CBL-0186L

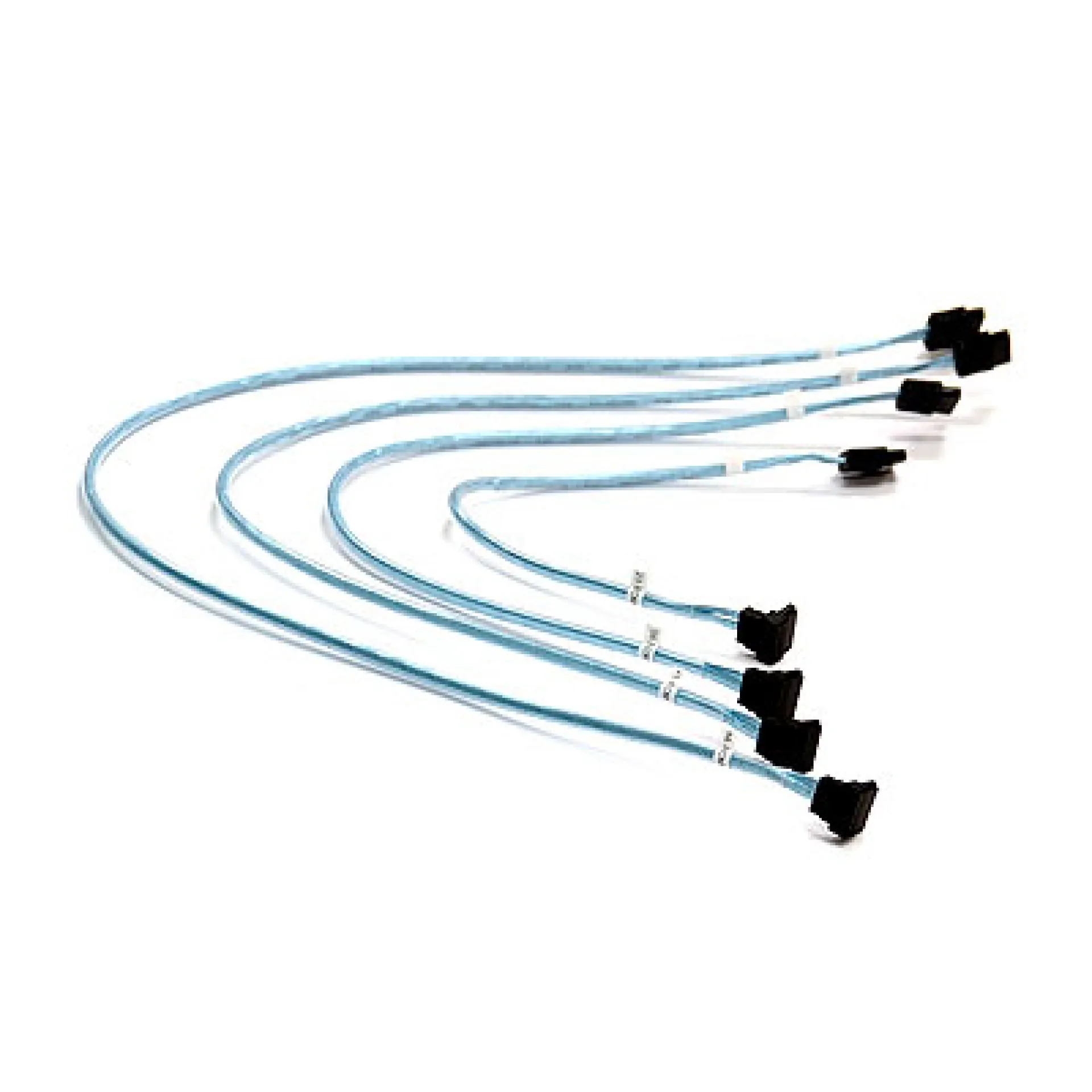

The CBL-0186L is a Supermicro internal SATA multi-cable assembly engineered for reliable storage-plane connectivity between a server motherboard or HBA and an internal SATA backplane. Designed as a 4-lane harness with 8 SATA male connectors in a 4+4 fan-out, the CBL-0186L supports clean breakout routing across dense storage bays while maintaining consistent signal paths for enterprise SATA drive populations.

In space-constrained chassis, connector geometry determines build quality and long-term serviceability. The CBL-0186L uses a mixed-end design with a right-angle termination on one side and straight connectors on the other, enabling tight bends near backplanes while preserving access at the host interface. With a 0.56 m overall length and staged branch lengths, the harness reduces cable congestion that can obstruct airflow, interfere with PCIe expansion zones, or complicate drive-sled maintenance. For storage architectures that depend on predictable bay mapping and repeatable assembly, the CBL-0186L provides controlled topology without introducing unnecessary adapters or intermediate interconnect points.

Why Choose the CBL-0186L?

The CBL-0186L delivers a practical density-to-serviceability balance for internal SATA cabling where backplane-to-host routing must remain consistent across deployments. By combining right-angle routing control with straight-end accessibility, the CBL-0186L supports scalable integration in multi-bay chassis and reduces rework during replacements, upgrades, or field service. Its fan-out harness design helps keep storage paths organized, improving operational reliability in production racks.

Supermicro designs integration components to align with server chassis constraints, airflow requirements, and maintainability targets expected in modern data centres. The CBL-0186L reflects this engineering approach by focusing on fit, repeatable assembly, and dependable internal connectivity for long-lived platform deployments.

Key Applications:

• Internal SATA backplane to motherboard/HBA interconnect
• Storage bay fan-out cabling in multi-drive chassis
• Server chassis rebuilds and standardised cabling kits
• Replacement part for service and repair operations

At Happyware - Server Hardware you benefit from non-binding offers tailored to your integration and replacement scope, helping you standardise on the CBL-0186L across builds and spares planning, and our 24/7 customer service to support urgent maintenance windows and deployment questions.
