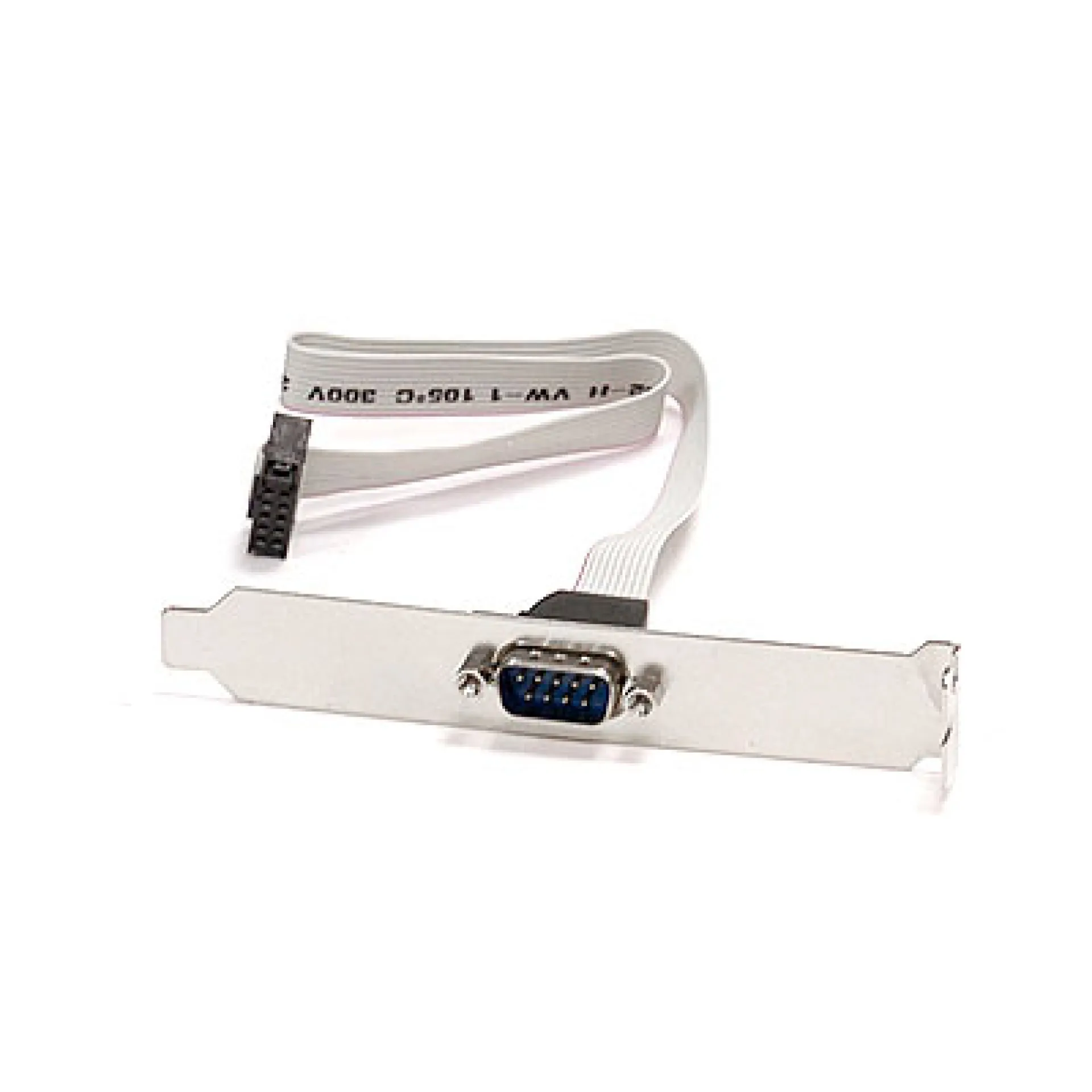

CBL-0010L Supermicro 26cm Cable

Internal-to-External Serial Management Adapter Cable with PCIe Bracket Integration using the CBL-0010L

The CBL-0010L enables enterprise platforms with an onboard COM header to present a rear-accessible DB9 serial interface through a standard PCIe expansion-slot bracket, simplifying console access in densely racked server and workstation deployments. By converting an internal serial header to an external DB9 endpoint, the CBL-0010L supports serviceability workflows that depend on direct serial connectivity for BIOS-level interaction, BMC-assisted recovery procedures, and integration with legacy serial devices.

In modern data centre operations, serial console paths remain critical as an out-of-band fallback when network-based management is unavailable or restricted. The CBL-0010L is designed to fit cleanly into existing chassis layouts by using an unused expansion-slot opening, avoiding front-panel disruption and keeping cable routing internal and controlled. Its 26 cm flat cable format helps reduce airflow obstruction and supports predictable routing between motherboard headers and rear I/O, maintaining orderly service loops for repeatable field maintenance.

Why Choose the CBL-0010L?

The CBL-0010L provides a straightforward, low-risk method to externalise serial access without consuming valuable front I/O space, enabling consistent rack-side access for technicians during provisioning, troubleshooting, and firmware operations. For standardised fleets, the CBL-0010L supports scalable deployment logic by delivering uniform DB9 availability across mixed chassis where only internal COM headers are present, while preserving enterprise reliability through secure bracket mounting.

Supermicro engineering prioritises platform-level compatibility and serviceability, and this adapter reflects that approach by aligning with common serverboard COM-header conventions and chassis expansion-slot geometries. Built to meet RoHS requirements, it supports controlled data centre procurement and long-term maintenance practices where predictable integration matters.

Key Applications:

• Serial console access for BIOS and provisioning
• BMC-assisted recovery and maintenance workflows
• Legacy RS-232 device connectivity in rack environments
• Secure rear-panel service ports for lab and production

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout requirements for the CBL-0010L, supporting efficient standardisation across builds. For larger deployments, bulk order discounts help reduce per-system integration cost while keeping procurement aligned to your fleet strategy.
