ARS-E103-JONX-L
Industrial Fanless Edge AI Embedded System featuring NVIDIA Jetson Orin NX acceleration with the ARS-E103-JONX-L
The ARS-E103-JONX-L is a compact, fanless edge system built around the NVIDIA Jetson Orin NX SoC, combining a 6-core Arm Cortex-A78AE CPU with an integrated NVIDIA Ampere GPU (1024 CUDA cores and 32 Tensor Cores) to deliver up to 117 TOPS for on-site AI inference. This architecture targets deterministic, low-latency computer vision and real-time analytics where cloud dependency, acoustic noise, and moving parts are unacceptable.

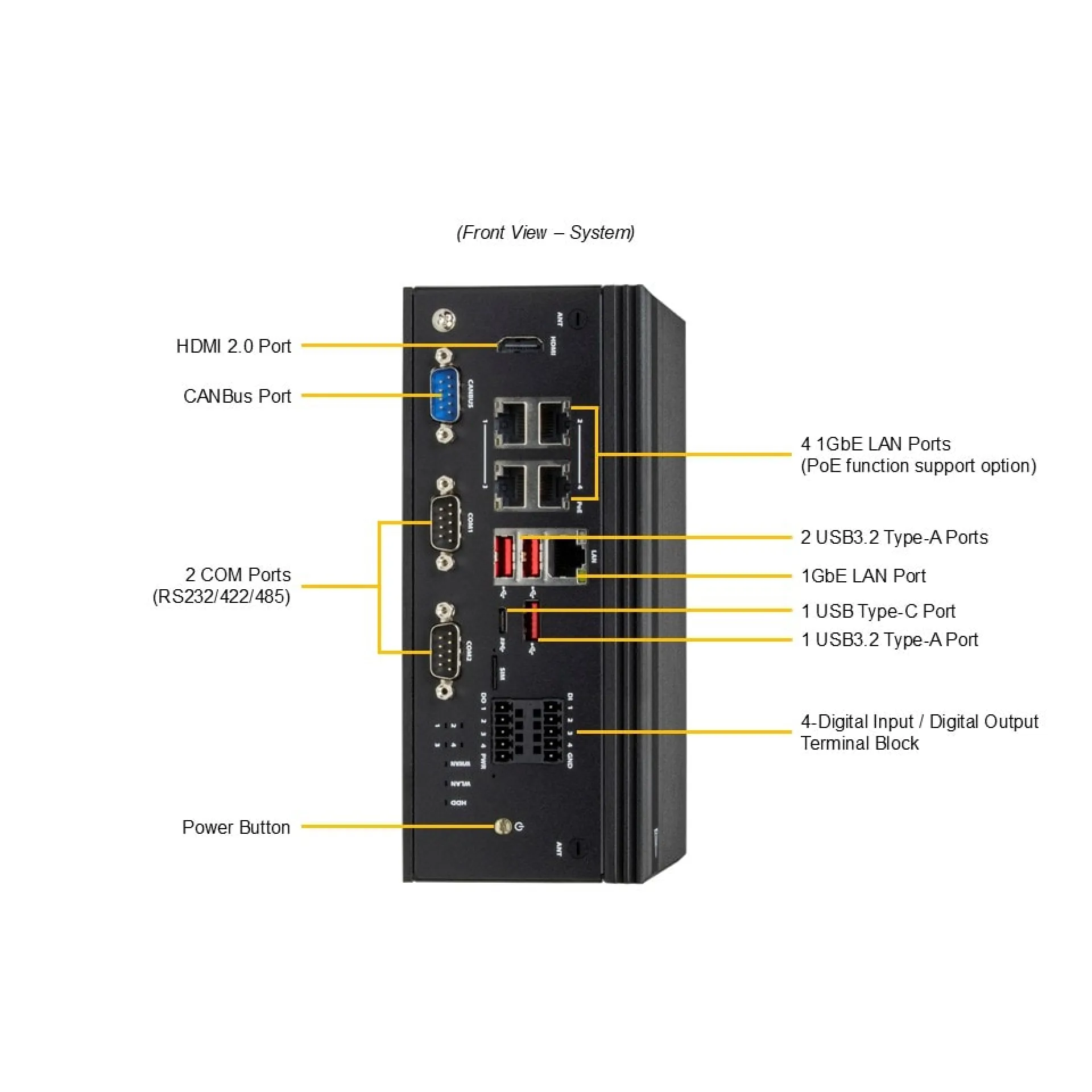

With onboard LPDDR5X memory (ECC supported) the ARS-E103-JONX-L prioritizes signal integrity and ruggedized reliability over user-expandable DIMMs, making it well suited to industrial edge deployments. Storage is optimized for fast local datasets and buffering through an M.2 2280 M-Key NVMe SSD path, while modular connectivity is enabled via M.2 E-Key and B-Key slots and dual nano-SIM holders for WLAN/BT or WWAN. A five-port 1GbE design (4x Intel I210-IT plus SoC LAN) supports multi-segment routing, camera networks, and OT/IT separation without PCIe NIC expansion, and front I/O plus CANBus and 4 DI/4 DO provide direct machine interfacing.
Why Choose the ARS-E103-JONX-L?

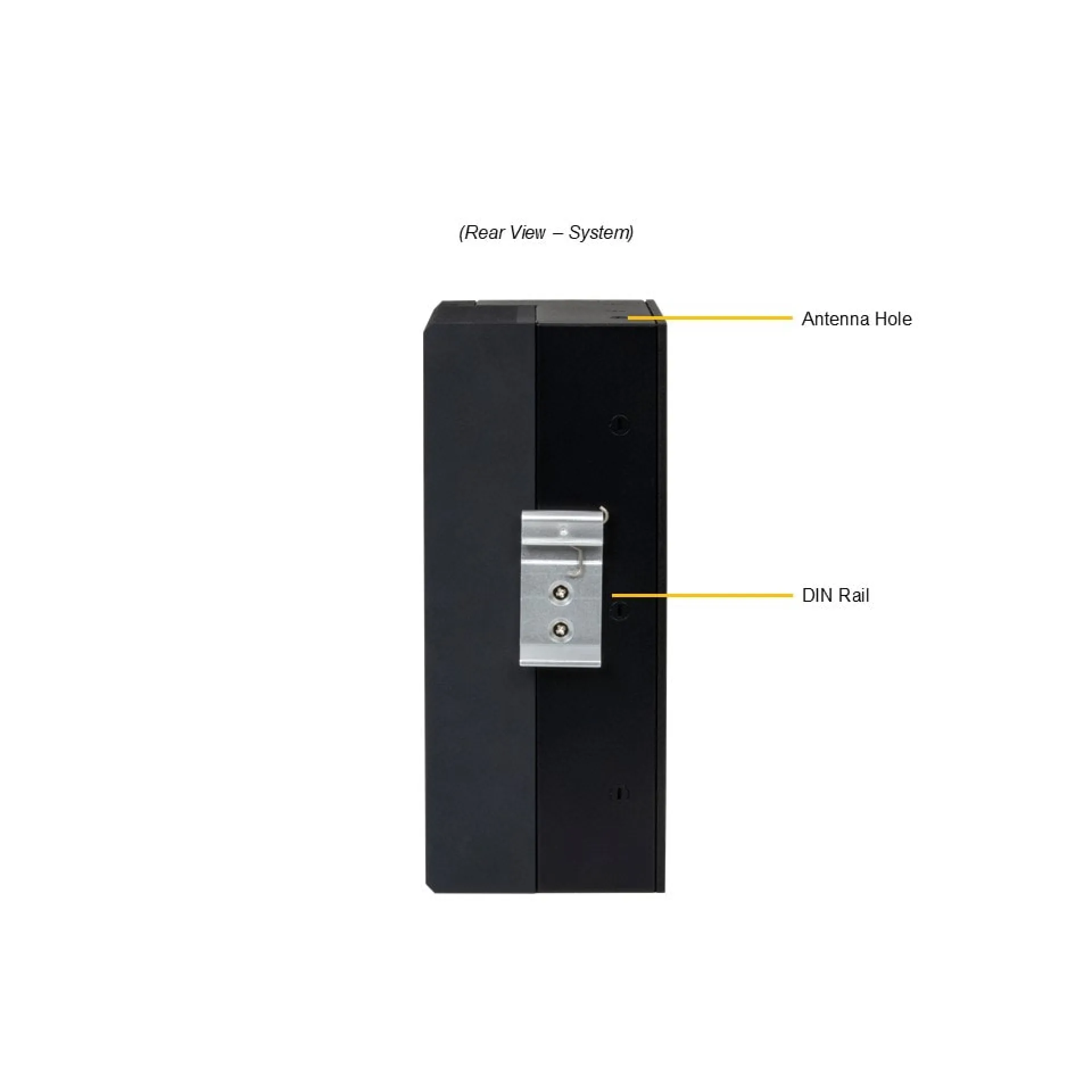

The ARS-E103-JONX-L delivers a high density-to-performance ratio by integrating CPU, GPU, and memory into a single SoC platform, reducing system complexity and power draw while maintaining enterprise-grade connectivity. Its fanless, DIN-rail-capable form factor and wide +9 to +36V DC input simplify scalable rollouts across cabinets, kiosks, and production lines where service windows are limited.
Supermicro designs embedded platforms with a focus on long-life components, predictable deployment profiles, and alignment with modern data center and edge operational standards, enabling consistent fleet management and stable platform availability.
Key Applications:
- Edge AI inference for computer vision
- Real-time industrial analytics
- Industrial/IoT gateway and protocol bridging
- Embedded video, signage, and local playback
- Multi-network segmentation at the edge
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your ARS-E103-JONX-L deployment plan and an extended warranty option up to 6 years to protect long-lived edge installations.
Technical details of ARS-E103-JONX-L
How long is the Warranty and how you can get technical support for ARS-E103-JONX-L
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
