Advanced Reference System (ARS)
Do you have questions about this product ARS-E103-JONX-H?
ARS-E103-JONX-H
High-Density Fanless Edge AI Embedded System for rugged inference deployments with the ARS-E103-JONX-H
The ARS-E103-JONX-H is a compact Supermicro edge reference platform built around the NVIDIA Jetson Orin NX SoC, combining an Arm Cortex-A78AE CPU with an integrated NVIDIA Ampere GPU for deterministic, low-latency AI inference at the edge. This architecture is optimized for computer vision and video analytics where local processing reduces backhaul bandwidth, improves privacy, and maintains service continuity during WAN disruptions.
With 8GB onboard ECC LPDDR5X, the ARS-E103-JONX-H prioritizes memory integrity and predictable behavior in embedded deployments, while accepting that the soldered design is not field-expandable. PCIe 4.0 x4 NVMe via M.2 2280 enables fast local datasets and model storage, complemented by dedicated M.2 E-Key and B-Key expansion for Wi-Fi, Bluetooth, or cellular modems with dual nano-SIM support. Multiple 1GbE ports and optional 10GbE uplift support segmented OT/IT networks, and configurable PoE/PoE+ simplifies powering cameras and sensors from the enclosure.
Why Choose the ARS-E103-JONX-H?

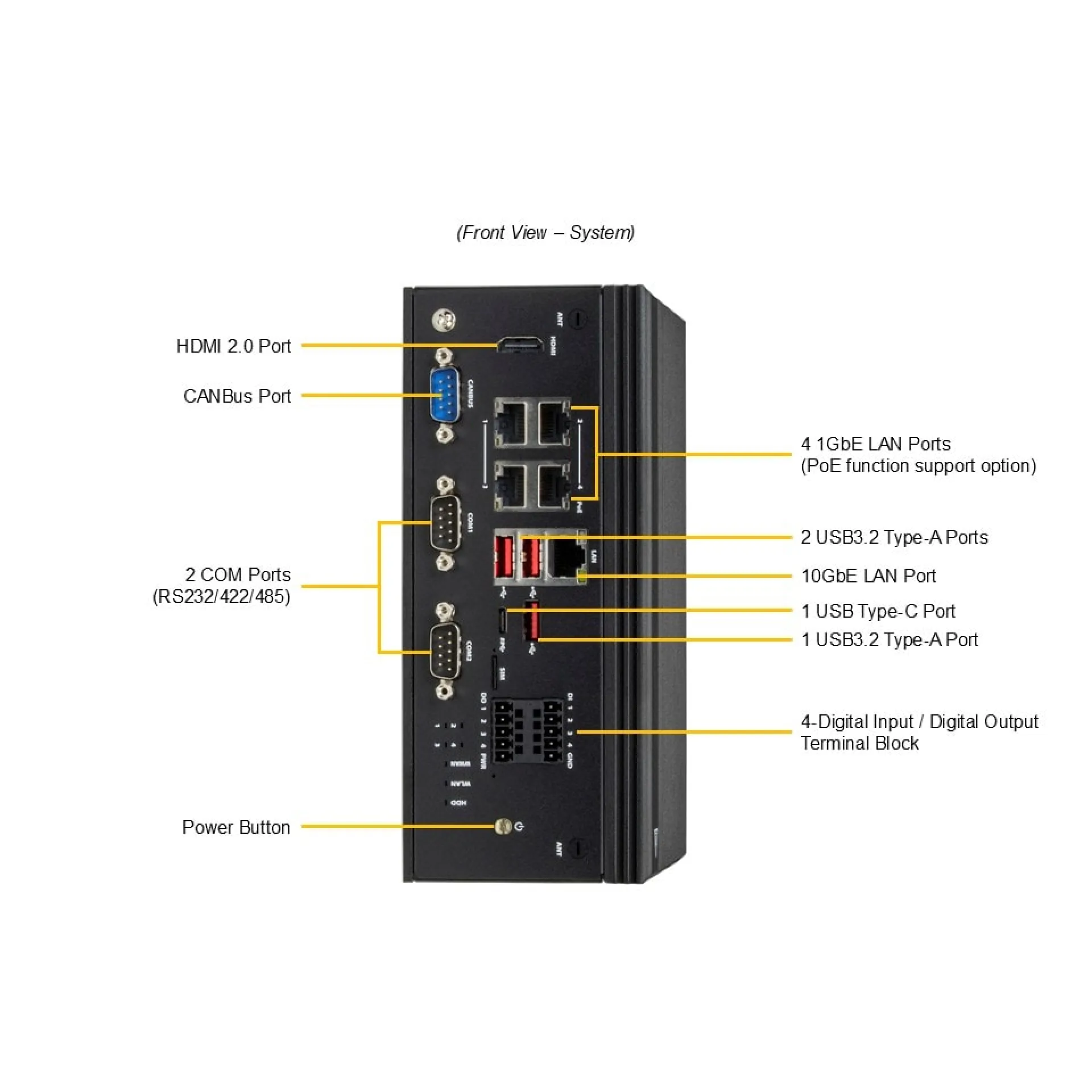

The ARS-E103-JONX-H delivers a strong density-to-performance profile for inference without the operational overhead of fans, aligning with constrained spaces, dust-sensitive areas, and maintenance-limited sites. The platform’s rich industrial I/O (COM, CANBus, DI/DO) and wide +9V to +36V DC input make the ARS-E103-JONX-H practical for gateways and embedded appliances that must scale consistently across distributed locations.
Supermicro designs embedded systems with an engineering focus on reliability, validated interoperability, and lifecycle consistency for modern data centre and edge standards, emphasizing stable platform integration and repeatable deployment for enterprise fleets.
Key Applications:
- Computer vision inference and video analytics
- Industrial automation gateways and sensor fusion
- Retail digital signage and smart kiosks
- Healthcare imaging edge appliances
- Ruggedized IoT edge networking
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment scope for the ARS-E103-JONX-H, with an extended warranty up to 6 years to support long-lived edge rollouts and predictable operational planning.
Technical details of ARS-E103-JONX-H
How long is the Warranty and how you can get technical support for ARS-E103-JONX-H
| Warranty: | 12 months (part) 12 months (labor) |
|---|---|
| Advanced replacement: | yes |
| RMA Url: | https://www.supermicro.com/en/support/rma/ |
| Description: | Cross-Shipment only in specific Time Frames. RMA-Number Required, No guaranteed delivery times. On-site service is not standard. |
| Support Portal: | https://support.happyware.com |
|---|
